Product Image W940/49_MANN-FILTER
Product Image W940/49_MANN-FILTER

Oil Filter
W 940/49

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

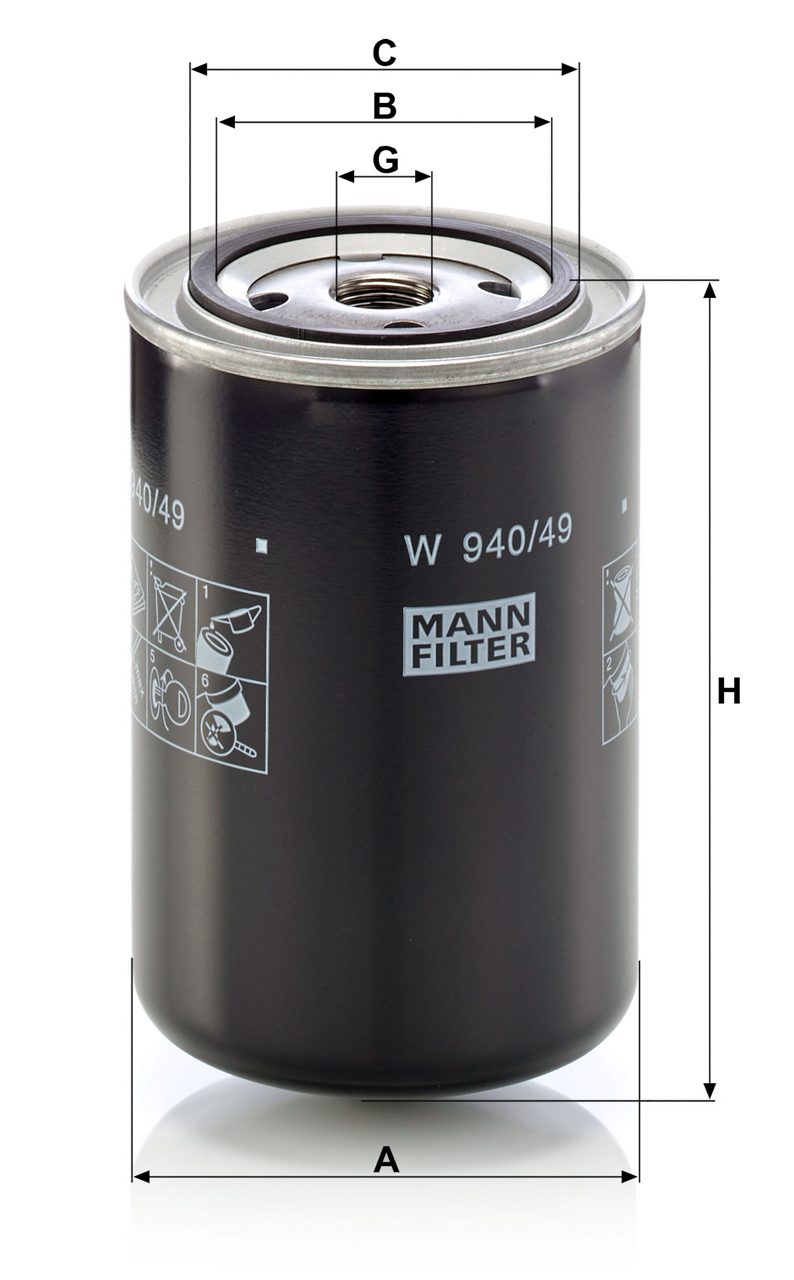

  • Outer diameter (A) = 93 mm; Inner diameter of gasket (B) = 63 mm; Outer diameter of gasket (C) = 72 mm; Thread Size (G) = 3/4-16UNF-1B; Height (H) = 145 mm
  • Main application: BOGE S - Serie, SD - Serie, SDF - Serie, SF - Serie, SLDF - Serie, SLF - Serie

GTIN Code: 4011558072476

Product Details

No data available

Product Image W940/49_MANN-FILTER
A 93 mm
B 63 mm
C 72 mm
G 3/4-16 UNF-1B mm
H 145 mm

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
15 (Belt driven screw compressors) (up to Serial No. 21866)
Oil Filter - - -
15 (Belt driven screw compressors) (from Serial No 21867)
Oil Filter - - -
16 (Belt driven screw compressors)
Oil Filter - 11 15
20 (Belt driven screw compressors)
Oil Filter - 15 20
20-2 (Belt driven screw compressors)
Oil Filter - 15 20
24 (Belt driven screw compressors)
Oil Filter - 19 26
24-2 (Belt driven screw compressors)
Oil Filter - 19 26
25 (Belt driven screw compressors)
Oil Filter - 19 26
29 (Belt driven screw compressors)
Oil Filter - 22 30
29-2 (Belt driven screw compressors)
Oil Filter - 22 30
31 (Belt driven screw compressors)
Oil Filter - 22 30
31-2 (Belt driven screw compressors)
Oil Filter - 22 30
40 (Belt driven screw compressors)
Oil Filter - 30 41
40-2 (Belt driven screw compressors)
Oil Filter - 30 41
50 (Belt driven screw compressors)
Oil Filter - 37 50
50-2 (Belt driven screw compressors)
Oil Filter - 37 50
50-2 BLUEKAT (Belt driven screw compressors)
Oil Filter - 37 50
60 (Belt-driven screw compressor)
Oil Filter - - -
Model Type 15 (Belt driven screw compressors) (up to Serial No. 21866)
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type 15 (Belt driven screw compressors) (from Serial No 21867)
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type 16 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 11
HP 15
Year of Manufacture
Model Type 20 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 15
HP 20
Year of Manufacture
Model Type 20-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 15
HP 20
Year of Manufacture
Model Type 24 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 19
HP 26
Year of Manufacture
Model Type 24-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 19
HP 26
Year of Manufacture
Model Type 25 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 19
HP 26
Year of Manufacture
Model Type 29 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 22
HP 30
Year of Manufacture
Model Type 29-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 22
HP 30
Year of Manufacture
Model Type 31 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 22
HP 30
Year of Manufacture
Model Type 31-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 22
HP 30
Year of Manufacture
Model Type 40 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 30
HP 41
Year of Manufacture
Model Type 40-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 30
HP 41
Year of Manufacture
Model Type 50 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 37
HP 50
Year of Manufacture
Model Type 50-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 37
HP 50
Year of Manufacture
Model Type 50-2 BLUEKAT (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 37
HP 50
Year of Manufacture
Model Type 60 (Belt-driven screw compressor)
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
20 (Belt driven screw compressors)
Oil Filter - 15 20
20-2 (Belt driven screw compressors)
Oil Filter - 15 20
24-2 (Belt driven screw compressors)
Oil Filter - 19 26
29 (Belt driven screw compressors)
Oil Filter - 22 30
29-2 (Belt driven screw compressors)
Oil Filter - 22 30
40 (Belt driven screw compressors)
Oil Filter - 30 41
40-2 (Belt driven screw compressors)
Oil Filter - 30 41
50-2 (Belt driven screw compressors)
Oil Filter - 37 50
60 (Belt driven screw compressors)
Oil Filter - 45 61
Model Type 20 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 15
HP 20
Year of Manufacture
Model Type 20-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 15
HP 20
Year of Manufacture
Model Type 24-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 19
HP 26
Year of Manufacture
Model Type 29 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 22
HP 30
Year of Manufacture
Model Type 29-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 22
HP 30
Year of Manufacture
Model Type 40 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 30
HP 41
Year of Manufacture
Model Type 40-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 30
HP 41
Year of Manufacture
Model Type 50-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 37
HP 50
Year of Manufacture
Model Type 60 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 45
HP 61
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
24 (Belt driven screw compressors)
Oil Filter - 19 26
24-2 (Belt driven screw compressors)
Oil Filter - 19 26
Model Type 24 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 19
HP 26
Year of Manufacture
Model Type 24-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 19
HP 26
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
24 (Belt driven screw compressors)
Oil Filter - 19 26
24-2 (Belt driven screw compressors)
Oil Filter - 19 26
29-2 (Belt driven screw compressors)
Oil Filter - 22 30
Model Type 24 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 19
HP 26
Year of Manufacture
Model Type 24-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 19
HP 26
Year of Manufacture
Model Type 29-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 22
HP 30
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
30 (Directly coupled screw compressors)
Oil Filter - 22 30
Model Type 30 (Directly coupled screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 22
HP 30
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
30 (Directly coupled screw compressors)
Oil Filter - 22 30
40 (Directly coupled screw compressors)
Oil Filter - 30 41
Model Type 30 (Directly coupled screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 22
HP 30
Year of Manufacture
Model Type 40 (Directly coupled screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 30
HP 41
Year of Manufacture

  • 558000303P
  • 558 001 901
  • 558 000 303

  • 05825002

  • 00701770/A

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W 940/49

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
