Product Image W940/63_MANN-FILTER
Product Image W940/63_MANN-FILTER

Oil Filter
W 940/63

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

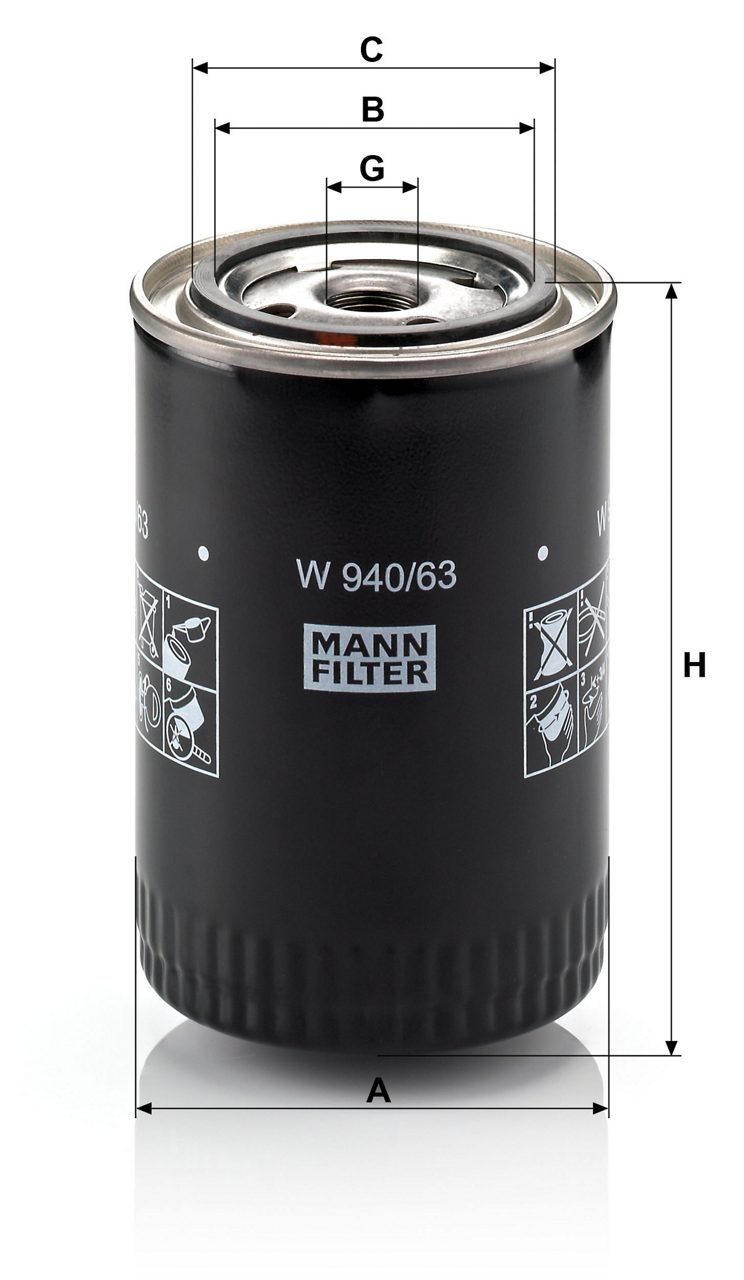

  • Outer diameter (A) = 93 mm; Inner diameter of gasket (B) = 62 mm; Outer diameter of gasket (C) = 71 mm; Thread Size (G) = 3/4-16UNF; Height (H) = 143 mm
  • Main application: MCCORMICK (ARGO) MC-Serie. NEW HOLLAND TN/TNA/TND/TNDA/TNF/TNS/TNN/TNV-Serie

GTIN Code: 4011558744908

Product Details

No data available

Product Image W940/63_MANN-FILTER
A 93 mm
B 62 mm
C 71 mm
G 3/4-16 UNF mm
H 143 mm
Bypass Valve Opening Pressure 2.5
Number of anti-drain back valve 2

Bypass Valve Opening Pressure 2.5
Number of anti-drain back valve 2

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
120 Power 6 (T2) Oil Filter Perkins 1006 - - - 01/04 →
135 Power 6 (T1)
Oil Filter Perkins 1106-E60TA 6000 98 132 01/02 → 12/04
135 Power 6 (T2)
Oil Filter Perkins 1006C-60TWGI 6000 100 136 01/04 → 12/07
Model Type 120 Power 6 (T2)
Filter Type Oil Filter
Engine Code Perkins 1006
ccm -
kW -
HP -
Year of Manufacture 01/04 →
Model Type 135 Power 6 (T1)
Filter Type Oil Filter
Engine Code Perkins 1106-E60TA
ccm 6000
kW 98
HP 132
Year of Manufacture 01/02 → 12/04
Model Type 135 Power 6 (T2)
Filter Type Oil Filter
Engine Code Perkins 1006C-60TWGI
ccm 6000
kW 100
HP 136
Year of Manufacture 01/04 → 12/07

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
TN 55, 55V/VDT/D/DDT/SDT Oil Filter Iveco 8035.05 2930 37 50 01/99 →
TN 60VA Oil Filter Iveco 2930 44 59
TN 65, 65D/DDT/SDT/V/VDT/NDT Oil Filter Iveco 8035.05 2930 44 60 01/99 → 12/02
TN 65F Oil Filter Iveco 8045.45 3908 48 65 11/97 →
TN 70 FDT/D/DDT/SDT Oil Filter Iveco 8035.25 - 51 69
TN 70NA Oil Filter Iveco 2930 53 72 05/04 →
TN 70VA Oil Filter Iveco 2930 53 72 05/04 →
TN 75, 75DDT/D/SDT/V/VDT/NDT Oil Filter Iveco 8035.05 Turbo 2931 53 72 01/99 →
TN 75F Oil Filter Iveco 8045.05 3908 56 75 11/97 → 10/01
TN 75N Oil Filter - - - 05/00 → 05/04
TN 75NA Oil Filter Iveco 2930 56 76 05/04 →
TN 75VA Oil Filter Iveco 2930 56 76 05/04 →
TN 90F Oil Filter Iveco 8045.05 Turbo 3908 65 88 11/97 →
TN 95FDT Oil Filter - 65 88
TN F-A, TN 75 FA Oil Filter 8045.05 3908 54 73
Model Type TN 55, 55V/VDT/D/DDT/SDT
Filter Type Oil Filter
Engine Code Iveco 8035.05
ccm 2930
kW 37
HP 50
Year of Manufacture 01/99 →
Model Type TN 60VA
Filter Type Oil Filter
Engine Code Iveco
ccm 2930
kW 44
HP 59
Year of Manufacture
Model Type TN 65, 65D/DDT/SDT/V/VDT/NDT
Filter Type Oil Filter
Engine Code Iveco 8035.05
ccm 2930
kW 44
HP 60
Year of Manufacture 01/99 → 12/02
Model Type TN 65F
Filter Type Oil Filter
Engine Code Iveco 8045.45
ccm 3908
kW 48
HP 65
Year of Manufacture 11/97 →
Model Type TN 70 FDT/D/DDT/SDT
Filter Type Oil Filter
Engine Code Iveco 8035.25
ccm -
kW 51
HP 69
Year of Manufacture
Model Type TN 70NA
Filter Type Oil Filter
Engine Code Iveco
ccm 2930
kW 53
HP 72
Year of Manufacture 05/04 →
Model Type TN 70VA
Filter Type Oil Filter
Engine Code Iveco
ccm 2930
kW 53
HP 72
Year of Manufacture 05/04 →
Model Type TN 75, 75DDT/D/SDT/V/VDT/NDT
Filter Type Oil Filter
Engine Code Iveco 8035.05 Turbo
ccm 2931
kW 53
HP 72
Year of Manufacture 01/99 →
Model Type TN 75F
Filter Type Oil Filter
Engine Code Iveco 8045.05
ccm 3908
kW 56
HP 75
Year of Manufacture 11/97 → 10/01
Model Type TN 75N
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture 05/00 → 05/04
Model Type TN 75NA
Filter Type Oil Filter
Engine Code Iveco
ccm 2930
kW 56
HP 76
Year of Manufacture 05/04 →
Model Type TN 75VA
Filter Type Oil Filter
Engine Code Iveco
ccm 2930
kW 56
HP 76
Year of Manufacture 05/04 →
Model Type TN 90F
Filter Type Oil Filter
Engine Code Iveco 8045.05 Turbo
ccm 3908
kW 65
HP 88
Year of Manufacture 11/97 →
Model Type TN 95FDT
Filter Type Oil Filter
Engine Code
ccm -
kW 65
HP 88
Year of Manufacture
Model Type TN F-A, TN 75 FA
Filter Type Oil Filter
Engine Code 8045.05
ccm 3908
kW 54
HP 73
Year of Manufacture

  • 2654403

  • 1931093
  • 87346188
  • 84227290

  • 505511

  • 330560148
  • 330070030

  • 4804651
  • VOE4804651

No data available

No data available

  • wrench removal tool LS 9
