Hydraulics
WD 13 145/5

About this item

MANN-FILTER spin-on hydraulic filters offer maximum filtration performance and thus ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

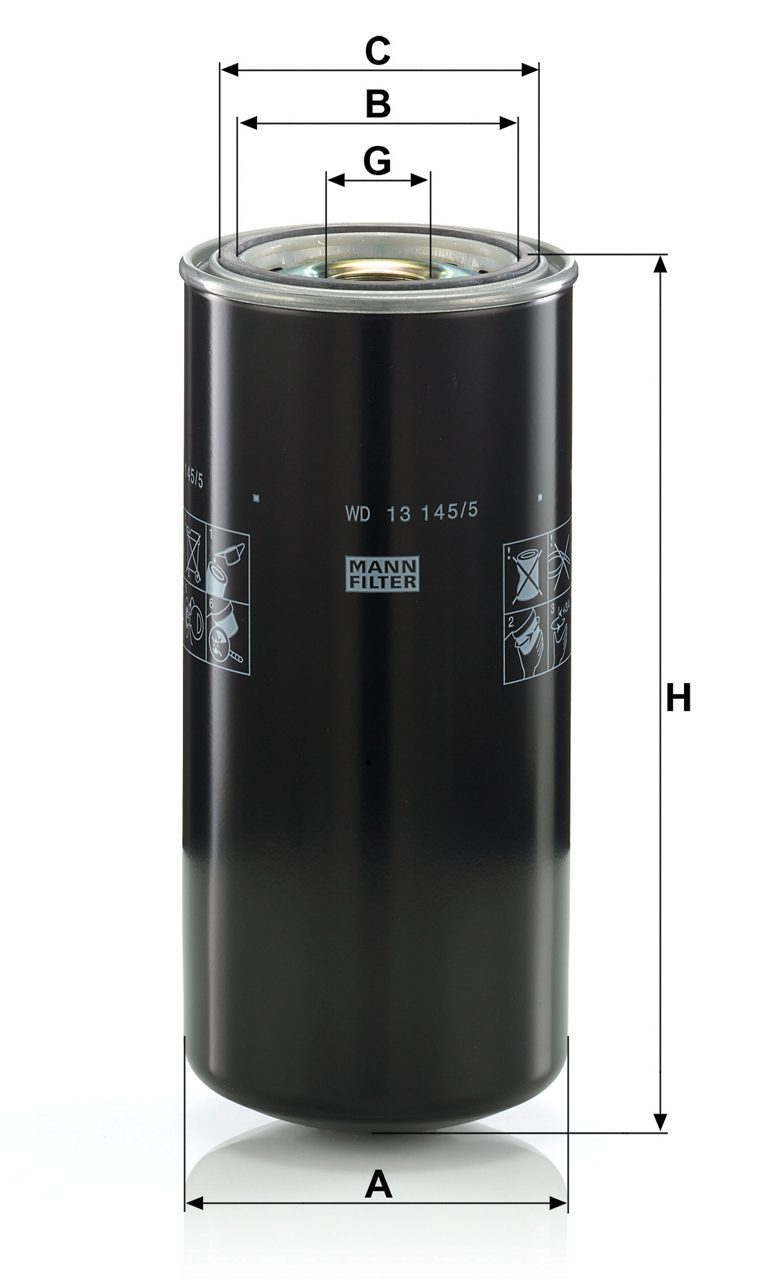

  • Outer diameter (A) = 136 mm; Inner diameter of gasket (B) = 100 mm; Outer diameter of gasket (C) = 111 mm; Thread Size (G) = 11/2-16UN-2B; Height (H) = 302 mm
  • Main application: INGERSOLL-RAND SSRM - Series

GTIN Code: 4011558083786

Product Details

No data available

Product Image WD13145/5_MANN-FILTER
A 136 mm
B 100 mm
C 111 mm
G 1 1/2-16 UN-2B mm
H 302 mm
Bypass Valve Opening Pressure 2.5

Bypass Valve Opening Pressure 2.5

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
SSRM 200
Hydraulics filter - - -
SSRM 200 2S
Hydraulics filter - - -
SSRM 200 2S LV
Hydraulics filter - - -
SSRM 250 2S
Hydraulics filter - - -
SSRM 300 2S
Hydraulics filter - - -
SSRM 350 2S
Hydraulics filter - - -
Model Type SSRM 200
Filter Type Hydraulics filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type SSRM 200 2S
Filter Type Hydraulics filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type SSRM 200 2S LV
Filter Type Hydraulics filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type SSRM 250 2S
Filter Type Hydraulics filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type SSRM 300 2S
Filter Type Hydraulics filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type SSRM 350 2S
Filter Type Hydraulics filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture

  • 92888262

  • 92888262

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: WD 13 145/5

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
