Product Image WD940/19_MANN-FILTER
Product Image WD940/19_MANN-FILTER

Oil Filter
WD 940/19

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

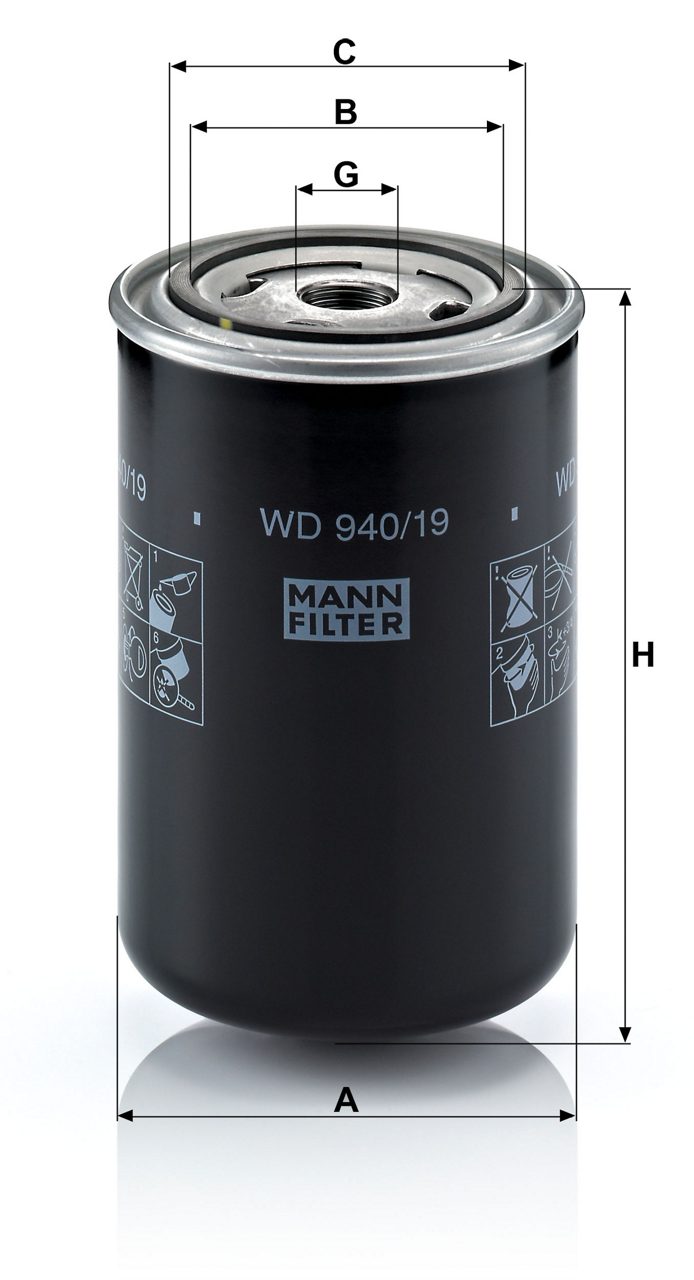

  • Outer diameter (A) = 93 mm; Inner diameter of gasket (B) = 63 mm; Outer diameter of gasket (C) = 72 mm; Thread Size (G) = 3/4-16UNF; Height (H) = 144 mm
  • Main application: BOGE S - Serie, SDF - Serie, SLDF - Serie, SLF - Serie. MAHLE COMPRESSORS MSK-I - Serie

GTIN Code: 4011558019013

Product Details

No data available

Product Image WD940/19_MANN-FILTER
A 93 mm
B 63 mm
C 72 mm
G 3/4-16 UNF mm
H 144 mm
Bypass Valve Opening Pressure 2.5

Bypass Valve Opening Pressure 2.5

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
15 (Belt driven screw compressors) (from Serial No 21867) Oil Filter - - -
15 (Belt driven screw compressors) (up to Serial No. 21869) Oil Filter - - -
20-2 (Belt driven screw compressors) Oil Filter - 15 20
24-2 (Belt driven screw compressors) Oil Filter - 19 26
29-2 (Belt driven screw compressors) Oil Filter - 22 30
40-2 BLUEKAT (Belt driven screw compressors)
Oil Filter - 30 41
Model Type 15 (Belt driven screw compressors) (from Serial No 21867)
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type 15 (Belt driven screw compressors) (up to Serial No. 21869)
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type 20-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 15
HP 20
Year of Manufacture
Model Type 24-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 19
HP 26
Year of Manufacture
Model Type 29-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 22
HP 30
Year of Manufacture
Model Type 40-2 BLUEKAT (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 30
HP 41
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
29-2 (Belt driven screw compressors)
Oil Filter - 22 30
Model Type 29-2 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 22
HP 30
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
40 (Directly coupled screw compressors)
Oil Filter - 30 41
Model Type 40 (Directly coupled screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 30
HP 41
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
40 BLUEKAT (Directly coupled screw compressors)
Oil Filter - 37 50
Model Type 40 BLUEKAT (Directly coupled screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 37
HP 50
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
MSK-I 04-07 Oil Filter - - -
Model Type MSK-I 04-07
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture

  • 0508/1724
  • 10001/2998
  • A04819974
  • 508 172 4
  • C 16012/302
  • 0481/9974

  • 048 199 74

  • F02133075

  • 213152

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: WD 940/19

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
