Hydraulics
WD 940/22

About this item

MANN-FILTER spin-on hydraulic filters offer maximum filtration performance and thus ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

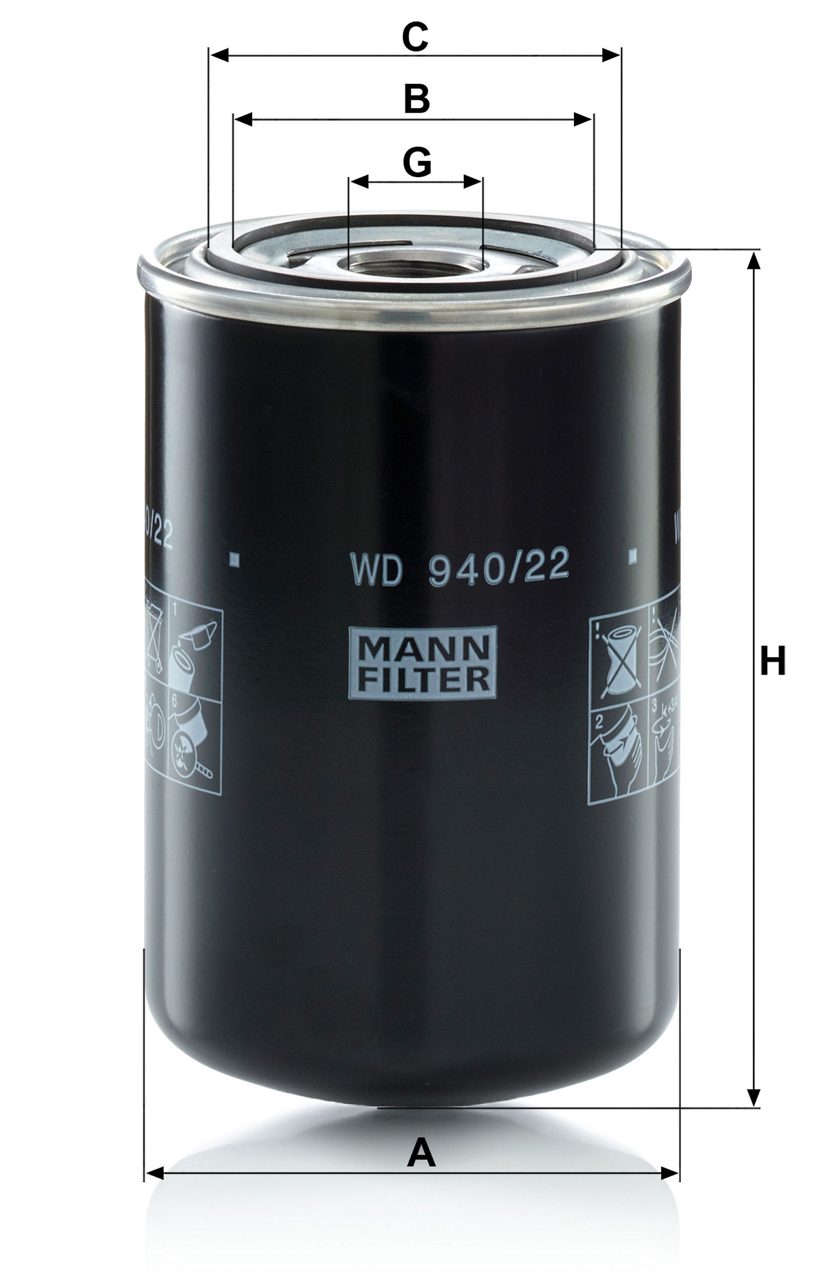

  • Outer diameter (A) = 93 mm; Inner diameter of gasket (B) = 63 mm; Outer diameter of gasket (C) = 72 mm; Thread Size (G) = 1-12UNF-1B; Height (H) = 147 mm
  • Main application: INGERSOLL-RAND IN - Series, SSRM - Series, SSRMH - Series, UNIGY - Series

GTIN Code: 4011558083724

Product Details

No data available

Product Image WD940/22_MANN-FILTER
A 93 mm
B 63 mm
C 72 mm
G 1-12 UNF-1B mm
H 147 mm
Bypass Valve Opening Pressure 2.5

Bypass Valve Opening Pressure 2.5

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
IN 10 50HZ Hydraulics filter - - -
IN 15 50HZ Hydraulics filter - - -
IN 7,5 50HZ Hydraulics filter - - -
Model Type IN 10 50HZ
Filter Type Hydraulics filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type IN 15 50HZ
Filter Type Hydraulics filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type IN 7,5 50HZ
Filter Type Hydraulics filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
SSRM 11 (from Serial N°2161200) Hydraulics filter - - -
SSRM 4 (from Serial N°2101200) Hydraulics filter - - -
SSRM 5.5 (from Serial N°2121300) Hydraulics filter - - -
SSRM 7,5 (from Serial N° 2141800) Hydraulics filter - - -
Model Type SSRM 11 (from Serial N°2161200)
Filter Type Hydraulics filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type SSRM 4 (from Serial N°2101200)
Filter Type Hydraulics filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type SSRM 5.5 (from Serial N°2121300)
Filter Type Hydraulics filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type SSRM 7,5 (from Serial N° 2141800)
Filter Type Hydraulics filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
SSRMH 5 Hydraulics filter - - -
Model Type SSRMH 5
Filter Type Hydraulics filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
UNIGY 07-10 / UNI 10-150 (USA) Hydraulics filter - - -
UNIGY 11-10 / UNI 15-150 (USA) Hydraulics filter - - -
Model Type UNIGY 07-10 / UNI 10-150 (USA)
Filter Type Hydraulics filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type UNIGY 11-10 / UNI 15-150 (USA)
Filter Type Hydraulics filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture

  • 39329602

  • 39329602

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: WD 940/22

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
