Oil Filter
W 920/8

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

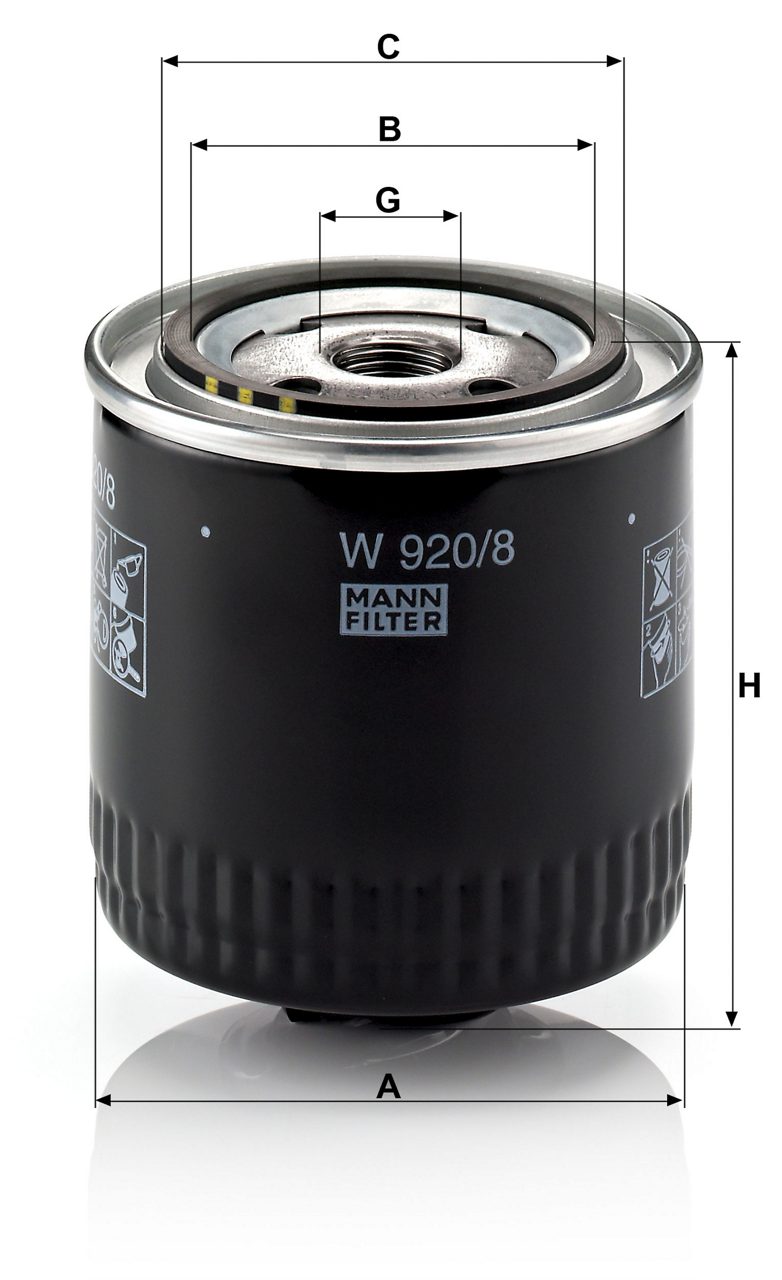

  • A = 3.661 in; B = 2.441 in; C = 2.795 in; G = 3/4-16 UNF; H = 4.016 in

GTIN Code: 4011558723101

Product Details

No data available

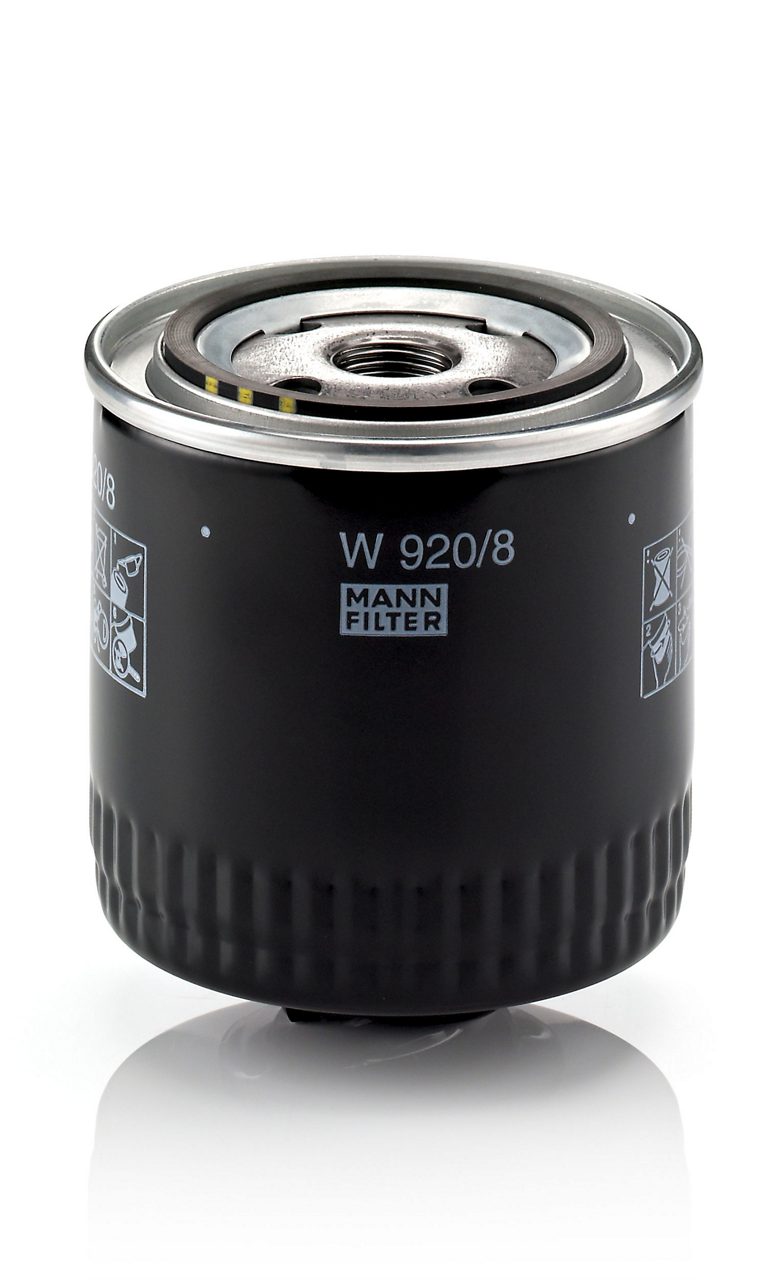

Product Image W920/8_MANN-FILTER
A 3.7 mm
B 2.4 mm
C 2.8 mm
G 3/4-16 UNF mm
H 4 mm
Bypass Valve Opening Pressure 36.3

Model Type Engine Code ccm kW HP Year of Manufacture
D 12 Oil Filter VW ADG 1.9 D - 32 44 01/00 →
D 16 Oil Filter VW ADG 1.9 D - 32 44 01/00 →
D 20 Oil Filter VW ADG 1.9 D - 32 44 01/00 →
Model Type D 12
Oil Filter
Engine Code VW ADG 1.9 D
ccm -
kW 32
HP 44
Year of Manufacture 01/00 →
Model Type D 16
Oil Filter
Engine Code VW ADG 1.9 D
ccm -
kW 32
HP 44
Year of Manufacture 01/00 →
Model Type D 20
Oil Filter
Engine Code VW ADG 1.9 D
ccm -
kW 32
HP 44
Year of Manufacture 01/00 →

Model Type Engine Code ccm kW HP Year of Manufacture
12 D Oil Filter VW ADG 1.9D - 32 44 01/00 →
16 D Oil Filter VW ADG 1.9D - 32 44 01/00 →
20 D Oil Filter VW ADG 1.9D - 32 44 01/00 →
Model Type 12 D
Oil Filter
Engine Code VW ADG 1.9D
ccm -
kW 32
HP 44
Year of Manufacture 01/00 →
Model Type 16 D
Oil Filter
Engine Code VW ADG 1.9D
ccm -
kW 32
HP 44
Year of Manufacture 01/00 →
Model Type 20 D
Oil Filter
Engine Code VW ADG 1.9D
ccm -
kW 32
HP 44
Year of Manufacture 01/00 →

Model Type Engine Code ccm kW HP Year of Manufacture
1.9 D Oil Filter VW-1Y 1900 52 70 07/92 → 12/96
Model Type 1.9 D
Oil Filter
Engine Code VW-1Y
ccm 1900
kW 52
HP 70
Year of Manufacture 07/92 → 12/96

  • 030 115 561 C

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W 920/8

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Oil Filter Content

Our engine oil filters work hard so your engine doesn’t have to

This crucial engine component ensures your engine functions smoothly and at peak performance. At MANN-FILTER we understand how to get the best out of every engine. And it starts with optimum filtration.

In the automotive aftermarket world prevention is always better than cure. Foresight and knowledge can save you – and your customers – time, money and hassle. Once a particle of soot or dust has got into the engine oil it starts to scratch the surfaces it comes into contact with, turning your lubricant being more abrasive. Just changing the oil isn’t enough – you also need to change the filter. Frequent oil filter changes prevent damage and keep your engine oil filter function at optimum levels.

Frictionless functionality. Optimal performance.

ANN-FILTER workshop partner installing an oil filter in a car
  • Longevity – A build-up of residue in engine oil can damage other components, but filtered, clean oil keeps things working at peak performance
  • Protection – Safeguards your engine parts from wear and tear
  • Reliability – Ensures your engine can function well, even in cold conditions
