Air Filter
C 30 1500/1

About this item

High-quality MANN-FILTER air filters for clean air intake and optimum protection for your engine, mass air flow sensor & other sensitive components / They meet requirements of modern engine technology. Highest dirt holding capacity and dirt separation efficiency, low flow resistance and high pleat stability ensure functional reliability during the entire service interval.

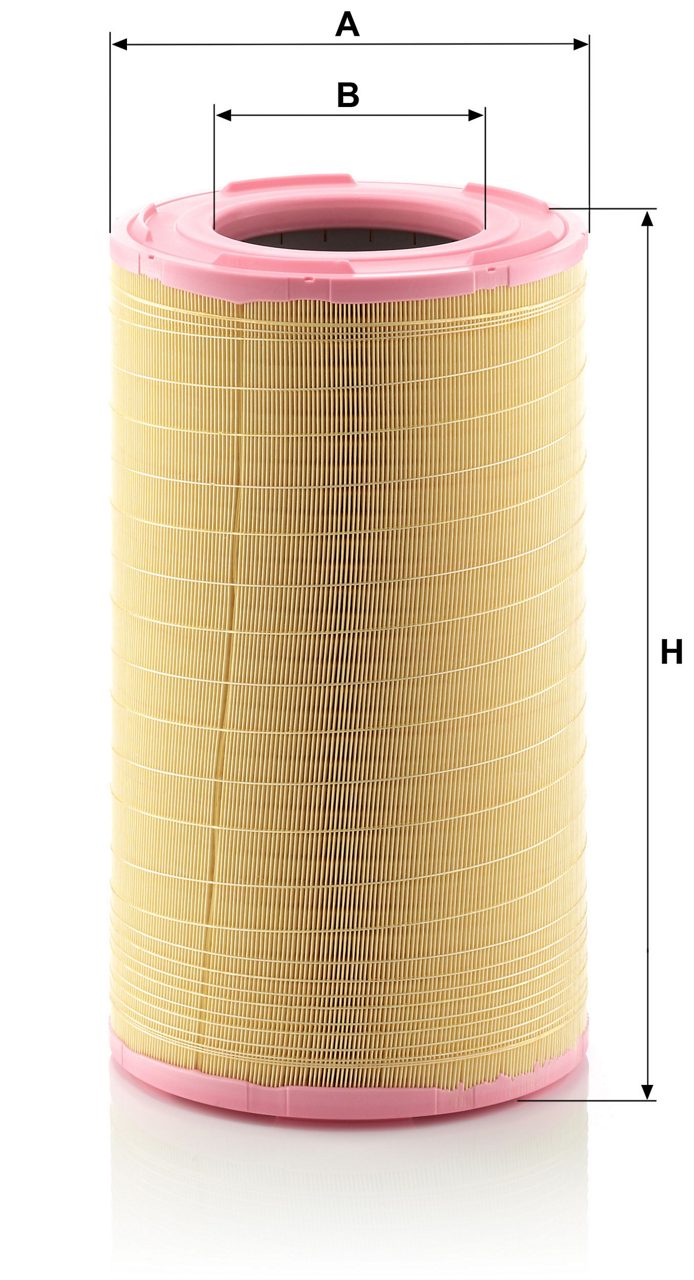

  • A = 304 mm; B = 169 mm; H = 528 mm
  • Spiral wound glue strip technology
  • secondary element CF 1720

GTIN Code: 4011558008888

Product Details

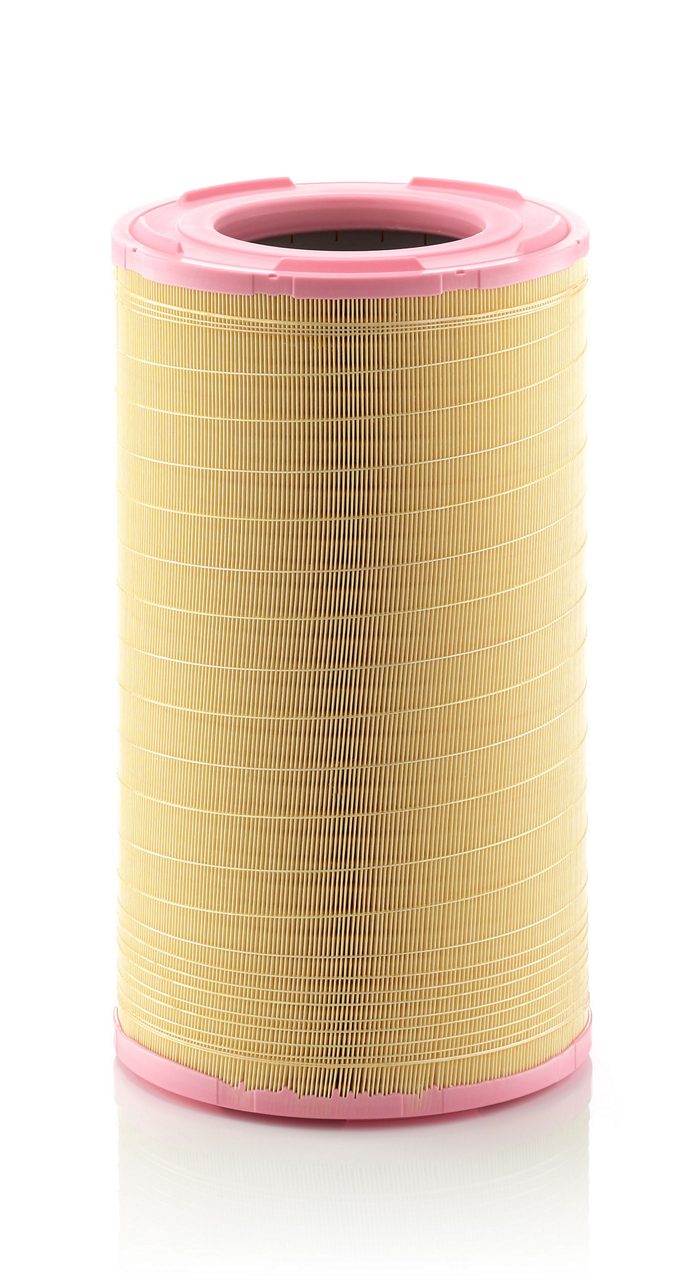

Product Image C301500/1_MANN-FILTER

Product Image C301500/1_MANN-FILTER
A 304 mm
B 169 mm
H 528 mm

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
R 500
Air Filter DC16 04/06/09/19/22 15600 368 500 03/04 → 05/19
R 560
Air Filter DC16 05/18-560 15600 412 560 06/04 → 05/19
R 580
Air Filter DC16 03-580 E3 15600 426 580 06/04 → 05/19
R 620
Air Filter DC16 08-620 E4, DC16 17-620 E5 15600 456 620 05/06 → 05/19
Model Type R 500
Filter Type Air Filter
Engine Code DC16 04/06/09/19/22
ccm 15600
kW 368
HP 500
Year of Manufacture 03/04 → 05/19
Model Type R 560
Filter Type Air Filter
Engine Code DC16 05/18-560
ccm 15600
kW 412
HP 560
Year of Manufacture 06/04 → 05/19
Model Type R 580
Filter Type Air Filter
Engine Code DC16 03-580 E3
ccm 15600
kW 426
HP 580
Year of Manufacture 06/04 → 05/19
Model Type R 620
Filter Type Air Filter
Engine Code DC16 08-620 E4, DC16 17-620 E5
ccm 15600
kW 456
HP 620
Year of Manufacture 05/06 → 05/19

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
T 500
Air Filter DC16 04 15600 368 500 09/04 → 05/19
T 580
Air Filter DC16 03-580 Euro3 15600 426 580 09/04 → 05/19
Model Type T 500
Filter Type Air Filter
Engine Code DC16 04
ccm 15600
kW 368
HP 500
Year of Manufacture 09/04 → 05/19
Model Type T 580
Filter Type Air Filter
Engine Code DC16 03-580 Euro3
ccm 15600
kW 426
HP 580
Year of Manufacture 09/04 → 05/19

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
R 144
Air Filter DSC 14 (Euro2) 14200 - - 11/95 → 12/01
R 164 V8 (164-480)
Air Filter DC 16.02 15600 353 480 06/00 → 10/04
R 164 V8 (164-580)
Air Filter DC 16.01 15600 426 580 06/00 → 10/04
T 144
Air Filter DSC 14 (Euro2) 14200 - - 11/95 → 12/01
T 164 V8 (164-480)
Air Filter DC 16.02 15600 353 480 06/00 → 10/04
T 164 V8 (164-580)
Air Filter DC 16.01 15600 426 580 06/00 → 10/04
Model Type R 144
Filter Type Air Filter
Engine Code DSC 14 (Euro2)
ccm 14200
kW -
HP -
Year of Manufacture 11/95 → 12/01
Model Type R 164 V8 (164-480)
Filter Type Air Filter
Engine Code DC 16.02
ccm 15600
kW 353
HP 480
Year of Manufacture 06/00 → 10/04
Model Type R 164 V8 (164-580)
Filter Type Air Filter
Engine Code DC 16.01
ccm 15600
kW 426
HP 580
Year of Manufacture 06/00 → 10/04
Model Type T 144
Filter Type Air Filter
Engine Code DSC 14 (Euro2)
ccm 14200
kW -
HP -
Year of Manufacture 11/95 → 12/01
Model Type T 164 V8 (164-480)
Filter Type Air Filter
Engine Code DC 16.02
ccm 15600
kW 353
HP 480
Year of Manufacture 06/00 → 10/04
Model Type T 164 V8 (164-580)
Filter Type Air Filter
Engine Code DC 16.01
ccm 15600
kW 426
HP 580
Year of Manufacture 06/00 → 10/04

  • K165289N50

  • 172 8817

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: C 30 1500/1

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-09-19 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Air Filter Content



Your engine and air filter working in fine-tuned harmony

Efficiency and speed come from perfect balance. Whether it’s in the quiet strength of a athlete's body or the sleek components of an engine, true power comes when things work in unison. Every part of your combustion engine is designed to serve a bigger purpose – to provide power and motion. For this to work properly you need each piece to be right. At MANN-FILTER we produce engine air filters that enable all the vital combustion and ignition elements in your engine to perform at their best.

What an engine air cleaner will do for your engine

Regelmäßige Wartungen von Motorluftfiltern ist essenziell um die Leistung des Motors zu erhalten

Contaminated engine air upsets the internal balance, leaving dirt and deposits on engine parts. This can impair the function of electronic components, cause ignition problems, waste fuel and shorten the engine’s life

  • You can keep your engine into equilibrium with a high-quality engine air filter that captures dust, pollen, soot and water droplets in the engine air

Reasons to install an engine air filter

Like the engines you drive and service, the world of filter design is always on the move. At MANN-FILTER we strive not only to keep up with new technologies and components, but to be the pacemakers ahead of the pack. That’s why our engine air filters are built to withstand everything life on the road might throw at them.

Discover the benefits of a MANN-FILTER air filter:

  • Protection – During the whole service interval
  • Security – High dust holding capacity and very low flow resistance
  • Longevity – Optimal protection for engine, mass flow meter and other sensitive engine components
