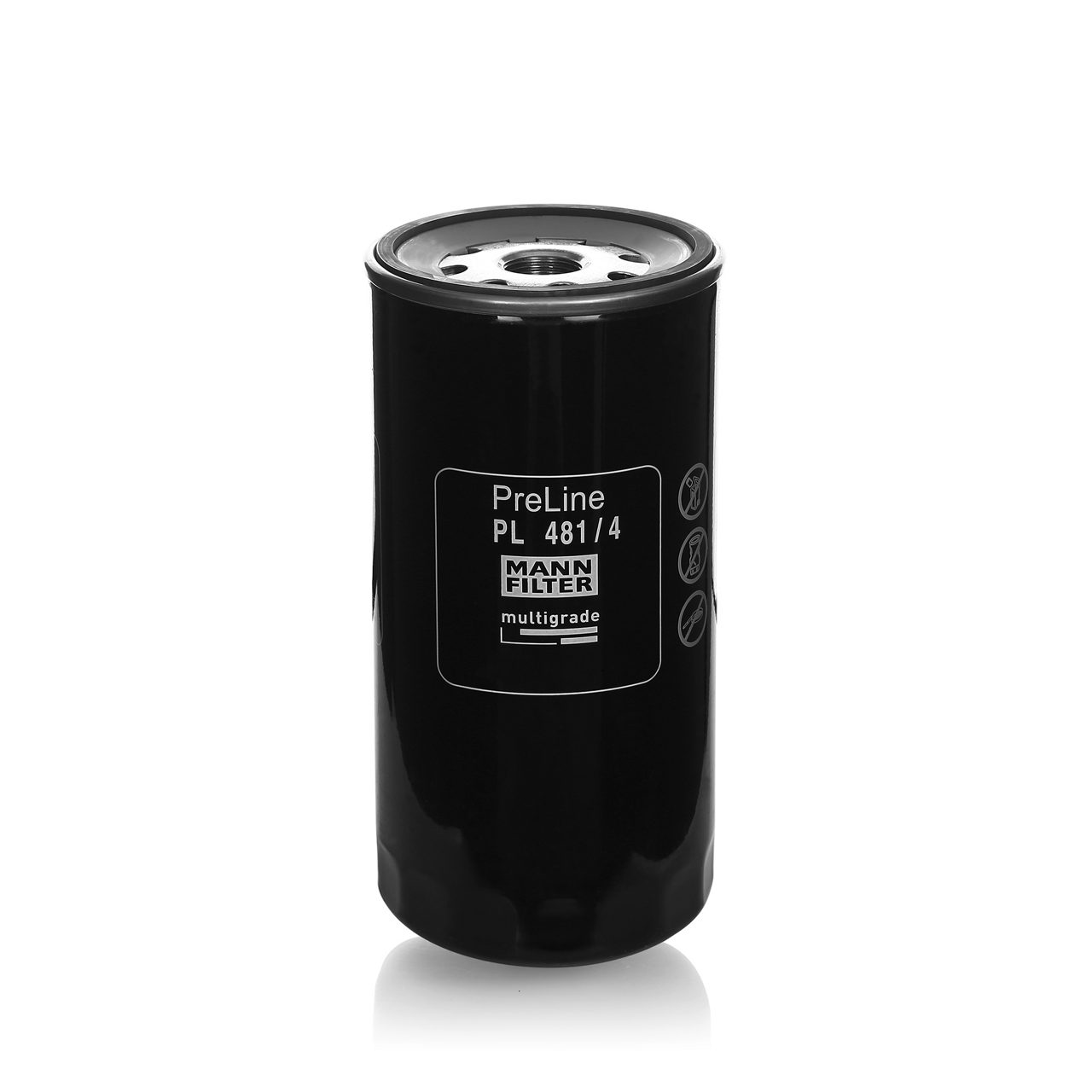

Fuel Filter
PL 481/4
New

About this item

High-quality MANN-FILTER fuel filters remove unwanted and damaging dirt particles and water from the fuel, thus avoiding possible damage due to wear and corrosion. Spin-on fuel filters with water separation efficiently separate water contained in the fuel and protect the injection system from damage.

  • Outer diameter (A) = 108 mm; Inner diameter of gasket (B) = 93 mm; Outer diameter of gasket (C) = 103 mm; Thread size entry (F) = M12x1.5-6H; Thread size exit (G) = 1-14 UNS - 1B; Height (H) = 241 mm
  • Main application: 一汽卡车 / FAW TRUCK J5M 大柴 欧3 / J5M FAW DEUTZ Euro 3, J5P 锡柴 欧3 / J5P FAWDE Euro 3, J6M 大柴 欧3 / J6M FAW DEUTZ Euro 3, J6P 锡柴 欧3 / J6P FAWDE Euro 3. 一汽解放 / FAW JIEFANG J6M, J6P
  • Water separator

GTIN Code: 4011558044763

Product Details

No data available

Height 241 mm
Inner diameter of gasket 93 mm
Outer diameter 108 mm
Outer diameter of gasket 103 mm
Thread size entry M12x1.5-6H mm
Thread size exit 1-14 UNS - 1B mm

Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
BF6M2012,6缸 / BF6M2012, 6 cyl. Fuel Filter 606 10162 50220
CA6DE3,6缸 / CA6DE3, 6 cyl. Fuel Filter 661 25154 70210
Model Type BF6M2012,6缸 / BF6M2012, 6 cyl.
Filter Type Fuel Filter
Engine Code
ccm 606
kW 10162
HP 50220
Year of Manufacture
Model Type CA6DE3,6缸 / CA6DE3, 6 cyl.
Filter Type Fuel Filter
Engine Code
ccm 661
kW 25154
HP 70210
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
CA6DL1,6缸 / CA6DL1, 6 cyl. Fuel Filter 77 91235 60320
CA6DL2,6缸 / CA6DL2, 6 cyl. Fuel Filter 857 6272 80370
CA6DM2,6缸 / CA6DM2, 6 cyl. Fuel Filter 11 57309 50420
Model Type CA6DL1,6缸 / CA6DL1, 6 cyl.
Filter Type Fuel Filter
Engine Code
ccm 77
kW 91235
HP 60320
Year of Manufacture
Model Type CA6DL2,6缸 / CA6DL2, 6 cyl.
Filter Type Fuel Filter
Engine Code
ccm 857
kW 6272
HP 80370
Year of Manufacture
Model Type CA6DM2,6缸 / CA6DM2, 6 cyl.
Filter Type Fuel Filter
Engine Code
ccm 11
kW 57309
HP 50420
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
CA6DE3,6缸 / CA6DE3, 6 cyl. Fuel Filter 661 25154 70210
Model Type CA6DE3,6缸 / CA6DE3, 6 cyl.
Filter Type Fuel Filter
Engine Code
ccm 661
kW 25154
HP 70210
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
CA6DL2,6缸 / CA6DL2, 6 cyl. Fuel Filter 857 6272 80370
CA6DM2,6缸 / CA6DM2, 6 cyl. Fuel Filter 11 57309 50420
CA6DN1,6缸 / CA6DN1, 6 cyl. Fuel Filter 125 87368 90500
Model Type CA6DL2,6缸 / CA6DL2, 6 cyl.
Filter Type Fuel Filter
Engine Code
ccm 857
kW 6272
HP 80370
Year of Manufacture
Model Type CA6DM2,6缸 / CA6DM2, 6 cyl.
Filter Type Fuel Filter
Engine Code
ccm 11
kW 57309
HP 50420
Year of Manufacture
Model Type CA6DN1,6缸 / CA6DN1, 6 cyl.
Filter Type Fuel Filter
Engine Code
ccm 125
kW 87368
HP 90500
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
锡柴/FAWDE Engine/CA6DL1 (重型/HCV) Fuel Filter 7700 258 346 01/08 →
锡柴/FAWDE Engine/CA6DL2 (重型/HCV) Fuel Filter 8600 288 386 01/08 →
Model Type 锡柴/FAWDE Engine/CA6DL1 (重型/HCV)
Filter Type Fuel Filter
Engine Code
ccm 7700
kW 258
HP 346
Year of Manufacture 01/08 →
Model Type 锡柴/FAWDE Engine/CA6DL2 (重型/HCV)
Filter Type Fuel Filter
Engine Code
ccm 8600
kW 288
HP 386
Year of Manufacture 01/08 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
锡柴/FAWDE Engine/CA6DL1 (重型/HCV) Fuel Filter 7700 258 346 01/07 → 01/17
锡柴/FAWDE Engine/CA6DM3 (重型/HCV) Fuel Filter 12520 415 557 01/15 →
Model Type 锡柴/FAWDE Engine/CA6DL1 (重型/HCV)
Filter Type Fuel Filter
Engine Code
ccm 7700
kW 258
HP 346
Year of Manufacture 01/07 → 01/17
Model Type 锡柴/FAWDE Engine/CA6DM3 (重型/HCV)
Filter Type Fuel Filter
Engine Code
ccm 12520
kW 415
HP 557
Year of Manufacture 01/15 →

No data available

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: PL 481/4

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
