Cabin Air Filter
CU 2327-2

About this item

High-quality MANN-FILTER cabin filters offer almost 100% protection against particles such as pollen, diesel soot and tyre abrasion - for a feel-good climate in the vehicle interior and protection of the air conditioning system. Exact fit and perfect tightness ensure constant filtration performance during the entire service interval / Optimum vehicle interior ventilation due to the high air flow capacity.

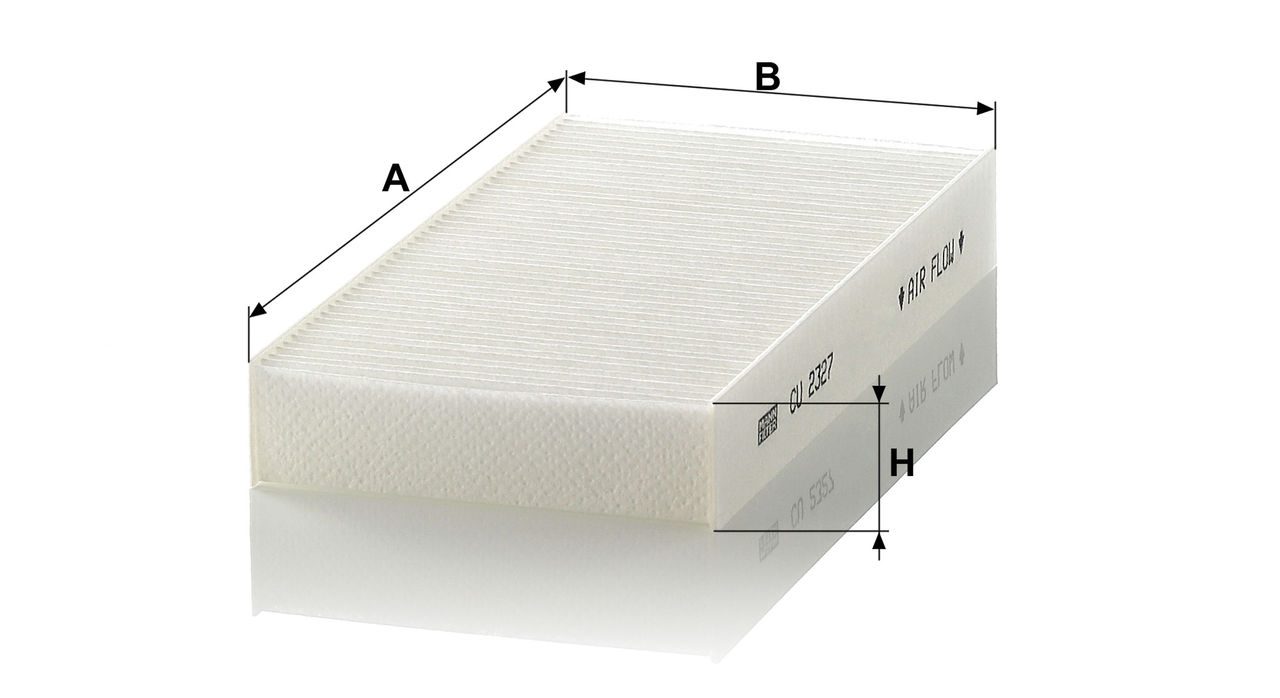

  • A = 225 mm; B = 112 mm; H = 30 mm

GTIN Code: 4011558559700

Mounting Instruction

Product Details

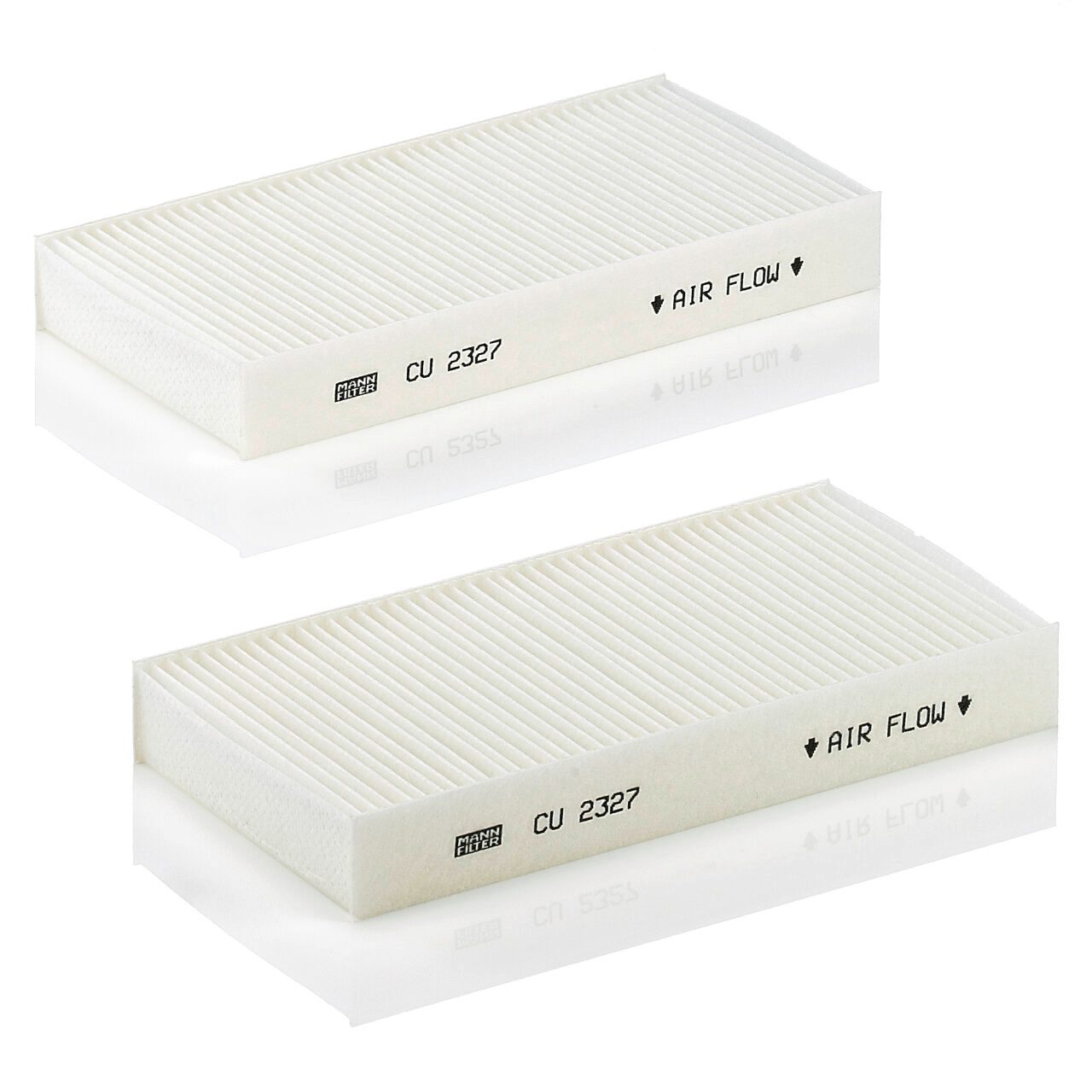

Product Image CU2327-2_MANN-FILTER

Product Image CU2327-2_MANN-FILTER
A 225
B 112
H 30

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.3i IMA Cabin Air Filter LDA1 1339 61 83 10/03 → 09/05
1.4i Cabin Air Filter D13B 1396 55 75 02/01 → 12/05
1.4i S Cabin Air Filter D13B, D14Z5, D14Z6 1396 66 90 02/01 → 09/05
1.6i Cabin Air Filter D16V1, D16W7 1590 81 110 02/01 → 12/05
1.7 CTDi Cabin Air Filter 4EE-2 1686 74 100 02/02 → 09/05
1.7i Cabin Air Filter D17A6, D17Z2 1668 85 116 02/01 → 09/05
1.7i ES VTEC Cabin Air Filter D17A5, D17A9 1668 92 125 02/01 → 12/05
1.7i LS Cabin Air Filter D17A8 1668 88 120 02/01 → 12/05
1.8 Cabin Air Filter R18A1 1798 103 140 02/01 → 09/05
2.0 Type-R Cabin Air Filter K20A2 1998 147 200 07/01 → 09/05
2.0i Sport Cabin Air Filter K20A3 1998 118 160 09/01 → 09/05
Model Type 1.3i IMA
Filter Type Cabin Air Filter
Engine Code LDA1
ccm 1339
kW 61
HP 83
Year of Manufacture 10/03 → 09/05
Model Type 1.4i
Filter Type Cabin Air Filter
Engine Code D13B
ccm 1396
kW 55
HP 75
Year of Manufacture 02/01 → 12/05
Model Type 1.4i S
Filter Type Cabin Air Filter
Engine Code D13B, D14Z5, D14Z6
ccm 1396
kW 66
HP 90
Year of Manufacture 02/01 → 09/05
Model Type 1.6i
Filter Type Cabin Air Filter
Engine Code D16V1, D16W7
ccm 1590
kW 81
HP 110
Year of Manufacture 02/01 → 12/05
Model Type 1.7 CTDi
Filter Type Cabin Air Filter
Engine Code 4EE-2
ccm 1686
kW 74
HP 100
Year of Manufacture 02/02 → 09/05
Model Type 1.7i
Filter Type Cabin Air Filter
Engine Code D17A6, D17Z2
ccm 1668
kW 85
HP 116
Year of Manufacture 02/01 → 09/05
Model Type 1.7i ES VTEC
Filter Type Cabin Air Filter
Engine Code D17A5, D17A9
ccm 1668
kW 92
HP 125
Year of Manufacture 02/01 → 12/05
Model Type 1.7i LS
Filter Type Cabin Air Filter
Engine Code D17A8
ccm 1668
kW 88
HP 120
Year of Manufacture 02/01 → 12/05
Model Type 1.8
Filter Type Cabin Air Filter
Engine Code R18A1
ccm 1798
kW 103
HP 140
Year of Manufacture 02/01 → 09/05
Model Type 2.0 Type-R
Filter Type Cabin Air Filter
Engine Code K20A2
ccm 1998
kW 147
HP 200
Year of Manufacture 07/01 → 09/05
Model Type 2.0i Sport
Filter Type Cabin Air Filter
Engine Code K20A3
ccm 1998
kW 118
HP 160
Year of Manufacture 09/01 → 09/05

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.0 16V (RD8) Cabin Air Filter K20A4 1998 110 150 06/02 → 12/06
2.2 CDTi (RD8) Cabin Air Filter N22A2 2204 103 140 02/05 → 12/06
Model Type 2.0 16V (RD8)
Filter Type Cabin Air Filter
Engine Code K20A4
ccm 1998
kW 110
HP 150
Year of Manufacture 06/02 → 12/06
Model Type 2.2 CDTi (RD8)
Filter Type Cabin Air Filter
Engine Code N22A2
ccm 2204
kW 103
HP 140
Year of Manufacture 02/05 → 12/06

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.7 Cabin Air Filter D17A2 1668 92 125 08/04 →
1.8 16V Cabin Air Filter R18A1 1799 103 140 01/07 →
2.0 Cabin Air Filter K20A9 1998 110 150 03/05 →
2.2i-CDTi Cabin Air Filter N22A1 2204 103 140 07/05 →
Model Type 1.7
Filter Type Cabin Air Filter
Engine Code D17A2
ccm 1668
kW 92
HP 125
Year of Manufacture 08/04 →
Model Type 1.8 16V
Filter Type Cabin Air Filter
Engine Code R18A1
ccm 1799
kW 103
HP 140
Year of Manufacture 01/07 →
Model Type 2.0
Filter Type Cabin Air Filter
Engine Code K20A9
ccm 1998
kW 110
HP 150
Year of Manufacture 03/05 →
Model Type 2.2i-CDTi
Filter Type Cabin Air Filter
Engine Code N22A1
ccm 2204
kW 103
HP 140
Year of Manufacture 07/05 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.7 16V Cabin Air Filter D17A2, D17A5 1668 92 125 03/01 → 09/06
2.0 ES 16V Cabin Air Filter K20A1, K20A5 1998 115 156 03/01 → 09/06
Model Type 1.7 16V
Filter Type Cabin Air Filter
Engine Code D17A2, D17A5
ccm 1668
kW 92
HP 125
Year of Manufacture 03/01 → 09/06
Model Type 2.0 ES 16V
Filter Type Cabin Air Filter
Engine Code K20A1, K20A5
ccm 1998
kW 115
HP 156
Year of Manufacture 03/01 → 09/06

  • 80292-S5A-003
  • 80292-S5D-A01
  • 08R79-S5A-600
  • 80292-S50-A01
  • 80292-SCA-G01
  • 80292-S5D-406
  • 80292-S6D-G01
  • 80292-SCA-E11
  • 80292-S6M-901
  • 80292-S5D-416

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: CU 2327-2

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2024-09-24 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Cabin Air Filter Content

Cabin air filters put the joy back into driving

Cabin air filter against pollen by MANN-FILTER

Air flows into a vehicle at a volume of up to 540,000 litres per hour through the ventilation ducts. Imagine the amount of dirt and dust that comes with it. Now picture that entering your lungs. Not a pretty picture. In fact, the air inside a car contains around five times more exhaust gases, pollutants and allergens than outside air. Vehicle cabin air filters remove up to 90% of even the tiniest  harmful particulates (up to 1µm, in size)  creating a barrier between passengers and the incoming air.

A MANN-FILTER cabin air filter can separate tiny particulates almost 100% – the damaging micro-organisms contained in pollen, exhaust fumes, smoke, fossil fuel emissions and gas droplets. Some of these are smaller than 3% of the diameter of a human hair. Which shows how powerful and effective a pollen filter is.

Dust and pollen filters: Benefits at a glance

What’s all the fuss about? Here are the cabin air filter benefits you will enjoy with a MANN-FILTER product:

  • Performance – Our premium products offer exceptional performance in cabin air filter technology
  • Wellbeing – Clean air improves the health and wellbeing of everyone traveling in the vehicle
  • Efficiency – Servicing and replacing the air conditioning filter in a car regularly improves system functionality
  • Support – Our easy to use online catalogue and simple installation instructions provide the guidance for a perfect fit!

What you need to know about changing a cabin air filter

Replace your cabin air filter after 15.000 km or every year

Cabin air filter replacement is vital to keeping the air clean inside your vehicle. This is often done as a feature of your regular servicing regime. Cabin air filters should be replaced once a year or every 15,000 km. To optimize the clean air inside the car and improve the driving experience, check your cabin air filter annually.

How will you know if your cabin air filter needs changing?

  • Listen out for strange noises. These could be caused by deposits inside the filter
  • Watch for unpleasant smells
  • Poor air flow is a sign of a clogged cabin air filter
  • If your windows fog up frequently and are hard to clear, change your filter

Compare all MANN-FILTER cabin air filters

BenefitsPREMIUM
FreciousPlus (FP)
ADVANCED
CUK
BASIC
CU
Provides more than 95% protection against allergens
Prevents growth of mold and bacteria on the filter
Blocks particulate matter up to 95% (PM2.5)
Eliminates almost 90% of odours
Traps harmful gases, such as ozone, nitrogen oxides and sulphur dioxide
Almost 100% filtration of tiny particles
Significant reduction of diesel soot (>95%)
Protects the air conditioning system
