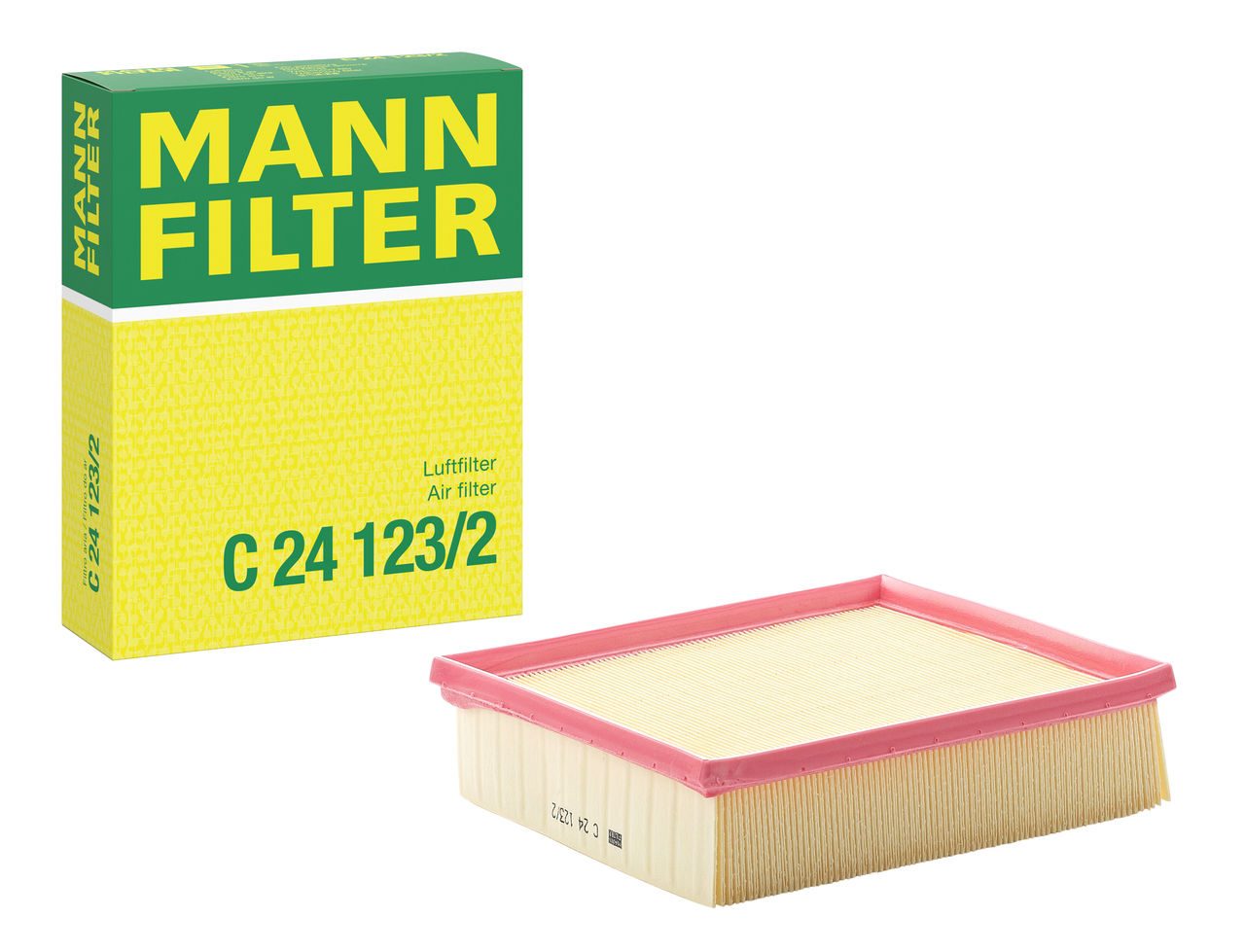

Air Filter
C 24 123/2

About this item

High-quality MANN-FILTER air filters for clean air intake and optimum protection for your engine, mass air flow sensor & other sensitive components / They meet requirements of modern engine technology. Highest dirt holding capacity and dirt separation efficiency, low flow resistance and high pleat stability ensure functional reliability during the entire service interval.

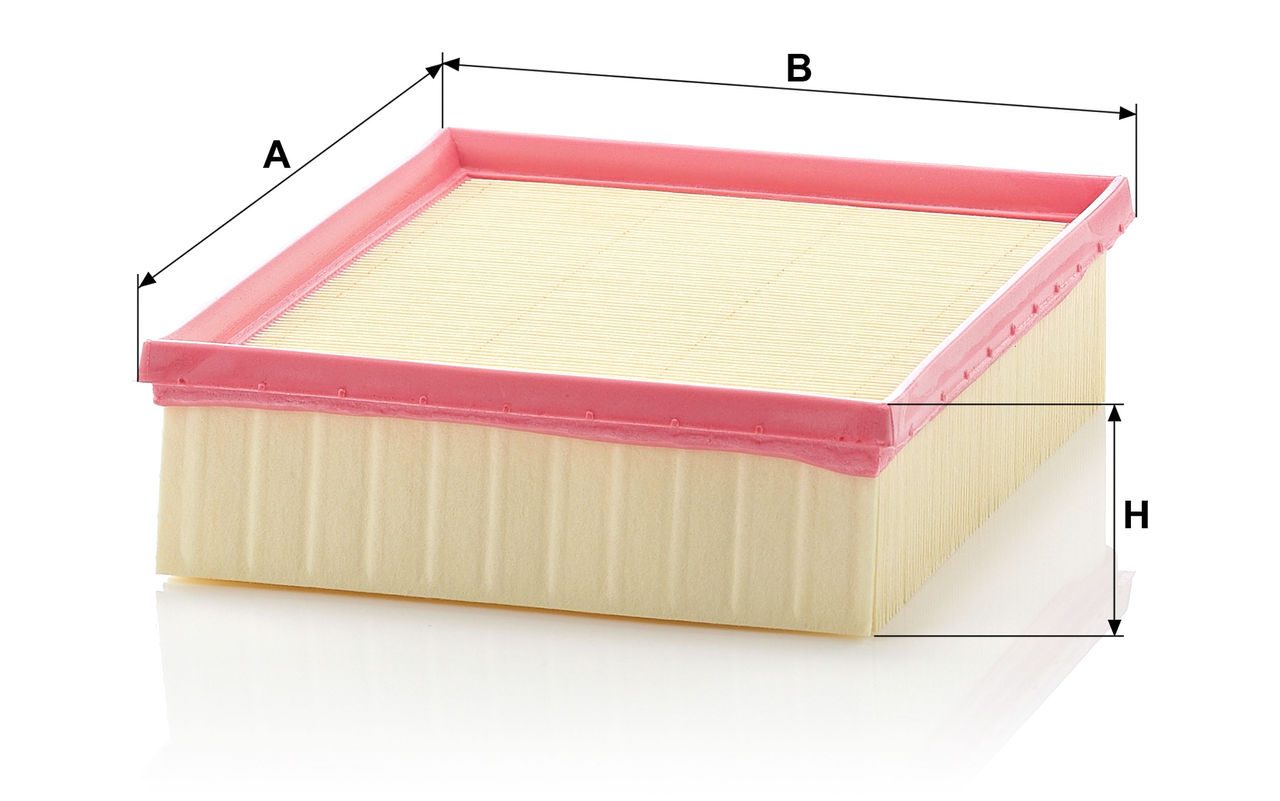

  • A = 231 mm; B = 194 mm; H = 58 mm

GTIN Code: 4011558419103

Product Details

Product Image C24123/2_MANN-FILTER

Product Image C24123/2_MANN-FILTER
A 231
B 194
H 58

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.8 Air Filter M5P 400, 404, 610 1798 185 252 12/17 →
1.8 S Air Filter M5P 424, 610 1798 215 292 10/19 →
Model Type 1.8
Filter Type Air Filter
Engine Code M5P 400, 404, 610
ccm 1798
kW 185
HP 252
Year of Manufacture 12/17 →
Model Type 1.8 S
Filter Type Air Filter
Engine Code M5P 424, 610
ccm 1798
kW 215
HP 292
Year of Manufacture 10/19 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.2 dCi Air Filter G9T 2188 84 114 04/04 → 11/05
2.2 dCi Air Filter G9T 2188 98 134 11/00 → 03/02
2.2 dCi 16V Air Filter G9T-702 2188 110 150 02/02 → 08/06
2.2 dCi 16V FAP Air Filter G9T 2188 102 139 12/04 → 12/07
3.0 V6 24V Air Filter L7X 731 2946 152 207 03/01 → 12/07
Model Type 2.2 dCi
Filter Type Air Filter
Engine Code G9T
ccm 2188
kW 84
HP 114
Year of Manufacture 04/04 → 11/05
Model Type 2.2 dCi
Filter Type Air Filter
Engine Code G9T
ccm 2188
kW 98
HP 134
Year of Manufacture 11/00 → 03/02
Model Type 2.2 dCi 16V
Filter Type Air Filter
Engine Code G9T-702
ccm 2188
kW 110
HP 150
Year of Manufacture 02/02 → 08/06
Model Type 2.2 dCi 16V FAP
Filter Type Air Filter
Engine Code G9T
ccm 2188
kW 102
HP 139
Year of Manufacture 12/04 → 12/07
Model Type 3.0 V6 24V
Filter Type Air Filter
Engine Code L7X 731
ccm 2946
kW 152
HP 207
Year of Manufacture 03/01 → 12/07

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.0 16V Turbo (BJ0K06) Air Filter F4R 1998 120 164 03/02 →
Model Type 2.0 16V Turbo (BJ0K06)
Filter Type Air Filter
Engine Code F4R
ccm 1998
kW 120
HP 164
Year of Manufacture 03/02 →

  • 82 00 421 711
  • 77 00 111 834
  • 82 00 430 865
  • 82 00 799 782
  • 16 54 668 78R

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: C 24 123/2

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2024-09-24 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Air Filter Content

Your engine and air filter working in fine-tuned harmony

Efficiency and speed come from perfect balance. Whether it’s in the quiet strength of a athlete's body or the sleek components of an engine, true power comes when things work in unison. Every part of your combustion engine is designed to serve a bigger purpose – to provide power and motion. For this to work properly you need each piece to be right. At MANN-FILTER we produce engine air filters that enable all the vital combustion and ignition elements in your engine to perform at their best.

What an engine air cleaner will do for your engine

Contaminated engine air upsets the internal balance, leaving dirt and deposits on engine parts. This can impair the function of electronic components, cause ignition problems, waste fuel and shorten the engine’s life

  • You can keep your engine into equilibrium with a high-quality engine air filter that captures dust, pollen, soot and water droplets in the engine air

Reasons to install an engine air filter

Like the engines you drive and service, the world of filter design is always on the move. At MANN-FILTER we strive not only to keep up with new technologies and components, but to be the pacemakers ahead of the pack. That’s why our engine air filters are built to withstand everything life on the road might throw at them.

Discover the benefits of a MANN-FILTER air filter:

  • Protection – During the whole service interval
  • Security – High dust holding capacity and very low flow resistance
  • Longevity – Optimal protection for engine, mass flow meter and other sensitive engine components
