Cabin Air Filter
CU 20 018

About this item

High-quality MANN-FILTER cabin filters offer almost 100% protection against particles such as pollen, diesel soot and tyre abrasion - for a feel-good climate in the vehicle interior and protection of the air conditioning system. Exact fit and perfect tightness ensure constant filtration performance during the entire service interval / Optimum vehicle interior ventilation due to the high air flow capacity.

  • A = 196 mm; B = 201 mm; H = 37 mm

GTIN Code: 4011558071158

Mounting Instruction

Product Details

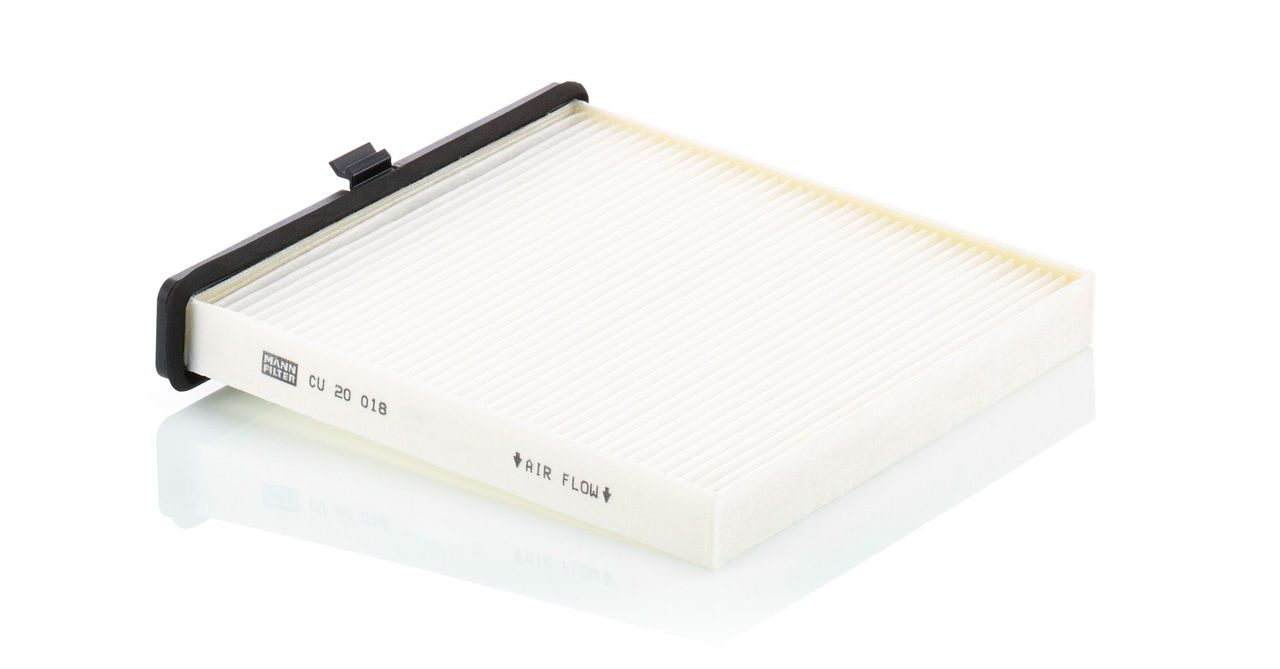

Product Image CU20018_MANN-FILTER

Product Image CU20018_MANN-FILTER
A 196 mm
B 201 mm
H 37 mm

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.5 AWD Cabin Air Filter P5-VPS 1496 81 110 08/18 →
1.5 Skyactiv-D 105 Cabin Air Filter S5-DPTR,S5DPTS,S5Y2,S5Y5,S5Y6 1499 77 105 08/14 → 02/18
1.5 Skyactiv-G 115 Cabin Air Filter P5-VPS,P5X0,P5X2,P5Y5,P5Z3, 1496 85 115 08/14 →
Model Type 1.5 AWD
Filter Type Cabin Air Filter
Engine Code P5-VPS
ccm 1496
kW 81
HP 110
Year of Manufacture 08/18 →
Model Type 1.5 Skyactiv-D 105
Filter Type Cabin Air Filter
Engine Code S5-DPTR,S5DPTS,S5Y2,S5Y5,S5Y6
ccm 1499
kW 77
HP 105
Year of Manufacture 08/14 → 02/18
Model Type 1.5 Skyactiv-G 115
Filter Type Cabin Air Filter
Engine Code P5-VPS,P5X0,P5X2,P5Y5,P5Z3,
ccm 1496
kW 85
HP 115
Year of Manufacture 08/14 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.0 (BP) Cabin Air Filter 1998 114 155 01/19 →
2.5 SKYACTIV-G Cabin Air Filter PYZ8, PYZC 2488 139 186 04/19 →
Model Type 2.0 (BP)
Filter Type Cabin Air Filter
Engine Code
ccm 1998
kW 114
HP 155
Year of Manufacture 01/19 →
Model Type 2.5 SKYACTIV-G
Filter Type Cabin Air Filter
Engine Code PYZ8, PYZC
ccm 2488
kW 139
HP 186
Year of Manufacture 04/19 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.5 Skyactiv-D 105 Cabin Air Filter S5-DPTR, S5-DPTS, S5Y2, S5Y5 1499 77 105 02/15 → 01/18
1.8 Cabin Air Filter S8Y1 1759 85 116 02/18 →
2.0 SKYACTIV-G Cabin Air Filter PEX3 1998 115 156 01/16 → 11/20
2.0 SKYACTIV-G AWD Cabin Air Filter PEXN 1998 115 156 08/19 →
2.0 Skyactiv-G 120 Cabin Air Filter PEXB, PEXT 1998 88 120 02/15 →
2.0 Skyactiv-G 150 Cabin Air Filter PE-VPS, PEX3, PEXB, PEXT 1998 110 150 02/15 →
Model Type 1.5 Skyactiv-D 105
Filter Type Cabin Air Filter
Engine Code S5-DPTR, S5-DPTS, S5Y2, S5Y5
ccm 1499
kW 77
HP 105
Year of Manufacture 02/15 → 01/18
Model Type 1.8
Filter Type Cabin Air Filter
Engine Code S8Y1
ccm 1759
kW 85
HP 116
Year of Manufacture 02/18 →
Model Type 2.0 SKYACTIV-G
Filter Type Cabin Air Filter
Engine Code PEX3
ccm 1998
kW 115
HP 156
Year of Manufacture 01/16 → 11/20
Model Type 2.0 SKYACTIV-G AWD
Filter Type Cabin Air Filter
Engine Code PEXN
ccm 1998
kW 115
HP 156
Year of Manufacture 08/19 →
Model Type 2.0 Skyactiv-G 120
Filter Type Cabin Air Filter
Engine Code PEXB, PEXT
ccm 1998
kW 88
HP 120
Year of Manufacture 02/15 →
Model Type 2.0 Skyactiv-G 150
Filter Type Cabin Air Filter
Engine Code PE-VPS, PEX3, PEXB, PEXT
ccm 1998
kW 110
HP 150
Year of Manufacture 02/15 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.5 Skyactive-G Cabin Air Filter PYZC 2488 143 194 09/19 →
Model Type 2.5 Skyactive-G
Filter Type Cabin Air Filter
Engine Code PYZC
ccm 2488
kW 143
HP 194
Year of Manufacture 09/19 →

  • D09W6-1J6X9A
  • DB9L-61-J6X
  • D09W-61-J6X

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: CU 20 018

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2024-09-24 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Cabin Air Filter Content

Cabin air filters put the joy back into driving

Cabin air filter against pollen by MANN-FILTER

Air flows into a vehicle at a volume of up to 540,000 litres per hour through the ventilation ducts. Imagine the amount of dirt and dust that comes with it. Now picture that entering your lungs. Not a pretty picture. In fact, the air inside a car contains around five times more exhaust gases, pollutants and allergens than outside air. Vehicle cabin air filters remove up to 90% of even the tiniest  harmful particulates (up to 1µm, in size)  creating a barrier between passengers and the incoming air.

A MANN-FILTER cabin air filter can separate tiny particulates almost 100% – the damaging micro-organisms contained in pollen, exhaust fumes, smoke, fossil fuel emissions and gas droplets. Some of these are smaller than 3% of the diameter of a human hair. Which shows how powerful and effective a pollen filter is.

Dust and pollen filters: Benefits at a glance

What’s all the fuss about? Here are the cabin air filter benefits you will enjoy with a MANN-FILTER product:

  • Performance – Our premium products offer exceptional performance in cabin air filter technology
  • Wellbeing – Clean air improves the health and wellbeing of everyone traveling in the vehicle
  • Efficiency – Servicing and replacing the air conditioning filter in a car regularly improves system functionality
  • Support – Our easy to use online catalogue and simple installation instructions provide the guidance for a perfect fit!

What you need to know about changing a cabin air filter

Replace your cabin air filter after 15.000 km or every year

Cabin air filter replacement is vital to keeping the air clean inside your vehicle. This is often done as a feature of your regular servicing regime. Cabin air filters should be replaced once a year or every 15,000 km. To optimize the clean air inside the car and improve the driving experience, check your cabin air filter annually.

How will you know if your cabin air filter needs changing?

  • Listen out for strange noises. These could be caused by deposits inside the filter
  • Watch for unpleasant smells
  • Poor air flow is a sign of a clogged cabin air filter
  • If your windows fog up frequently and are hard to clear, change your filter

Compare all MANN-FILTER cabin air filters

BenefitsPREMIUM
FreciousPlus (FP)
ADVANCED
CUK
BASIC
CU
Provides more than 95% protection against allergens
Prevents growth of mold and bacteria on the filter
Blocks particulate matter up to 95% (PM2.5)
Eliminates almost 90% of odours
Traps harmful gases, such as ozone, nitrogen oxides and sulphur dioxide
Almost 100% filtration of tiny particles
Significant reduction of diesel soot (>95%)
Protects the air conditioning system
