Cabin Air Filter
CU 5366

About this item

High-quality MANN-FILTER cabin filters offer almost 100% protection against particles such as pollen, diesel soot and tyre abrasion - for a feel-good climate in the vehicle interior and protection of the air conditioning system. Exact fit and perfect tightness ensure constant filtration performance during the entire service interval / Optimum vehicle interior ventilation due to the high air flow capacity.

  • A = 530 mm; B = 241 mm; H = 31 mm

GTIN Code: 4011558316006

Mounting Instruction

Product Details

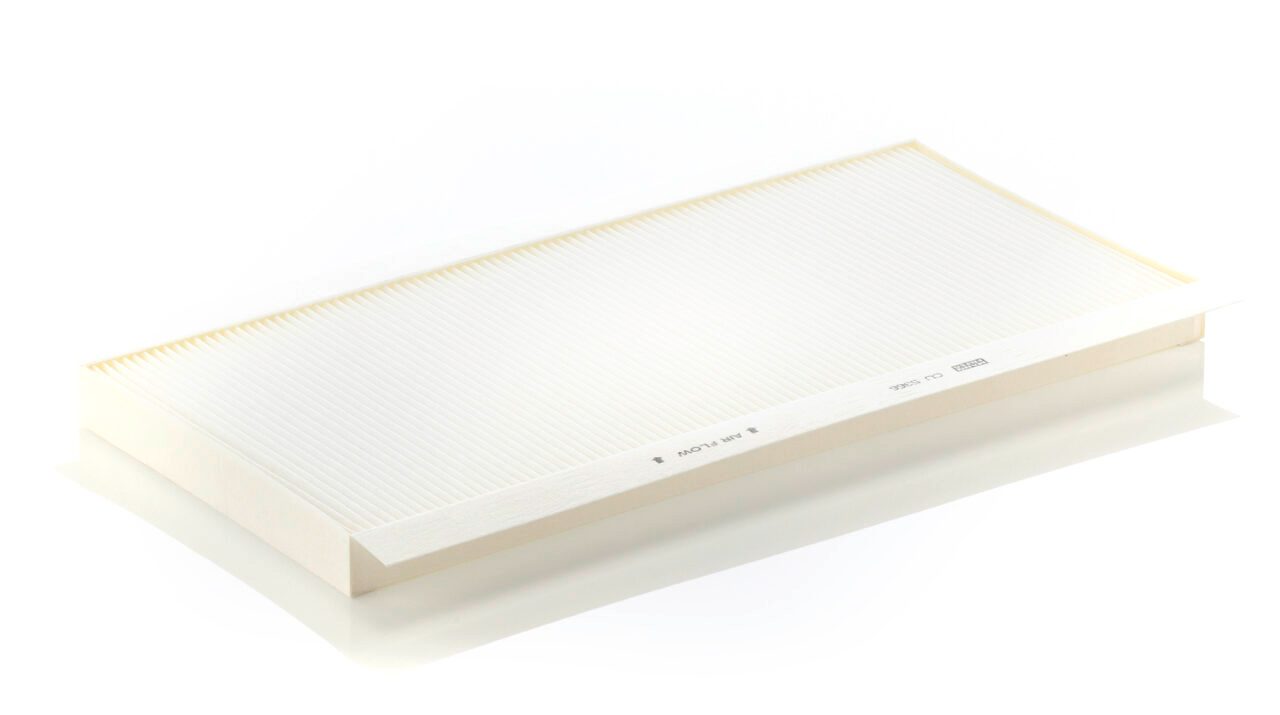

Product Image CU5366_MANN-FILTER

Product Image CU5366_MANN-FILTER

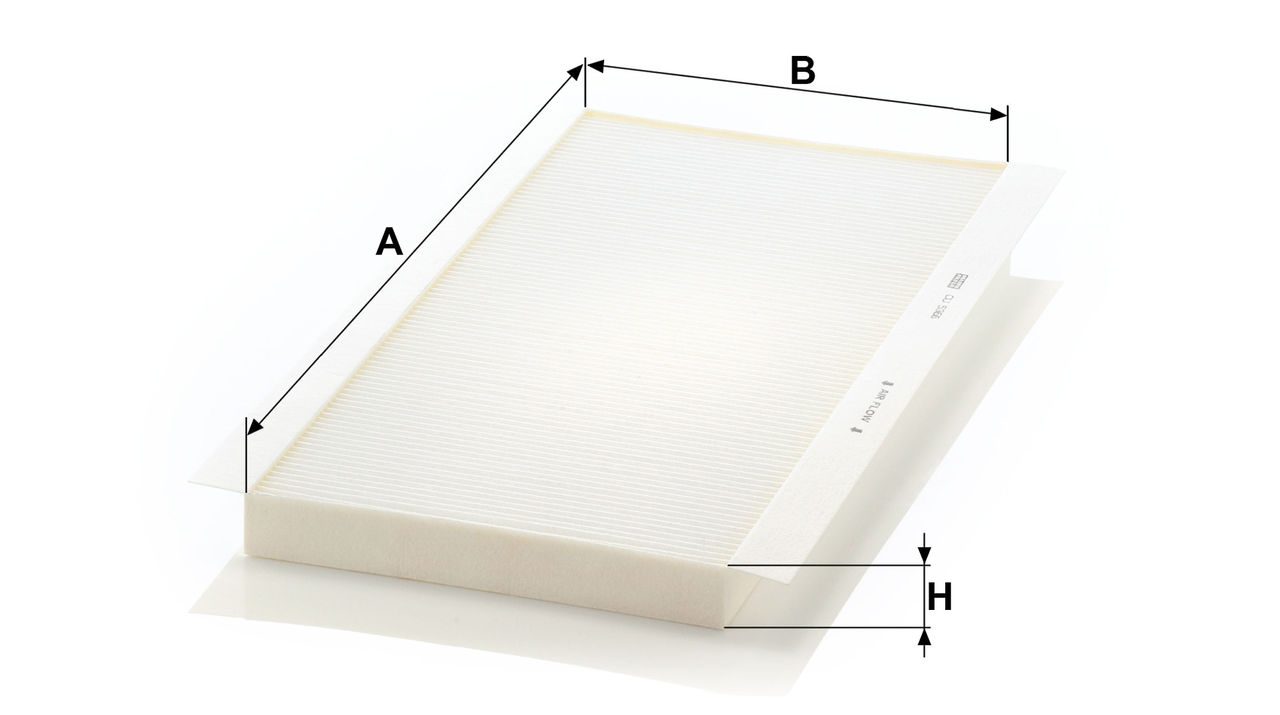

A 530
B 241
H 31

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
3.0 Td6 / TDV6 (LM / L322) Cabin Air Filter M 57 D30 2926 130 177 03/02 → 12/06
3.6 TDV8 (LM / L322) Cabin Air Filter 3630 200 272 10/06 → 12/10
4.2 V8 Supercharged (LM / L322) Cabin Air Filter AJ34 4197 286 389 05/05 → 11/06
4.2 V8 Supercharged (LM / L322) Cabin Air Filter AJ34 4197 291 396 10/06 → 10/09
4.4 TDV8 (LM / L322) Cabin Air Filter 448DT 4367 230 313 09/10 → 08/12
4.4 V8 (LM / L322) Cabin Air Filter M 62 B44 4398 210 286 03/02 → 06/05
4.4 V8 (LM / L322) Cabin Air Filter AJ34 4394 220 299 05/05 → 11/06
4.4 V8 (LM / L322) Cabin Air Filter AJ34 4394 225 306 10/06 → 08/12
5.0 V8 Supercharged (LM / L322) Cabin Air Filter 508PS(AJ133) 4998 375 510 09/09 → 08/12
5.0L V8 Supercharged (LM / L322) Cabin Air Filter 508PN 4999 276 375 09/09 → 08/12
5.0i 32V DOHC (L322) Cabin Air Filter 508PN 5000 276 375 09/09 → 01/13
Model Type 3.0 Td6 / TDV6 (LM / L322)
Filter Type Cabin Air Filter
Engine Code M 57 D30
ccm 2926
kW 130
HP 177
Year of Manufacture 03/02 → 12/06
Model Type 3.6 TDV8 (LM / L322)
Filter Type Cabin Air Filter
Engine Code
ccm 3630
kW 200
HP 272
Year of Manufacture 10/06 → 12/10
Model Type 4.2 V8 Supercharged (LM / L322)
Filter Type Cabin Air Filter
Engine Code AJ34
ccm 4197
kW 286
HP 389
Year of Manufacture 05/05 → 11/06
Model Type 4.2 V8 Supercharged (LM / L322)
Filter Type Cabin Air Filter
Engine Code AJ34
ccm 4197
kW 291
HP 396
Year of Manufacture 10/06 → 10/09
Model Type 4.4 TDV8 (LM / L322)
Filter Type Cabin Air Filter
Engine Code 448DT
ccm 4367
kW 230
HP 313
Year of Manufacture 09/10 → 08/12
Model Type 4.4 V8 (LM / L322)
Filter Type Cabin Air Filter
Engine Code M 62 B44
ccm 4398
kW 210
HP 286
Year of Manufacture 03/02 → 06/05
Model Type 4.4 V8 (LM / L322)
Filter Type Cabin Air Filter
Engine Code AJ34
ccm 4394
kW 220
HP 299
Year of Manufacture 05/05 → 11/06
Model Type 4.4 V8 (LM / L322)
Filter Type Cabin Air Filter
Engine Code AJ34
ccm 4394
kW 225
HP 306
Year of Manufacture 10/06 → 08/12
Model Type 5.0 V8 Supercharged (LM / L322)
Filter Type Cabin Air Filter
Engine Code 508PS(AJ133)
ccm 4998
kW 375
HP 510
Year of Manufacture 09/09 → 08/12
Model Type 5.0L V8 Supercharged (LM / L322)
Filter Type Cabin Air Filter
Engine Code 508PN
ccm 4999
kW 276
HP 375
Year of Manufacture 09/09 → 08/12
Model Type 5.0i 32V DOHC (L322)
Filter Type Cabin Air Filter
Engine Code 508PN
ccm 5000
kW 276
HP 375
Year of Manufacture 09/09 → 01/13

  • 64 31 9 224 084
  • 64 31 8 409 044
  • 64 31 8 409 043
  • 64 31 9 218 705
  • 64 31 2 218 428
  • 64 31 9 218 706
  • 64 31 9 224 085

  • LR 161567
  • LR 026132
  • JMO 000010
  • JM 0000010
  • LR 032199

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: CU 5366

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2024-09-24 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Cabin Air Filter Content

Cabin air filters put the joy back into driving

Cabin air filter against pollen by MANN-FILTER

Air flows into a vehicle at a volume of up to 540,000 litres per hour through the ventilation ducts. Imagine the amount of dirt and dust that comes with it. Now picture that entering your lungs. Not a pretty picture. In fact, the air inside a car contains around five times more exhaust gases, pollutants and allergens than outside air. Vehicle cabin air filters remove up to 90% of even the tiniest  harmful particulates (up to 1µm, in size)  creating a barrier between passengers and the incoming air.

A MANN-FILTER cabin air filter can separate tiny particulates almost 100% – the damaging micro-organisms contained in pollen, exhaust fumes, smoke, fossil fuel emissions and gas droplets. Some of these are smaller than 3% of the diameter of a human hair. Which shows how powerful and effective a pollen filter is.

Dust and pollen filters: Benefits at a glance

What’s all the fuss about? Here are the cabin air filter benefits you will enjoy with a MANN-FILTER product:

  • Performance – Our premium products offer exceptional performance in cabin air filter technology
  • Wellbeing – Clean air improves the health and wellbeing of everyone traveling in the vehicle
  • Efficiency – Servicing and replacing the air conditioning filter in a car regularly improves system functionality
  • Support – Our easy to use online catalogue and simple installation instructions provide the guidance for a perfect fit!

What you need to know about changing a cabin air filter

Replace your cabin air filter after 15.000 km or every year

Cabin air filter replacement is vital to keeping the air clean inside your vehicle. This is often done as a feature of your regular servicing regime. Cabin air filters should be replaced once a year or every 15,000 km. To optimize the clean air inside the car and improve the driving experience, check your cabin air filter annually.

How will you know if your cabin air filter needs changing?

  • Listen out for strange noises. These could be caused by deposits inside the filter
  • Watch for unpleasant smells
  • Poor air flow is a sign of a clogged cabin air filter
  • If your windows fog up frequently and are hard to clear, change your filter

Compare all MANN-FILTER cabin air filters

BenefitsPREMIUM
FreciousPlus (FP)
ADVANCED
CUK
BASIC
CU
Provides more than 95% protection against allergens
Prevents growth of mold and bacteria on the filter
Blocks particulate matter up to 95% (PM2.5)
Eliminates almost 90% of odours
Traps harmful gases, such as ozone, nitrogen oxides and sulphur dioxide
Almost 100% filtration of tiny particles
Significant reduction of diesel soot (>95%)
Protects the air conditioning system
