Fuel Filter
PU 9011 z KIT

About this item

High-quality MANN-FILTER fuel filters remove unwanted and damaging dirt particles from the fuel and thus prevent possible damage. Thanks to the highest degree of separation and sealing, the fuel filter ensures functional reliability and optimum protection during the entire maintenance interval.

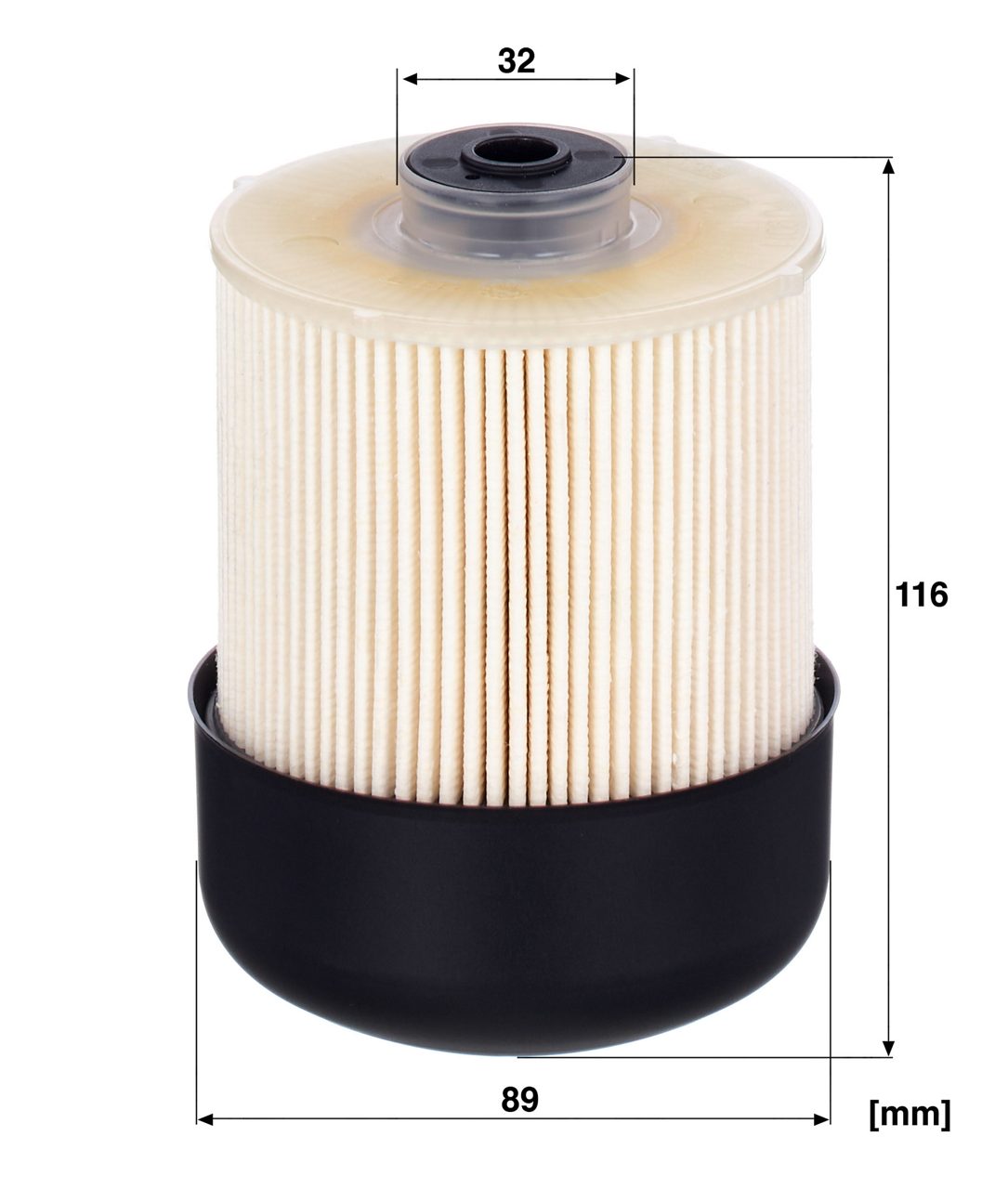

  • A = 89 mm; B = 32 mm; H = 116 mm

GTIN Code: 4011558070250

Mounting Instruction

Product Details

Product Image PU9011ZKIT_MANN-FILTER

Product Image PU9011ZKIT_MANN-FILTER
A 89 mm
B 32 mm
H 116 mm

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.5 dCi (K14F)
Fuel Filter K9K 1461 66 90 01/17 →
Model Type 1.5 dCi (K14F)
Filter Type Fuel Filter
Engine Code K9K
ccm 1461
kW 66
HP 90
Year of Manufacture 01/17 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.5 dCi MAXI (FW0/1, KW0/1)
Fuel Filter K9K636/804/812/816 1461 81 110 09/10 →
Model Type 1.5 dCi MAXI (FW0/1, KW0/1)
Filter Type Fuel Filter
Engine Code K9K636/804/812/816
ccm 1461
kW 81
HP 110
Year of Manufacture 09/10 →

  • 415 477 00 01
  • A 415 477 00 01
  • 607 090 07 52
  • A 607 090 07 52

  • 16400-7343R
  • 16400-00Q1H
  • 16400-3VD0B
  • 16400-3VD0C
  • 16400-4255R
  • 16400-0797R
  • 16403-00QAC
  • 16400-00Q2A

  • 16 40 388 15R
  • 16 40 007 97R
  • 16 40 049 76R
  • 16 40 395 94R
  • 16 40 076 79R
  • 16 40 378 03R
  • 16 40 026 70R
  • 86 60 003 797
  • 16 40 007 97R

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: PU 9011 z KIT

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Fuel Filter Content

Fuel filters help your systems fire on clean, pure fuel

Make every mile or movement count with a MANN-FILTER fuel filter that gives your injection system exactly what it needs for smooth, powerful operating. A high-quality fuel filter is an essential component, ensuring peak performance and protection from abrasive particulates.

What you need to know about changing your fuel filter

MANN-FILTER workshop partner installing a fuel filter in a car

In order to do its work properly your fuel filter needs regular changing to fulfill its job in capturing unwanted particles and water circulating in your fuel. As a result, the injection system and nozzles will experience undue wear, and your vehicle or machine’s performance will suffer

If you’re unsure of potential fuel filter problem symptoms, here are some signs it’s time to get a fuel filter replacement:

  • Complete failure to start
  • Poor acceleration or a decrease in power
  • Sputtering or stalling at low speeds
  • Fuel efficiency is noticeably worse
  • System warning light comes on, indicating there’s a problem
