Oil Filter
W 920/46

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

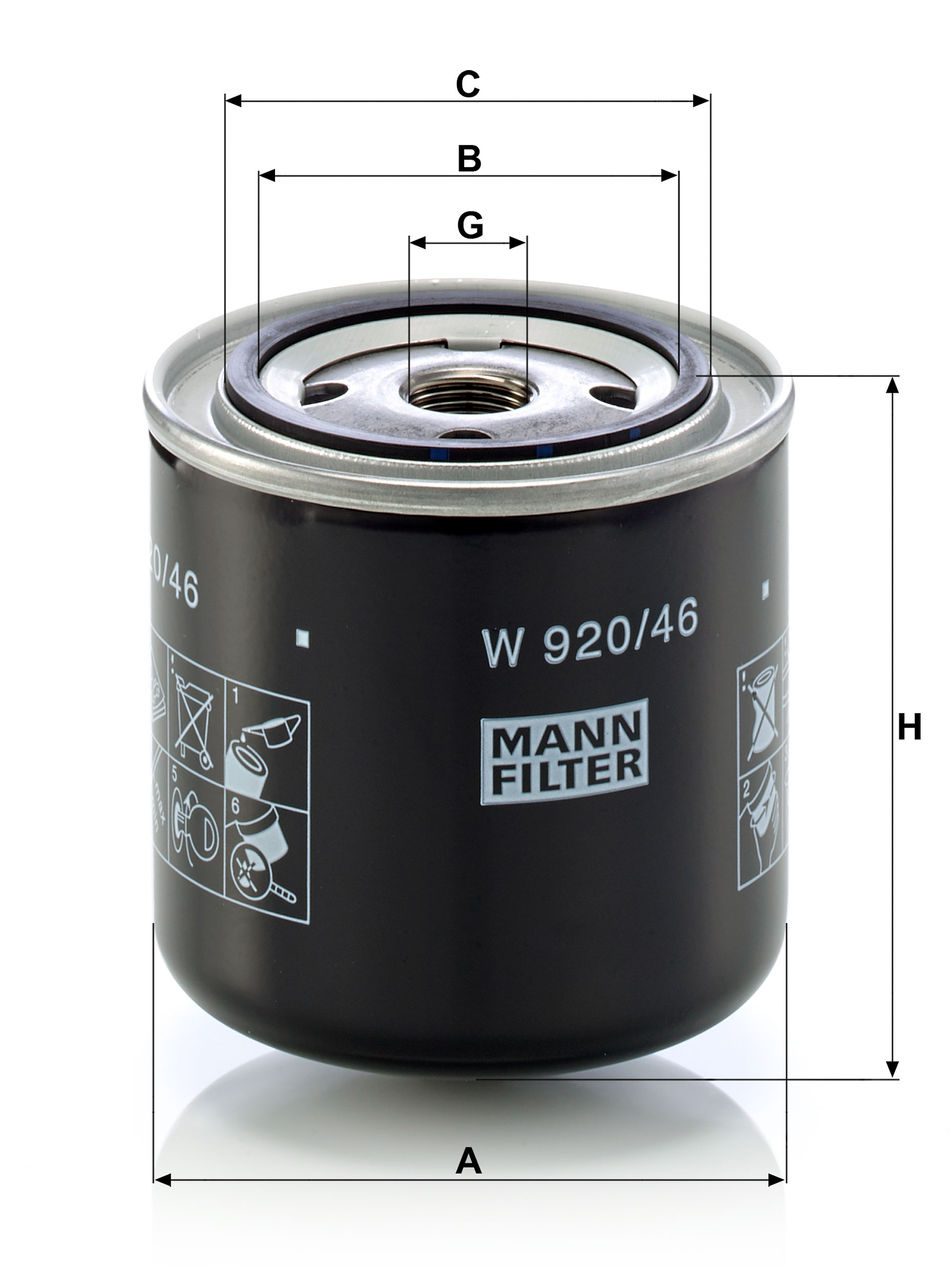

  • A = 93 mm; B = 63 mm; C = 72 mm; G = 3/4-16 UNF-1B; H = 98 mm

GTIN Code: 4011558072179

Product Details

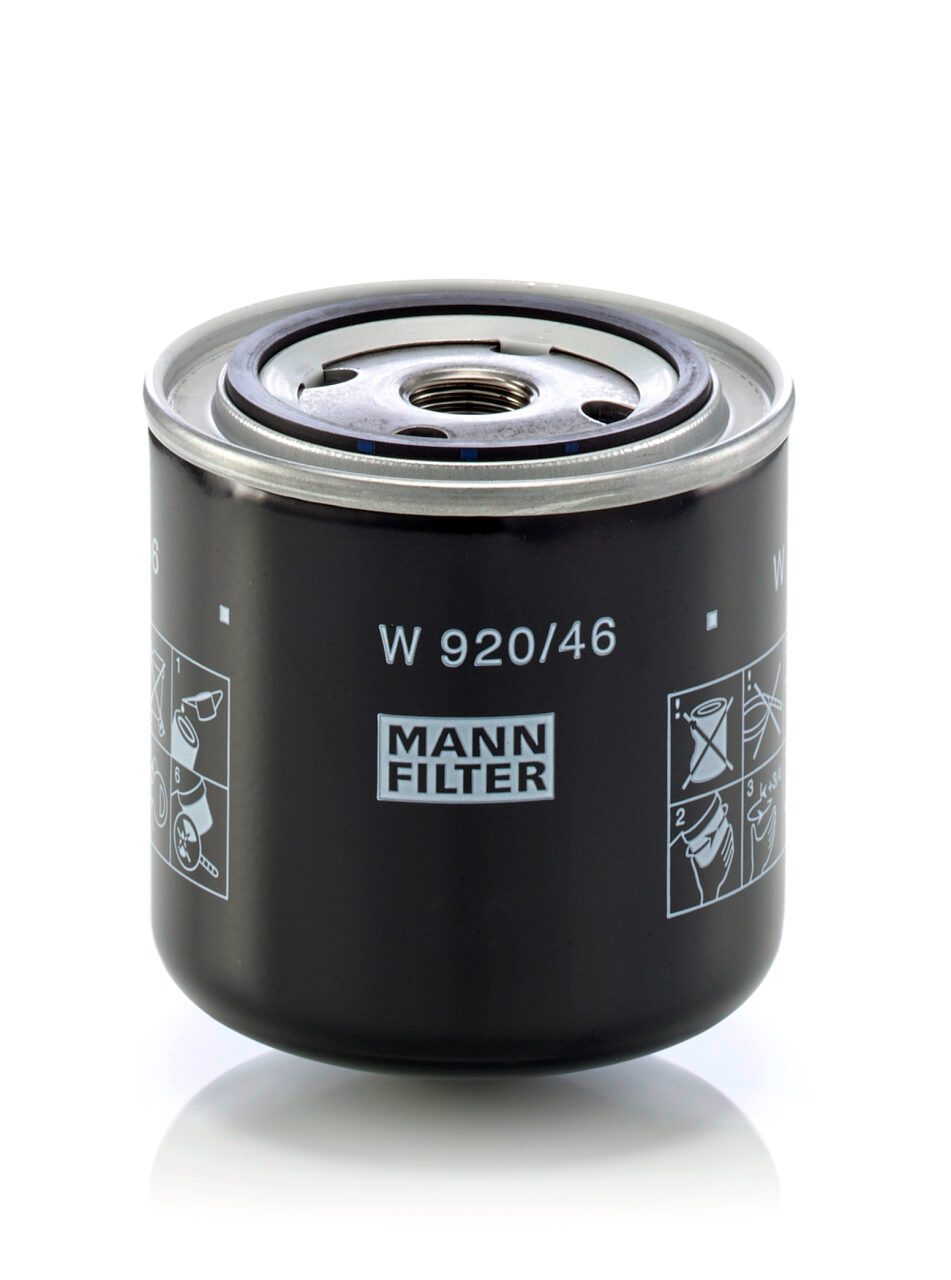

Product Image W920/46_MANN-FILTER

Product Image W920/46_MANN-FILTER
A 93 mm
B 63 mm
C 72 mm
G 3/4-16 UNF-1B mm
H 98 mm
Bypass Valve Opening Pressure 2.5
Number of anti-drain back valve 1

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
PB 80 Oil Filter B&S 18HI - - -
Model Type PB 80
Filter Type Oil Filter
Engine Code B&S 18HI
ccm -
kW -
HP -
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
10 (Belt driven screw compressors) Oil Filter - 8 11
100 (Belt driven screw compressors)
Oil Filter - 75 102
15 (Belt driven screw compressors)
Oil Filter - 11 15
15 (Belt driven screw compressors) (up to Serial No. 21866)
Oil Filter - - -
20 (Belt driven screw compressors)
Oil Filter - 15 20
6 (Belt driven screw compressors) Oil Filter - 4 5
8 (Belt driven screw compressors) Oil Filter - 6 8
Model Type 10 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 8
HP 11
Year of Manufacture
Model Type 100 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 75
HP 102
Year of Manufacture
Model Type 15 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 11
HP 15
Year of Manufacture
Model Type 15 (Belt driven screw compressors) (up to Serial No. 21866)
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type 20 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 15
HP 20
Year of Manufacture
Model Type 6 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 4
HP 5
Year of Manufacture
Model Type 8 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 6
HP 8
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
10 (Belt driven screw compressors)
Oil Filter - 8 11
15 (Belt driven screw compressors)
Oil Filter - 11 15
20 (Belt driven screw compressors)
Oil Filter - 15 20
6 (Belt driven screw compressors) Oil Filter - 4 5
8 (Belt driven screw compressors)
Oil Filter - 6 8
Model Type 10 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 8
HP 11
Year of Manufacture
Model Type 15 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 11
HP 15
Year of Manufacture
Model Type 20 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 15
HP 20
Year of Manufacture
Model Type 6 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 4
HP 5
Year of Manufacture
Model Type 8 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 6
HP 8
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
15 (Belt driven screw compressors)
Oil Filter - 11 15
Model Type 15 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 11
HP 15
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
15 (Belt driven screw compressors)
Oil Filter - 11 15
Model Type 15 (Belt driven screw compressors)
Filter Type Oil Filter
Engine Code
ccm -
kW 11
HP 15
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
DT 1130-SC
Oil Filter Mercedes Benz OM904LA - 110 150
Model Type DT 1130-SC
Filter Type Oil Filter
Engine Code Mercedes Benz OM904LA
ccm -
kW 110
HP 150
Year of Manufacture

  • 558 000 307
  • 558 000 307P

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W 920/46

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2024-09-24 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Oil Filter Content

Our engine oil filters work hard so your engine doesn’t have to

This crucial engine component ensures your engine functions smoothly and at peak performance. At MANN-FILTER we understand how to get the best out of every engine. And it starts with optimum filtration.

In the automotive aftermarket world prevention is always better than cure. Foresight and knowledge can save you – and your customers – time, money and hassle. Once a particle of soot or dust has got into the engine oil it starts to scratch the surfaces it comes into contact with, turning your lubricant being more abrasive. Just changing the oil isn’t enough – you also need to change the filter. Frequent oil filter changes prevent damage and keep your engine oil filter function at optimum levels.

Frictionless functionality. Optimal performance.

ANN-FILTER workshop partner installing an oil filter in a car
  • Longevity – A build-up of residue in engine oil can damage other components, but filtered, clean oil keeps things working at peak performance
  • Protection – Safeguards your engine parts from wear and tear
  • Reliability – Ensures your engine can function well, even in cold conditions
