Air Filter
C 32 130

About this item

High-quality MANN-FILTER air filters for clean air intake and optimum protection for your engine, mass air flow sensor & other sensitive components / They meet requirements of modern engine technology. Highest dirt holding capacity and dirt separation efficiency, low flow resistance and high pleat stability ensure functional reliability during the entire service interval.

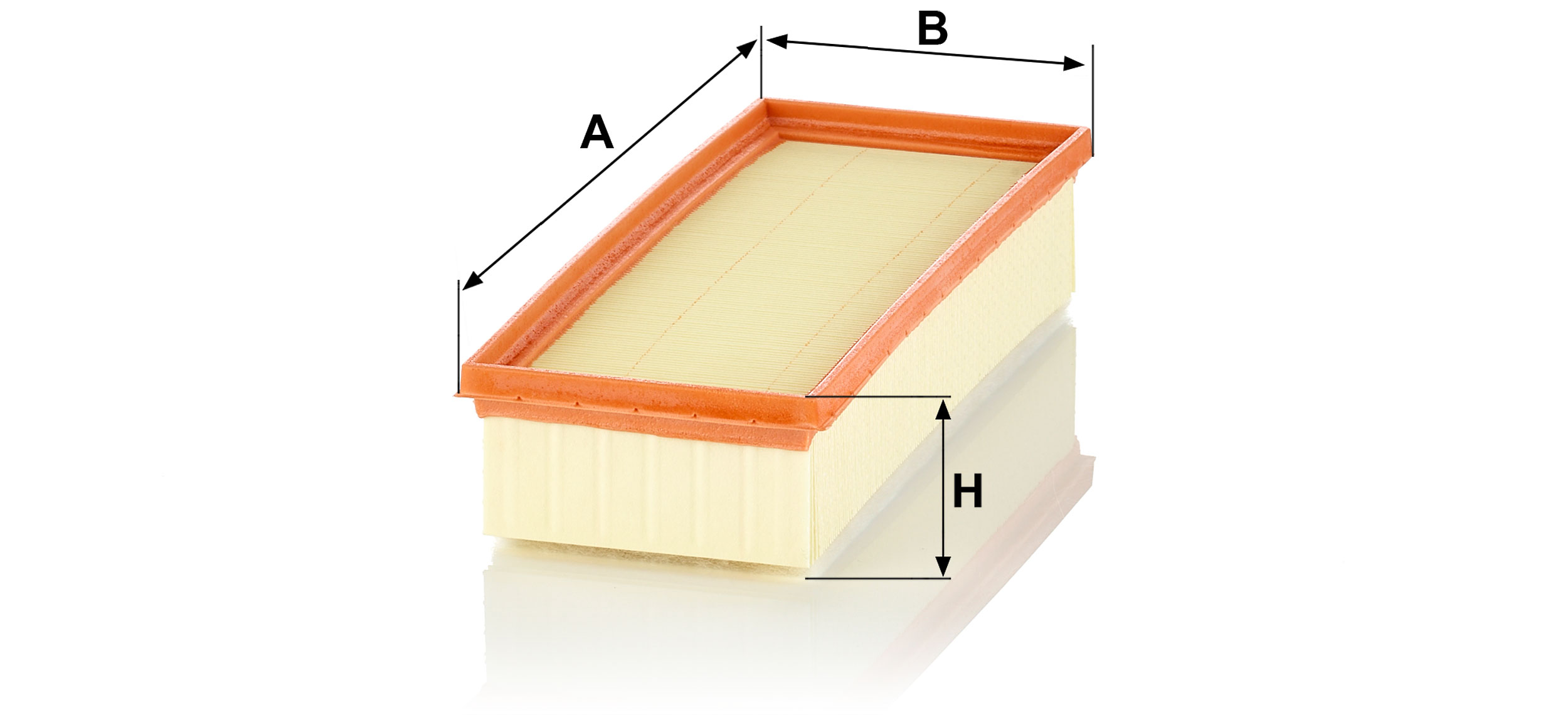

  • A = 322 mm; B = 128 mm; H = 59 mm

GTIN Code: 4011558389505

Product Details

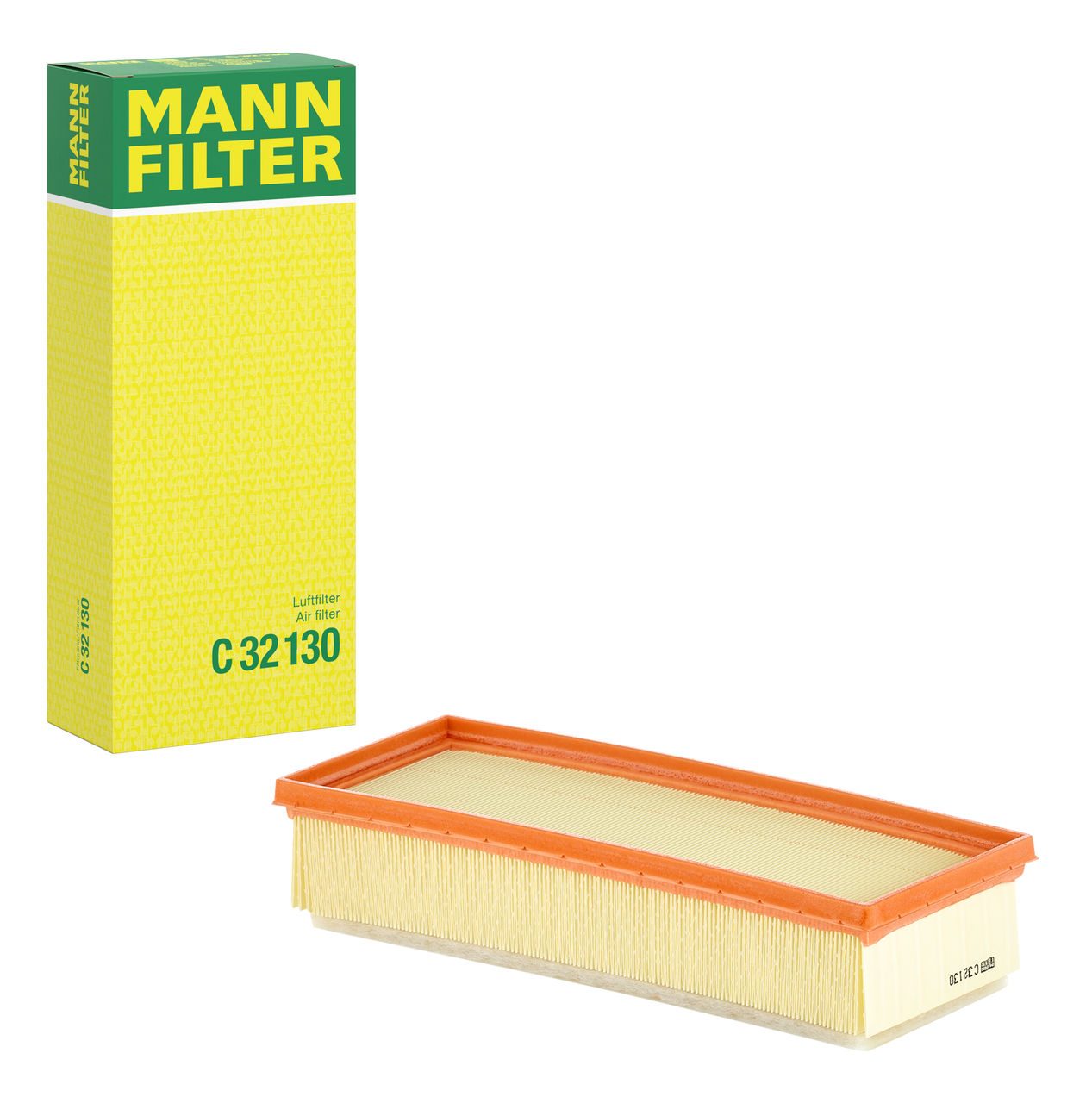

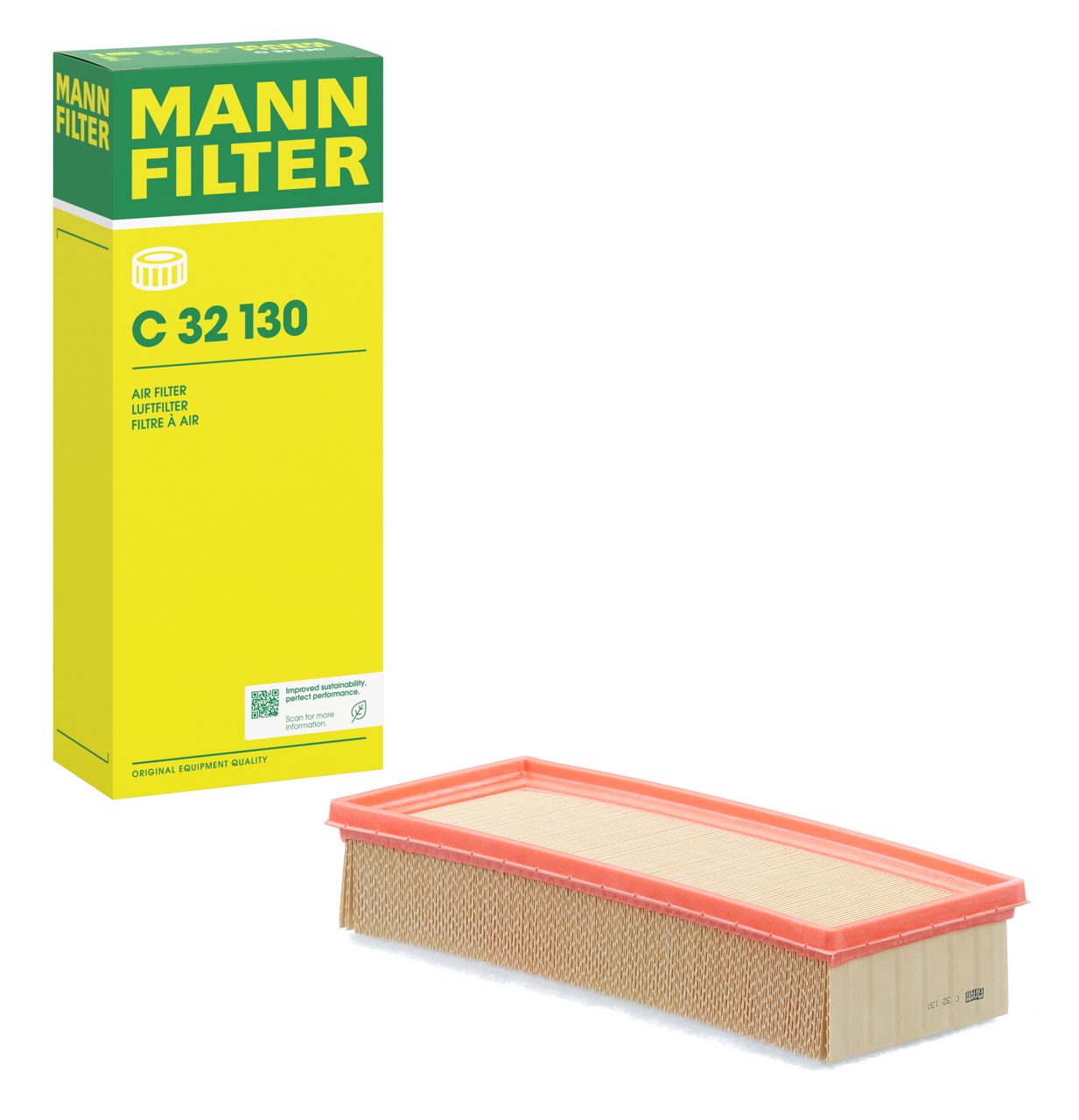

Product Image C32130_MANN-FILTER

Product Image C32130_MANN-FILTER
A 322 mm
B 128 mm
H 59 mm

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.8 TFSI Air Filter CABB, CDHB 1781 118 160 11/07 → 03/12
1.8 TFSI Air Filter CABA, CDHA 1781 88 120 01/08 → 12/15
1.8 TFSI Air Filter CJEB 1781 125 170 01/12 → 12/15
2.0 TDI Air Filter CGLC 1968 130 177 02/12 → 05/16
2.0 TDI Air Filter CAGA, CAGB, CJCA, CMFA 1968 105 143 11/07 → 05/16
2.0 TFSI Air Filter CAEA, CDNB, CFKA 1984 132 180 06/08 → 12/15
Model Type 1.8 TFSI
Filter Type Air Filter
Engine Code CABB, CDHB
ccm 1781
kW 118
HP 160
Year of Manufacture 11/07 → 03/12
Model Type 1.8 TFSI
Filter Type Air Filter
Engine Code CABA, CDHA
ccm 1781
kW 88
HP 120
Year of Manufacture 01/08 → 12/15
Model Type 1.8 TFSI
Filter Type Air Filter
Engine Code CJEB
ccm 1781
kW 125
HP 170
Year of Manufacture 01/12 → 12/15
Model Type 2.0 TDI
Filter Type Air Filter
Engine Code CGLC
ccm 1968
kW 130
HP 177
Year of Manufacture 02/12 → 05/16
Model Type 2.0 TDI
Filter Type Air Filter
Engine Code CAGA, CAGB, CJCA, CMFA
ccm 1968
kW 105
HP 143
Year of Manufacture 11/07 → 05/16
Model Type 2.0 TFSI
Filter Type Air Filter
Engine Code CAEA, CDNB, CFKA
ccm 1984
kW 132
HP 180
Year of Manufacture 06/08 → 12/15

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.0 TDI quattro (8R) Air Filter CAHA, CGLB, CMGA 1968 125 170 11/08 → 09/12
2.0 TDI quattro (8R) Air Filter CGLC, CMGB 1968 130 177 06/12 → 05/17
2.0 TFSI quattro (8R) Air Filter CDNC, CAEB 1984 155 211 11/08 → 06/16
2.0 TFSI quattro (8R) Air Filter CNCD 1984 165 225 06/12 → 05/16
Model Type 2.0 TDI quattro (8R)
Filter Type Air Filter
Engine Code CAHA, CGLB, CMGA
ccm 1968
kW 125
HP 170
Year of Manufacture 11/08 → 09/12
Model Type 2.0 TDI quattro (8R)
Filter Type Air Filter
Engine Code CGLC, CMGB
ccm 1968
kW 130
HP 177
Year of Manufacture 06/12 → 05/17
Model Type 2.0 TFSI quattro (8R)
Filter Type Air Filter
Engine Code CDNC, CAEB
ccm 1984
kW 155
HP 211
Year of Manufacture 11/08 → 06/16
Model Type 2.0 TFSI quattro (8R)
Filter Type Air Filter
Engine Code CNCD
ccm 1984
kW 165
HP 225
Year of Manufacture 06/12 → 05/16

  • 8K0 133 843 E
  • 8R0 133 843 C
  • 8R0 133 843 D
  • 8R0 133 843 K
  • 8K0 133 843 M

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: C 32 130

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Air Filter Content

Your engine and air filter working in fine-tuned harmony

Efficiency and speed come from perfect balance. Whether it’s in the quiet strength of a athlete's body or the sleek components of an engine, true power comes when things work in unison. Every part of your combustion engine is designed to serve a bigger purpose – to provide power and motion. For this to work properly you need each piece to be right. At MANN-FILTER we produce engine air filters that enable all the vital combustion and ignition elements in your engine to perform at their best.

What an engine air cleaner will do for your engine

Contaminated engine air upsets the internal balance, leaving dirt and deposits on engine parts. This can impair the function of electronic components, cause ignition problems, waste fuel and shorten the engine’s life

  • You can keep your engine into equilibrium with a high-quality engine air filter that captures dust, pollen, soot and water droplets in the engine air

Reasons to install an engine air filter

Like the engines you drive and service, the world of filter design is always on the move. At MANN-FILTER we strive not only to keep up with new technologies and components, but to be the pacemakers ahead of the pack. That’s why our engine air filters are built to withstand everything life on the road might throw at them.

Discover the benefits of a MANN-FILTER air filter:

  • Protection – During the whole service interval
  • Security – High dust holding capacity and very low flow resistance
  • Longevity – Optimal protection for engine, mass flow meter and other sensitive engine components
