Air Filter
C 36 014

About this item

High-quality MANN-FILTER air filters for clean air intake and optimum protection for your engine, mass air flow sensor & other sensitive components / They meet requirements of modern engine technology. Highest dirt holding capacity and dirt separation efficiency, low flow resistance and high pleat stability ensure functional reliability during the entire service interval.

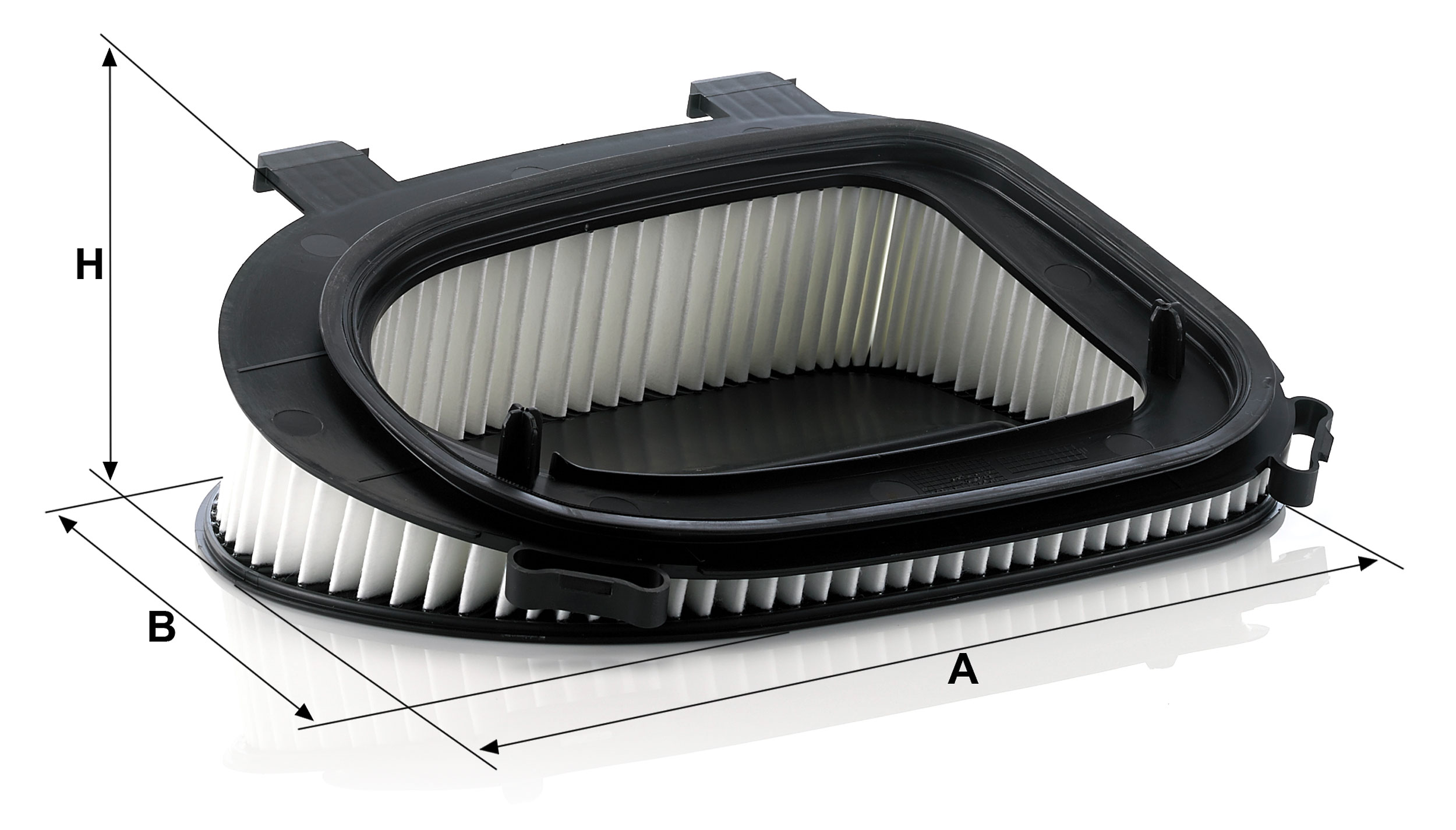

  • A = 348 mm; B = 270 mm; H = 92 mm

GTIN Code: 4011558040680

Product Details

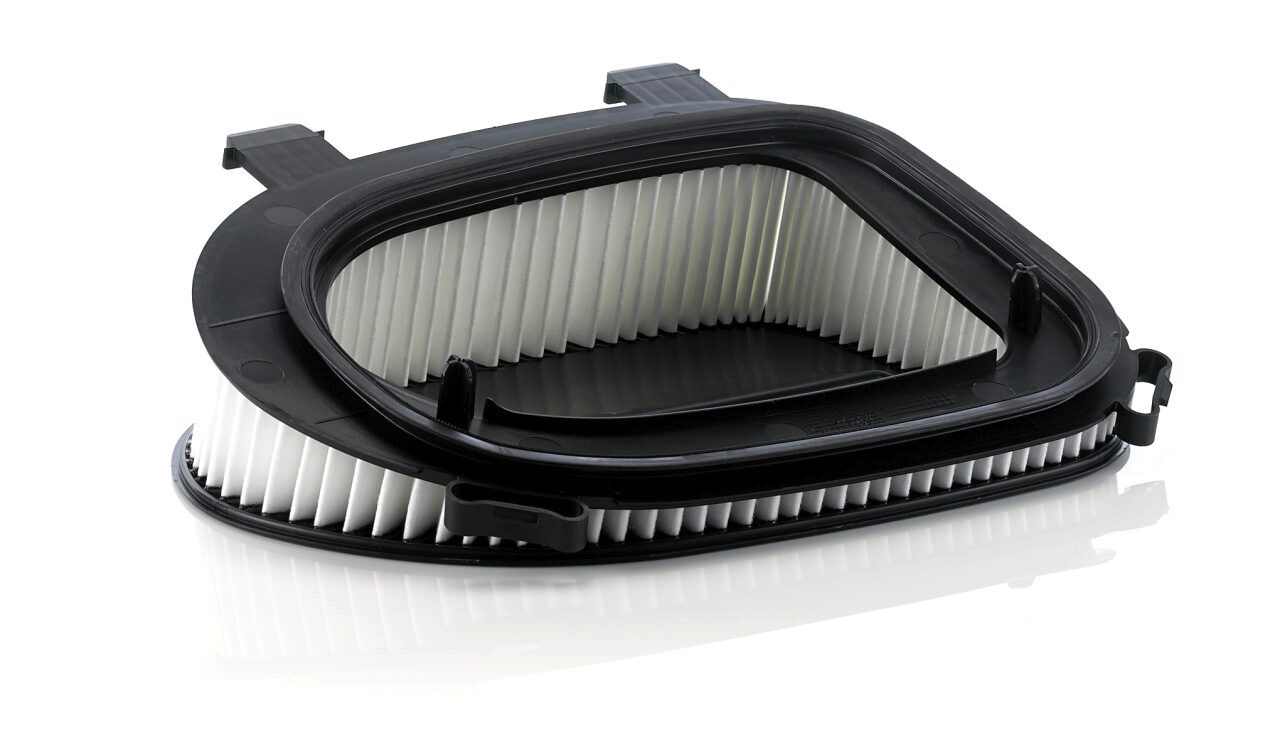

Product Image C36014_MANN-FILTER

Product Image C36014_MANN-FILTER
A 348
B 270
H 92

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
X Drive 20 d (F25) Air Filter N47 D20C 1995 135 184 11/10 → 05/14
X Drive 30 d (F25) Air Filter N57 D30A 2993 190 258 04/11 → 07/17
Model Type X Drive 20 d (F25)
Filter Type Air Filter
Engine Code N47 D20C
ccm 1995
kW 135
HP 184
Year of Manufacture 11/10 → 05/14
Model Type X Drive 30 d (F25)
Filter Type Air Filter
Engine Code N57 D30A
ccm 2993
kW 190
HP 258
Year of Manufacture 04/11 → 07/17

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
xDrive 30d (E70) Air Filter N57D30A 2993 180 245 05/10 → 07/13
Model Type xDrive 30d (E70)
Filter Type Air Filter
Engine Code N57D30A
ccm 2993
kW 180
HP 245
Year of Manufacture 05/10 → 07/13

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
40dX (E71) Air Filter N57D30B 2993 225 306 04/10 → 06/14
Model Type 40dX (E71)
Filter Type Air Filter
Engine Code N57D30B
ccm 2993
kW 225
HP 306
Year of Manufacture 04/10 → 06/14

No data available

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: C 36 014

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2024-09-24 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Air Filter Content

Your engine and air filter working in fine-tuned harmony

Efficiency and speed come from perfect balance. Whether it’s in the quiet strength of a athlete's body or the sleek components of an engine, true power comes when things work in unison. Every part of your combustion engine is designed to serve a bigger purpose – to provide power and motion. For this to work properly you need each piece to be right. At MANN-FILTER we produce engine air filters that enable all the vital combustion and ignition elements in your engine to perform at their best.

What an engine air cleaner will do for your engine

Contaminated engine air upsets the internal balance, leaving dirt and deposits on engine parts. This can impair the function of electronic components, cause ignition problems, waste fuel and shorten the engine’s life

  • You can keep your engine into equilibrium with a high-quality engine air filter that captures dust, pollen, soot and water droplets in the engine air

Reasons to install an engine air filter

Like the engines you drive and service, the world of filter design is always on the move. At MANN-FILTER we strive not only to keep up with new technologies and components, but to be the pacemakers ahead of the pack. That’s why our engine air filters are built to withstand everything life on the road might throw at them.

Discover the benefits of a MANN-FILTER air filter:

  • Protection – During the whole service interval
  • Security – High dust holding capacity and very low flow resistance
  • Longevity – Optimal protection for engine, mass flow meter and other sensitive engine components
