Cabin Air Filter
CU 22 023

About this item

High-quality MANN-FILTER cabin filters offer almost 100% protection against particles such as pollen, diesel soot and tyre abrasion - for a feel-good climate in the vehicle interior and protection of the air conditioning system. Exact fit and perfect tightness ensure constant filtration performance during the entire service interval / Optimum vehicle interior ventilation due to the high air flow capacity.

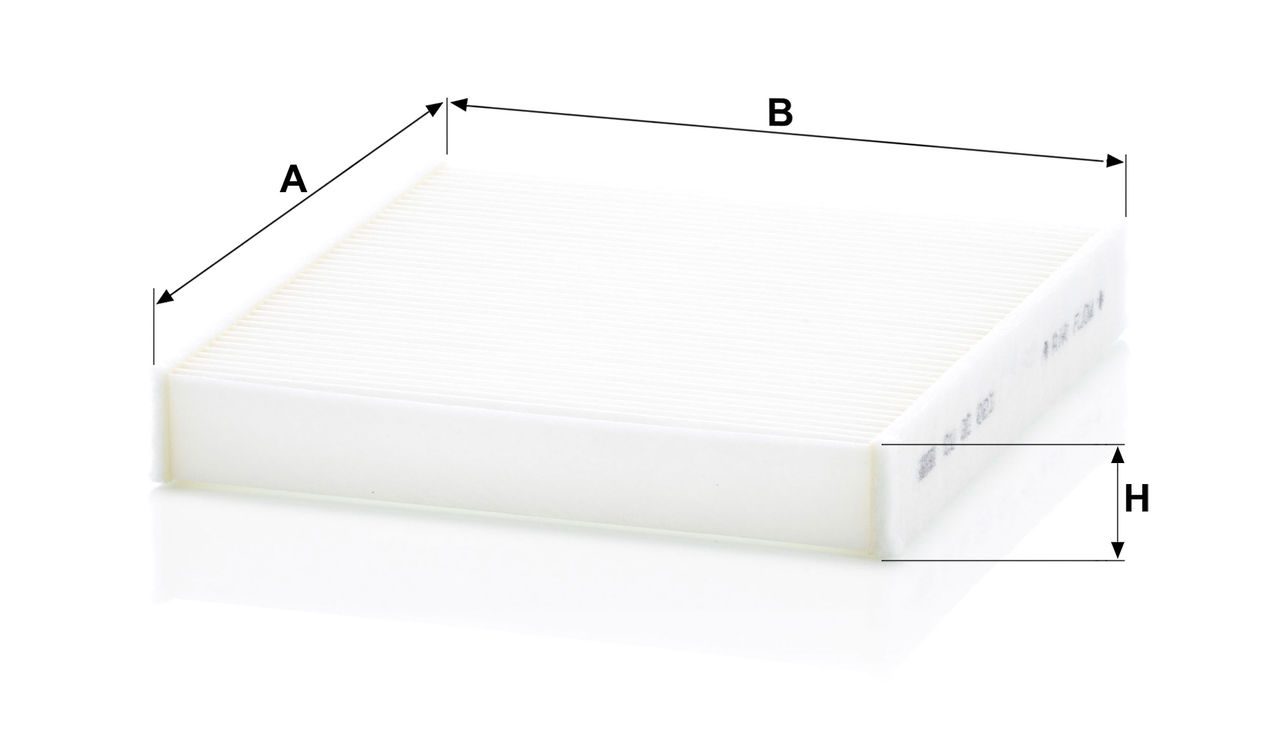

  • A = 213 mm; B = 191 mm; H = 30 mm
  • Mounting position: Passenger area behind the glove compartment

GTIN Code: 4011558059934

Mounting Instruction

Product Details

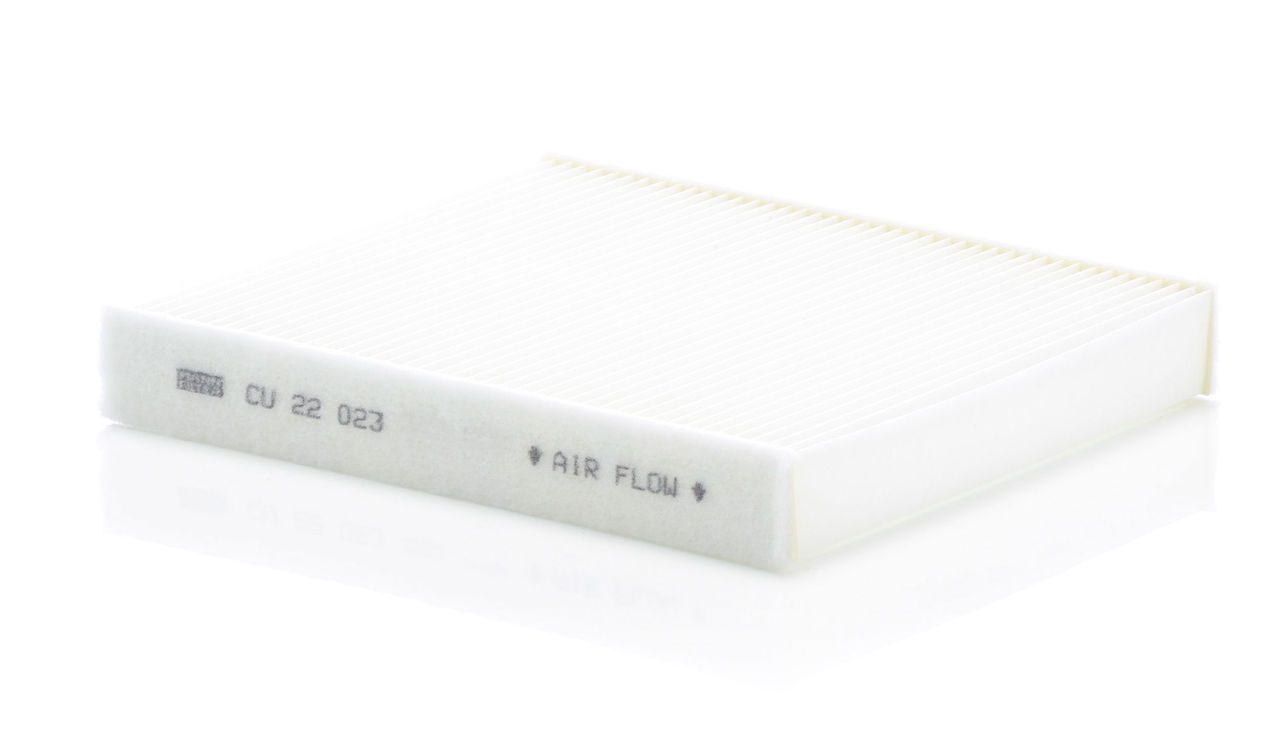

Product Image CU22023_MANN-FILTER

Product Image CU22023_MANN-FILTER
A 213 mm
B 191 mm
H 30 mm

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.2 DDiS190 (MBA) Cabin Air Filter D13A 1248 55 75 05/16 → 04/20
1.2i Cabin Air Filter K12M 1197 61 83 05/16 → 04/20
Model Type 1.2 DDiS190 (MBA)
Filter Type Cabin Air Filter
Engine Code D13A
ccm 1248
kW 55
HP 75
Year of Manufacture 05/16 → 04/20
Model Type 1.2i
Filter Type Cabin Air Filter
Engine Code K12M
ccm 1197
kW 61
HP 83
Year of Manufacture 05/16 → 04/20

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.3 DDis Cabin Air Filter D13A 1248 65 89 08/15 →
1.4 Cabin Air Filter 1373 67 91
Model Type 1.3 DDis
Filter Type Cabin Air Filter
Engine Code D13A
ccm 1248
kW 65
HP 89
Year of Manufacture 08/15 →
Model Type 1.4
Filter Type Cabin Air Filter
Engine Code
ccm 1373
kW 67
HP 91
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.2 DDIS HYBRID Cabin Air Filter D13A 1248 66 90 08/15 →
1.5 VVT SMART HYBRID Cabin Air Filter K15B 1462 77 105 08/15 →
Model Type 1.2 DDIS HYBRID
Filter Type Cabin Air Filter
Engine Code D13A
ccm 1248
kW 66
HP 90
Year of Manufacture 08/15 →
Model Type 1.5 VVT SMART HYBRID
Filter Type Cabin Air Filter
Engine Code K15B
ccm 1462
kW 77
HP 105
Year of Manufacture 08/15 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.3 DDis Cabin Air Filter 1248 66 90 02/16 →
Model Type 1.3 DDis
Filter Type Cabin Air Filter
Engine Code
ccm 1248
kW 66
HP 90
Year of Manufacture 02/16 →

  • 990J0M69LS0

  • 87139-YZZ33

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: CU 22 023

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Cabin Air Filter Content

Cabin air filters put the joy back into driving

Cabin air filter against pollen by MANN-FILTER

Air flows into a vehicle at a volume of up to 540,000 litres per hour through the ventilation ducts. Imagine the amount of dirt and dust that comes with it. Now picture that entering your lungs. Not a pretty picture. In fact, the air inside a car contains around five times more exhaust gases, pollutants and allergens than outside air. Vehicle cabin air filters remove up to 90% of even the tiniest  harmful particulates (up to 1µm, in size)  creating a barrier between passengers and the incoming air.

A MANN-FILTER cabin air filter can separate tiny particulates almost 100% – the damaging micro-organisms contained in pollen, exhaust fumes, smoke, fossil fuel emissions and gas droplets. Some of these are smaller than 3% of the diameter of a human hair. Which shows how powerful and effective a pollen filter is.

Dust and pollen filters: Benefits at a glance

What’s all the fuss about? Here are the cabin air filter benefits you will enjoy with a MANN-FILTER product:

  • Performance – Our premium products offer exceptional performance in cabin air filter technology
  • Wellbeing – Clean air improves the health and wellbeing of everyone traveling in the vehicle
  • Efficiency – Servicing and replacing the air conditioning filter in a car regularly improves system functionality
  • Support – Our easy to use online catalogue and simple installation instructions provide the guidance for a perfect fit!

What you need to know about changing a cabin air filter

Replace your cabin air filter after 15.000 km or every year

Cabin air filter replacement is vital to keeping the air clean inside your vehicle. This is often done as a feature of your regular servicing regime. Cabin air filters should be replaced once a year or every 15,000 km. To optimize the clean air inside the car and improve the driving experience, check your cabin air filter annually.

How will you know if your cabin air filter needs changing?

  • Listen out for strange noises. These could be caused by deposits inside the filter
  • Watch for unpleasant smells
  • Poor air flow is a sign of a clogged cabin air filter
  • If your windows fog up frequently and are hard to clear, change your filter

Compare all MANN-FILTER cabin air filters

BenefitsPREMIUM
FreciousPlus (FP)
ADVANCED
CUK
BASIC
CU
Provides more than 95% protection against allergens
Prevents growth of mold and bacteria on the filter
Blocks particulate matter up to 95% (PM2.5)
Eliminates almost 90% of odours
Traps harmful gases, such as ozone, nitrogen oxides and sulphur dioxide
Almost 100% filtration of tiny particles
Significant reduction of diesel soot (>95%)
Protects the air conditioning system
