Cabin Air Filter
CUK 3360

About this item

High-quality MANN-FILTER cabin filters with active carbon - nearly 100% protection from particles like pollen, diesel soot & tire abrasion / Additional protection from harmful gases & unpleasant odour. The trated highly-effective activated carbon gives protection against harmful gases such as ozone, nitrogen oxide or sulphur dioxide and eliminates unpleasant odours during the entire service interval.

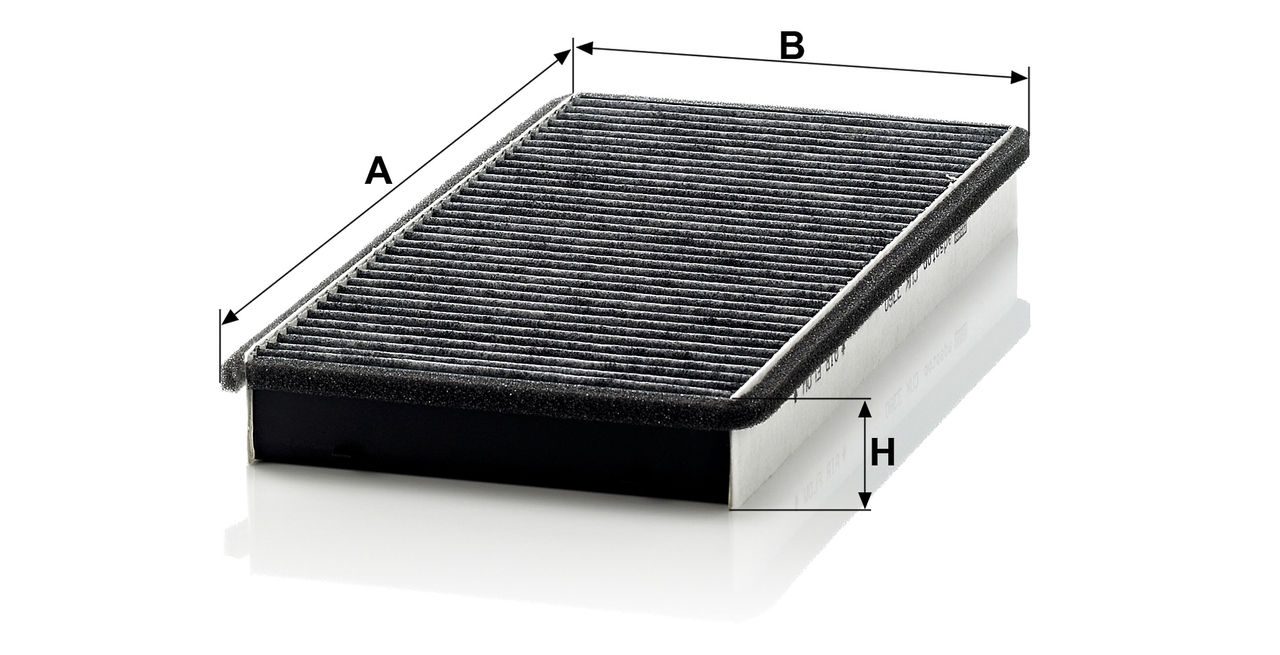

  • A = 327 mm; B = 165 mm; H = 34 mm

GTIN Code: 4011558402006

Mounting Instruction

Product Details

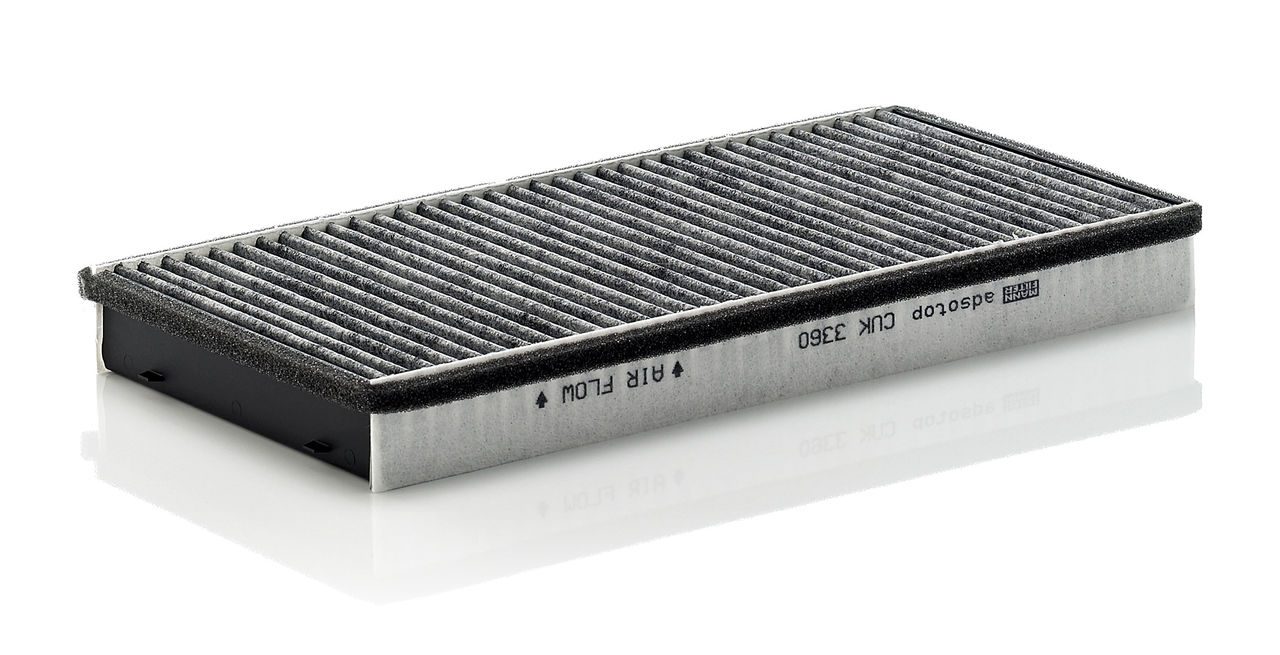

Product Image CUK3360_MANN-FILTER

Product Image CUK3360_MANN-FILTER
A 327
B 165
H 34

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.9 (987) Cabin Air Filter MA1.20 2893 188 255 02/09 → 01/12
3.4 S (987) Cabin Air Filter M 97.21 3387 217 295 08/06 → 02/09
3.4 S (987) Cabin Air Filter MA1.21 3436 228 310 02/09 → 01/12
3.4 S Black Edition (987) Cabin Air Filter MA1.21 3436 235 320 03/11 → 01/12
Model Type 2.9 (987)
Filter Type Cabin Air Filter
Engine Code MA1.20
ccm 2893
kW 188
HP 255
Year of Manufacture 02/09 → 01/12
Model Type 3.4 S (987)
Filter Type Cabin Air Filter
Engine Code M 97.21
ccm 3387
kW 217
HP 295
Year of Manufacture 08/06 → 02/09
Model Type 3.4 S (987)
Filter Type Cabin Air Filter
Engine Code MA1.21
ccm 3436
kW 228
HP 310
Year of Manufacture 02/09 → 01/12
Model Type 3.4 S Black Edition (987)
Filter Type Cabin Air Filter
Engine Code MA1.21
ccm 3436
kW 235
HP 320
Year of Manufacture 03/11 → 01/12

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.9 (987) Cabin Air Filter MA1.20 2893 195 265 02/09 → 12/12
3.4 R (987) Cabin Air Filter MA1.22 3436 243 330 01/11 → 12/12
3.4 S (987) Cabin Air Filter M 97.21 3387 217 295 11/05 → 02/09
3.4 S (987) Cabin Air Filter MA1.21 3436 235 320 02/09 → 12/12
Model Type 2.9 (987)
Filter Type Cabin Air Filter
Engine Code MA1.20
ccm 2893
kW 195
HP 265
Year of Manufacture 02/09 → 12/12
Model Type 3.4 R (987)
Filter Type Cabin Air Filter
Engine Code MA1.22
ccm 3436
kW 243
HP 330
Year of Manufacture 01/11 → 12/12
Model Type 3.4 S (987)
Filter Type Cabin Air Filter
Engine Code M 97.21
ccm 3387
kW 217
HP 295
Year of Manufacture 11/05 → 02/09
Model Type 3.4 S (987)
Filter Type Cabin Air Filter
Engine Code MA1.21
ccm 3436
kW 235
HP 320
Year of Manufacture 02/09 → 12/12

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
3.6 Carrera (997) Cabin Air Filter M 96.05 3596 239 325 07/04 → 06/08
3.6 Carrera (997/2) Cabin Air Filter MA1.02 3596 254 345 07/08 → 12/12
3.6 Turbo (997) Cabin Air Filter M 97.70 3596 353 480 06/06 → 12/09
3.8 Carrera S (997) Cabin Air Filter M 97.01 3824 261 355 07/04 → 06/08
3.8 Carrera S (997/2) Cabin Air Filter MA1.01 3824 283 385 07/08 → 12/12
3.8 GTS (997/2) Cabin Air Filter MA1.01S 3824 300 408 11/10 → 12/12
3.8 Turbo (997/2) Cabin Air Filter MA1.70 3800 368 500 11/09 → 12/12
3.8 Turbo S (997/2) Cabin Air Filter MA1.70S 3800 390 530 05/10 → 12/12
Model Type 3.6 Carrera (997)
Filter Type Cabin Air Filter
Engine Code M 96.05
ccm 3596
kW 239
HP 325
Year of Manufacture 07/04 → 06/08
Model Type 3.6 Carrera (997/2)
Filter Type Cabin Air Filter
Engine Code MA1.02
ccm 3596
kW 254
HP 345
Year of Manufacture 07/08 → 12/12
Model Type 3.6 Turbo (997)
Filter Type Cabin Air Filter
Engine Code M 97.70
ccm 3596
kW 353
HP 480
Year of Manufacture 06/06 → 12/09
Model Type 3.8 Carrera S (997)
Filter Type Cabin Air Filter
Engine Code M 97.01
ccm 3824
kW 261
HP 355
Year of Manufacture 07/04 → 06/08
Model Type 3.8 Carrera S (997/2)
Filter Type Cabin Air Filter
Engine Code MA1.01
ccm 3824
kW 283
HP 385
Year of Manufacture 07/08 → 12/12
Model Type 3.8 GTS (997/2)
Filter Type Cabin Air Filter
Engine Code MA1.01S
ccm 3824
kW 300
HP 408
Year of Manufacture 11/10 → 12/12
Model Type 3.8 Turbo (997/2)
Filter Type Cabin Air Filter
Engine Code MA1.70
ccm 3800
kW 368
HP 500
Year of Manufacture 11/09 → 12/12
Model Type 3.8 Turbo S (997/2)
Filter Type Cabin Air Filter
Engine Code MA1.70S
ccm 3800
kW 390
HP 530
Year of Manufacture 05/10 → 12/12

No data available

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: CUK 3360

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2024-09-24 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Cabin Air Filter Content

Cabin air filters put the joy back into driving

Cabin air filter against pollen by MANN-FILTER

Air flows into a vehicle at a volume of up to 540,000 litres per hour through the ventilation ducts. Imagine the amount of dirt and dust that comes with it. Now picture that entering your lungs. Not a pretty picture. In fact, the air inside a car contains around five times more exhaust gases, pollutants and allergens than outside air. Vehicle cabin air filters remove up to 90% of even the tiniest  harmful particulates (up to 1µm, in size)  creating a barrier between passengers and the incoming air.

A MANN-FILTER cabin air filter can separate tiny particulates almost 100% – the damaging micro-organisms contained in pollen, exhaust fumes, smoke, fossil fuel emissions and gas droplets. Some of these are smaller than 3% of the diameter of a human hair. Which shows how powerful and effective a pollen filter is.

Dust and pollen filters: Benefits at a glance

What’s all the fuss about? Here are the cabin air filter benefits you will enjoy with a MANN-FILTER product:

  • Performance – Our premium products offer exceptional performance in cabin air filter technology
  • Wellbeing – Clean air improves the health and wellbeing of everyone traveling in the vehicle
  • Efficiency – Servicing and replacing the air conditioning filter in a car regularly improves system functionality
  • Support – Our easy to use online catalogue and simple installation instructions provide the guidance for a perfect fit!

What you need to know about changing a cabin air filter

Replace your cabin air filter after 15.000 km or every year

Cabin air filter replacement is vital to keeping the air clean inside your vehicle. This is often done as a feature of your regular servicing regime. Cabin air filters should be replaced once a year or every 15,000 km. To optimize the clean air inside the car and improve the driving experience, check your cabin air filter annually.

How will you know if your cabin air filter needs changing?

  • Listen out for strange noises. These could be caused by deposits inside the filter
  • Watch for unpleasant smells
  • Poor air flow is a sign of a clogged cabin air filter
  • If your windows fog up frequently and are hard to clear, change your filter

Compare all MANN-FILTER cabin air filters

BenefitsPREMIUM
FreciousPlus (FP)
ADVANCED
CUK
BASIC
CU
Provides more than 95% protection against allergens
Prevents growth of mold and bacteria on the filter
Blocks particulate matter up to 95% (PM2.5)
Eliminates almost 90% of odours
Traps harmful gases, such as ozone, nitrogen oxides and sulphur dioxide
Almost 100% filtration of tiny particles
Significant reduction of diesel soot (>95%)
Protects the air conditioning system
