Oil Filter
HU 8009 z

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

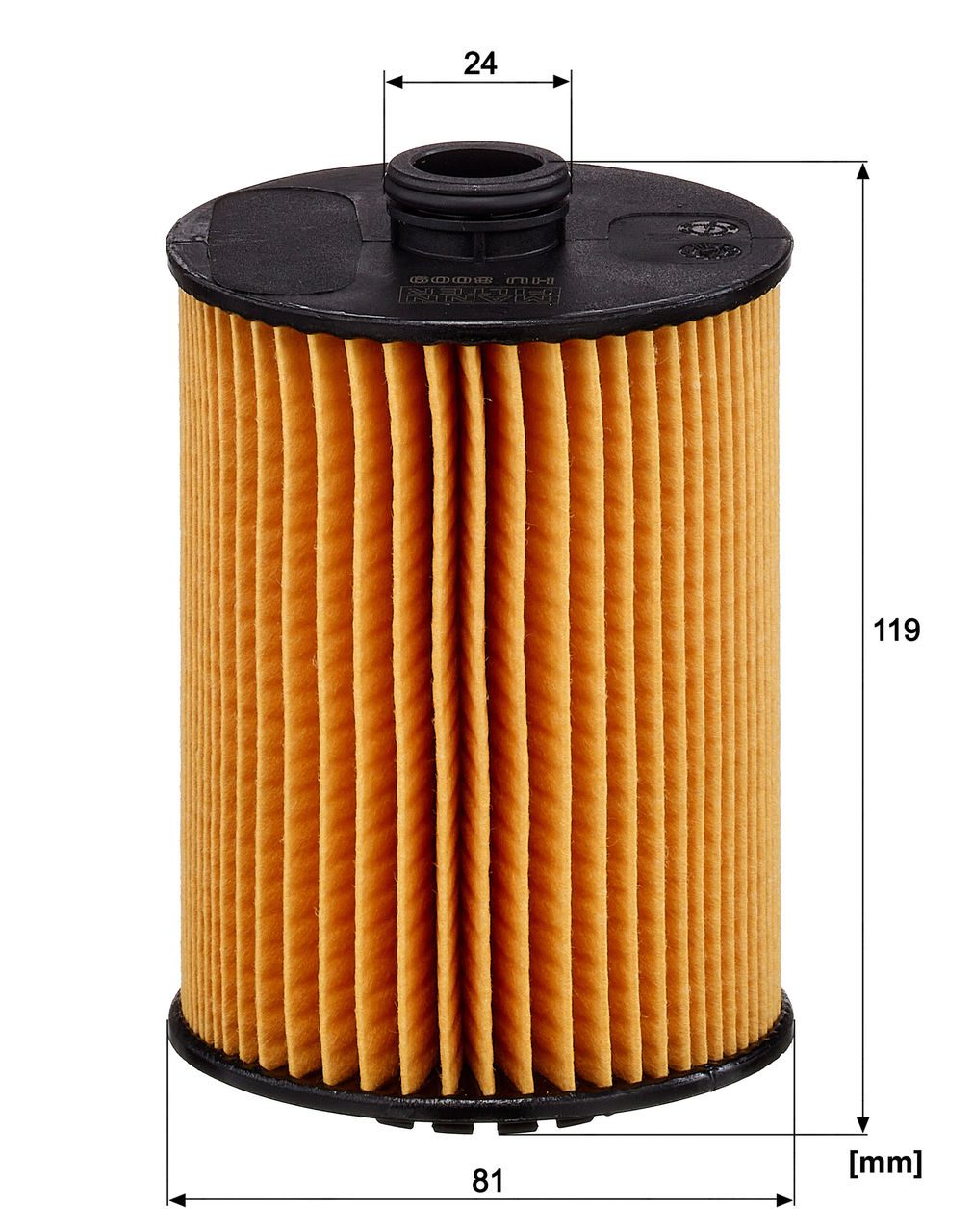

  • A = 81 mm; B = 24 mm; H = 119 mm
  • with gasket

GTIN Code: 4011558056155

Product Details

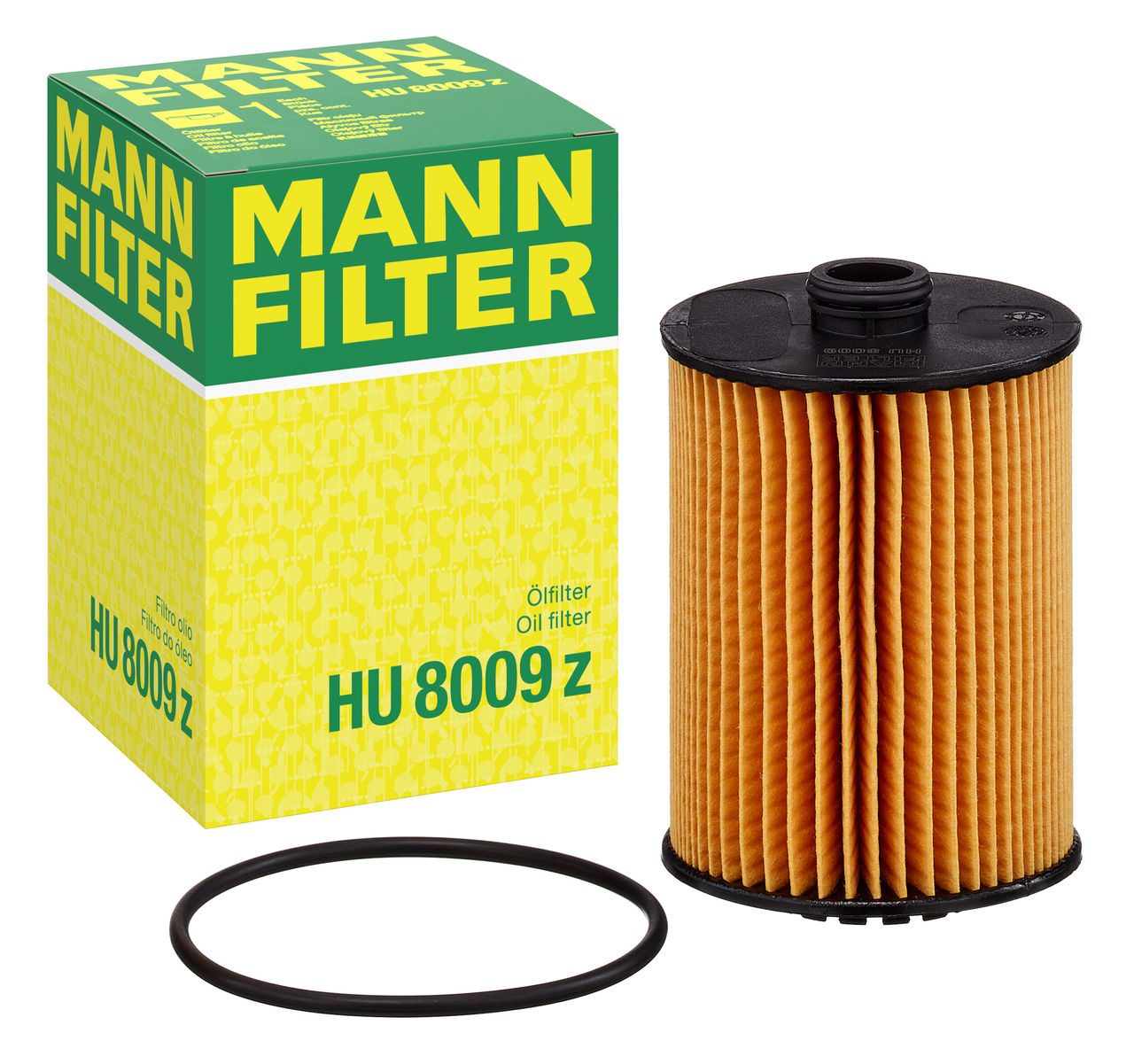

Product Image HU8009Z_MANN-FILTER

Product Image HU8009Z_MANN-FILTER
A 81 mm
B 24 mm
H 119 mm

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
3.6 V6
Oil Filter M55.02 3598 220 300 05/10 →
Model Type 3.6 V6
Filter Type Oil Filter
Engine Code M55.02
ccm 3598
kW 220
HP 300
Year of Manufacture 05/10 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
3.6 FSI V6 (3T)
Oil Filter CDVA 3597 191 260 11/08 → 05/15
Model Type 3.6 FSI V6 (3T)
Filter Type Oil Filter
Engine Code CDVA
ccm 3597
kW 191
HP 260
Year of Manufacture 11/08 → 05/15

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
3.6 FSI (358) Oil Filter BWS 3597 220 300 02/12 → 12/16
Model Type 3.6 FSI (358)
Filter Type Oil Filter
Engine Code BWS
ccm 3597
kW 220
HP 300
Year of Manufacture 02/12 → 12/16

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
3.6 (V6) Oil Filter - - - 01/12 → 12/13
3.6 FSI (357)
Oil Filter BWS 3597 220 300 11/10 → 12/14
Model Type 3.6 (V6)
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture 01/12 → 12/13
Model Type 3.6 FSI (357)
Filter Type Oil Filter
Engine Code BWS
ccm 3597
kW 220
HP 300
Year of Manufacture 11/10 → 12/14

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
3.6 FSI
Oil Filter BWS 3597 220 300 09/07 → 11/10
Model Type 3.6 FSI
Filter Type Oil Filter
Engine Code BWS
ccm 3597
kW 220
HP 300
Year of Manufacture 09/07 → 11/10

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
3.6 FSI (7P)
Oil Filter CGRA 3597 206 280 06/10 → 03/18
3.6 FSI (7P)
Oil Filter CMTA 3597 183 249 06/10 → 03/18
Model Type 3.6 FSI (7P)
Filter Type Oil Filter
Engine Code CGRA
ccm 3597
kW 206
HP 280
Year of Manufacture 06/10 → 03/18
Model Type 3.6 FSI (7P)
Filter Type Oil Filter
Engine Code CMTA
ccm 3597
kW 183
HP 249
Year of Manufacture 06/10 → 03/18

  • 958.107.222.10

  • 03H 115 562

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: HU 8009 z

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Oil Filter Content

Our engine oil filters work hard so your engine doesn’t have to

This crucial engine component ensures your engine functions smoothly and at peak performance. At MANN-FILTER we understand how to get the best out of every engine. And it starts with optimum filtration.

In the automotive aftermarket world prevention is always better than cure. Foresight and knowledge can save you – and your customers – time, money and hassle. Once a particle of soot or dust has got into the engine oil it starts to scratch the surfaces it comes into contact with, turning your lubricant being more abrasive. Just changing the oil isn’t enough – you also need to change the filter. Frequent oil filter changes prevent damage and keep your engine oil filter function at optimum levels.

Frictionless functionality. Optimal performance.

ANN-FILTER workshop partner installing an oil filter in a car
  • Longevity – A build-up of residue in engine oil can damage other components, but filtered, clean oil keeps things working at peak performance
  • Protection – Safeguards your engine parts from wear and tear
  • Reliability – Ensures your engine can function well, even in cold conditions
