Air Filter
C 15 163/1

About this item

High-quality MANN-FILTER air filters for clean air intake and optimum protection for your engine, mass air flow sensor & other sensitive components / They meet requirements of modern engine technology. Highest dirt holding capacity and dirt separation efficiency, low flow resistance and high pleat stability ensure functional reliability during the entire service interval.

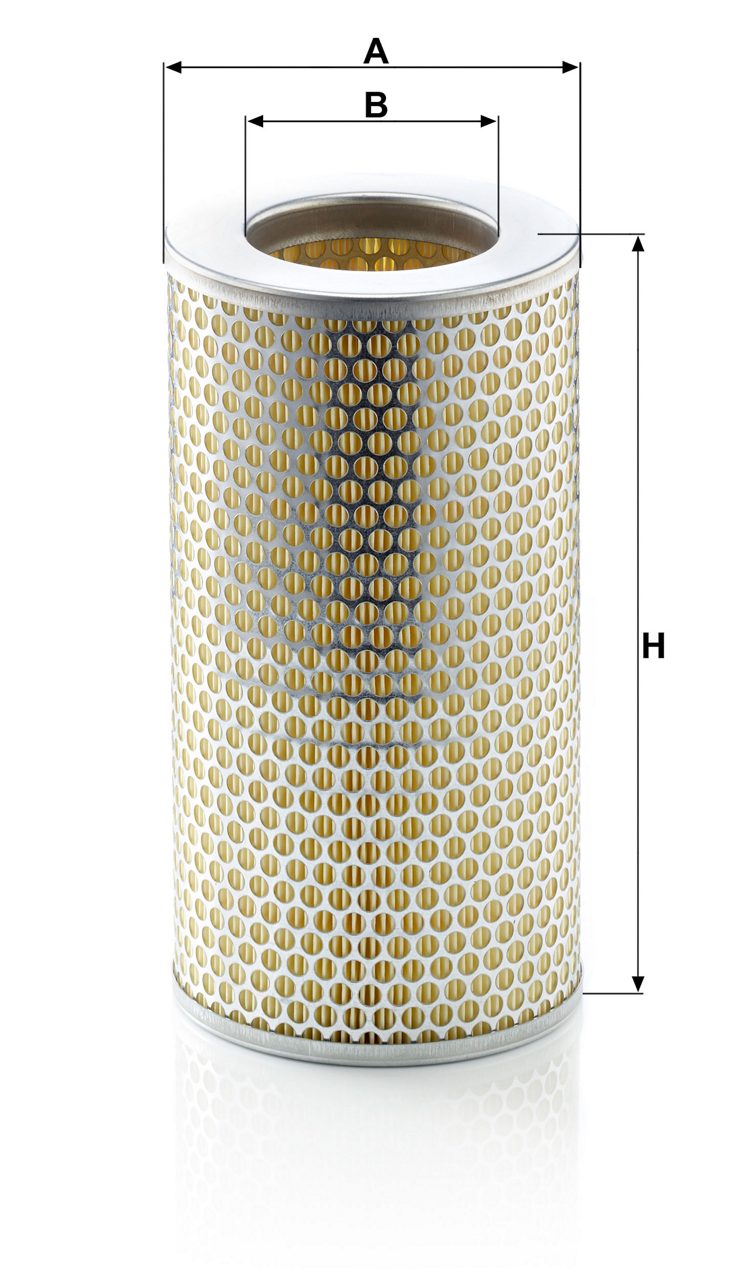

  • A = 146 mm; B = 86 mm; H = 281 mm

GTIN Code: 4011558048433

Product Details

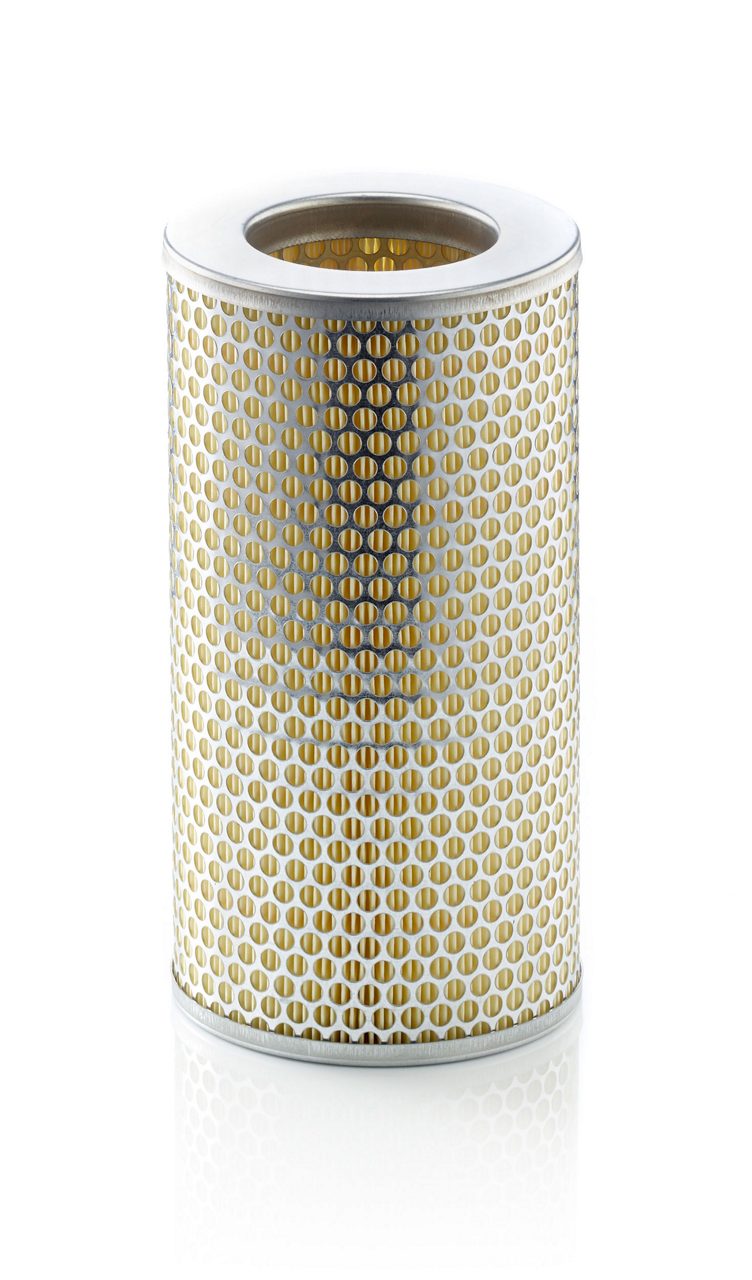

Product Image C15163/1_MANN-FILTER

Product Image C15163/1_MANN-FILTER
A 146 mm
B 86 mm
H 281 mm

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.5 CRD Turbo 16V DOHC (KDH222) Air Filter 2KDFTV 2494 80 109 03/05 → 10/06
Model Type 2.5 CRD Turbo 16V DOHC (KDH222)
Filter Type Air Filter
Engine Code 2KDFTV
ccm 2494
kW 80
HP 109
Year of Manufacture 03/05 → 10/06

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.4 8V SOHC (RZH 106,111,125) (H12G) Air Filter 2R-ZE 2438 85 115 01/96 → 04/98
2.4 D (H12G) Air Filter 2L 2446 58 79 08/95 → 08/06
2.4 D Turbo (LXH12/KLH12/RCH12) Air Filter 2LT 2446 66 90 08/95 → 08/01
2.5 CRD T (KDH200) (H1/H2) Air Filter 2KD-FTV 2494 75 102 10/01 → 08/06
2.5 CRD T (KDH200) Air Filter 2 KD-FTV, H 2494 86 117 10/06 → 12/12
2.5 D-4D Air Filter 2KD-FTV 1560 75 102 08/04 →
2.5 D-4D (H1/H2) Air Filter 2KD-FTV 2494 65 88 10/01 → 08/06
2.5 D-4D Air Filter 2 KD-FTV, H 2494 70 95 10/06 → 12/12
2.7, 2.7 4WD (H18/29) Air Filter 3RZ-FE 2694 105 143 04/97 → 12/06
Model Type 2.4 8V SOHC (RZH 106,111,125) (H12G)
Filter Type Air Filter
Engine Code 2R-ZE
ccm 2438
kW 85
HP 115
Year of Manufacture 01/96 → 04/98
Model Type 2.4 D (H12G)
Filter Type Air Filter
Engine Code 2L
ccm 2446
kW 58
HP 79
Year of Manufacture 08/95 → 08/06
Model Type 2.4 D Turbo (LXH12/KLH12/RCH12)
Filter Type Air Filter
Engine Code 2LT
ccm 2446
kW 66
HP 90
Year of Manufacture 08/95 → 08/01
Model Type 2.5 CRD T (KDH200) (H1/H2)
Filter Type Air Filter
Engine Code 2KD-FTV
ccm 2494
kW 75
HP 102
Year of Manufacture 10/01 → 08/06
Model Type 2.5 CRD T (KDH200)
Filter Type Air Filter
Engine Code 2 KD-FTV, H
ccm 2494
kW 86
HP 117
Year of Manufacture 10/06 → 12/12
Model Type 2.5 D-4D
Filter Type Air Filter
Engine Code 2KD-FTV
ccm 1560
kW 75
HP 102
Year of Manufacture 08/04 →
Model Type 2.5 D-4D (H1/H2)
Filter Type Air Filter
Engine Code 2KD-FTV
ccm 2494
kW 65
HP 88
Year of Manufacture 10/01 → 08/06
Model Type 2.5 D-4D
Filter Type Air Filter
Engine Code 2 KD-FTV, H
ccm 2494
kW 70
HP 95
Year of Manufacture 10/06 → 12/12
Model Type 2.7, 2.7 4WD (H18/29)
Filter Type Air Filter
Engine Code 3RZ-FE
ccm 2694
kW 105
HP 143
Year of Manufacture 04/97 → 12/06

  • 17801-54140
  • 17801-75020
  • 17801-54140-83
  • 17801-54140-8T

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: C 15 163/1

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-09-19 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Air Filter Content

Your engine and air filter working in fine-tuned harmony

Efficiency and speed come from perfect balance. Whether it’s in the quiet strength of a athlete's body or the sleek components of an engine, true power comes when things work in unison. Every part of your combustion engine is designed to serve a bigger purpose – to provide power and motion. For this to work properly you need each piece to be right. At MANN-FILTER we produce engine air filters that enable all the vital combustion and ignition elements in your engine to perform at their best.

What an engine air cleaner will do for your engine

Contaminated engine air upsets the internal balance, leaving dirt and deposits on engine parts. This can impair the function of electronic components, cause ignition problems, waste fuel and shorten the engine’s life

  • You can keep your engine into equilibrium with a high-quality engine air filter that captures dust, pollen, soot and water droplets in the engine air

Reasons to install an engine air filter

Like the engines you drive and service, the world of filter design is always on the move. At MANN-FILTER we strive not only to keep up with new technologies and components, but to be the pacemakers ahead of the pack. That’s why our engine air filters are built to withstand everything life on the road might throw at them.

Discover the benefits of a MANN-FILTER air filter:

  • Protection – During the whole service interval
  • Security – High dust holding capacity and very low flow resistance
  • Longevity – Optimal protection for engine, mass flow meter and other sensitive engine components
