Air Filter
C 22 024

About this item

High-quality MANN-FILTER air filters for clean air intake and optimum protection for your engine, mass air flow sensor & other sensitive components / They meet requirements of modern engine technology. Highest dirt holding capacity and dirt separation efficiency, low flow resistance and high pleat stability ensure functional reliability during the entire service interval.

  • A = 222 mm; B = 135 mm; H = 138 mm

GTIN Code: 4011558069742

Product Details

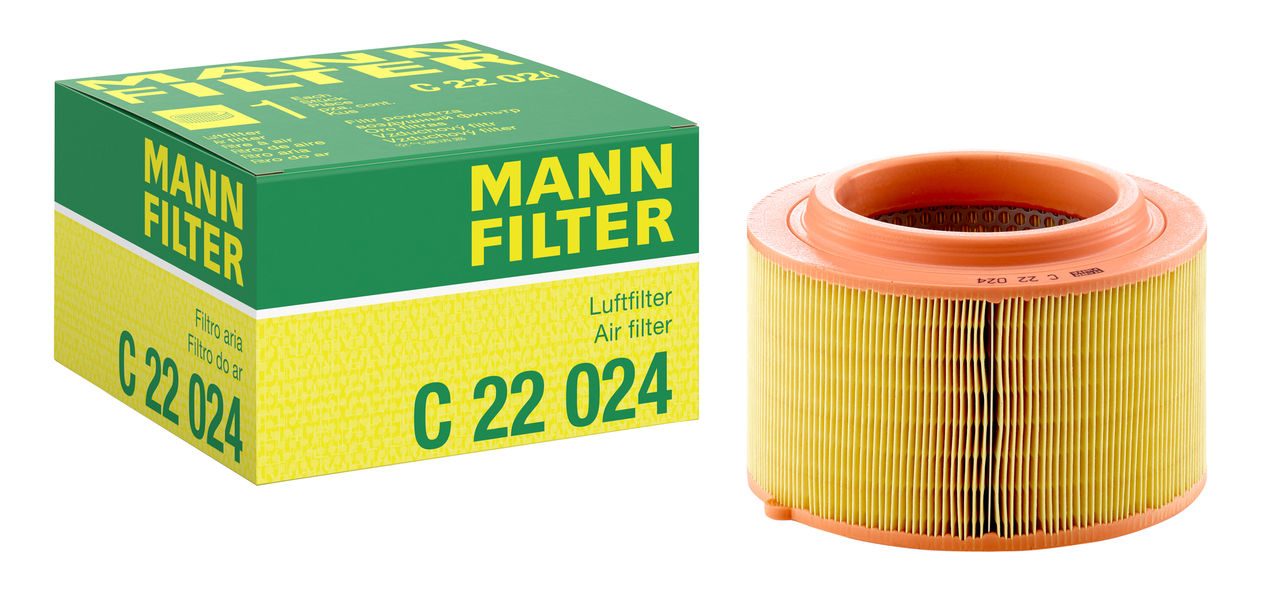

Product Image C22024_MANN-FILTER

Product Image C22024_MANN-FILTER
A 222
B 135
H 138

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
3.2 20V DOHC (UA) Air Filter P5AT 3198 143 194 07/15 →
Model Type 3.2 20V DOHC (UA)
Filter Type Air Filter
Engine Code P5AT
ccm 3198
kW 143
HP 194
Year of Manufacture 07/15 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
3.2 TDdi (PX) Air Filter - 147 200 11/11 →
Model Type 3.2 TDdi (PX)
Filter Type Air Filter
Engine Code
ccm -
kW 147
HP 200
Year of Manufacture 11/11 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.2 TDCi (TKE) Air Filter GBVAJQJ 2198 110 150 11/11 → 06/15
2.2 TDCi (TKE) Air Filter T22DD0P 2198 96 130 05/15 →
2.2 TDCi (TKE) Air Filter ENQW, GBVAJQW 2198 92 125 04/11 →
2.2 TDCi (TKE) Air Filter GBVAJQJ, T22DD0P 2198 118 160 05/15 →
2.5 (TKE) Air Filter 2498 122 166 11/11 → 04/14
3.2 TDCi (TKE) Air Filter P5-AT,SAFA,SA2R,SA2S,SA2W,ENSA 3198 147 200 11/11 →
Model Type 2.2 TDCi (TKE)
Filter Type Air Filter
Engine Code GBVAJQJ
ccm 2198
kW 110
HP 150
Year of Manufacture 11/11 → 06/15
Model Type 2.2 TDCi (TKE)
Filter Type Air Filter
Engine Code T22DD0P
ccm 2198
kW 96
HP 130
Year of Manufacture 05/15 →
Model Type 2.2 TDCi (TKE)
Filter Type Air Filter
Engine Code ENQW, GBVAJQW
ccm 2198
kW 92
HP 125
Year of Manufacture 04/11 →
Model Type 2.2 TDCi (TKE)
Filter Type Air Filter
Engine Code GBVAJQJ, T22DD0P
ccm 2198
kW 118
HP 160
Year of Manufacture 05/15 →
Model Type 2.5 (TKE)
Filter Type Air Filter
Engine Code
ccm 2498
kW 122
HP 166
Year of Manufacture 11/11 → 04/14
Model Type 3.2 TDCi (TKE)
Filter Type Air Filter
Engine Code P5-AT,SAFA,SA2R,SA2S,SA2W,ENSA
ccm 3198
kW 147
HP 200
Year of Manufacture 11/11 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.2 CRD Air Filter - 110 150 11/11 →
3.2 Di 20V DOHC (XT, XTR, GT) Air Filter P5AT 3198 147 200 11/11 →
Model Type 2.2 CRD
Filter Type Air Filter
Engine Code
ccm -
kW 110
HP 150
Year of Manufacture 11/11 →
Model Type 3.2 Di 20V DOHC (XT, XTR, GT)
Filter Type Air Filter
Engine Code P5AT
ccm 3198
kW 147
HP 200
Year of Manufacture 11/11 →

  • AB39-9601-AB

  • 1720 719
  • AB3J-9601-AB
  • 1921 356
  • AB39-9601-AB
  • AB39-9601-AD

  • U2Y0-13-Z40A
  • U2Y0-13-Z40
  • U201-13-Z40
  • 1D011-3Z40

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: C 22 024

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2024-09-24 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Air Filter Content

Your engine and air filter working in fine-tuned harmony

Efficiency and speed come from perfect balance. Whether it’s in the quiet strength of a athlete's body or the sleek components of an engine, true power comes when things work in unison. Every part of your combustion engine is designed to serve a bigger purpose – to provide power and motion. For this to work properly you need each piece to be right. At MANN-FILTER we produce engine air filters that enable all the vital combustion and ignition elements in your engine to perform at their best.

What an engine air cleaner will do for your engine

Contaminated engine air upsets the internal balance, leaving dirt and deposits on engine parts. This can impair the function of electronic components, cause ignition problems, waste fuel and shorten the engine’s life

  • You can keep your engine into equilibrium with a high-quality engine air filter that captures dust, pollen, soot and water droplets in the engine air

Reasons to install an engine air filter

Like the engines you drive and service, the world of filter design is always on the move. At MANN-FILTER we strive not only to keep up with new technologies and components, but to be the pacemakers ahead of the pack. That’s why our engine air filters are built to withstand everything life on the road might throw at them.

Discover the benefits of a MANN-FILTER air filter:

  • Protection – During the whole service interval
  • Security – High dust holding capacity and very low flow resistance
  • Longevity – Optimal protection for engine, mass flow meter and other sensitive engine components
