Air Filter
C 23 220

About this item

High-quality MANN-FILTER air filters for clean air intake and optimum protection for your engine, mass air flow sensor & other sensitive components / They meet requirements of modern engine technology. Highest dirt holding capacity and dirt separation efficiency, low flow resistance and high pleat stability ensure functional reliability during the entire service interval.

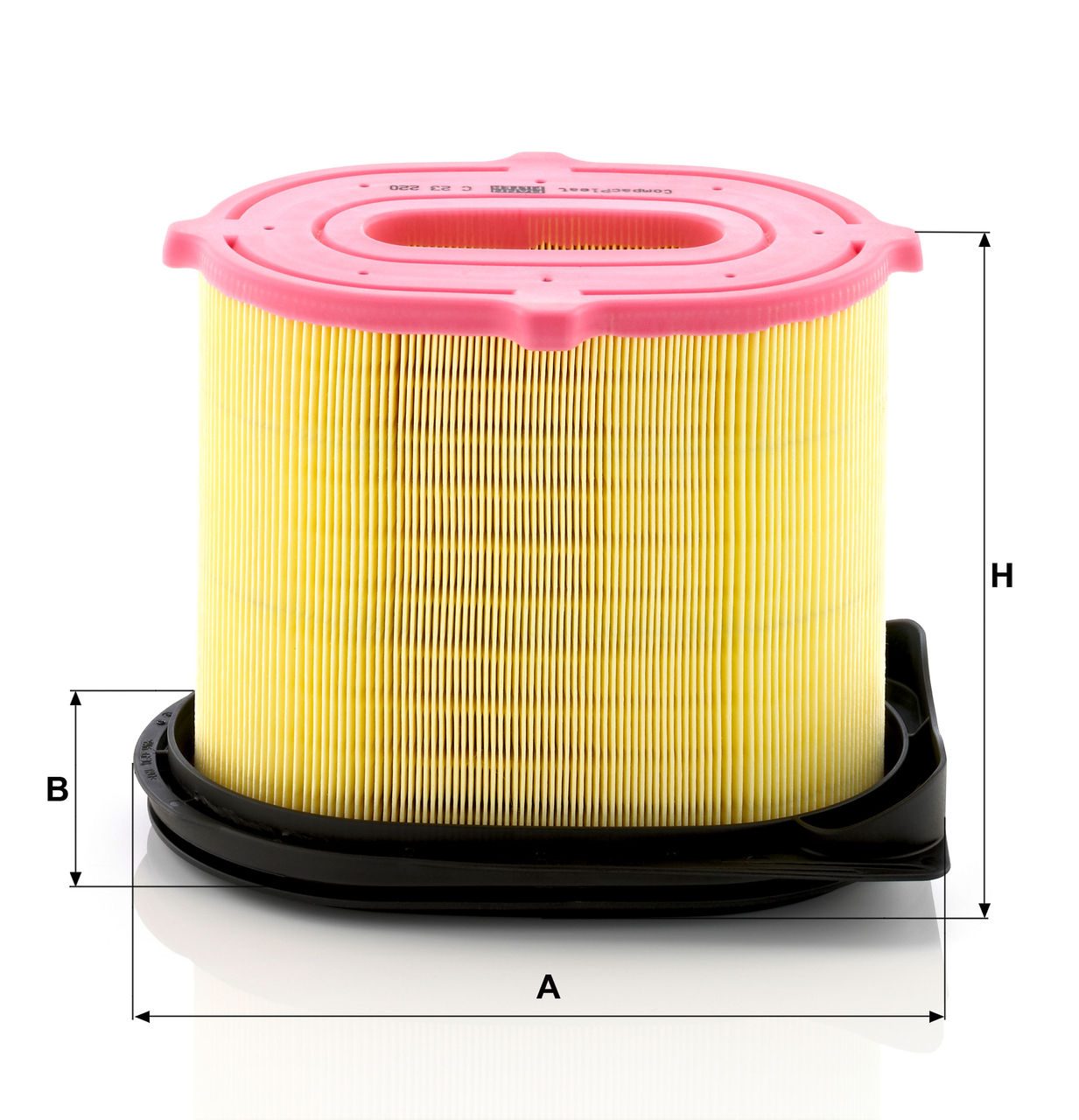

  • A = 170 mm; B = 230 mm; H = 165 mm
  • IQORON
  • secondary element CF 2125

GTIN Code: 4011558422004

Product Details

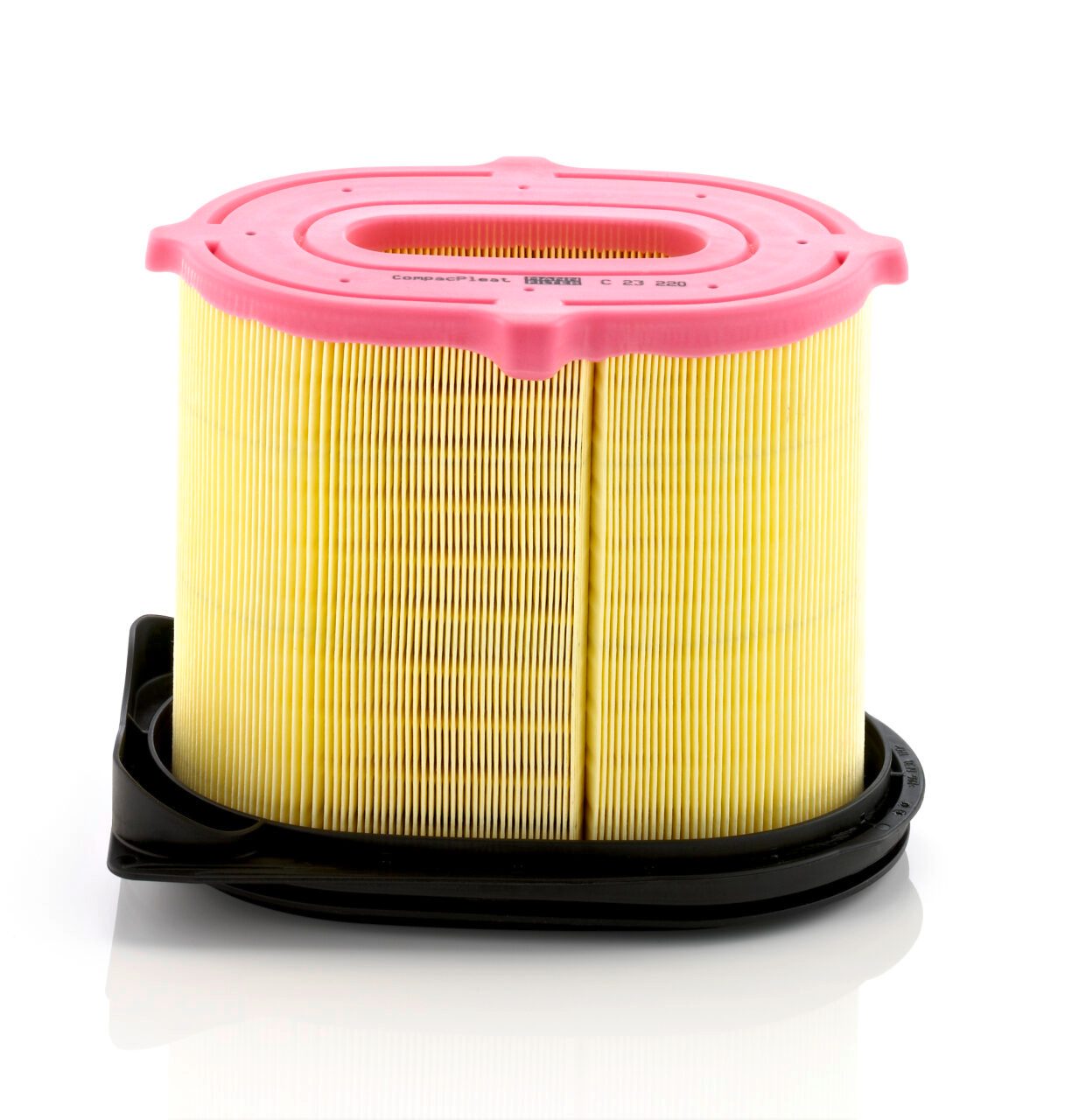

Product Image C23220_MANN-FILTER

Product Image C23220_MANN-FILTER
A 170
B 230
H 165

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
TP 460 Air Filter VM R754EU3 2970 75 101 01/12 →
Model Type TP 460
Filter Type Air Filter
Engine Code VM R754EU3
ccm 2970
kW 75
HP 101
Year of Manufacture 01/12 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
D3 K (FFF1->, JTD1->, LLL1->)
Air Filter Caterpiller C4.4 Acert 4400 60 82 03/08 →
Model Type D3 K (FFF1->, JTD1->, LLL1->)
Filter Type Air Filter
Engine Code Caterpiller C4.4 Acert
ccm 4400
kW 60
HP 82
Year of Manufacture 03/08 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
D4 K (MMM1->, RRR1->) Air Filter Caterpillar C4.4 Acert 4400 68 93 03/08 →
Model Type D4 K (MMM1->, RRR1->)
Filter Type Air Filter
Engine Code Caterpillar C4.4 Acert
ccm 4400
kW 68
HP 93
Year of Manufacture 03/08 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
D5 K Air Filter CAT C4.4 ACERT 4400 71 96
Model Type D5 K
Filter Type Air Filter
Engine Code CAT C4.4 ACERT
ccm 4400
kW 71
HP 96
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
30.7 (TBC, TAC,) Air Filter Perkins - 73 99
Model Type 30.7 (TBC, TAC,)
Filter Type Air Filter
Engine Code Perkins
ccm -
kW 73
HP 99
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
25.6 Air Filter Kubota V3307-CR-T-EU2 - 55 75 01/17 →
Model Type 25.6
Filter Type Air Filter
Engine Code Kubota V3307-CR-T-EU2
ccm -
kW 55
HP 75
Year of Manufacture 01/17 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
A 75 (1D8) Air Filter - - -
A 75L (1D8) Air Filter - - -
A 85 (1D8) Air Filter SISU 44DT 4397 72 98 01/04 → 12/08
A 85L (1D8) Air Filter 33DTA 4397 65 88
A 93H (1A5) Air Filter - - -
A83, A93 (1A5) Air Filter SISU 33CTA 3300 65 88 01/11 →
A83H Air Filter SISU 33CTA 3300 65 88 01/03 →
A95 (1D8LRC) Air Filter SISU 44 DTA - - -
A95L (1D8) Air Filter SISU 44 DTA - - -
Model Type A 75 (1D8)
Filter Type Air Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type A 75L (1D8)
Filter Type Air Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type A 85 (1D8)
Filter Type Air Filter
Engine Code SISU 44DT
ccm 4397
kW 72
HP 98
Year of Manufacture 01/04 → 12/08
Model Type A 85L (1D8)
Filter Type Air Filter
Engine Code 33DTA
ccm 4397
kW 65
HP 88
Year of Manufacture
Model Type A 93H (1A5)
Filter Type Air Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type A83, A93 (1A5)
Filter Type Air Filter
Engine Code SISU 33CTA
ccm 3300
kW 65
HP 88
Year of Manufacture 01/11 →
Model Type A83H
Filter Type Air Filter
Engine Code SISU 33CTA
ccm 3300
kW 65
HP 88
Year of Manufacture 01/03 →
Model Type A95 (1D8LRC)
Filter Type Air Filter
Engine Code SISU 44 DTA
ccm -
kW -
HP -
Year of Manufacture
Model Type A95L (1D8)
Filter Type Air Filter
Engine Code SISU 44 DTA
ccm -
kW -
HP -
Year of Manufacture

  • 11115330

  • SCA037932

  • 17953160-0

  • 47668424

  • BHC5095

  • 33017972

  • 332/G0330

  • 904-68

  • 3205163

  • 215101901

  • 037932

  • 37352500
  • V37352500

  • 41 132 042 F

  • 2368923

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: C 23 220

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2024-09-24 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Air Filter Content

Your engine and air filter working in fine-tuned harmony

Efficiency and speed come from perfect balance. Whether it’s in the quiet strength of a athlete's body or the sleek components of an engine, true power comes when things work in unison. Every part of your combustion engine is designed to serve a bigger purpose – to provide power and motion. For this to work properly you need each piece to be right. At MANN-FILTER we produce engine air filters that enable all the vital combustion and ignition elements in your engine to perform at their best.

What an engine air cleaner will do for your engine

Contaminated engine air upsets the internal balance, leaving dirt and deposits on engine parts. This can impair the function of electronic components, cause ignition problems, waste fuel and shorten the engine’s life

  • You can keep your engine into equilibrium with a high-quality engine air filter that captures dust, pollen, soot and water droplets in the engine air

Reasons to install an engine air filter

Like the engines you drive and service, the world of filter design is always on the move. At MANN-FILTER we strive not only to keep up with new technologies and components, but to be the pacemakers ahead of the pack. That’s why our engine air filters are built to withstand everything life on the road might throw at them.

Discover the benefits of a MANN-FILTER air filter:

  • Protection – During the whole service interval
  • Security – High dust holding capacity and very low flow resistance
  • Longevity – Optimal protection for engine, mass flow meter and other sensitive engine components
