Air Filter
C 35 009

About this item

High-quality MANN-FILTER air filters for clean air intake and optimum protection for your engine, mass air flow sensor & other sensitive components / They meet requirements of modern engine technology. Highest dirt holding capacity and dirt separation efficiency, low flow resistance and high pleat stability ensure functional reliability during the entire service interval.

This product, compared to its previous version, is equipped with features that lead to greater environmental compatibility while maintaining first-class quality (valid only for products with the green leaf pictogram on the packaging).

  • A = 342 mm; B = 301 mm; H = 35 mm
  • Sustainable feature: with lignin

GTIN Code: 4011558031787

Product Details

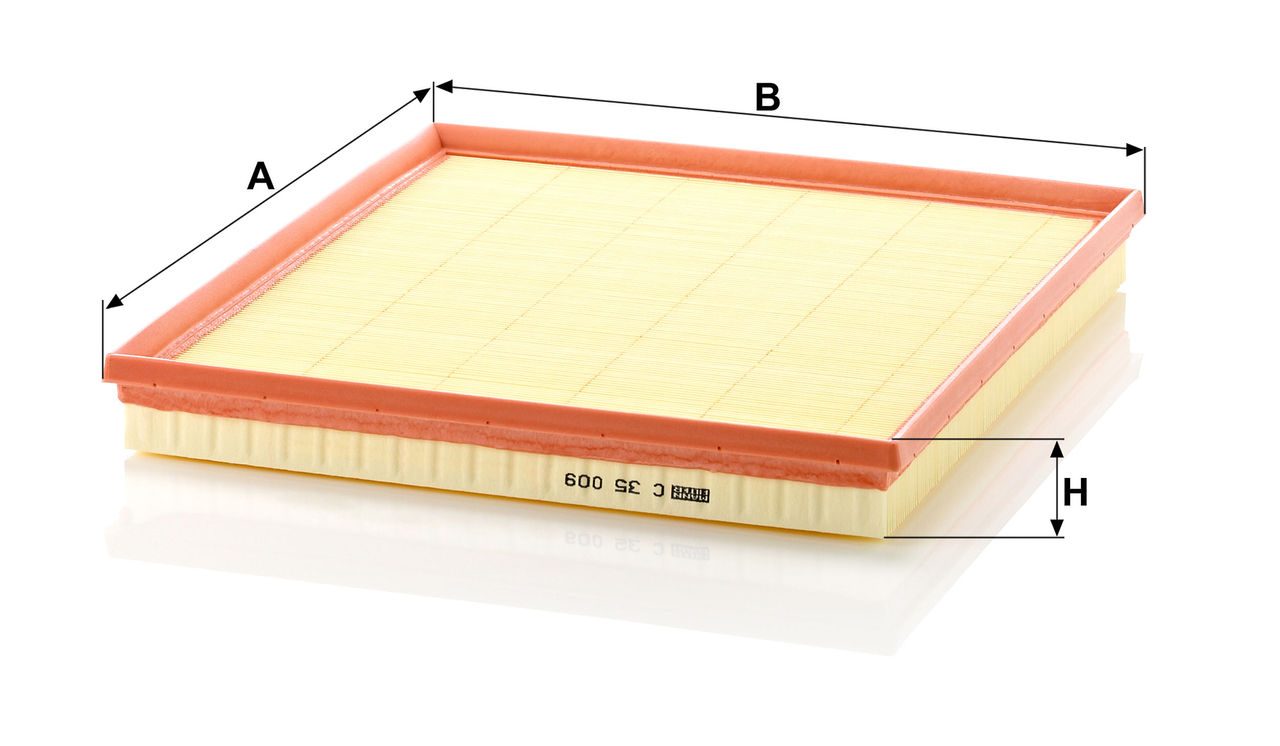

Product Image C35009_MANN-FILTER

Product Image C35009_MANN-FILTER
A 342 mm
B 301 mm
H 35 mm

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.2 TDCi
Air Filter PGFA,PGFB,UHFA,UHFB,UHFC 2198 103 140 10/07 → 08/14
Model Type 2.2 TDCi
Filter Type Air Filter
Engine Code PGFA,PGFB,UHFA,UHFB,UHFC
ccm 2198
kW 103
HP 140
Year of Manufacture 10/07 → 08/14

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.2 TDCi Air Filter CY14, CYF5, CYFG, USF6 2198 92 125 08/13 → 12/18
2.2 TDCi Air Filter CVF5 2198 114 155 08/13 → 12/18
Model Type 2.2 TDCi
Filter Type Air Filter
Engine Code CY14, CYF5, CYFG, USF6
ccm 2198
kW 92
HP 125
Year of Manufacture 08/13 → 12/18
Model Type 2.2 TDCi
Filter Type Air Filter
Engine Code CVF5
ccm 2198
kW 114
HP 155
Year of Manufacture 08/13 → 12/18

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.2 TDCi Air Filter CYF4, CYFF 2198 92 125 04/12 → 12/15
2.2 TDCi Air Filter CVFF 2198 114 155 04/12 → 04/18
2.2 TDCi Air Filter DRF4, DRFF, DRFG 2198 74 100 04/12 → 12/15
Model Type 2.2 TDCi
Filter Type Air Filter
Engine Code CYF4, CYFF
ccm 2198
kW 92
HP 125
Year of Manufacture 04/12 → 12/15
Model Type 2.2 TDCi
Filter Type Air Filter
Engine Code CVFF
ccm 2198
kW 114
HP 155
Year of Manufacture 04/12 → 04/18
Model Type 2.2 TDCi
Filter Type Air Filter
Engine Code DRF4, DRFF, DRFG
ccm 2198
kW 74
HP 100
Year of Manufacture 04/12 → 12/15

  • CC11-9601-CA

  • 1731 778
  • CC11-9601-CB
  • 1741 459

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: C 35 009

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Air Filter Content

Your engine and air filter working in fine-tuned harmony

Efficiency and speed come from perfect balance. Whether it’s in the quiet strength of a athlete's body or the sleek components of an engine, true power comes when things work in unison. Every part of your combustion engine is designed to serve a bigger purpose – to provide power and motion. For this to work properly you need each piece to be right. At MANN-FILTER we produce engine air filters that enable all the vital combustion and ignition elements in your engine to perform at their best.

What an engine air cleaner will do for your engine

Contaminated engine air upsets the internal balance, leaving dirt and deposits on engine parts. This can impair the function of electronic components, cause ignition problems, waste fuel and shorten the engine’s life

  • You can keep your engine into equilibrium with a high-quality engine air filter that captures dust, pollen, soot and water droplets in the engine air

Reasons to install an engine air filter

Like the engines you drive and service, the world of filter design is always on the move. At MANN-FILTER we strive not only to keep up with new technologies and components, but to be the pacemakers ahead of the pack. That’s why our engine air filters are built to withstand everything life on the road might throw at them.

Discover the benefits of a MANN-FILTER air filter:

  • Protection – During the whole service interval
  • Security – High dust holding capacity and very low flow resistance
  • Longevity – Optimal protection for engine, mass flow meter and other sensitive engine components
Sustainability

Our path to improved sustainability​

MANN-FILTER icon marking more sustainable products

Sustainability has always been at the core of the MANN-FILTER identity. The way we design, produce and pack our products significantly impacts the environmental footprint. We are accelerating our efforts by introducing impactful actions and product innovations to take significant strides forward.​

Step by step, we will implement advanced features in selected products and introduce additional sustainable practices to drive continuous improvement.​

​Equipped with sustainable features, produced and packed with an environmentally careful mindset, e.g. sustainable product features like lignin, an improved impregnation that contains raw materials from renewable resources.
