Cabin Air Filter
CUK 2436

About this item

High-quality MANN-FILTER cabin filters with active carbon - nearly 100% protection from particles like pollen, diesel soot & tire abrasion / Additional protection from harmful gases & unpleasant odour. The trated highly-effective activated carbon gives protection against harmful gases such as ozone, nitrogen oxide or sulphur dioxide and eliminates unpleasant odours during the entire service interval.

  • A = 236 mm; B = 190 mm; H = 22 mm
  • Activated carbon filter

GTIN Code: 4011558560607

Mounting Instruction

Product Details

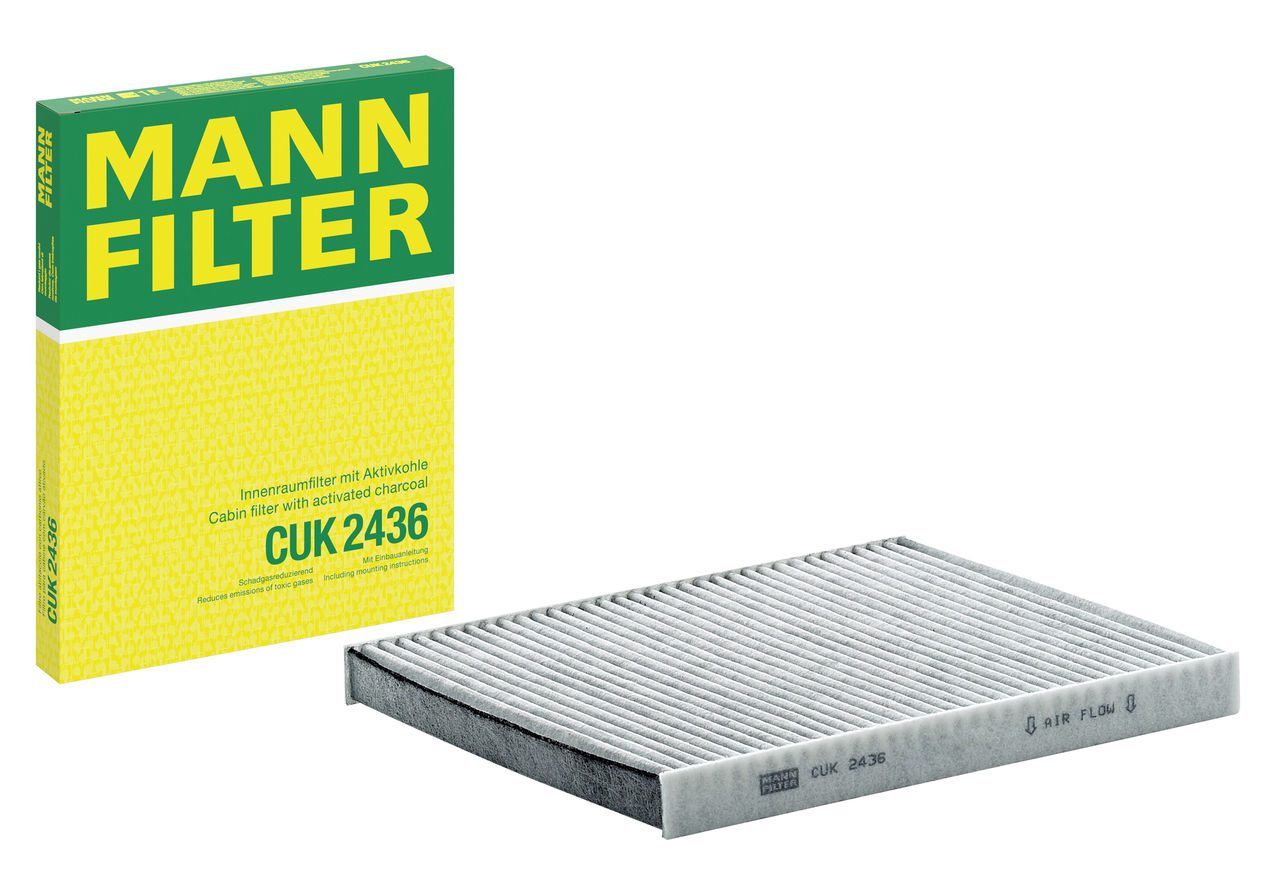

Product Image CUK2436_MANN-FILTER

Product Image CUK2436_MANN-FILTER

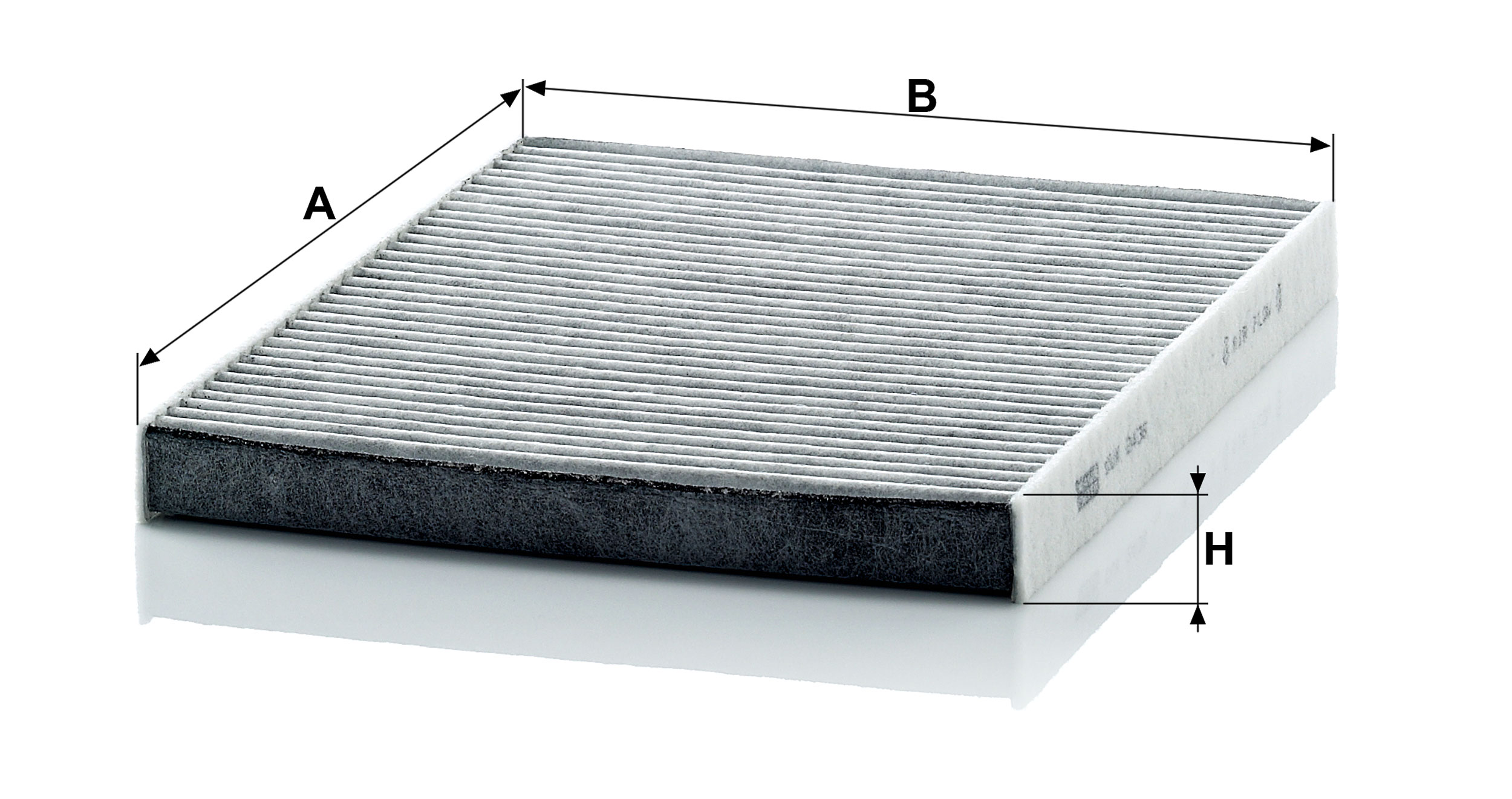

A 236 mm
B 190 mm
H 22 mm

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.5 Ti-VCT Cabin Air Filter - 90 122 10/17 →
Model Type 1.5 Ti-VCT
Filter Type Cabin Air Filter
Engine Code
ccm -
kW 90
HP 122
Year of Manufacture 10/17 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.6 Metal Cabin Air Filter U5JA 1596 99 134 04/12 → 12/12
1.5 16V (New Fiesta) Cabin Air Filter 1499 82 111 07/13 → 12/16
1.6 Cabin Air Filter HXJA 1596 89 121 10/10 →
1.0 Cabin Air Filter XMJA, XMJB, XMJC, XMJD 998 48 65 01/13 → 04/17
1.0 EcoBoost Cabin Air Filter 10FDOX (Fox) 998 74 100 11/12 →
1.0 EcoBoost Cabin Air Filter 10FDOX (Fox) 998 92 125 11/12 →
1.25 Cabin Air Filter STJA, STJB 1242 44 60 08/08 → 12/12
1.4 Duratec - WS Cabin Air Filter RTJA,RTJB,RTJD,SPJA,SPJC,SPJE 1388 71 96 10/08 → 12/12
1.6 Ti-VCT - WS, WT Cabin Air Filter HXJA, HXJB 1596 88 120 10/08 → 12/12
1.6 Ti-VCT Sport S Cabin Air Filter U5JA 1596 99 134 12/10 →
1.6 ST EcoBoost Cabin Air Filter JTJA, JTJB 1596 134 182 03/13 →
1.6 TDCi - WS, WT Cabin Air Filter HHJC, HHJD, HHJE 1560 66 90 06/08 → 12/12
Model Type 1.6 Metal
Filter Type Cabin Air Filter
Engine Code U5JA
ccm 1596
kW 99
HP 134
Year of Manufacture 04/12 → 12/12
Model Type 1.5 16V (New Fiesta)
Filter Type Cabin Air Filter
Engine Code
ccm 1499
kW 82
HP 111
Year of Manufacture 07/13 → 12/16
Model Type 1.6
Filter Type Cabin Air Filter
Engine Code HXJA
ccm 1596
kW 89
HP 121
Year of Manufacture 10/10 →
Model Type 1.0
Filter Type Cabin Air Filter
Engine Code XMJA, XMJB, XMJC, XMJD
ccm 998
kW 48
HP 65
Year of Manufacture 01/13 → 04/17
Model Type 1.0 EcoBoost
Filter Type Cabin Air Filter
Engine Code 10FDOX (Fox)
ccm 998
kW 74
HP 100
Year of Manufacture 11/12 →
Model Type 1.0 EcoBoost
Filter Type Cabin Air Filter
Engine Code 10FDOX (Fox)
ccm 998
kW 92
HP 125
Year of Manufacture 11/12 →
Model Type 1.25
Filter Type Cabin Air Filter
Engine Code STJA, STJB
ccm 1242
kW 44
HP 60
Year of Manufacture 08/08 → 12/12
Model Type 1.4 Duratec - WS
Filter Type Cabin Air Filter
Engine Code RTJA,RTJB,RTJD,SPJA,SPJC,SPJE
ccm 1388
kW 71
HP 96
Year of Manufacture 10/08 → 12/12
Model Type 1.6 Ti-VCT - WS, WT
Filter Type Cabin Air Filter
Engine Code HXJA, HXJB
ccm 1596
kW 88
HP 120
Year of Manufacture 10/08 → 12/12
Model Type 1.6 Ti-VCT Sport S
Filter Type Cabin Air Filter
Engine Code U5JA
ccm 1596
kW 99
HP 134
Year of Manufacture 12/10 →
Model Type 1.6 ST EcoBoost
Filter Type Cabin Air Filter
Engine Code JTJA, JTJB
ccm 1596
kW 134
HP 182
Year of Manufacture 03/13 →
Model Type 1.6 TDCi - WS, WT
Filter Type Cabin Air Filter
Engine Code HHJC, HHJD, HHJE
ccm 1560
kW 66
HP 90
Year of Manufacture 06/08 → 12/12

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.5 ST ECOBOOST Cabin Air Filter YZJB 1496 147 200 07/19 →
Model Type 1.5 ST ECOBOOST
Filter Type Cabin Air Filter
Engine Code YZJB
ccm 1496
kW 147
HP 200
Year of Manufacture 07/19 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.0 EcoBoost Cabin Air Filter B7JE 999 92 125 07/20 →
Model Type 1.0 EcoBoost
Filter Type Cabin Air Filter
Engine Code B7JE
ccm 999
kW 92
HP 125
Year of Manufacture 07/20 →

  • 8V5J-19G244-AA
  • 8V51-18D543-AA

  • 1594 615
  • 1541 456
  • 1566 997
  • 1701 022
  • 2092 437
  • H1BH 19G244AA
  • 2495 322
  • 2092 404
  • H1BH 18D543AA

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: CUK 2436

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Cabin Air Filter Content

Cabin air filters put the joy back into driving

Cabin air filter against pollen by MANN-FILTER

Air flows into a vehicle at a volume of up to 540,000 litres per hour through the ventilation ducts. Imagine the amount of dirt and dust that comes with it. Now picture that entering your lungs. Not a pretty picture. In fact, the air inside a car contains around five times more exhaust gases, pollutants and allergens than outside air. Vehicle cabin air filters remove up to 90% of even the tiniest  harmful particulates (up to 1µm, in size)  creating a barrier between passengers and the incoming air.

A MANN-FILTER cabin air filter can separate tiny particulates almost 100% – the damaging micro-organisms contained in pollen, exhaust fumes, smoke, fossil fuel emissions and gas droplets. Some of these are smaller than 3% of the diameter of a human hair. Which shows how powerful and effective a pollen filter is.

Dust and pollen filters: Benefits at a glance

What’s all the fuss about? Here are the cabin air filter benefits you will enjoy with a MANN-FILTER product:

  • Performance – Our premium products offer exceptional performance in cabin air filter technology
  • Wellbeing – Clean air improves the health and wellbeing of everyone traveling in the vehicle
  • Efficiency – Servicing and replacing the air conditioning filter in a car regularly improves system functionality
  • Support – Our easy to use online catalogue and simple installation instructions provide the guidance for a perfect fit!

What you need to know about changing a cabin air filter

Replace your cabin air filter after 15.000 km or every year

Cabin air filter replacement is vital to keeping the air clean inside your vehicle. This is often done as a feature of your regular servicing regime. Cabin air filters should be replaced once a year or every 15,000 km. To optimize the clean air inside the car and improve the driving experience, check your cabin air filter annually.

How will you know if your cabin air filter needs changing?

  • Listen out for strange noises. These could be caused by deposits inside the filter
  • Watch for unpleasant smells
  • Poor air flow is a sign of a clogged cabin air filter
  • If your windows fog up frequently and are hard to clear, change your filter

Compare all MANN-FILTER cabin air filters

BenefitsPREMIUM
FreciousPlus (FP)
ADVANCED
CUK
BASIC
CU
Provides more than 95% protection against allergens
Prevents growth of mold and bacteria on the filter
Blocks particulate matter up to 95% (PM2.5)
Eliminates almost 90% of odours
Traps harmful gases, such as ozone, nitrogen oxides and sulphur dioxide
Almost 100% filtration of tiny particles
Significant reduction of diesel soot (>95%)
Protects the air conditioning system
