LB 1374/20
LB 1374/20

Compressed Air-Oil Separation
LB 1374/20

About this item

MANN-FILTER air deoiling boxes reliably separate oil from the compressed air in compressors and vacuum pumps. They ensure clean air, prolong the service life of the devices and provide optimal performance. High-quality media for the air deoiling boxes from the technology leader MANN-FILTER ensure a high separation rate and a low residual oil content. This minimizes oil loss and leads to low energy and oil consumption over the entire service life.

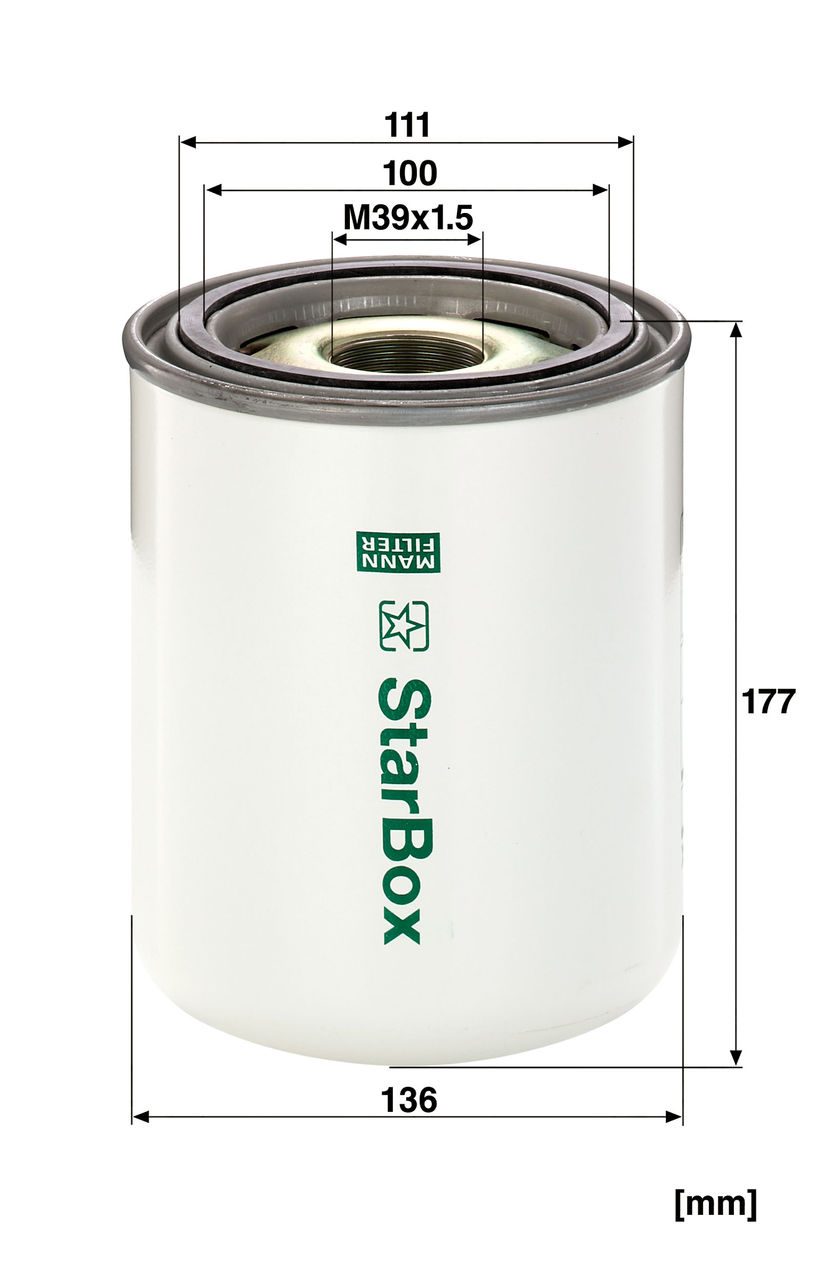

  • A = 136 mm; B = 100 mm; C = 111 mm; G = M39x1.5; H = 177 mm
  • StarBox

GTIN Code: 4011558396107

Product Details

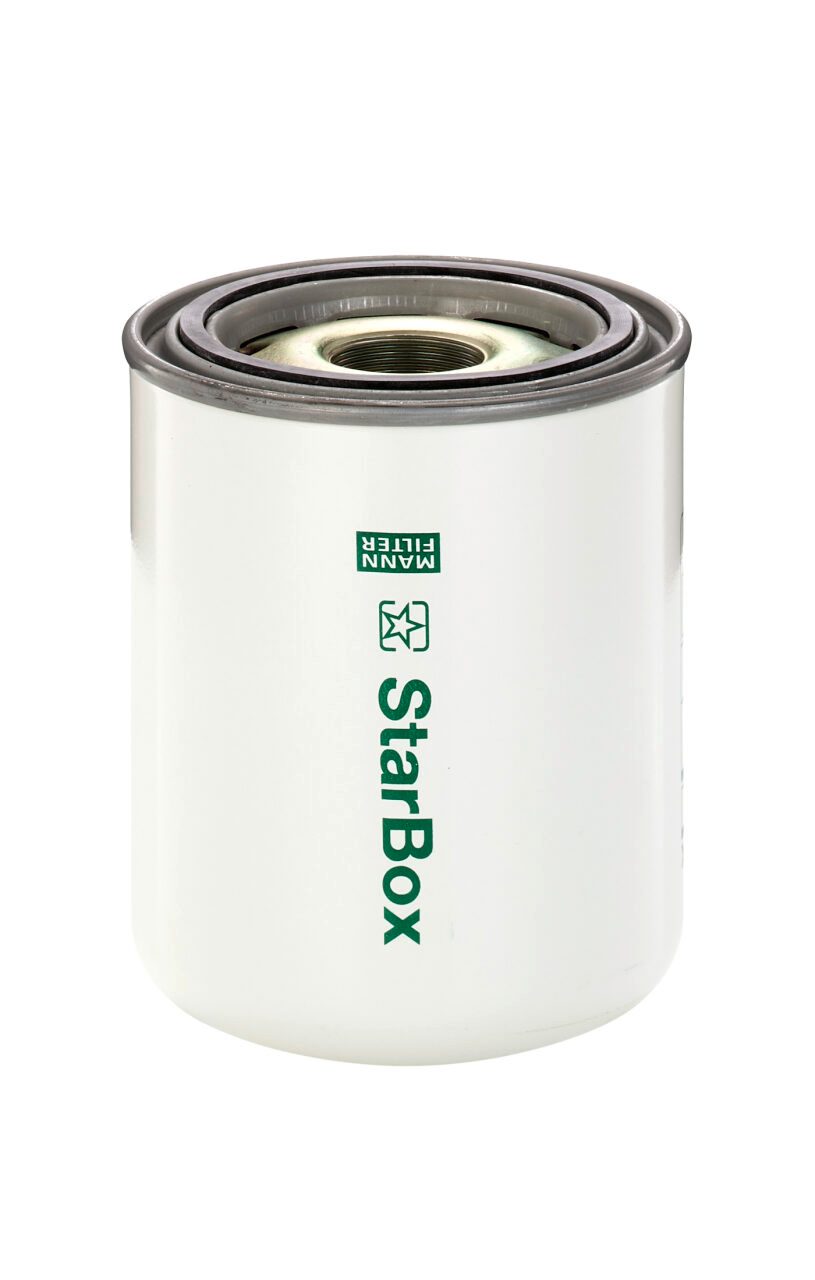

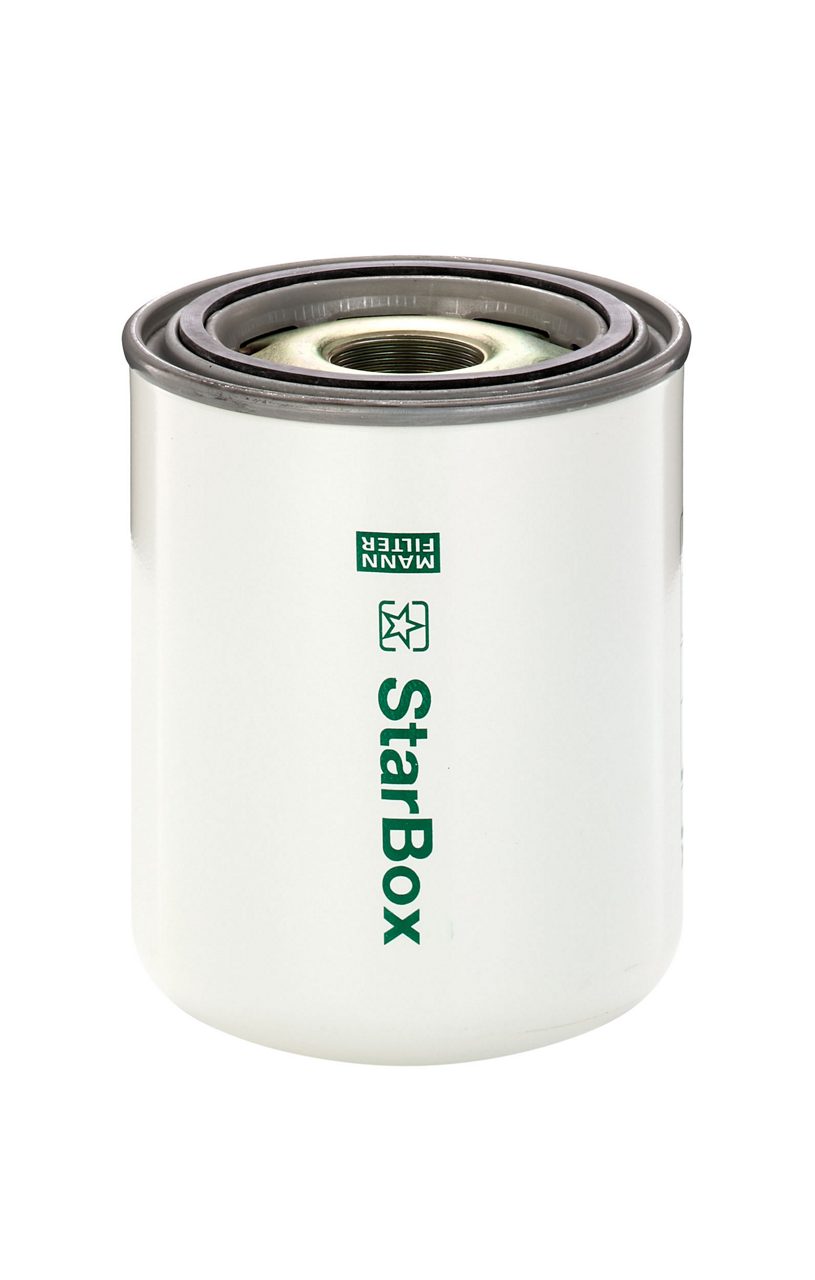

Product Image LB1374/20_MANN-FILTER

Product Image LB1374/20_MANN-FILTER
A 136
B 100
C 111
G M39x1.5
H 177

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
PT 62 new version Compressed Air-Oil Separation - - -
Model Type PT 62 new version
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW -
HP -
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
10 L / LR / LDR (Directly coupled screw compressors)
Compressed Air-Oil Separation - 8 11
15 L / LR / LDR (Directly coupled screw compressors)
Compressed Air-Oil Separation - 11 15 → 04/11
15 L / LR / LDR (Directly coupled screw compressors)
Compressed Air-Oil Separation - 15 20 05/11 →
20 L / LR / LDR (Directly coupled screw compressors)
Compressed Air-Oil Separation - 15 20
Model Type 10 L / LR / LDR (Directly coupled screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 8
HP 11
Year of Manufacture
Model Type 15 L / LR / LDR (Directly coupled screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 11
HP 15
Year of Manufacture → 04/11
Model Type 15 L / LR / LDR (Directly coupled screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 15
HP 20
Year of Manufacture 05/11 →
Model Type 20 L / LR / LDR (Directly coupled screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 15
HP 20
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
10 (Directly coupled screw compressors) Compressed Air-Oil Separation - 11 15
15 (Directly coupled screw compressors) Compressed Air-Oil Separation - 15 20
20 (Directly coupled screw compressors) Compressed Air-Oil Separation - 15 20
Model Type 10 (Directly coupled screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 11
HP 15
Year of Manufacture
Model Type 15 (Directly coupled screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 15
HP 20
Year of Manufacture
Model Type 20 (Directly coupled screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 15
HP 20
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
16 (Belt driven screw compressors)
Compressed Air-Oil Separation - 11 15
20 (Belt driven screw compressors)
Compressed Air-Oil Separation - 15 20
20-2 (Belt driven screw compressors)
Compressed Air-Oil Separation - 15 20
24-2 (Belt driven screw compressors)
Compressed Air-Oil Separation - 19 26
25 (Belt driven screw compressors)
Compressed Air-Oil Separation - 19 26
29-2 (Belt driven screw compressors)
Compressed Air-Oil Separation - 22 30
30 (Belt driven screw compressors)
Compressed Air-Oil Separation - 22 30
Model Type 16 (Belt driven screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 11
HP 15
Year of Manufacture
Model Type 20 (Belt driven screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 15
HP 20
Year of Manufacture
Model Type 20-2 (Belt driven screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 15
HP 20
Year of Manufacture
Model Type 24-2 (Belt driven screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 19
HP 26
Year of Manufacture
Model Type 25 (Belt driven screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 19
HP 26
Year of Manufacture
Model Type 29-2 (Belt driven screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 22
HP 30
Year of Manufacture
Model Type 30 (Belt driven screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 22
HP 30
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
20 (Belt driven screw compressors)
Compressed Air-Oil Separation - 15 20
20-2 (Belt driven screw compressors)
Compressed Air-Oil Separation - 15 20
24-2 (Belt driven screw compressors)
Compressed Air-Oil Separation - 19 26
29-2 (Belt driven screw compressors)
Compressed Air-Oil Separation - 22 30
Model Type 20 (Belt driven screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 15
HP 20
Year of Manufacture
Model Type 20-2 (Belt driven screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 15
HP 20
Year of Manufacture
Model Type 24-2 (Belt driven screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 19
HP 26
Year of Manufacture
Model Type 29-2 (Belt driven screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 22
HP 30
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
24 (Belt driven screw compressors)
Compressed Air-Oil Separation - 19 26
24-2 (Belt driven screw compressors)
Compressed Air-Oil Separation - 19 26
Model Type 24 (Belt driven screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 19
HP 26
Year of Manufacture
Model Type 24-2 (Belt driven screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 19
HP 26
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
24 (Belt driven screw compressors)
Compressed Air-Oil Separation - 19 26
24-2 (Belt driven screw compressors)
Compressed Air-Oil Separation - 19 26
Model Type 24 (Belt driven screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 19
HP 26
Year of Manufacture
Model Type 24-2 (Belt driven screw compressors)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 19
HP 26
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
ROTAR PLUS 25 TF Compressed Air-Oil Separation - - -
ROTAR PLUS 30 TF (8 - 10 - 13bar) Compressed Air-Oil Separation - 22 30
ROTAR PLUS 40 TF (8 - 10 - 13bar) Compressed Air-Oil Separation - 30 41
ROTAR PLUS SD 25 (8 - 10 - 13bar) Compressed Air-Oil Separation - - -
ROTAR PLUS SD 30 (8 - 10 - 13bar) Compressed Air-Oil Separation - - -
Model Type ROTAR PLUS 25 TF
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type ROTAR PLUS 30 TF (8 - 10 - 13bar)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 22
HP 30
Year of Manufacture
Model Type ROTAR PLUS 40 TF (8 - 10 - 13bar)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW 30
HP 41
Year of Manufacture
Model Type ROTAR PLUS SD 25 (8 - 10 - 13bar)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type ROTAR PLUS SD 30 (8 - 10 - 13bar)
Filter Type Compressed Air-Oil Separation
Engine Code
ccm -
kW -
HP -
Year of Manufacture

  • 4456806

  • 575106301
  • 5750001053P
  • 575 000 115P
  • 575 000 105
  • 575001063013

  • 13010/174
  • 10001/300

  • 48465000

  • 130 101 74
  • A13010174

  • F0212-3386

  • 048353000
  • 48465000

  • H41228000002
  • DSC-001148

  • 10274

  • 85485

  • XP7501-130001
  • XP750130001

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: LB 1374/20

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2024-09-24 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
