Oil Filter
W 7032

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

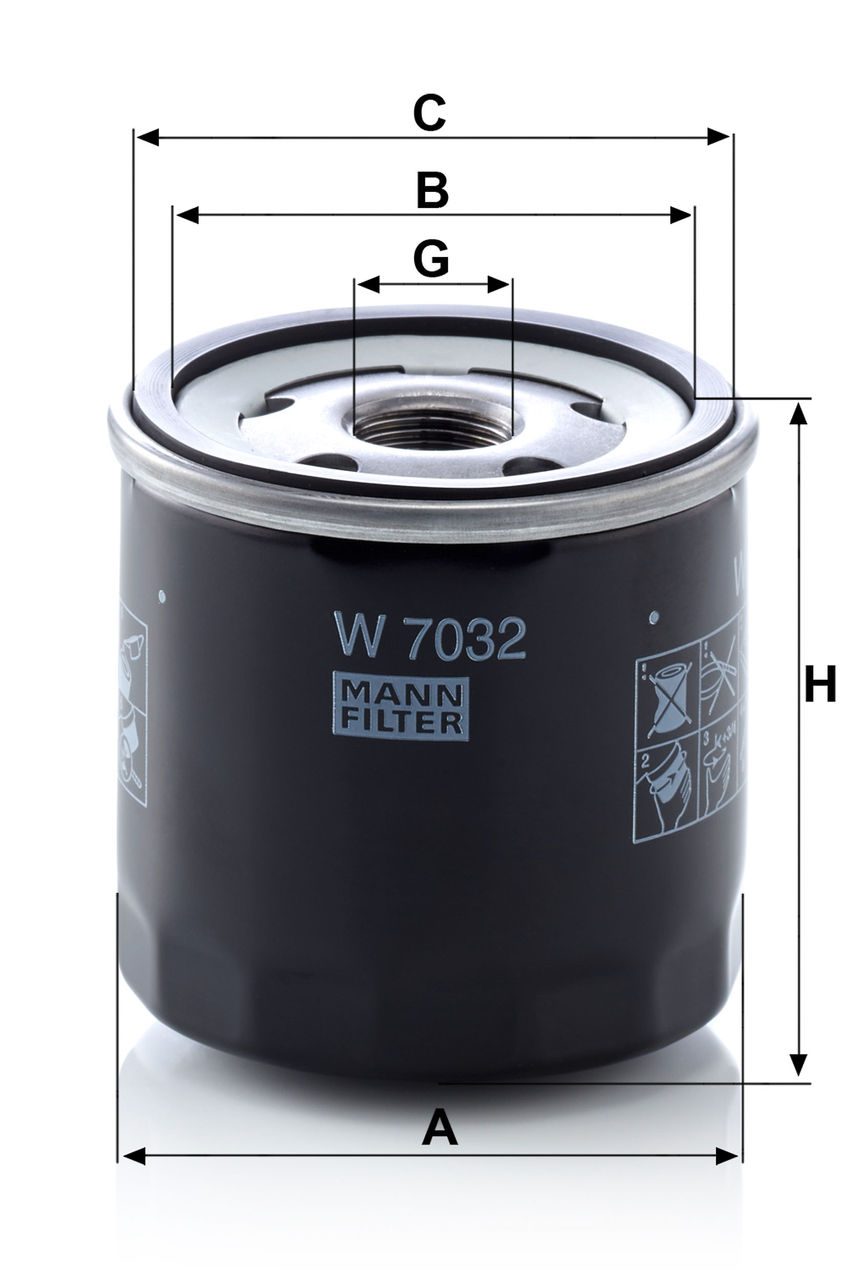

  • A = 76 mm; B = 63 mm; C = 72 mm; G = M20x1.5; H = 79 mm

GTIN Code: 4011558043179

Product Details

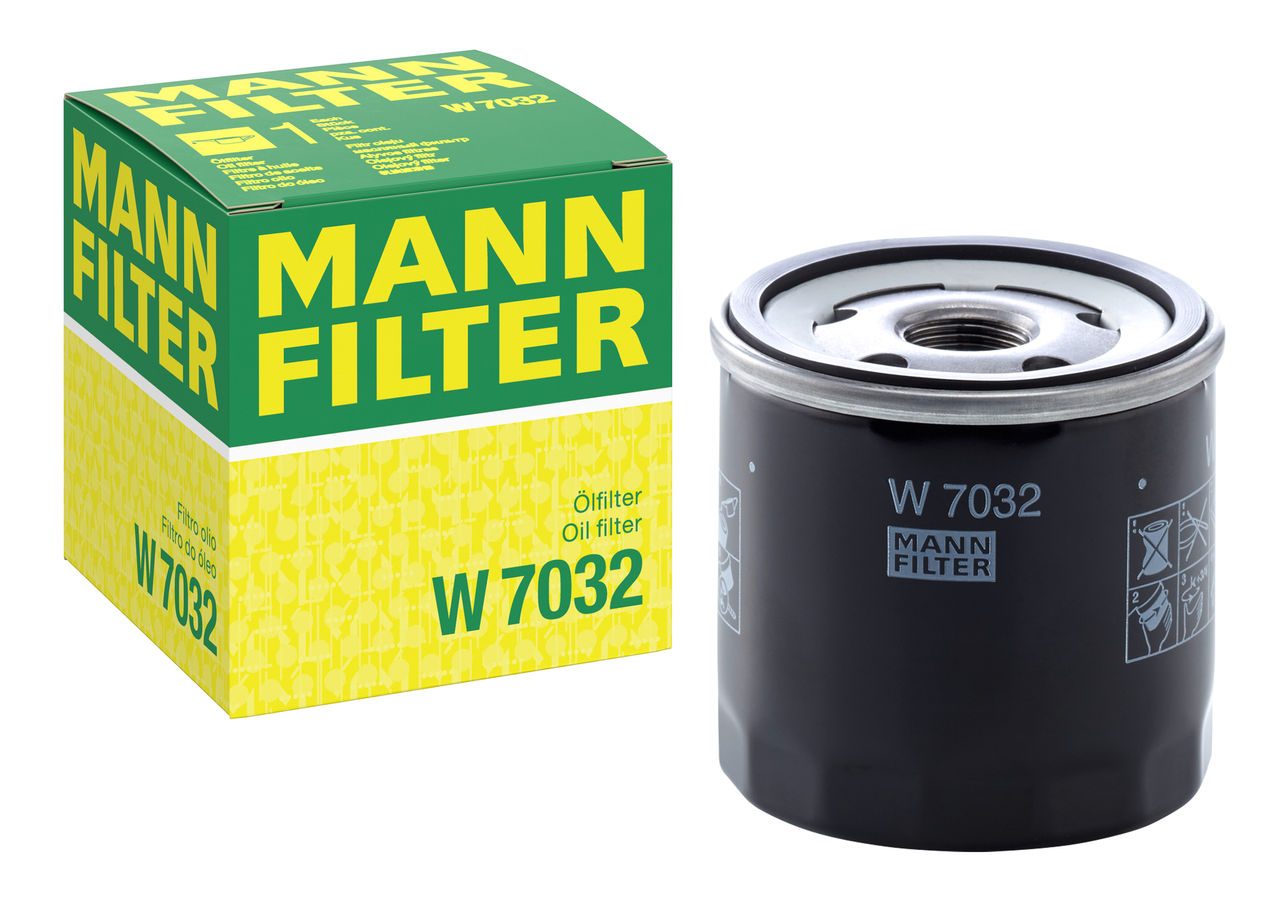

Product Image W7032_MANN-FILTER

Product Image W7032_MANN-FILTER
A 76 mm
B 63 mm
C 72 mm
G M20x1.5 mm
H 79 mm
Bypass Valve Opening Pressure 1
Number of anti-drain back valve 1

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
A 180 CDI BlueEFFICIENCY 1.5 (W176) Oil Filter OM 607.951 1461 80 109 09/12 → 05/18
Model Type A 180 CDI BlueEFFICIENCY 1.5 (W176)
Filter Type Oil Filter
Engine Code OM 607.951
ccm 1461
kW 80
HP 109
Year of Manufacture 09/12 → 05/18

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.5 dCi (K14F) Oil Filter K9K 1461 66 90 01/17 →
Model Type 1.5 dCi (K14F)
Filter Type Oil Filter
Engine Code K9K
ccm 1461
kW 66
HP 90
Year of Manufacture 01/17 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.5 dCi (J11E) Oil Filter K9K 1461 81 110 02/14 →
Model Type 1.5 dCi (J11E)
Filter Type Oil Filter
Engine Code K9K
ccm 1461
kW 81
HP 110
Year of Manufacture 02/14 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.5 dCi 110 (HFE) Oil Filter K9K 646, 647, 648, 649 1461 81 110 06/15 →
Model Type 1.5 dCi 110 (HFE)
Filter Type Oil Filter
Engine Code K9K 646, 647, 648, 649
ccm 1461
kW 81
HP 110
Year of Manufacture 06/15 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.5 dCi MAXI (FW0/1, KW0/1)
Oil Filter K9K636/804/812/816 1461 81 110 09/10 →
Model Type 1.5 dCi MAXI (FW0/1, KW0/1)
Filter Type Oil Filter
Engine Code K9K636/804/812/816
ccm 1461
kW 81
HP 110
Year of Manufacture 09/10 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.5 dCi FAP (BZ1M)
Oil Filter K9K 636/832/836/837/846 1461 81 110 01/09 → 08/15
Model Type 1.5 dCi FAP (BZ1M)
Filter Type Oil Filter
Engine Code K9K 636/832/836/837/846
ccm 1461
kW 81
HP 110
Year of Manufacture 01/09 → 08/15

  • 607 184 02 25
  • A 607 180 00 10
  • 607 180 00 10
  • A 607 184 02 25

  • 15208-00Q1D
  • 15208-00Q1J

  • 77 11 945 905
  • 15 20 895 99R
  • 77 11 949 631
  • 15 20 854 88R

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W 7032

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

  • wrench removal tool LS 7
Oil Filter Content

Our engine oil filters work hard so your engine doesn’t have to

This crucial engine component ensures your engine functions smoothly and at peak performance. At MANN-FILTER we understand how to get the best out of every engine. And it starts with optimum filtration.

In the automotive aftermarket world prevention is always better than cure. Foresight and knowledge can save you – and your customers – time, money and hassle. Once a particle of soot or dust has got into the engine oil it starts to scratch the surfaces it comes into contact with, turning your lubricant being more abrasive. Just changing the oil isn’t enough – you also need to change the filter. Frequent oil filter changes prevent damage and keep your engine oil filter function at optimum levels.

Frictionless functionality. Optimal performance.

ANN-FILTER workshop partner installing an oil filter in a car
  • Longevity – A build-up of residue in engine oil can damage other components, but filtered, clean oil keeps things working at peak performance
  • Protection – Safeguards your engine parts from wear and tear
  • Reliability – Ensures your engine can function well, even in cold conditions
