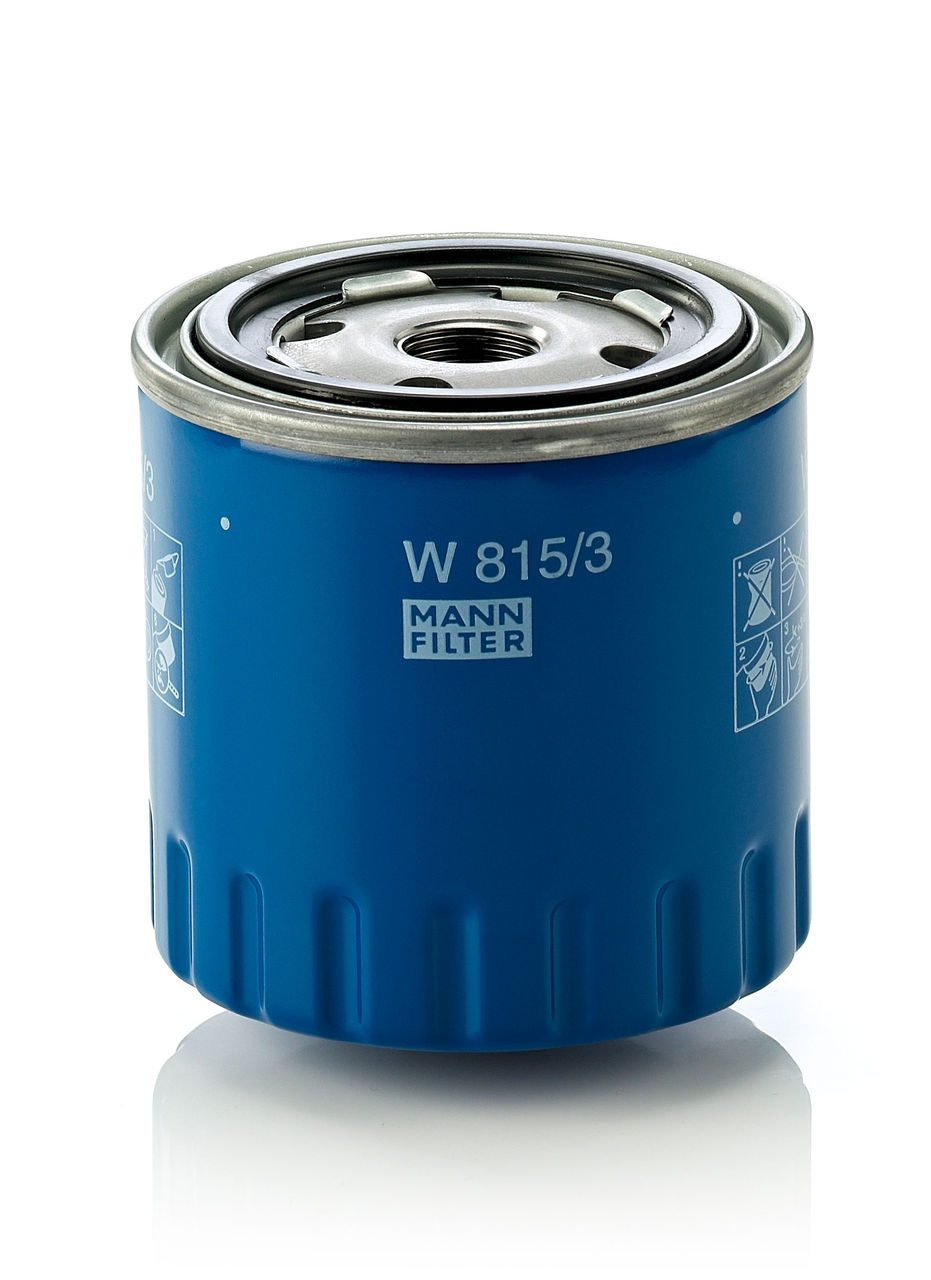

Product Image W815/3_MANN-FILTER
Product Image W815/3_MANN-FILTER

Oil Filter
W 815/3

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

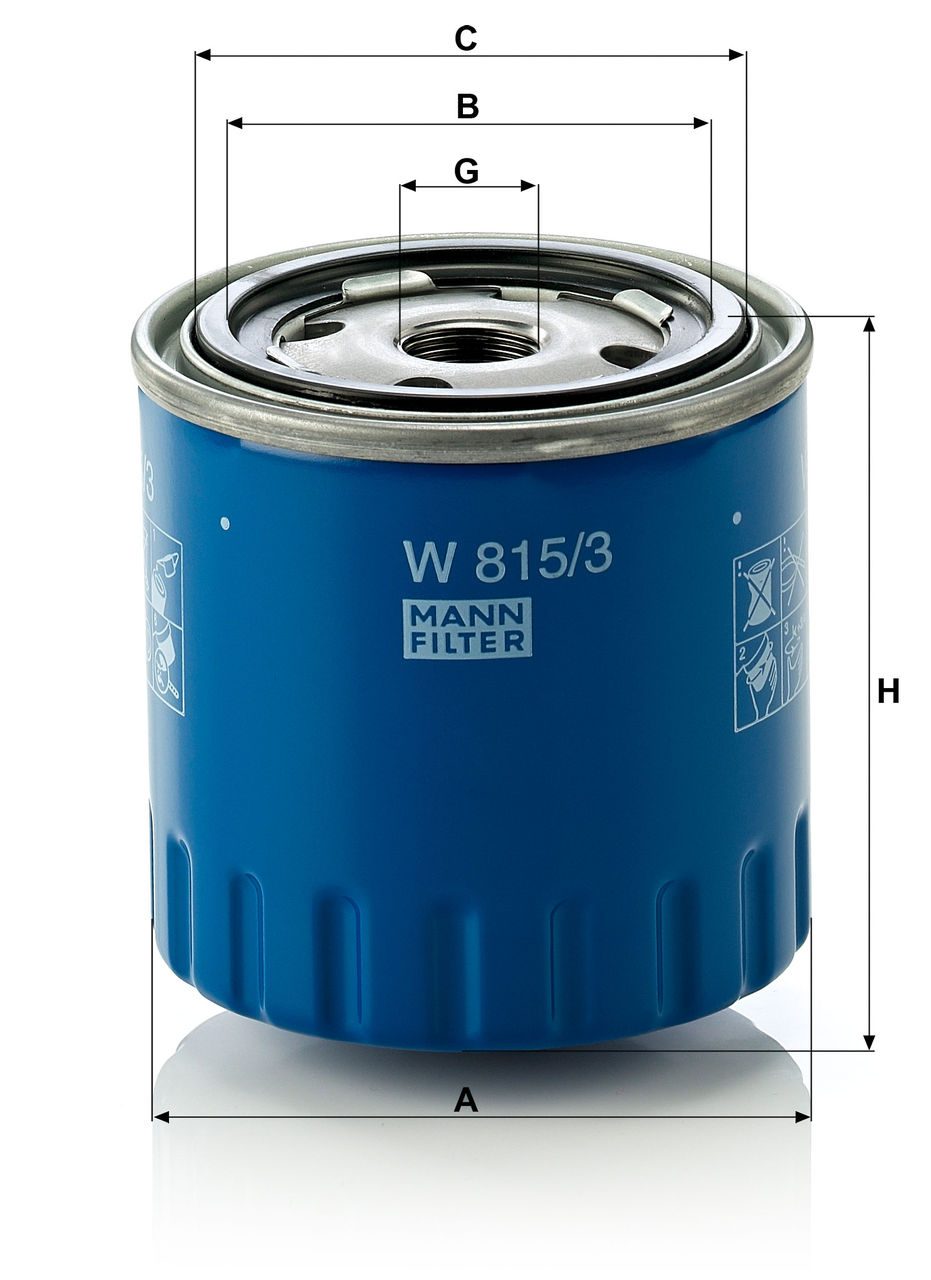

  • A = 86 mm; B = 63 mm; C = 72 mm; G = 3/4-16 UNF; H = 88 mm

GTIN Code: 4011558706609

Product Details

Product Image W815/3_MANN-FILTER

Product Image W815/3_MANN-FILTER
A 86 mm
B 63 mm
C 72 mm
G 3/4-16 UNF mm
H 88 mm
Bypass Valve Opening Pressure 1
Number of anti-drain back valve 1

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
14 E Oil Filter 150C 1360 53 72 04/83 → 02/93
14 E Oil Filter 150F 1360 49 67 09/85 → 02/93
14 E Oil Filter 1360 59 80 10/85 → 05/89
Model Type 14 E
Filter Type Oil Filter
Engine Code 150C
ccm 1360
kW 53
HP 72
Year of Manufacture 04/83 → 02/93
Model Type 14 E
Filter Type Oil Filter
Engine Code 150F
ccm 1360
kW 49
HP 67
Year of Manufacture 09/85 → 02/93
Model Type 14 E
Filter Type Oil Filter
Engine Code
ccm 1360
kW 59
HP 80
Year of Manufacture 10/85 → 05/89

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2850 V6 i.e.
Oil Filter 834 E.000 2829 110 150 11/84 → 09/88
Model Type 2850 V6 i.e.
Filter Type Oil Filter
Engine Code 834 E.000
ccm 2829
kW 110
HP 150
Year of Manufacture 11/84 → 09/88

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.1
Oil Filter XK4 1130 40 55 07/69 → 07/77
Model Type 1.1
Filter Type Oil Filter
Engine Code XK4
ccm 1130
kW 40
HP 55
Year of Manufacture 07/69 → 07/77

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.1 Oil Filter 109F (XW7) 1124 37 50 02/83 → 10/87
Model Type 1.1
Filter Type Oil Filter
Engine Code 109F (XW7)
ccm 1124
kW 37
HP 50
Year of Manufacture 02/83 → 10/87

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.5 Oil Filter 142 (XR5) 1472 54 73 11/79 → 09/82
Model Type 1.5
Filter Type Oil Filter
Engine Code 142 (XR5)
ccm 1472
kW 54
HP 73
Year of Manufacture 11/79 → 09/82

  • 75528 514
  • 91509 876
  • 75528 513
  • 91509 816
  • 95637 804
  • 95638 829
  • 1109 39
  • 91509 817

  • 7604418
  • 9456000926

  • A730 X 6714 DA
  • A770 X 6714 AA

  • A 770 X 6714 AA
  • 5019 395
  • 5003 271
  • A 730 X 6714 DA
  • 5000 735
  • 5012 036

  • 000 094 26 02
  • A 000 094 26 02

  • 1109 39
  • 1109 56
  • 1109 77
  • 1109 24
  • 1109 85
  • 1109 22
  • 1109 69
  • 1109 70
  • 1109 76
  • 1109 83

  • 77 01 415 057

  • 91 509 815 80

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W 815/3

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

  • wrench removal tool LS 8
Oil Filter Content

Our engine oil filters work hard so your engine doesn’t have to

This crucial engine component ensures your engine functions smoothly and at peak performance. At MANN-FILTER we understand how to get the best out of every engine. And it starts with optimum filtration.

In the automotive aftermarket world prevention is always better than cure. Foresight and knowledge can save you – and your customers – time, money and hassle. Once a particle of soot or dust has got into the engine oil it starts to scratch the surfaces it comes into contact with, turning your lubricant being more abrasive. Just changing the oil isn’t enough – you also need to change the filter. Frequent oil filter changes prevent damage and keep your engine oil filter function at optimum levels.

Frictionless functionality. Optimal performance.

ANN-FILTER workshop partner installing an oil filter in a car
  • Longevity – A build-up of residue in engine oil can damage other components, but filtered, clean oil keeps things working at peak performance
  • Protection – Safeguards your engine parts from wear and tear
  • Reliability – Ensures your engine can function well, even in cold conditions
