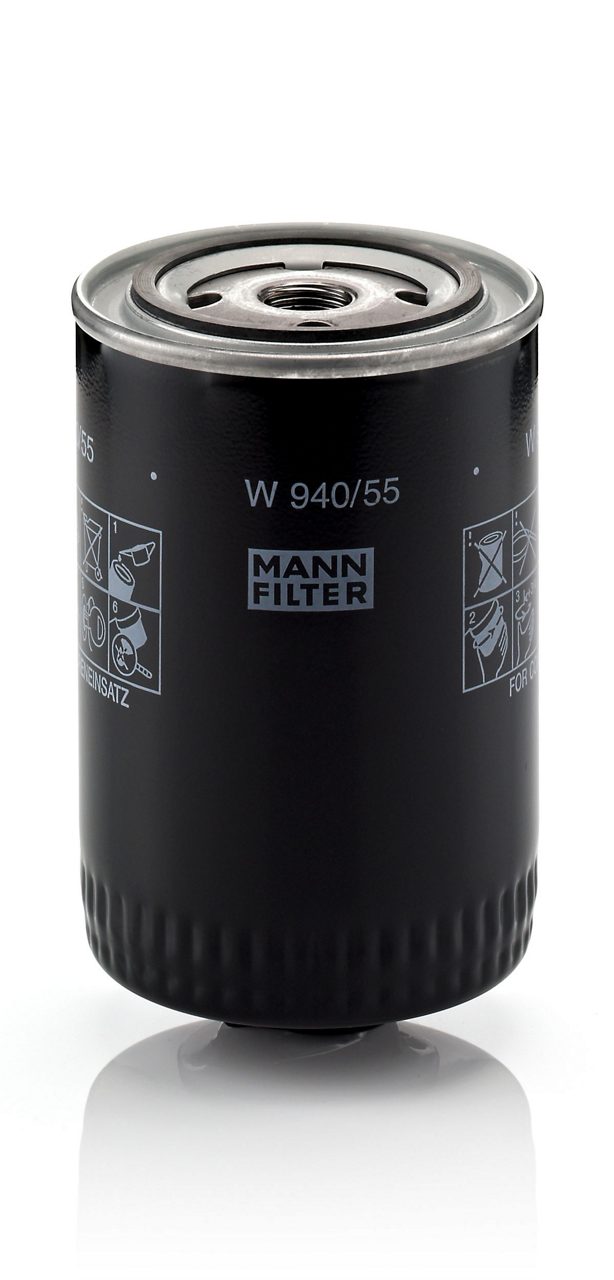

Product Image W940/55_MANN-FILTER

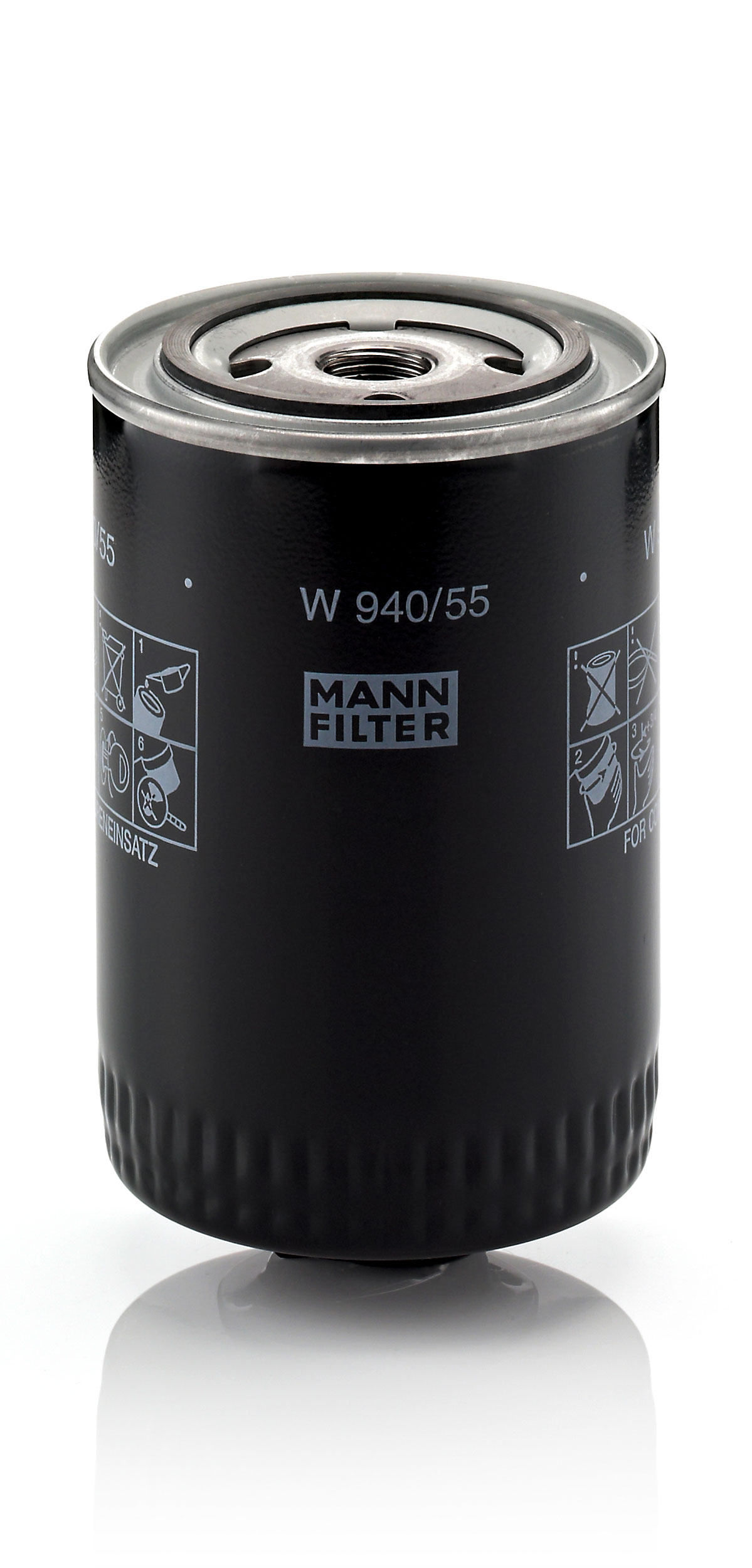

Product Image W940/55_MANN-FILTER

Oil Filter
W 940/55

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

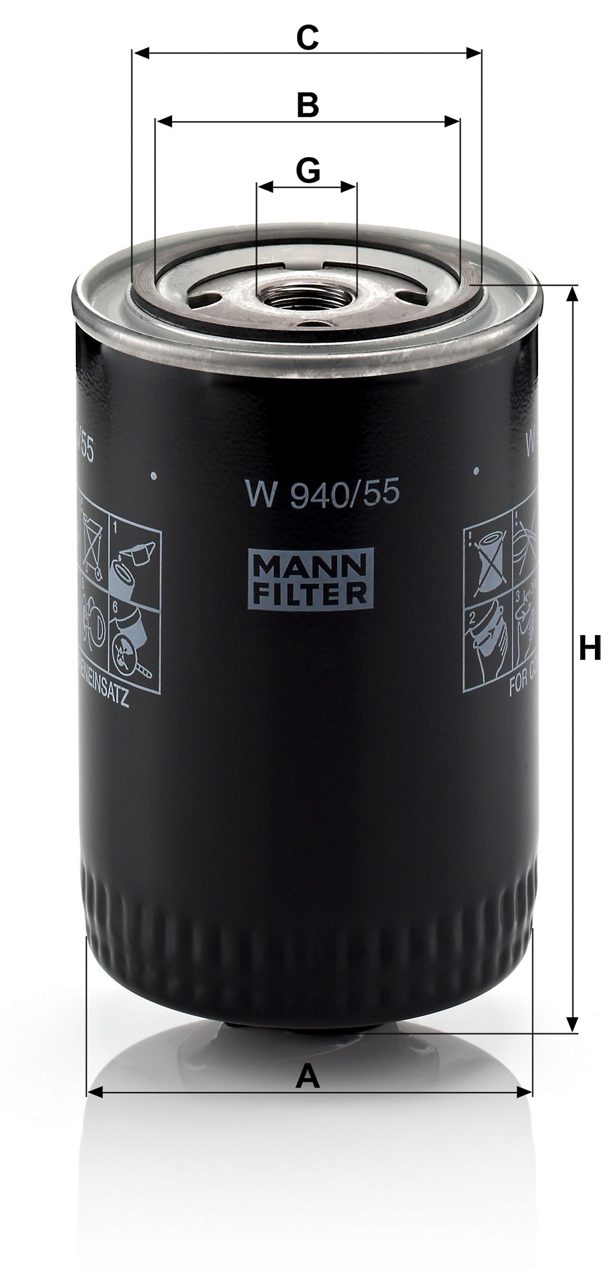

  • Outer diameter (A) = 93 mm; Inner diameter of gasket (B) = 62 mm; Outer diameter of gasket (C) = 71 mm; Thread Size (G) = 3/4-16UNF; Height (H) = 149 mm
  • Main application: DOOSAN COMPRESSORS 7-Serie, P-Serie. INGERSOLL-RAND P- Series, P-Serie, Portable - Series. SULLAIR 65-Serie

GTIN Code: 4011558741204

Product Details

No data available

Product Image W940/55_MANN-FILTER
A 93 mm
B 62 mm
C 71 mm
G 3/4-16 UNF mm
H 149 mm
Bypass Valve Opening Pressure 2.5
Number of anti-drain back valve 1

Bypass Valve Opening Pressure 2.5
Number of anti-drain back valve 1

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
7/20 Oil Filter Kubota 3IRJ5N - 18 23
7/26 Oil Filter 3IRH2N - 21 29
Model Type 7/20
Filter Type Oil Filter
Engine Code Kubota 3IRJ5N
ccm -
kW 18
HP 23
Year of Manufacture
Model Type 7/26
Filter Type Oil Filter
Engine Code 3IRH2N
ccm -
kW 21
HP 29
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
175 WD
Oil Filter Deutz F3L 912 - 40 55
Model Type 175 WD
Filter Type Oil Filter
Engine Code Deutz F3L 912
ccm -
kW 40
HP 55
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
P 175 WD
Oil Filter Deutz F3L912 - - -
Model Type P 175 WD
Filter Type Oil Filter
Engine Code Deutz F3L912
ccm -
kW -
HP -
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
P175 WD Oil Filter Deutz AG F3L912 - - -
Model Type P175 WD
Filter Type Oil Filter
Engine Code Deutz AG F3L912
ccm -
kW -
HP -
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
Portable 7/20
Oil Filter Kubota 3IRJ5N - - -
Portable 7/26
Oil Filter 3IRH2N - - -
Model Type Portable 7/20
Filter Type Oil Filter
Engine Code Kubota 3IRJ5N
ccm -
kW -
HP -
Year of Manufacture
Model Type Portable 7/26
Filter Type Oil Filter
Engine Code 3IRH2N
ccm -
kW -
HP -
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
65
Oil Filter KUBOTA V2203-B - - -
Model Type 65
Filter Type Oil Filter
Engine Code KUBOTA V2203-B
ccm -
kW -
HP -
Year of Manufacture

  • 99219-074

  • DSC624

  • 32501756
  • 8505 2744

  • 85052744

  • 685 21824

  • 213128

  • 68521824

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W 940/55

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
