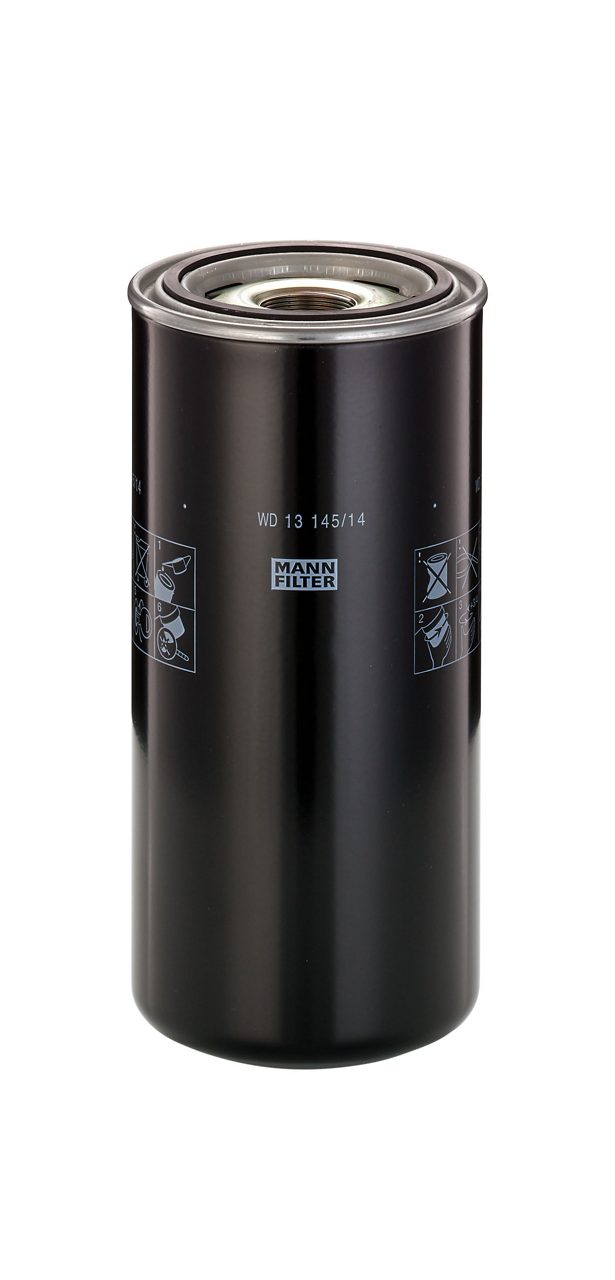

Product Image WD13145/14_MANN-FILTER
Product Image WD13145/14_MANN-FILTER

Hydraulics
WD 13 145/14

About this item

MANN-FILTER spin-on hydraulic filters offer maximum filtration performance and thus ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

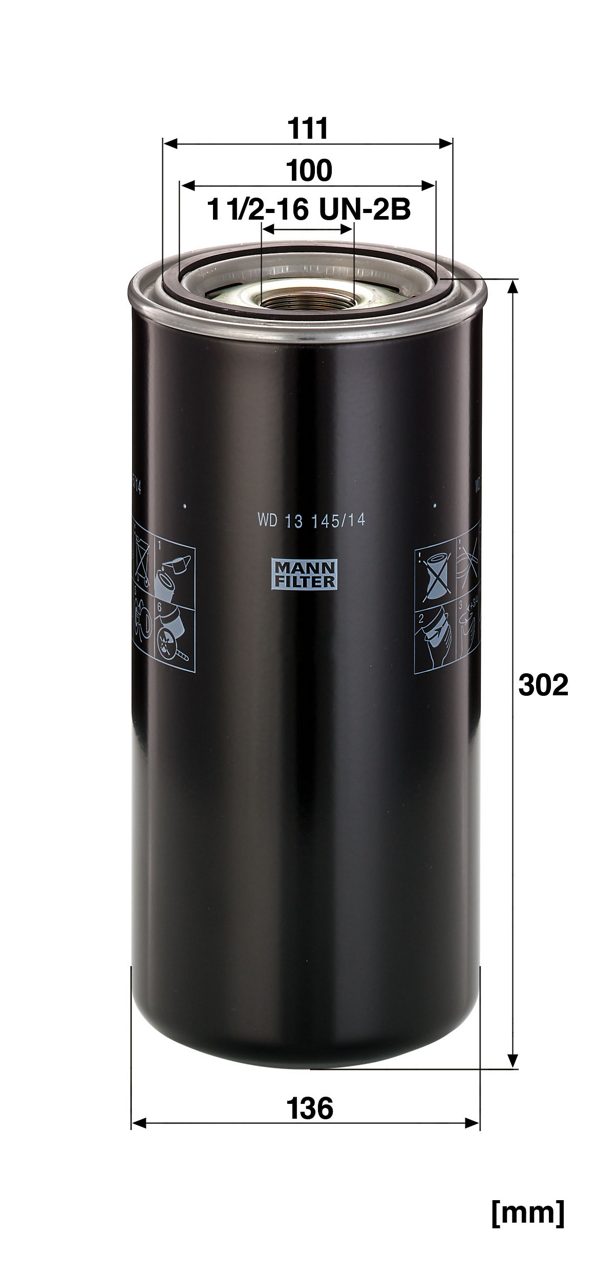

  • Outer diameter (A) = 136 mm; Inner diameter of gasket (B) = 100 mm; Outer diameter of gasket (C) = 111 mm; Thread Size (G) = 11/2-16UN-2B; Height (H) = 302 mm
  • Main application: CHALLENGER (AGCO) MT 800-Serie

GTIN Code: 4011558921309

Product Details

No data available

Product Image WD13145/14_MANN-FILTER
Height 302 mm
Inner diameter of gasket 100 mm
Outer diameter 136 mm
Outer diameter of gasket 111 mm
Thread Size 1 1/2-16 UN-2B mm

Bypass Valve Opening Pressure 2.5

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
MT 875 E Hydraulics filter Agco Power 168-4 16800 440 598
Model Type MT 875 E
Filter Type Hydraulics filter
Engine Code Agco Power 168-4
ccm 16800
kW 440
HP 598
Year of Manufacture

  • 558 000 309

  • 100002189

  • 11.31.003-0053

  • PK005872

  • 88292046-376
  • JCQ81LUB105

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: WD 13 145/14

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
