Cabin Air Filter
CUK 19 004

About this item

High-quality MANN-FILTER cabin filters with active carbon - nearly 100% protection from particles like pollen, diesel soot & tire abrasion / Additional protection from harmful gases & unpleasant odour. The trated highly-effective activated carbon gives protection against harmful gases such as ozone, nitrogen oxide or sulphur dioxide and eliminates unpleasant odours during the entire service interval.

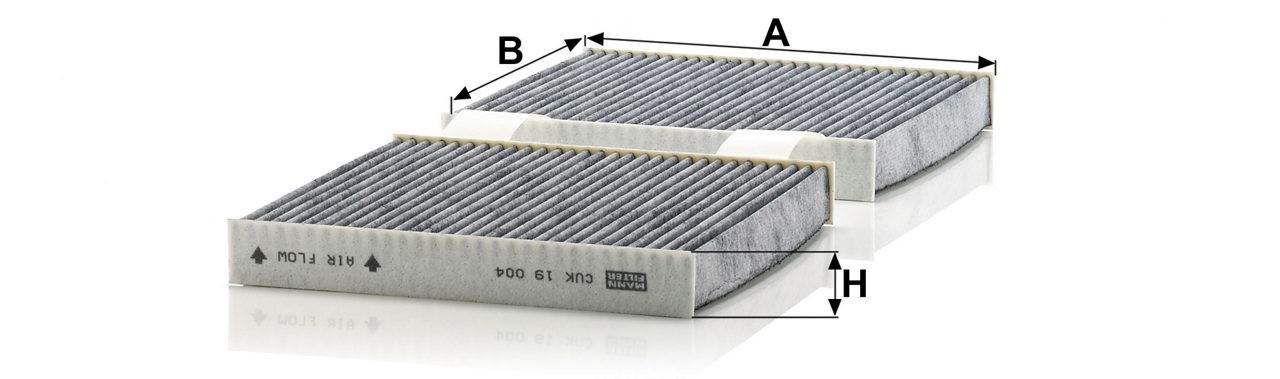

  • A = 187 mm; B = 188 mm; H = 25 mm
  • Filtre à charbon actif
  • Quantity per application: 2.0000

GTIN Code: 4011558036584

Mounting Instruction

Product Details

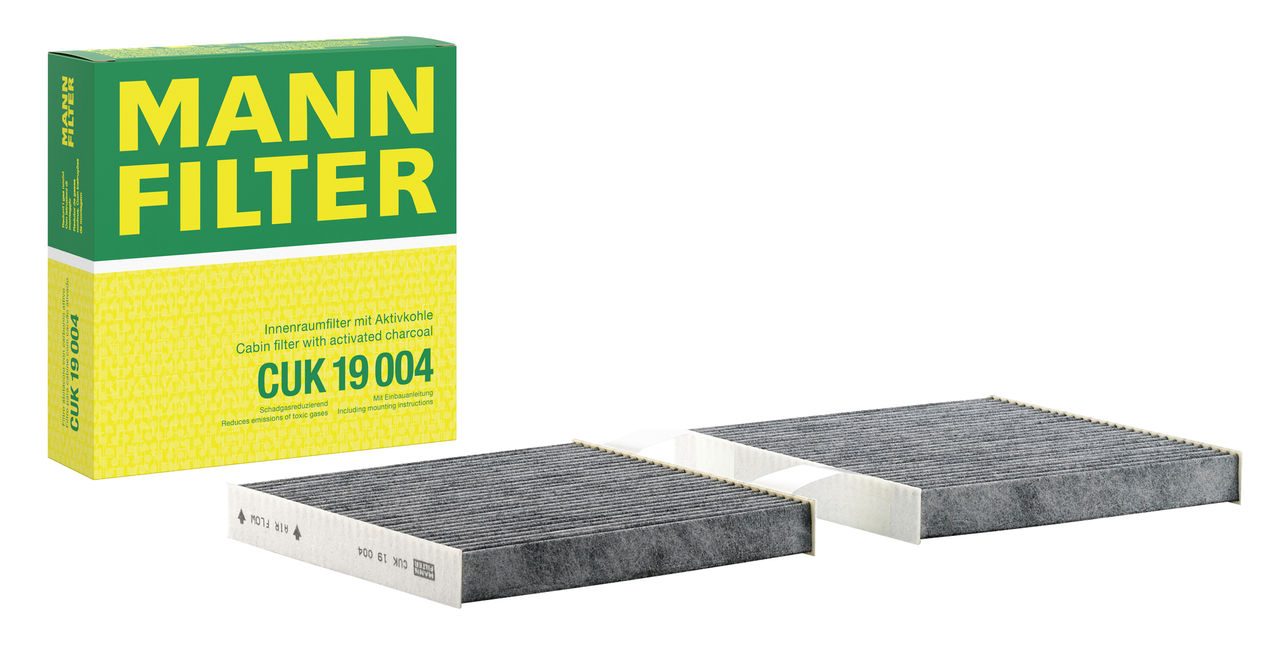

Product Image CUK19004_MANN-FILTER

Product Image CUK19004_MANN-FILTER
A 187 mm
B 188 mm
H 25 mm

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
18 d (F25) Cabin Air Filter N47 D20C 1995 105 143 10/12 → 05/14
18 d (F25) Cabin Air Filter B47 D20A 1995 110 150 04/14 → 07/17
18 i (F25) Cabin Air Filter N20 B16A 1997 125 170 04/14 → 07/17
20 dX (F25) Cabin Air Filter N47 D20C 1995 135 184 11/10 → 05/14
20 dX (F25) Cabin Air Filter N47 D20C 1995 120 163 11/10 → 07/17
20 dX (F25) Cabin Air Filter B47 D20 1995 140 190 04/14 → 07/17
20 iX (F25) Cabin Air Filter N20 B20A 1997 135 184 10/11 → 07/17
28 iX (F25) Cabin Air Filter N52 B30A, N52 B30AF, N52 B30BF 2996 179 243 09/10 →
28 iX 2.0 (F25) Cabin Air Filter N20 B20A 1997 180 245 07/12 → 07/17
28 iX 3.0 (F25) Cabin Air Filter N52 B30A 2996 190 258 03/11 → 07/17
30 dX (F25) Cabin Air Filter N57 D30A 2993 190 258 04/11 → 07/17
30 dX (F25) Cabin Air Filter N57 D30A 2993 204 277 06/16 → 08/17
35 dX (F25) Cabin Air Filter N57 D30B 2993 230 313 10/11 → 07/17
35 iX (F25) Cabin Air Filter N55 B30A 2996 225 306 11/10 → 07/17
Model Type 18 d (F25)
Filter Type Cabin Air Filter
Engine Code N47 D20C
ccm 1995
kW 105
HP 143
Year of Manufacture 10/12 → 05/14
Model Type 18 d (F25)
Filter Type Cabin Air Filter
Engine Code B47 D20A
ccm 1995
kW 110
HP 150
Year of Manufacture 04/14 → 07/17
Model Type 18 i (F25)
Filter Type Cabin Air Filter
Engine Code N20 B16A
ccm 1997
kW 125
HP 170
Year of Manufacture 04/14 → 07/17
Model Type 20 dX (F25)
Filter Type Cabin Air Filter
Engine Code N47 D20C
ccm 1995
kW 135
HP 184
Year of Manufacture 11/10 → 05/14
Model Type 20 dX (F25)
Filter Type Cabin Air Filter
Engine Code N47 D20C
ccm 1995
kW 120
HP 163
Year of Manufacture 11/10 → 07/17
Model Type 20 dX (F25)
Filter Type Cabin Air Filter
Engine Code B47 D20
ccm 1995
kW 140
HP 190
Year of Manufacture 04/14 → 07/17
Model Type 20 iX (F25)
Filter Type Cabin Air Filter
Engine Code N20 B20A
ccm 1997
kW 135
HP 184
Year of Manufacture 10/11 → 07/17
Model Type 28 iX (F25)
Filter Type Cabin Air Filter
Engine Code N52 B30A, N52 B30AF, N52 B30BF
ccm 2996
kW 179
HP 243
Year of Manufacture 09/10 →
Model Type 28 iX 2.0 (F25)
Filter Type Cabin Air Filter
Engine Code N20 B20A
ccm 1997
kW 180
HP 245
Year of Manufacture 07/12 → 07/17
Model Type 28 iX 3.0 (F25)
Filter Type Cabin Air Filter
Engine Code N52 B30A
ccm 2996
kW 190
HP 258
Year of Manufacture 03/11 → 07/17
Model Type 30 dX (F25)
Filter Type Cabin Air Filter
Engine Code N57 D30A
ccm 2993
kW 190
HP 258
Year of Manufacture 04/11 → 07/17
Model Type 30 dX (F25)
Filter Type Cabin Air Filter
Engine Code N57 D30A
ccm 2993
kW 204
HP 277
Year of Manufacture 06/16 → 08/17
Model Type 35 dX (F25)
Filter Type Cabin Air Filter
Engine Code N57 D30B
ccm 2993
kW 230
HP 313
Year of Manufacture 10/11 → 07/17
Model Type 35 iX (F25)
Filter Type Cabin Air Filter
Engine Code N55 B30A
ccm 2996
kW 225
HP 306
Year of Manufacture 11/10 → 07/17

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
20 dX (F26) Cabin Air Filter B47 D20 1995 140 190 04/14 → 03/18
20 iX (F26) Cabin Air Filter N20 B20A 1997 135 184 04/14 → 03/18
28 iX (F26) Cabin Air Filter N20 B20A 1997 180 245 04/14 → 03/18
30 dX (F26) Cabin Air Filter N57 D30A 2993 190 258 04/14 → 03/18
30 dX (F26) Cabin Air Filter N57 D30A 2993 204 277 04/14 → 03/18
35 dX (F26) Cabin Air Filter N57 D30B 2993 230 313 04/14 → 03/18
35 iX (F26) Cabin Air Filter N55 B30A 2996 225 306 04/14 → 03/18
M40 i (F26) Cabin Air Filter N55B30A 2979 265 360 09/15 → 03/18
Model Type 20 dX (F26)
Filter Type Cabin Air Filter
Engine Code B47 D20
ccm 1995
kW 140
HP 190
Year of Manufacture 04/14 → 03/18
Model Type 20 iX (F26)
Filter Type Cabin Air Filter
Engine Code N20 B20A
ccm 1997
kW 135
HP 184
Year of Manufacture 04/14 → 03/18
Model Type 28 iX (F26)
Filter Type Cabin Air Filter
Engine Code N20 B20A
ccm 1997
kW 180
HP 245
Year of Manufacture 04/14 → 03/18
Model Type 30 dX (F26)
Filter Type Cabin Air Filter
Engine Code N57 D30A
ccm 2993
kW 190
HP 258
Year of Manufacture 04/14 → 03/18
Model Type 30 dX (F26)
Filter Type Cabin Air Filter
Engine Code N57 D30A
ccm 2993
kW 204
HP 277
Year of Manufacture 04/14 → 03/18
Model Type 35 dX (F26)
Filter Type Cabin Air Filter
Engine Code N57 D30B
ccm 2993
kW 230
HP 313
Year of Manufacture 04/14 → 03/18
Model Type 35 iX (F26)
Filter Type Cabin Air Filter
Engine Code N55 B30A
ccm 2996
kW 225
HP 306
Year of Manufacture 04/14 → 03/18
Model Type M40 i (F26)
Filter Type Cabin Air Filter
Engine Code N55B30A
ccm 2979
kW 265
HP 360
Year of Manufacture 09/15 → 03/18

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
3.0 BITURBO (F25) Cabin Air Filter N57 D30B 2993 257 350 03/13 → 06/18
Model Type 3.0 BITURBO (F25)
Filter Type Cabin Air Filter
Engine Code N57 D30B
ccm 2993
kW 257
HP 350
Year of Manufacture 03/13 → 06/18

  • 64 31 9 237 157
  • 64 31 9 312 318
  • 64 31 9 395 930
  • 64 31 2 284 828
  • 64 31 9 312 317
  • 93 12 3 18

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: CUK 19 004

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Cabin Air Filter Content

Cabin air filters put the joy back into driving

Cabin air filter against pollen by MANN-FILTER

Air flows into a vehicle at a volume of up to 540,000 litres per hour through the ventilation ducts. Imagine the amount of dirt and dust that comes with it. Now picture that entering your lungs. Not a pretty picture. In fact, the air inside a car contains around five times more exhaust gases, pollutants and allergens than outside air. Vehicle cabin air filters remove up to 90% of even the tiniest  harmful particulates (up to 1µm, in size)  creating a barrier between passengers and the incoming air.

A MANN-FILTER cabin air filter can separate tiny particulates almost 100% – the damaging micro-organisms contained in pollen, exhaust fumes, smoke, fossil fuel emissions and gas droplets. Some of these are smaller than 3% of the diameter of a human hair. Which shows how powerful and effective a pollen filter is.

Dust and pollen filters: Benefits at a glance

What’s all the fuss about? Here are the cabin air filter benefits you will enjoy with a MANN-FILTER product:

  • Performance – Our premium products offer exceptional performance in cabin air filter technology
  • Wellbeing – Clean air improves the health and wellbeing of everyone traveling in the vehicle
  • Efficiency – Servicing and replacing the air conditioning filter in a car regularly improves system functionality
  • Support – Our easy to use online catalogue and simple installation instructions provide the guidance for a perfect fit!

What you need to know about changing a cabin air filter

Replace your cabin air filter after 15.000 km or every year

Cabin air filter replacement is vital to keeping the air clean inside your vehicle. This is often done as a feature of your regular servicing regime. Cabin air filters should be replaced once a year or every 15,000 km. To optimize the clean air inside the car and improve the driving experience, check your cabin air filter annually.

How will you know if your cabin air filter needs changing?

  • Listen out for strange noises. These could be caused by deposits inside the filter
  • Watch for unpleasant smells
  • Poor air flow is a sign of a clogged cabin air filter
  • If your windows fog up frequently and are hard to clear, change your filter

Compare all MANN-FILTER cabin air filters

BenefitsPREMIUM
FreciousPlus (FP)
ADVANCED
CUK
BASIC
CU
Provides more than 95% protection against allergens
Prevents growth of mold and bacteria on the filter
Blocks particulate matter up to 95% (PM2.5)
Eliminates almost 90% of odours
Traps harmful gases, such as ozone, nitrogen oxides and sulphur dioxide
Almost 100% filtration of tiny particles
Significant reduction of diesel soot (>95%)
Protects the air conditioning system
