Oil Filter
HU 7024 z

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

  • A = 68 mm; B = 35 mm; C = 17 mm; D = 68 mm; H = 118 mm

GTIN Code: 4011558095994

Product Details

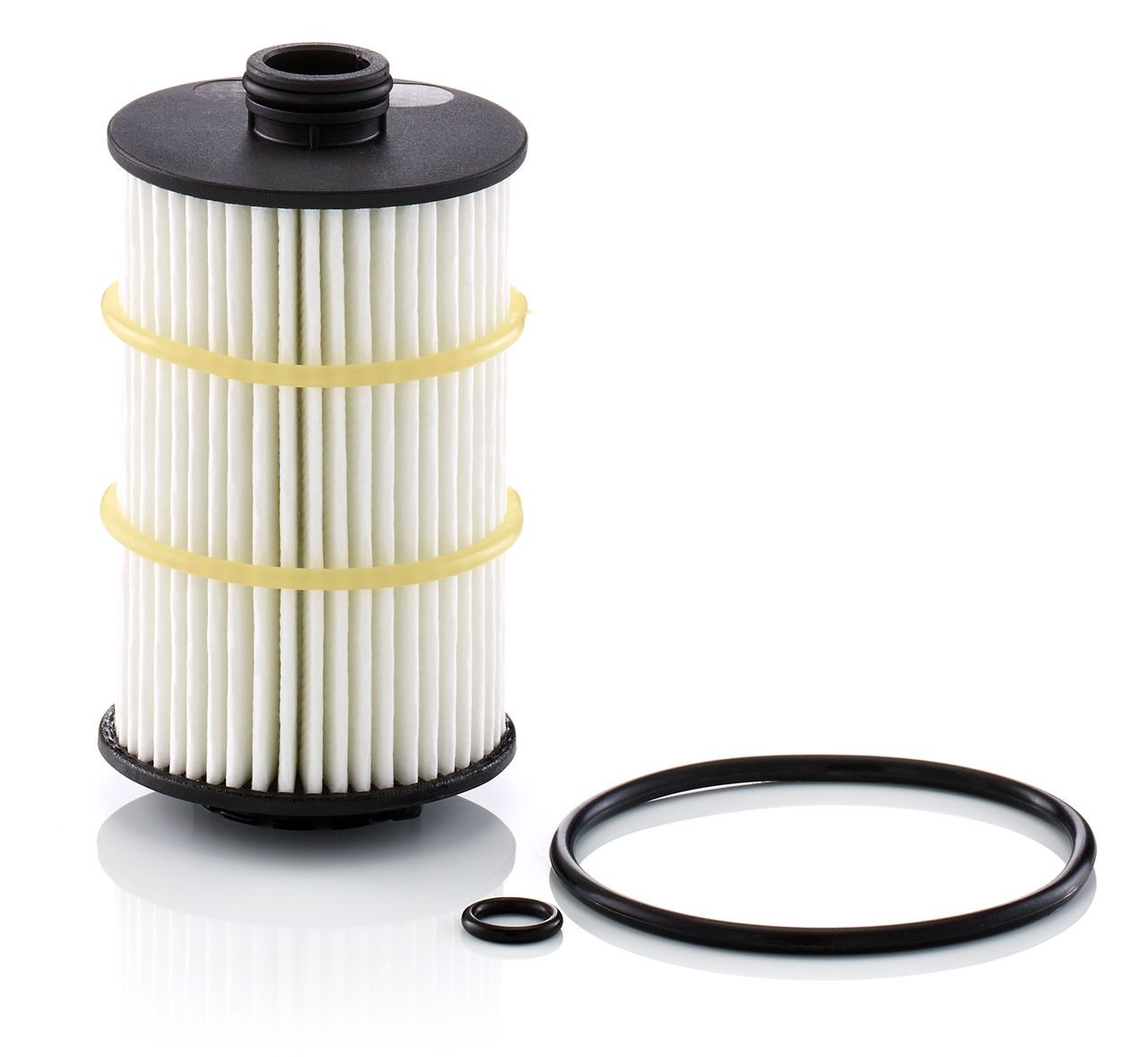

Product Image HU7024Z_MANN-FILTER

Product Image HU7024Z_MANN-FILTER
A 68 mm
B 35 mm
C 17 mm
D 68 mm
H 118 mm

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
4.0 TFSI RS6 (4G5) Oil Filter CRDB 3993 412 560 06/13 → 09/18
4.0 TFSI RS6 (4G5) Oil Filter CWUC 3993 445 605 11/15 → 09/18
4.0 TFSI S6 (4G2/4G5) Oil Filter CEUC 3996 309 420 04/12 → 09/18
4.0 TFSI S6 (4GC/4GD) Oil Filter CTGE 3993 331 450 09/14 → 09/18
Model Type 4.0 TFSI RS6 (4G5)
Filter Type Oil Filter
Engine Code CRDB
ccm 3993
kW 412
HP 560
Year of Manufacture 06/13 → 09/18
Model Type 4.0 TFSI RS6 (4G5)
Filter Type Oil Filter
Engine Code CWUC
ccm 3993
kW 445
HP 605
Year of Manufacture 11/15 → 09/18
Model Type 4.0 TFSI S6 (4G2/4G5)
Filter Type Oil Filter
Engine Code CEUC
ccm 3996
kW 309
HP 420
Year of Manufacture 04/12 → 09/18
Model Type 4.0 TFSI S6 (4GC/4GD)
Filter Type Oil Filter
Engine Code CTGE
ccm 3993
kW 331
HP 450
Year of Manufacture 09/14 → 09/18

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
4.0 TFSI RS7 (4GA) Oil Filter CRDB 3993 412 560 08/13 → 04/18
4.0 TFSI RS7 (4GA) Oil Filter CWUC 3993 445 605 11/15 → 04/18
4.0 TFSI S7 (4GA) Oil Filter CEUC 3996 309 420 04/12 → 03/15
4.0 TFSI S7 (4GF) Oil Filter CTGE 3993 331 450 05/14 → 05/18
Model Type 4.0 TFSI RS7 (4GA)
Filter Type Oil Filter
Engine Code CRDB
ccm 3993
kW 412
HP 560
Year of Manufacture 08/13 → 04/18
Model Type 4.0 TFSI RS7 (4GA)
Filter Type Oil Filter
Engine Code CWUC
ccm 3993
kW 445
HP 605
Year of Manufacture 11/15 → 04/18
Model Type 4.0 TFSI S7 (4GA)
Filter Type Oil Filter
Engine Code CEUC
ccm 3996
kW 309
HP 420
Year of Manufacture 04/12 → 03/15
Model Type 4.0 TFSI S7 (4GF)
Filter Type Oil Filter
Engine Code CTGE
ccm 3993
kW 331
HP 450
Year of Manufacture 05/14 → 05/18

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
4.0 TFSI (4H) Oil Filter CEUA 3996 309 420 04/12 → 12/15
4.0 TFSI (4H) Oil Filter CTGA 3996 320 435 10/13 → 01/18
4.0 S8 (4H) Oil Filter CGTA, CTFA 3996 382 520 05/12 → 01/18
4.0 S8 (4H) Oil Filter DDTA 3993 445 605 11/15 → 01/18
Model Type 4.0 TFSI (4H)
Filter Type Oil Filter
Engine Code CEUA
ccm 3996
kW 309
HP 420
Year of Manufacture 04/12 → 12/15
Model Type 4.0 TFSI (4H)
Filter Type Oil Filter
Engine Code CTGA
ccm 3996
kW 320
HP 435
Year of Manufacture 10/13 → 01/18
Model Type 4.0 S8 (4H)
Filter Type Oil Filter
Engine Code CGTA, CTFA
ccm 3996
kW 382
HP 520
Year of Manufacture 05/12 → 01/18
Model Type 4.0 S8 (4H)
Filter Type Oil Filter
Engine Code DDTA
ccm 3993
kW 445
HP 605
Year of Manufacture 11/15 → 01/18

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
GT/GTC 4.0 S V8 (39322) Oil Filter CMMD 3998 388 528 07/13 →
GT/GTC 4.0 V8 (39323) Oil Filter CMMC, CYCB 3998 373 507 03/12 →
GT3-R (39349B) Oil Filter DCCA 3998 427 580 10/14 →
Model Type GT/GTC 4.0 S V8 (39322)
Filter Type Oil Filter
Engine Code CMMD
ccm 3998
kW 388
HP 528
Year of Manufacture 07/13 →
Model Type GT/GTC 4.0 V8 (39323)
Filter Type Oil Filter
Engine Code CMMC, CYCB
ccm 3998
kW 373
HP 507
Year of Manufacture 03/12 →
Model Type GT3-R (39349B)
Filter Type Oil Filter
Engine Code DCCA
ccm 3998
kW 427
HP 580
Year of Manufacture 10/14 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
4.0 V8 Oil Filter CMMC, CYCB 3993 373 507 09/13 →
4.0 V8 S (4W222B) Oil Filter CYCA 3993 388 528 05/16 →
Model Type 4.0 V8
Filter Type Oil Filter
Engine Code CMMC, CYCB
ccm 3993
kW 373
HP 507
Year of Manufacture 09/13 →
Model Type 4.0 V8 S (4W222B)
Filter Type Oil Filter
Engine Code CYCA
ccm 3993
kW 388
HP 528
Year of Manufacture 05/16 →

  • 079 198 405 D

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: HU 7024 z

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Oil Filter Content

Our engine oil filters work hard so your engine doesn’t have to

This crucial engine component ensures your engine functions smoothly and at peak performance. At MANN-FILTER we understand how to get the best out of every engine. And it starts with optimum filtration.

In the automotive aftermarket world prevention is always better than cure. Foresight and knowledge can save you – and your customers – time, money and hassle. Once a particle of soot or dust has got into the engine oil it starts to scratch the surfaces it comes into contact with, turning your lubricant being more abrasive. Just changing the oil isn’t enough – you also need to change the filter. Frequent oil filter changes prevent damage and keep your engine oil filter function at optimum levels.

Frictionless functionality. Optimal performance.

ANN-FILTER workshop partner installing an oil filter in a car
  • Longevity – A build-up of residue in engine oil can damage other components, but filtered, clean oil keeps things working at peak performance
  • Protection – Safeguards your engine parts from wear and tear
  • Reliability – Ensures your engine can function well, even in cold conditions
