Compressed Air-Oil Separation
LB 11 102/5

About this item

MANN-FILTER air deoiling boxes reliably separate oil from the compressed air in compressors and vacuum pumps. They ensure clean air, prolong the service life of the devices and provide optimal performance. High-quality media for the air deoiling boxes from the technology leader MANN-FILTER ensure a high separation rate and a low residual oil content. This minimizes oil loss and leads to low energy and oil consumption over the entire service life.

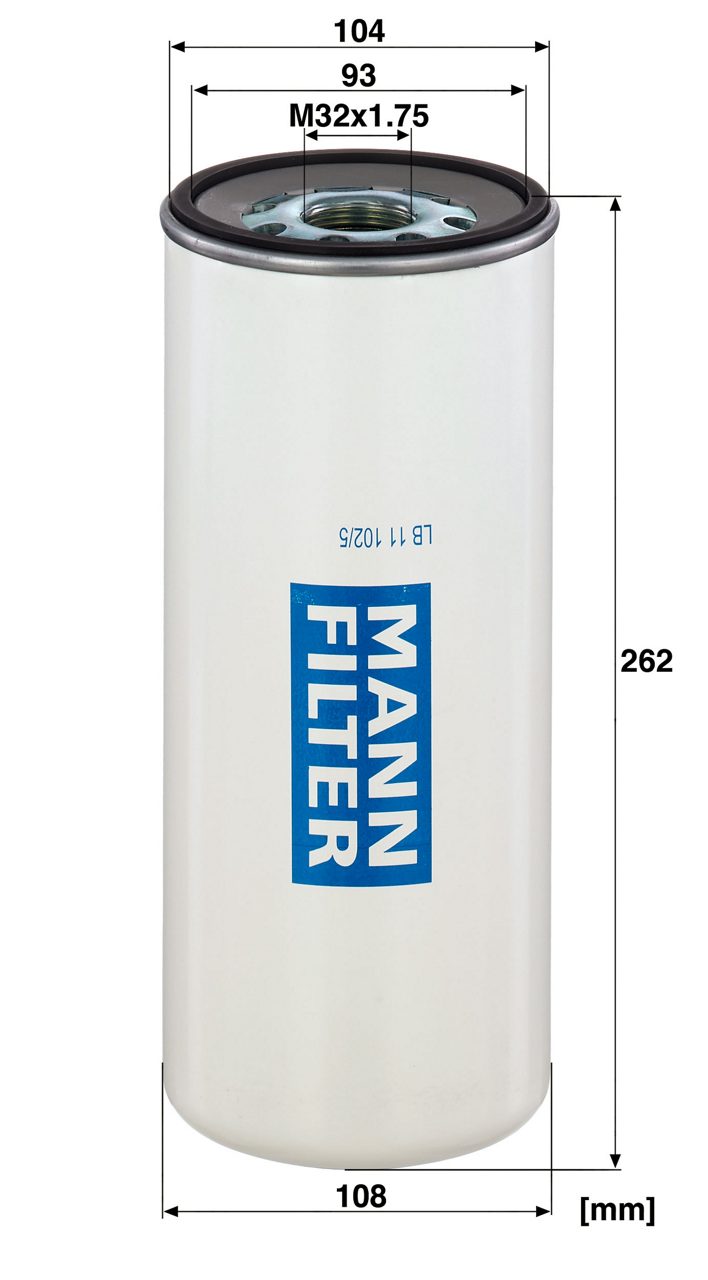

  • Outer diameter (A) = 108 mm; Inner diameter 1 (B) = 93 mm; Inner diameter 2 (C) = 104 mm; Thread Size (G) = M32x1.75; Height (H) = 262 mm

GTIN Code: 4011558395902

Product Details

No data available

Product Image LB11102/5_MANN-FILTER
Height 262 mm
Inner diameter 1 93 mm
Inner diameter 2 104 mm
Outer diameter 108 mm
Thread Size M32x1.75 mm

Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No data available

No data available

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: LB 11 102/5

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
