Oil Filter
W 712/20

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

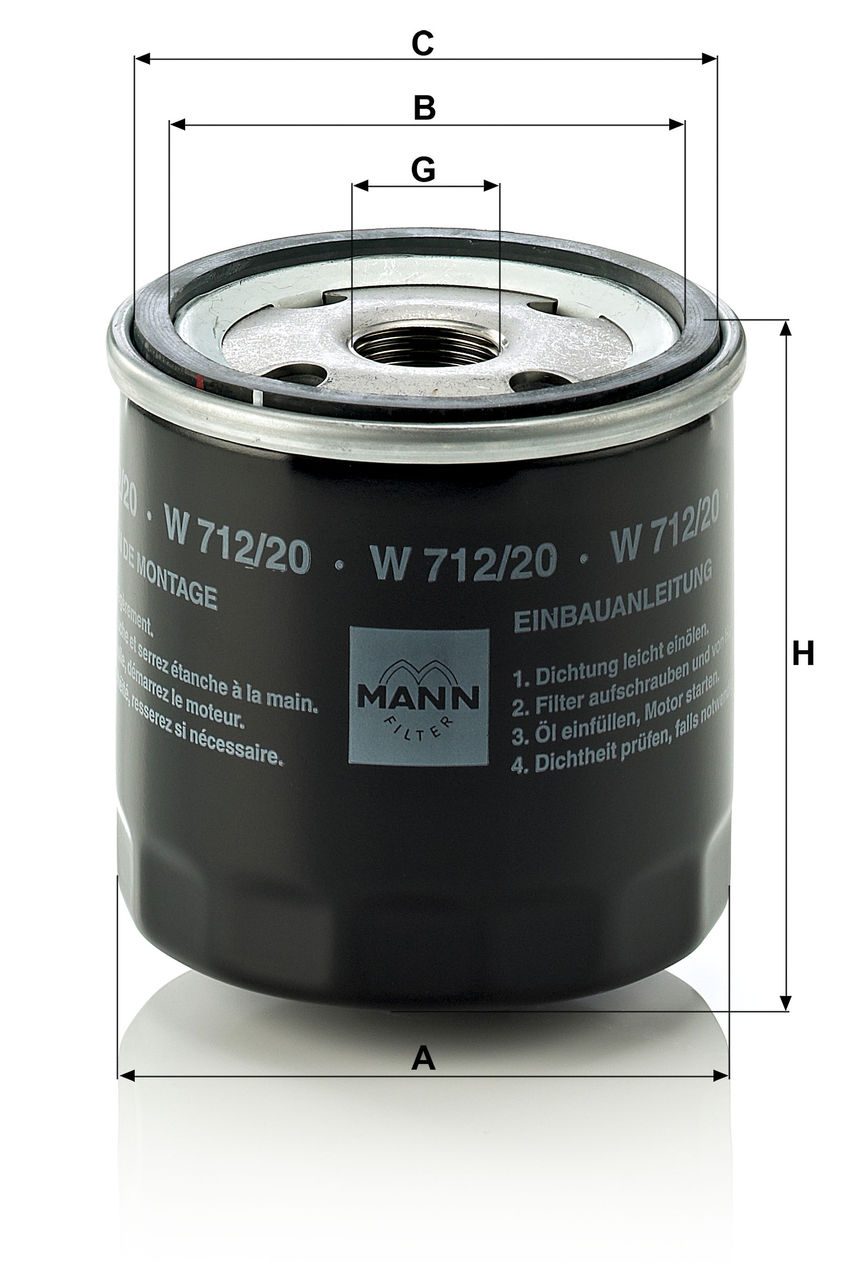

  • A = 76 mm; B = 62 mm; C = 71 mm; G = 3/4-16 UNF; H = 79 mm

GTIN Code: 4011558724009

Product Details

Product Image W712/20_MANN-FILTER

Product Image W712/20_MANN-FILTER
A 76 mm
B 62 mm
C 71 mm
G 3/4-16 UNF mm
H 79 mm
Bypass Valve Opening Pressure 2.5

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.1 Turbo Oil Filter for Turbo Charger GV/WR 2144 147 200 07/80 → 07/87
2.2 Turbo Oil Filter for Turbo Charger MB 2226 147 200 08/87 → 07/89
Model Type 2.1 Turbo
Filter Type Oil Filter for Turbo Charger
Engine Code GV/WR
ccm 2144
kW 147
HP 200
Year of Manufacture 07/80 → 07/87
Model Type 2.2 Turbo
Filter Type Oil Filter for Turbo Charger
Engine Code MB
ccm 2226
kW 147
HP 200
Year of Manufacture 08/87 → 07/89

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.2 Turbo (43) Oil Filter for Turbo Charger WJ, KJ, WS 2144 125 170 10/79 → 08/82
2.2 Turbo (44) Oil Filter for Turbo Charger 2B 2226 140 190 02/88 → 12/91
2.2 Turbo (44) Oil Filter for Turbo Charger KG, JY 2144 134 182 08/83 → 01/88
2.2 Turbo (44) Oil Filter for Turbo Charger 1B 2226 147 200 02/88 → 12/91
2.3 Turbo (44) Oil Filter for Turbo Charger MC 2226 121 165 08/85 → 11/91
Model Type 2.2 Turbo (43)
Filter Type Oil Filter for Turbo Charger
Engine Code WJ, KJ, WS
ccm 2144
kW 125
HP 170
Year of Manufacture 10/79 → 08/82
Model Type 2.2 Turbo (44)
Filter Type Oil Filter for Turbo Charger
Engine Code 2B
ccm 2226
kW 140
HP 190
Year of Manufacture 02/88 → 12/91
Model Type 2.2 Turbo (44)
Filter Type Oil Filter for Turbo Charger
Engine Code KG, JY
ccm 2144
kW 134
HP 182
Year of Manufacture 08/83 → 01/88
Model Type 2.2 Turbo (44)
Filter Type Oil Filter for Turbo Charger
Engine Code 1B
ccm 2226
kW 147
HP 200
Year of Manufacture 02/88 → 12/91
Model Type 2.3 Turbo (44)
Filter Type Oil Filter for Turbo Charger
Engine Code MC
ccm 2226
kW 121
HP 165
Year of Manufacture 08/85 → 11/91

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
100 AD (101150030101) Oil Filter - - -
100 AD-3 Oil Filter Deutz F2L 1011 - - -
120 AD (101170030101) Oil Filter - - -
Model Type 100 AD (101150030101)
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type 100 AD-3
Filter Type Oil Filter
Engine Code Deutz F2L 1011
ccm -
kW -
HP -
Year of Manufacture
Model Type 120 AD (101170030101)
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
3310 Oil Filter - - -
Model Type 3310
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
P70 WN Oil Filter Perkins 3 CYL - - -
Model Type P70 WN
Filter Type Oil Filter
Engine Code Perkins 3 CYL
ccm -
kW -
HP -
Year of Manufacture

  • 41097

  • 035 115 591

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W 712/20

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

  • wrench removal tool
Oil Filter Content

Our engine oil filters work hard so your engine doesn’t have to

This crucial engine component ensures your engine functions smoothly and at peak performance. At MANN-FILTER we understand how to get the best out of every engine. And it starts with optimum filtration.

In the automotive aftermarket world prevention is always better than cure. Foresight and knowledge can save you – and your customers – time, money and hassle. Once a particle of soot or dust has got into the engine oil it starts to scratch the surfaces it comes into contact with, turning your lubricant being more abrasive. Just changing the oil isn’t enough – you also need to change the filter. Frequent oil filter changes prevent damage and keep your engine oil filter function at optimum levels.

Frictionless functionality. Optimal performance.

ANN-FILTER workshop partner installing an oil filter in a car
  • Longevity – A build-up of residue in engine oil can damage other components, but filtered, clean oil keeps things working at peak performance
  • Protection – Safeguards your engine parts from wear and tear
  • Reliability – Ensures your engine can function well, even in cold conditions
