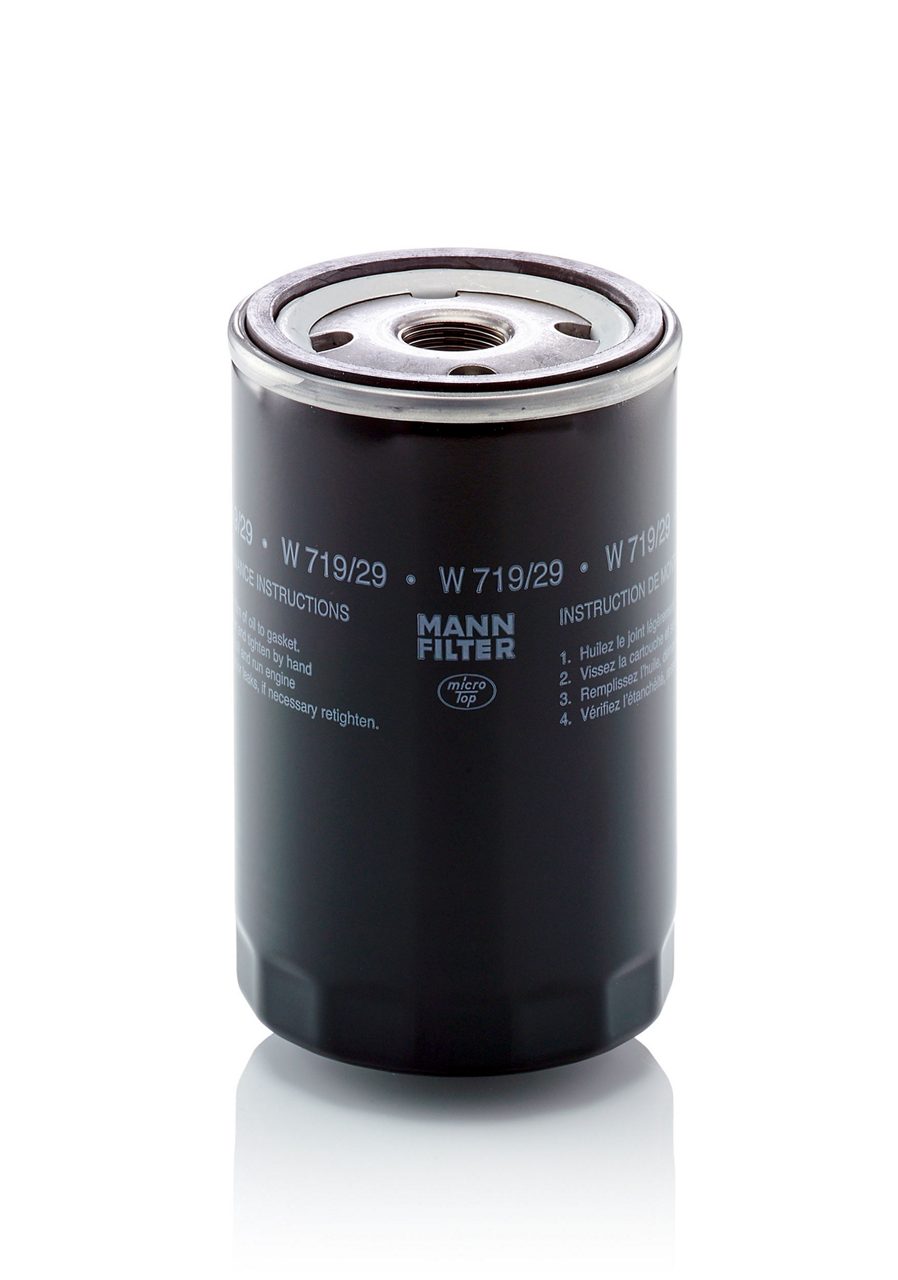

Product Image W719/29_MANN-FILTER
Product Image W719/29_MANN-FILTER

Oil Filter
W 719/29

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

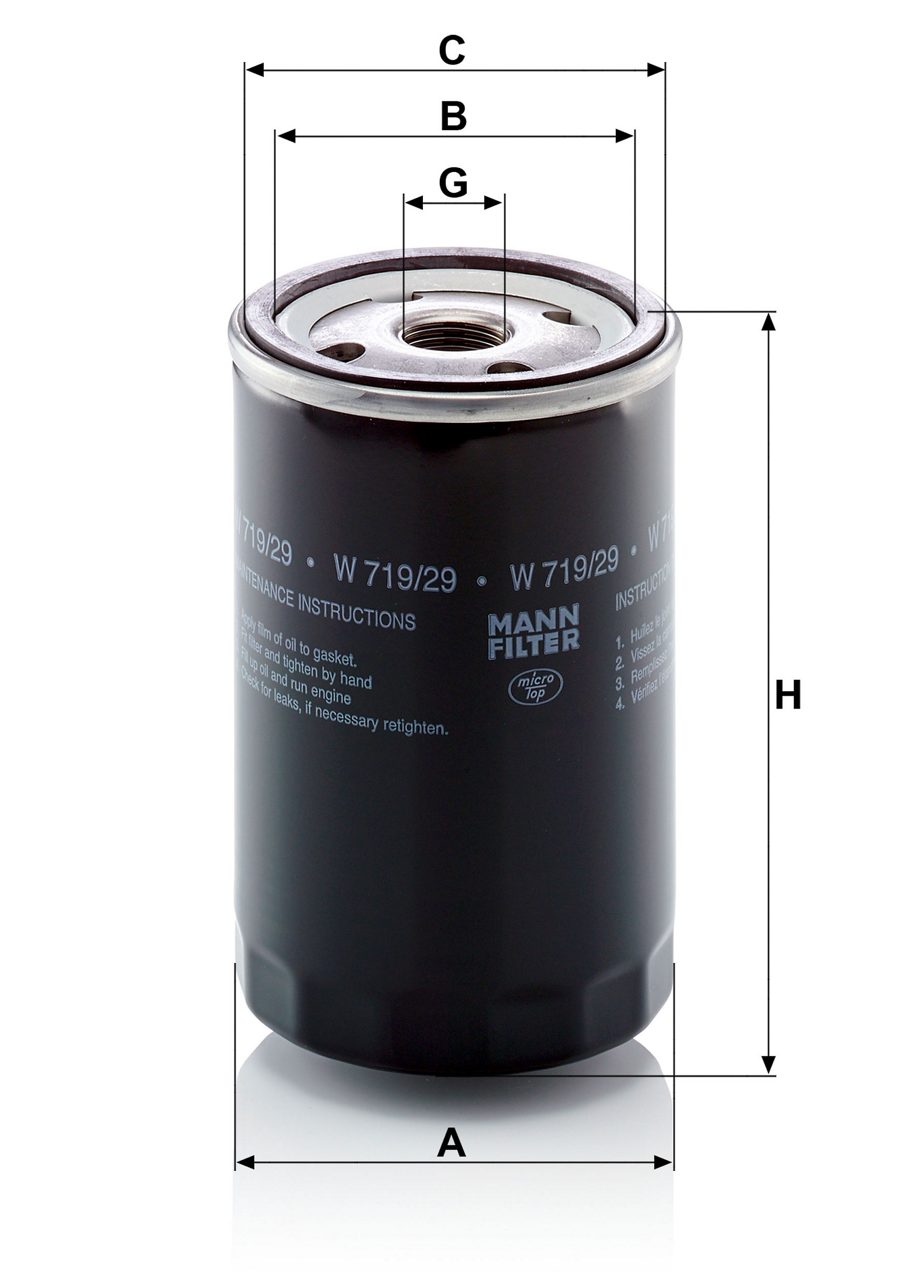

  • Outer diameter (A) = 76 mm; Inner diameter of gasket (B) = 62 mm; Outer diameter of gasket (C) = 71 mm; Thread Size (G) = 3/4-16 UNF; Height (H) = 123 mm; Bypass Valve Opening Pressure = 2,5 bar; Anti-drain back valve = 2

GTIN Code: 4011558726805

Product Details

No data available

Product Image W719/29_MANN-FILTER
A 76 mm
B 62 mm
C 71 mm
G 3/4-16 UNF mm
H 123 mm
Bypass Valve Opening Pressure 2.5
Number of anti-drain back valve 2

Bypass Valve Opening Pressure 2.5
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No
Number of anti-drain back valve 2

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
TP 98K Oil Filter VM HR494-HT2 - - -
TP 98P Oil Filter VM D754-TE2 - - -
Model Type TP 98K
Filter Type Oil Filter
Engine Code VM HR494-HT2
ccm -
kW -
HP -
Year of Manufacture
Model Type TP 98P
Filter Type Oil Filter
Engine Code VM D754-TE2
ccm -
kW -
HP -
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
TT 120 Oil Filter VM D703 TE2 - 48 65 01/07 → 12/08
TT 140 Oil Filter VM D754 TE3 2970 59 80 01/09 → 12/13
TT 170 Oil Filter VM D754 E2 2970 50 68 01/05 → 12/08
TT 180 Oil Filter VM D704-TE2 2776 61 83 01/06 → 12/08
TT 220 Oil Filter VM D703-TE2 2100 48 65 01/06 → 12/10
TT 240 Oil Filter VM D754-TE3 2970 60 81 01/06 →
TT 275 Oil Filter VM R754-IE3 2970 74 101 01/09 → 12/12
Model Type TT 120
Filter Type Oil Filter
Engine Code VM D703 TE2
ccm -
kW 48
HP 65
Year of Manufacture 01/07 → 12/08
Model Type TT 140
Filter Type Oil Filter
Engine Code VM D754 TE3
ccm 2970
kW 59
HP 80
Year of Manufacture 01/09 → 12/13
Model Type TT 170
Filter Type Oil Filter
Engine Code VM D754 E2
ccm 2970
kW 50
HP 68
Year of Manufacture 01/05 → 12/08
Model Type TT 180
Filter Type Oil Filter
Engine Code VM D704-TE2
ccm 2776
kW 61
HP 83
Year of Manufacture 01/06 → 12/08
Model Type TT 220
Filter Type Oil Filter
Engine Code VM D703-TE2
ccm 2100
kW 48
HP 65
Year of Manufacture 01/06 → 12/10
Model Type TT 240
Filter Type Oil Filter
Engine Code VM D754-TE3
ccm 2970
kW 60
HP 81
Year of Manufacture 01/06 →
Model Type TT 275
Filter Type Oil Filter
Engine Code VM R754-IE3
ccm 2970
kW 74
HP 101
Year of Manufacture 01/09 → 12/12

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
VT 450 Oil Filter VM R754EU5 2970 72 98 12/10 →
Model Type VT 450
Filter Type Oil Filter
Engine Code VM R754EU5
ccm 2970
kW 72
HP 98
Year of Manufacture 12/10 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
8400 SRX/TF/TRX Oil Filter VM D703 LT - 55 75 06/99 →
8400 TRF/TTR Oil Filter VM D703 LT - 55 75 06/99 →
9400 TF/TRF/TRG/TTR/TRX Oil Filter VM D704 LTE Tier2 - 64 87 06/99 →
Model Type 8400 SRX/TF/TRX
Filter Type Oil Filter
Engine Code VM D703 LT
ccm -
kW 55
HP 75
Year of Manufacture 06/99 →
Model Type 8400 TRF/TTR
Filter Type Oil Filter
Engine Code VM D703 LT
ccm -
kW 55
HP 75
Year of Manufacture 06/99 →
Model Type 9400 TF/TRF/TRG/TTR/TRX
Filter Type Oil Filter
Engine Code VM D704 LTE Tier2
ccm -
kW 64
HP 87
Year of Manufacture 06/99 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
7700 HTM Oil Filter VM 28 A 18 2081 47 64 01/96 → 12/04
Model Type 7700 HTM
Filter Type Oil Filter
Engine Code VM 28 A 18
ccm 2081
kW 47
HP 64
Year of Manufacture 01/96 → 12/04

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
TGF 7400 Oil Filter VM Tier2 3000 50 68 01/03 → 12/11
Model Type TGF 7400
Filter Type Oil Filter
Engine Code VM Tier2
ccm 3000
kW 50
HP 68
Year of Manufacture 01/03 → 12/11

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
TRG 9400 Oil Filter VM 2776 63 85 01/00 → 12/08
Model Type TRG 9400
Filter Type Oil Filter
Engine Code VM
ccm 2776
kW 63
HP 85
Year of Manufacture 01/00 → 12/08

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
TRH 9400 Oil Filter VM Tier 2 2800 63 85
Model Type TRH 9400
Filter Type Oil Filter
Engine Code VM Tier 2
ccm 2800
kW 63
HP 85
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
TTR 10400 Oil Filter VM Tier 2 3319 70 95 01/08 → 12/15
TTR 10400 Oil Filter VM 2970 70 95
TTR 8400 Oil Filter VM 160/3 Tier2 2082 50 68 01/04 → 12/11
TTR 9400 Oil Filter VM D704LTE31A 2776 63 85 01/04 → 12/08
Model Type TTR 10400
Filter Type Oil Filter
Engine Code VM Tier 2
ccm 3319
kW 70
HP 95
Year of Manufacture 01/08 → 12/15
Model Type TTR 10400
Filter Type Oil Filter
Engine Code VM
ccm 2970
kW 70
HP 95
Year of Manufacture
Model Type TTR 8400
Filter Type Oil Filter
Engine Code VM 160/3 Tier2
ccm 2082
kW 50
HP 68
Year of Manufacture 01/04 → 12/11
Model Type TTR 9400
Filter Type Oil Filter
Engine Code VM D704LTE31A
ccm 2776
kW 63
HP 85
Year of Manufacture 01/04 → 12/08

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.5 CDI Oil Filter VM40C 2499 88 120 09/04 →
Model Type 2.5 CDI
Filter Type Oil Filter
Engine Code VM40C
ccm 2499
kW 88
HP 120
Year of Manufacture 09/04 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
550 AR Oil Filter VM D75 TE3 - 36 48 01/09 → 12/13
650 AR/RS/MT Oil Filter VM D753 Tier 3 2230 42 56 01/09 → 12/14
Model Type 550 AR
Filter Type Oil Filter
Engine Code VM D75 TE3
ccm -
kW 36
HP 48
Year of Manufacture 01/09 → 12/13
Model Type 650 AR/RS/MT
Filter Type Oil Filter
Engine Code VM D753 Tier 3
ccm 2230
kW 42
HP 56
Year of Manufacture 01/09 → 12/14

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
800, 800 AR Oil Filter VM D704L07A - 51 70
Model Type 800, 800 AR
Filter Type Oil Filter
Engine Code VM D704L07A
ccm -
kW 51
HP 70
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
650 AR, RS Oil Filter VM D753 Tier 3 - 51 69 01/06 → 12/16
700 AR, FR, MT, RS Oil Filter VM D703 TEI 2082 50 68 07/02 →
750 AR, RS Oil Filter VM D753 Tier 3 - 51 69 01/06 → 12/16
850 AR Oil Filter VM D754 EI Tier 3A - 58 79 01/06 → 12/16
900 AR, FR, MT, RS Oil Filter VM D704 LTE 2776 61 83 07/02 →
Model Type 650 AR, RS
Filter Type Oil Filter
Engine Code VM D753 Tier 3
ccm -
kW 51
HP 69
Year of Manufacture 01/06 → 12/16
Model Type 700 AR, FR, MT, RS
Filter Type Oil Filter
Engine Code VM D703 TEI
ccm 2082
kW 50
HP 68
Year of Manufacture 07/02 →
Model Type 750 AR, RS
Filter Type Oil Filter
Engine Code VM D753 Tier 3
ccm -
kW 51
HP 69
Year of Manufacture 01/06 → 12/16
Model Type 850 AR
Filter Type Oil Filter
Engine Code VM D754 EI Tier 3A
ccm -
kW 58
HP 79
Year of Manufacture 01/06 → 12/16
Model Type 900 AR, FR, MT, RS
Filter Type Oil Filter
Engine Code VM D704 LTE
ccm 2776
kW 61
HP 83
Year of Manufacture 07/02 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
750 AR, RS, MT, Dualsteer Oil Filter VM D754 E2 2970 47 64 01/05 →
850 AR, RS, MT, Dualsteer Oil Filter VM D704 TE2 2776 62 83 01/09 →
950 AR, RS, MT, Dualsteer Oil Filter VM D754 TE2 2970 68 91 01/06 →
Model Type 750 AR, RS, MT, Dualsteer
Filter Type Oil Filter
Engine Code VM D754 E2
ccm 2970
kW 47
HP 64
Year of Manufacture 01/05 →
Model Type 850 AR, RS, MT, Dualsteer
Filter Type Oil Filter
Engine Code VM D704 TE2
ccm 2776
kW 62
HP 83
Year of Manufacture 01/09 →
Model Type 950 AR, RS, MT, Dualsteer
Filter Type Oil Filter
Engine Code VM D754 TE2
ccm 2970
kW 68
HP 91
Year of Manufacture 01/06 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
75 AR, RS, MT, SDT, Dualsteer Oil Filter D754 E2 2970 47 64
85 AR, RS, MT, SDT, Dualsteer Oil Filter VM D704 TE2 2776 62 83 01/06 →
95 AR, RS, MT, SDT, Dualsteer Oil Filter D754 TE2 2970 68 91 01/05 →
Model Type 75 AR, RS, MT, SDT, Dualsteer
Filter Type Oil Filter
Engine Code D754 E2
ccm 2970
kW 47
HP 64
Year of Manufacture
Model Type 85 AR, RS, MT, SDT, Dualsteer
Filter Type Oil Filter
Engine Code VM D704 TE2
ccm 2776
kW 62
HP 83
Year of Manufacture 01/06 →
Model Type 95 AR, RS, MT, SDT, Dualsteer
Filter Type Oil Filter
Engine Code D754 TE2
ccm 2970
kW 68
HP 91
Year of Manufacture 01/05 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
60 Oil Filter VM Tier 3 A 2082 43 58 01/10 → 12/18
80 Oil Filter VM Tier 3 A 2970 55 75 01/10 → 12/18
Model Type 60
Filter Type Oil Filter
Engine Code VM Tier 3 A
ccm 2082
kW 43
HP 58
Year of Manufacture 01/10 → 12/18
Model Type 80
Filter Type Oil Filter
Engine Code VM Tier 3 A
ccm 2970
kW 55
HP 75
Year of Manufacture 01/10 → 12/18

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
90 Oil Filter VM D754/TE3 2970 60 82 01/10 → 12/17
Model Type 90
Filter Type Oil Filter
Engine Code VM D754/TE3
ccm 2970
kW 60
HP 82
Year of Manufacture 01/10 → 12/17

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
100 Quadrifoglio Oil Filter VM Tier3A 2776 70 95 01/10 → 12/18
90 Oil Filter VM Tier3A 2970 60 81 01/10 → 12/18
Model Type 100 Quadrifoglio
Filter Type Oil Filter
Engine Code VM Tier3A
ccm 2776
kW 70
HP 95
Year of Manufacture 01/10 → 12/18
Model Type 90
Filter Type Oil Filter
Engine Code VM Tier3A
ccm 2970
kW 60
HP 81
Year of Manufacture 01/10 → 12/18

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.5 CDi Oil Filter VM R425 2499 70 95 04/05 → 12/08
2.5 CDi Oil Filter VM R425 2499 88 120 04/05 → 12/08
2.5 CRD Oil Filter 2499 99 135 02/06 → 12/08
Model Type 2.5 CDi
Filter Type Oil Filter
Engine Code VM R425
ccm 2499
kW 70
HP 95
Year of Manufacture 04/05 → 12/08
Model Type 2.5 CDi
Filter Type Oil Filter
Engine Code VM R425
ccm 2499
kW 88
HP 120
Year of Manufacture 04/05 → 12/08
Model Type 2.5 CRD
Filter Type Oil Filter
Engine Code
ccm 2499
kW 99
HP 135
Year of Manufacture 02/06 → 12/08

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
102 SE5 Oil Filter VM R754EU5 2970 72 98 01/08 →
82 S5 Oil Filter VM R754EU5 2970 72 98 01/08 →
Model Type 102 SE5
Filter Type Oil Filter
Engine Code VM R754EU5
ccm 2970
kW 72
HP 98
Year of Manufacture 01/08 →
Model Type 82 S5
Filter Type Oil Filter
Engine Code VM R754EU5
ccm 2970
kW 72
HP 98
Year of Manufacture 01/08 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.5 Diesel Oil Filter VM Motori R425 2499 75 102 10/06 →
Model Type 2.5 Diesel
Filter Type Oil Filter
Engine Code VM Motori R425
ccm 2499
kW 75
HP 102
Year of Manufacture 10/06 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.5 TDI Oil Filter 25 TDI 2499 85 115 09/96 → 11/98
Model Type 2.5 TDI
Filter Type Oil Filter
Engine Code 25 TDI
ccm 2499
kW 85
HP 115
Year of Manufacture 09/96 → 11/98

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
G6 Oil Filter Kubota D 754 E2 - 45 61
Model Type G6
Filter Type Oil Filter
Engine Code Kubota D 754 E2
ccm -
kW 45
HP 61
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.5 TDI Oil Filter 25 TDI 2499 85 115 09/96 → 09/98
Model Type 2.5 TDI
Filter Type Oil Filter
Engine Code 25 TDI
ccm 2499
kW 85
HP 115
Year of Manufacture 09/96 → 09/98

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
HR 392 SHIR Oil Filter - - -
Model Type HR 392 SHIR
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
D 703 LE/LTE Oil Filter - - - 01/93 →
D 704 IE/LE/LTE Oil Filter - - - 01/93 →
D 706 IE/LTE
Oil Filter - - - 01/93 →
Model Type D 703 LE/LTE
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture 01/93 →
Model Type D 704 IE/LE/LTE
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture 01/93 →
Model Type D 706 IE/LTE
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture 01/93 →

  • 1062410
  • 1062409

  • 41152006

  • 17952985-0

  • 91153945
  • 90542344

  • 510990156

  • 3205161

  • 980184

  • 4267165

  • 649015
  • 0649015
  • 41152006F
  • 649000

  • SCA033452

  • 41152006A
  • F41152027
  • 41152027F

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W 719/29

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

  • wrench removal tool
Oil Filter Content

Our engine oil filters work hard so your engine doesn’t have to

This crucial engine component ensures your engine functions smoothly and at peak performance. At MANN-FILTER we understand how to get the best out of every engine. And it starts with optimum filtration.

In the automotive aftermarket world prevention is always better than cure. Foresight and knowledge can save you – and your customers – time, money and hassle. Once a particle of soot or dust has got into the engine oil it starts to scratch the surfaces it comes into contact with, turning your lubricant being more abrasive. Just changing the oil isn’t enough – you also need to change the filter. Frequent oil filter changes prevent damage and keep your engine oil filter function at optimum levels.

Frictionless functionality. Optimal performance.

ANN-FILTER workshop partner installing an oil filter in a car
  • Longevity – A build-up of residue in engine oil can damage other components, but filtered, clean oil keeps things working at peak performance
  • Protection – Safeguards your engine parts from wear and tear
  • Reliability – Ensures your engine can function well, even in cold conditions

We use the service of YouTube to offer you multimedia content.
Your consent is required to use this service. Please refer to our data privacy for more details.
