Oil Filter
W 940/10

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

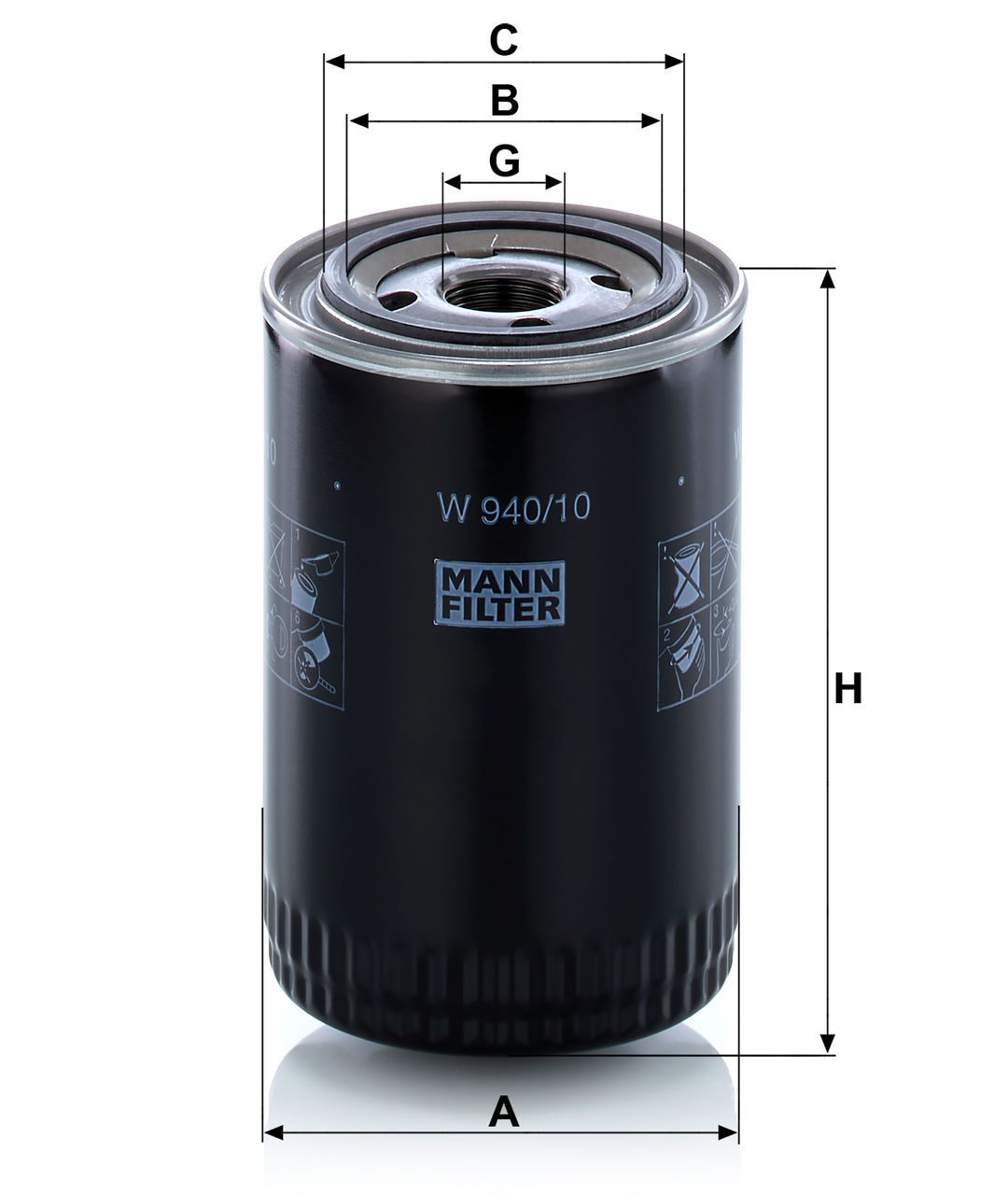

  • A = 93 mm; B = 62 mm; C = 71 mm; G = M24x1.5; H = 142 mm

GTIN Code: 4011558733100

Product Details

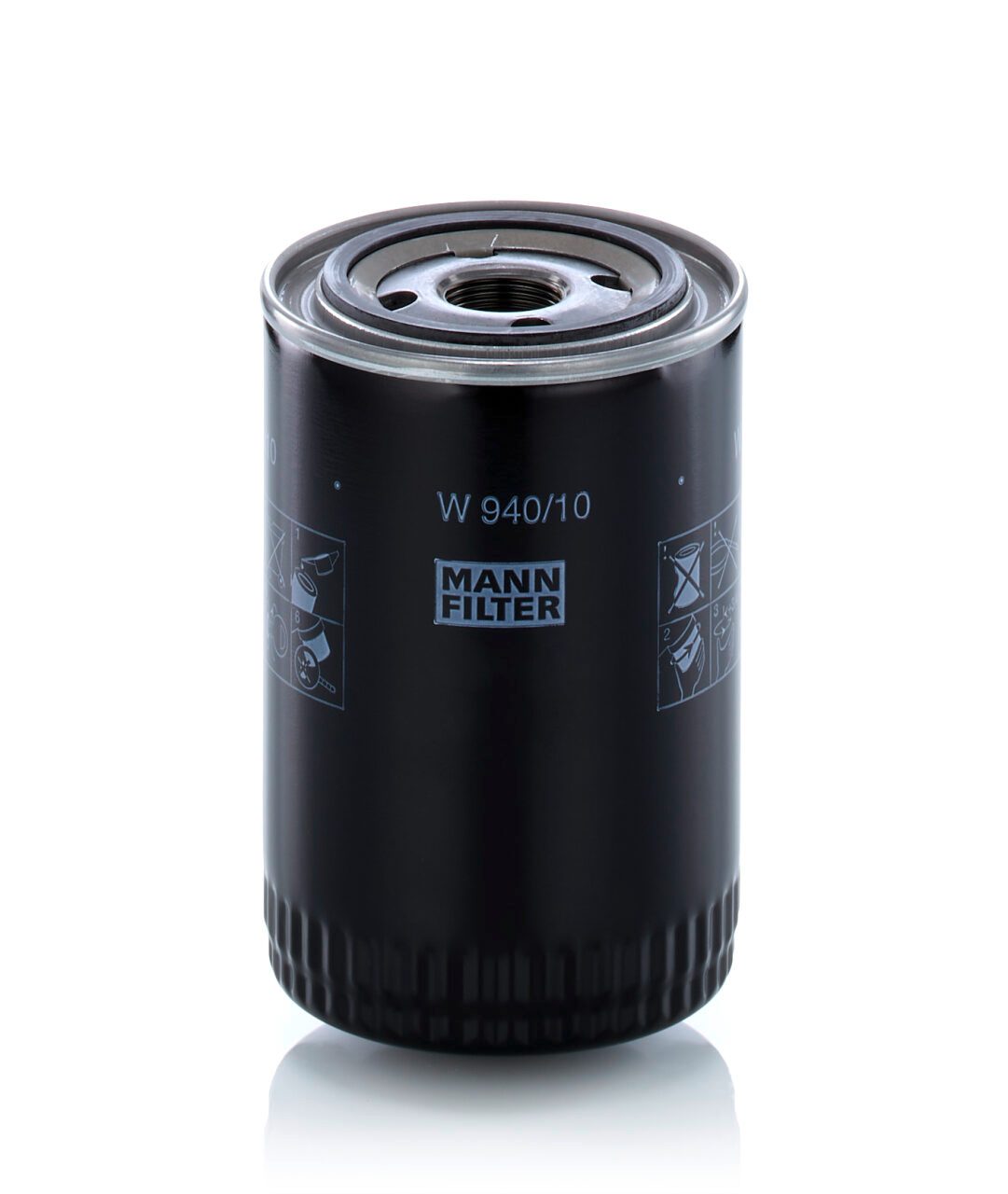

Product Image W940/10_MANN-FILTER

Product Image W940/10_MANN-FILTER
A 93
B 62
Bypass Valve Opening Pressure 1.6 bar
C 71
G M24x1.5
H 142

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
CS 68, 68A (UPTO SN DBD0023065)
Oil Filter MWM 301.89 T 3117 50 68 01/94 → 12/98
CS 75 (DBD0040001--->) Oil Filter MWM 301.81 3298 55 75 03/99 → 03/04
CS 75, 75 A (From SN DBD0040001) Oil Filter SISU 320.81 3100 55 75 03/99 → 03/04
CS 75, 75A (UPTO SN DBD0023065)
Oil Filter WD 301.88T 3100 55 75 06/97 → 03/99
Model Type CS 68, 68A (UPTO SN DBD0023065)
Filter Type Oil Filter
Engine Code MWM 301.89 T
ccm 3117
kW 50
HP 68
Year of Manufacture 01/94 → 12/98
Model Type CS 75 (DBD0040001--->)
Filter Type Oil Filter
Engine Code MWM 301.81
ccm 3298
kW 55
HP 75
Year of Manufacture 03/99 → 03/04
Model Type CS 75, 75 A (From SN DBD0040001)
Filter Type Oil Filter
Engine Code SISU 320.81
ccm 3100
kW 55
HP 75
Year of Manufacture 03/99 → 03/04
Model Type CS 75, 75A (UPTO SN DBD0023065)
Filter Type Oil Filter
Engine Code WD 301.88T
ccm 3100
kW 55
HP 75
Year of Manufacture 06/97 → 03/99

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
M 968 Oil Filter - - - 03/99 → 03/04
M 968, M 968A
Oil Filter WD 320.80 - 50 68 01/99 →
M 975 (DBD0040001 ->) Oil Filter - - - 03/99 → 03/04
M 975A
Oil Filter 320.81 - 55 75 01/99 →
Model Type M 968
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture 03/99 → 03/04
Model Type M 968, M 968A
Filter Type Oil Filter
Engine Code WD 320.80
ccm -
kW 50
HP 68
Year of Manufacture 01/99 →
Model Type M 975 (DBD0040001 ->)
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture 03/99 → 03/04
Model Type M 975A
Filter Type Oil Filter
Engine Code 320.81
ccm -
kW 55
HP 75
Year of Manufacture 01/99 →

  • 84269161

  • 4700940985

  • 102173

  • 22545867

  • GM34935

  • 132.00.00.70726

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W 940/10

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2024-09-24 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

  • wrench removal tool LS 9
Oil Filter Content

Our engine oil filters work hard so your engine doesn’t have to

This crucial engine component ensures your engine functions smoothly and at peak performance. At MANN-FILTER we understand how to get the best out of every engine. And it starts with optimum filtration.

In the automotive aftermarket world prevention is always better than cure. Foresight and knowledge can save you – and your customers – time, money and hassle. Once a particle of soot or dust has got into the engine oil it starts to scratch the surfaces it comes into contact with, turning your lubricant being more abrasive. Just changing the oil isn’t enough – you also need to change the filter. Frequent oil filter changes prevent damage and keep your engine oil filter function at optimum levels.

Frictionless functionality. Optimal performance.

ANN-FILTER workshop partner installing an oil filter in a car
  • Longevity – A build-up of residue in engine oil can damage other components, but filtered, clean oil keeps things working at peak performance
  • Protection – Safeguards your engine parts from wear and tear
  • Reliability – Ensures your engine can function well, even in cold conditions
