Cabin Air Filter
CU 2132

About this item

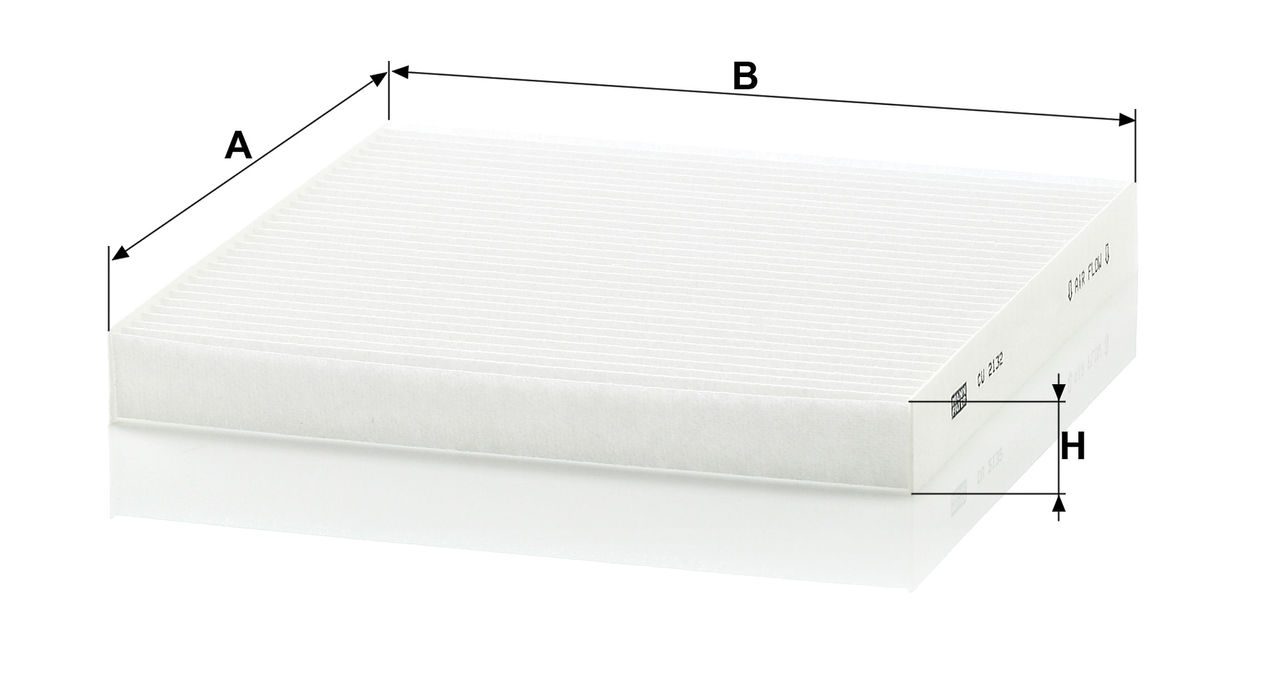

  • A = 214 mm; B = 214 mm; H = 25 mm

GTIN Code: 4011558001155

Mounting Instruction

Product Details

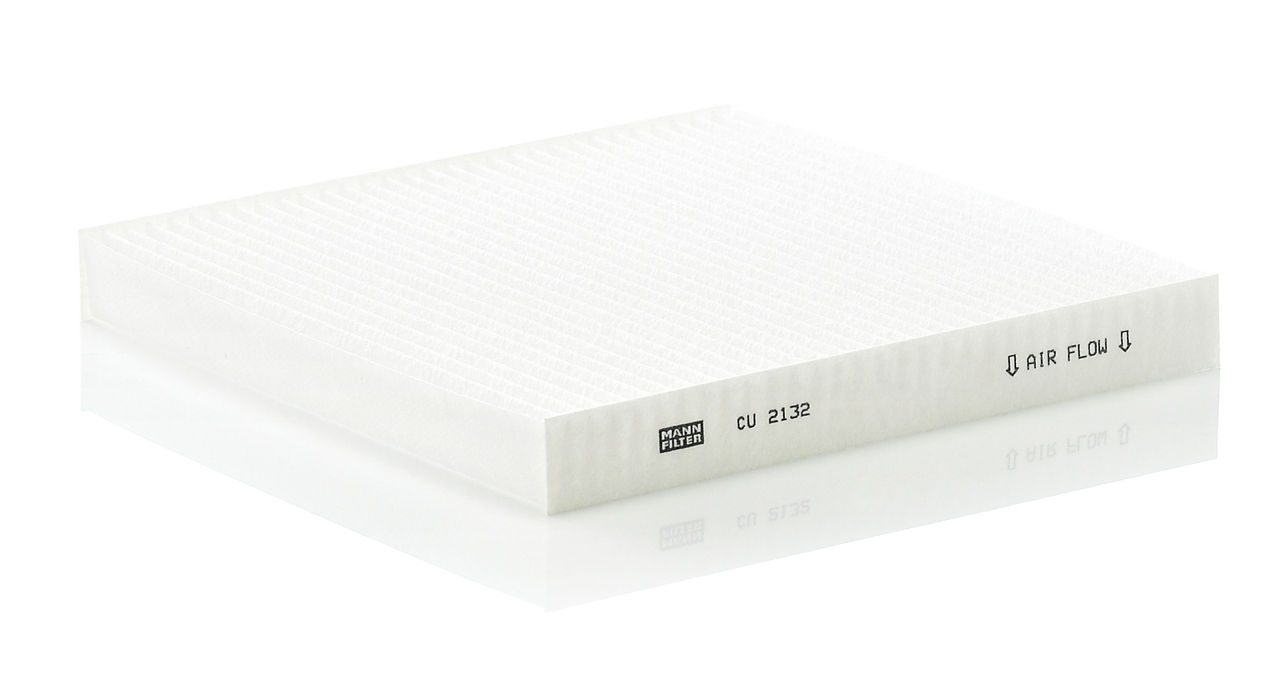

Product Image CU2132_MANN-FILTER

Product Image CU2132_MANN-FILTER
A 214
B 214
H 25

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
0.8 CDI (451) Cabin Air Filter OM 660.950 799 33 45 03/07 → 09/14
0.8 CDI (451) Cabin Air Filter OM 660.951 799 40 54 08/09 → 09/14
1.0 (451) Cabin Air Filter M 132 999 45 61 03/07 → 09/14
1.0 (451) Cabin Air Filter M 132 999 52 71 03/07 →
1.0 Brabus Turbo (451) Cabin Air Filter M 132 999 72 98 04/07 → 08/10
1.0 Brabus Turbo (451) Cabin Air Filter M 132 999 75 102 09/10 → 09/14
1.0 Brabus ultimate 120 (451) Cabin Air Filter M 132 999 88 120 04/12 → 09/14
1.0 Turbo (451) Cabin Air Filter M 132 999 62 84 03/07 → 09/14
ed electric drive (451) Cabin Air Filter Electric motor - 55 75 12/10 → 12/12
Model Type 0.8 CDI (451)
Filter Type Cabin Air Filter
Engine Code OM 660.950
ccm 799
kW 33
HP 45
Year of Manufacture 03/07 → 09/14
Model Type 0.8 CDI (451)
Filter Type Cabin Air Filter
Engine Code OM 660.951
ccm 799
kW 40
HP 54
Year of Manufacture 08/09 → 09/14
Model Type 1.0 (451)
Filter Type Cabin Air Filter
Engine Code M 132
ccm 999
kW 45
HP 61
Year of Manufacture 03/07 → 09/14
Model Type 1.0 (451)
Filter Type Cabin Air Filter
Engine Code M 132
ccm 999
kW 52
HP 71
Year of Manufacture 03/07 →
Model Type 1.0 Brabus Turbo (451)
Filter Type Cabin Air Filter
Engine Code M 132
ccm 999
kW 72
HP 98
Year of Manufacture 04/07 → 08/10
Model Type 1.0 Brabus Turbo (451)
Filter Type Cabin Air Filter
Engine Code M 132
ccm 999
kW 75
HP 102
Year of Manufacture 09/10 → 09/14
Model Type 1.0 Brabus ultimate 120 (451)
Filter Type Cabin Air Filter
Engine Code M 132
ccm 999
kW 88
HP 120
Year of Manufacture 04/12 → 09/14
Model Type 1.0 Turbo (451)
Filter Type Cabin Air Filter
Engine Code M 132
ccm 999
kW 62
HP 84
Year of Manufacture 03/07 → 09/14
Model Type ed electric drive (451)
Filter Type Cabin Air Filter
Engine Code Electric motor
ccm -
kW 55
HP 75
Year of Manufacture 12/10 → 12/12

  • 451 835 02 47
  • A 451 835 02 47

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: CU 2132

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2024-09-24 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Cabin Air Filter Content

Cabin air filters put the joy back into driving

Cabin air filter against pollen by MANN-FILTER

Air flows into a vehicle at a volume of up to 540,000 litres per hour through the ventilation ducts. Imagine the amount of dirt and dust that comes with it. Now picture that entering your lungs. Not a pretty picture. In fact, the air inside a car contains around five times more exhaust gases, pollutants and allergens than outside air. Vehicle cabin air filters remove up to 90% of even the tiniest  harmful particulates (up to 1µm, in size)  creating a barrier between passengers and the incoming air.

A MANN-FILTER cabin air filter can separate tiny particulates almost 100% – the damaging micro-organisms contained in pollen, exhaust fumes, smoke, fossil fuel emissions and gas droplets. Some of these are smaller than 3% of the diameter of a human hair. Which shows how powerful and effective a pollen filter is.

Dust and pollen filters: Benefits at a glance

What’s all the fuss about? Here are the cabin air filter benefits you will enjoy with a MANN-FILTER product:

  • Performance – Our premium products offer exceptional performance in cabin air filter technology
  • Wellbeing – Clean air improves the health and wellbeing of everyone traveling in the vehicle
  • Efficiency – Servicing and replacing the air conditioning filter in a car regularly improves system functionality
  • Support – Our easy to use online catalogue and simple installation instructions provide the guidance for a perfect fit!

What you need to know about changing a cabin air filter

Replace your cabin air filter after 15.000 km or every year

Cabin air filter replacement is vital to keeping the air clean inside your vehicle. This is often done as a feature of your regular servicing regime. Cabin air filters should be replaced once a year or every 15,000 km. To optimize the clean air inside the car and improve the driving experience, check your cabin air filter annually.

How will you know if your cabin air filter needs changing?

  • Listen out for strange noises. These could be caused by deposits inside the filter
  • Watch for unpleasant smells
  • Poor air flow is a sign of a clogged cabin air filter
  • If your windows fog up frequently and are hard to clear, change your filter

Compare all MANN-FILTER cabin air filters

BenefitsPREMIUM
FreciousPlus (FP)
ADVANCED
CUK
BASIC
CU
Provides more than 95% protection against allergens
Prevents growth of mold and bacteria on the filter
Blocks particulate matter up to 95% (PM2.5)
Eliminates almost 90% of odours
Traps harmful gases, such as ozone, nitrogen oxides and sulphur dioxide
Almost 100% filtration of tiny particles
Significant reduction of diesel soot (>95%)
Protects the air conditioning system
