Cabin Air Filter
CU 2338

About this item

High-quality MANN-FILTER cabin filters offer almost 100% protection against particles such as pollen, diesel soot and tyre abrasion - for a feel-good climate in the vehicle interior and protection of the air conditioning system. Exact fit and perfect tightness ensure constant filtration performance during the entire service interval / Optimum vehicle interior ventilation due to the high air flow capacity.

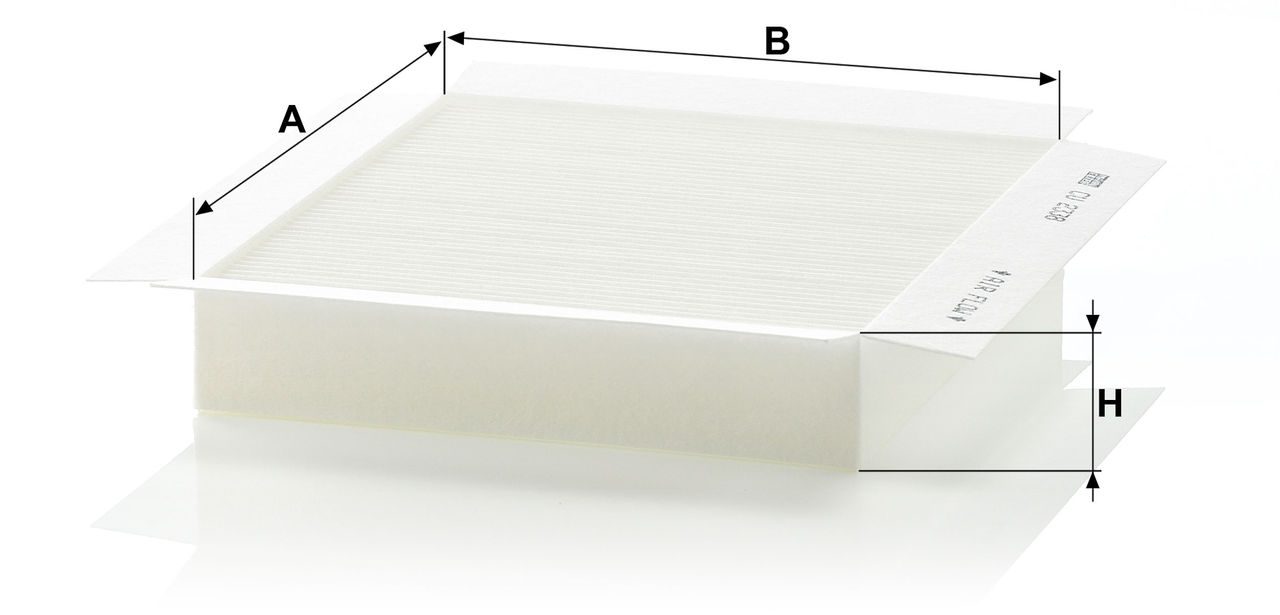

  • A = 226 mm; B = 204 mm; H = 40 mm
  • Particulate filter
  • Cabin air filter location: Passenger area under the glove compartment

GTIN Code: 4011558316105

Mounting Instruction

Product Details

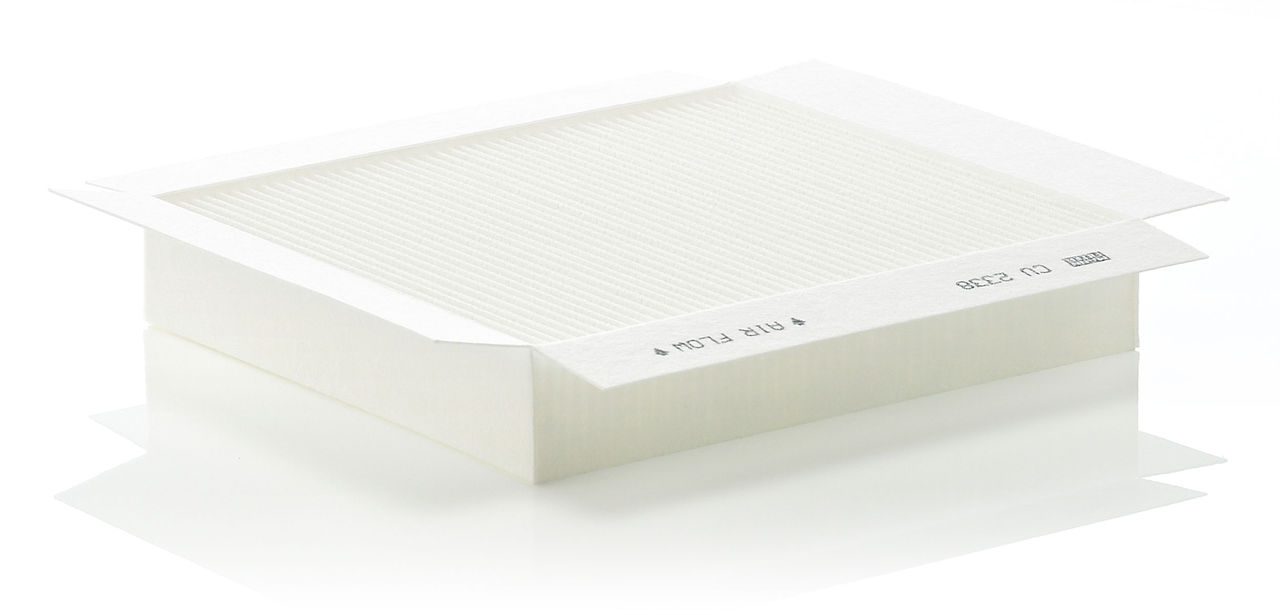

Product Image CU2338_MANN-FILTER

Product Image CU2338_MANN-FILTER
A 226 mm
B 204 mm
H 40 mm

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
ML 230 (W163) Cabin Air Filter M 111.977 2295 110 150 11/97 → 08/01
ML 270 CDI (W163) Cabin Air Filter OM 612 2688 120 164 12/99 → 06/05
ML 320 (W163) Cabin Air Filter M 112.942 3199 160 218 11/97 → 12/02
ML 320 (V6) Cabin Air Filter M 112.942 3200 158 215 01/00 →
ML 350 (W163) Cabin Air Filter M 112 3724 173 235 02/03 → 06/05
ML 350 (W163) Cabin Air Filter M 112.970 3724 180 245 10/02 → 06/05
ML 400 CDI (W163) Cabin Air Filter OM 628 3997 184 250 09/01 → 06/05
ML 430 (W163) Cabin Air Filter M 113.942 4266 199 271 06/98 → 08/01
ML 500 (W163.175) Cabin Air Filter M 113.965 4966 215 292 09/01 → 06/05
ML 55 AMG (W163) Cabin Air Filter M 113.980/981 5439 255 347 02/00 → 06/05
ML 65 AMG Cabin Air Filter - - - 01/03 → 12/05
Model Type ML 230 (W163)
Filter Type Cabin Air Filter
Engine Code M 111.977
ccm 2295
kW 110
HP 150
Year of Manufacture 11/97 → 08/01
Model Type ML 270 CDI (W163)
Filter Type Cabin Air Filter
Engine Code OM 612
ccm 2688
kW 120
HP 164
Year of Manufacture 12/99 → 06/05
Model Type ML 320 (W163)
Filter Type Cabin Air Filter
Engine Code M 112.942
ccm 3199
kW 160
HP 218
Year of Manufacture 11/97 → 12/02
Model Type ML 320 (V6)
Filter Type Cabin Air Filter
Engine Code M 112.942
ccm 3200
kW 158
HP 215
Year of Manufacture 01/00 →
Model Type ML 350 (W163)
Filter Type Cabin Air Filter
Engine Code M 112
ccm 3724
kW 173
HP 235
Year of Manufacture 02/03 → 06/05
Model Type ML 350 (W163)
Filter Type Cabin Air Filter
Engine Code M 112.970
ccm 3724
kW 180
HP 245
Year of Manufacture 10/02 → 06/05
Model Type ML 400 CDI (W163)
Filter Type Cabin Air Filter
Engine Code OM 628
ccm 3997
kW 184
HP 250
Year of Manufacture 09/01 → 06/05
Model Type ML 430 (W163)
Filter Type Cabin Air Filter
Engine Code M 113.942
ccm 4266
kW 199
HP 271
Year of Manufacture 06/98 → 08/01
Model Type ML 500 (W163.175)
Filter Type Cabin Air Filter
Engine Code M 113.965
ccm 4966
kW 215
HP 292
Year of Manufacture 09/01 → 06/05
Model Type ML 55 AMG (W163)
Filter Type Cabin Air Filter
Engine Code M 113.980/981
ccm 5439
kW 255
HP 347
Year of Manufacture 02/00 → 06/05
Model Type ML 65 AMG
Filter Type Cabin Air Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture 01/03 → 12/05

  • A 163 835 02 47
  • 163 835 00 47
  • 163 835 02 47
  • A 163 835 00 47

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: CU 2338

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Cabin Air Filter Content

Cabin air filters put the joy back into driving

Cabin air filter against pollen by MANN-FILTER

Air flows into a vehicle at a volume of up to 540,000 litres per hour through the ventilation ducts. Imagine the amount of dirt and dust that comes with it. Now picture that entering your lungs. Not a pretty picture. In fact, the air inside a car contains around five times more exhaust gases, pollutants and allergens than outside air. Vehicle cabin air filters remove up to 90% of even the tiniest  harmful particulates (up to 1µm, in size)  creating a barrier between passengers and the incoming air.

A MANN-FILTER cabin air filter can separate tiny particulates almost 100% – the damaging micro-organisms contained in pollen, exhaust fumes, smoke, fossil fuel emissions and gas droplets. Some of these are smaller than 3% of the diameter of a human hair. Which shows how powerful and effective a pollen filter is.

Dust and pollen filters: Benefits at a glance

What’s all the fuss about? Here are the cabin air filter benefits you will enjoy with a MANN-FILTER product:

  • Performance – Our premium products offer exceptional performance in cabin air filter technology
  • Wellbeing – Clean air improves the health and wellbeing of everyone traveling in the vehicle
  • Efficiency – Servicing and replacing the air conditioning filter in a car regularly improves system functionality
  • Support – Our easy to use online catalogue and simple installation instructions provide the guidance for a perfect fit!

What you need to know about changing a cabin air filter

Replace your cabin air filter after 15.000 km or every year

Cabin air filter replacement is vital to keeping the air clean inside your vehicle. This is often done as a feature of your regular servicing regime. Cabin air filters should be replaced once a year or every 15,000 km. To optimize the clean air inside the car and improve the driving experience, check your cabin air filter annually.

How will you know if your cabin air filter needs changing?

  • Listen out for strange noises. These could be caused by deposits inside the filter
  • Watch for unpleasant smells
  • Poor air flow is a sign of a clogged cabin air filter
  • If your windows fog up frequently and are hard to clear, change your filter

Compare all MANN-FILTER cabin air filters

BenefitsPREMIUM
FreciousPlus (FP)
ADVANCED
CUK
BASIC
CU
Provides more than 95% protection against allergens
Prevents growth of mold and bacteria on the filter
Blocks particulate matter up to 95% (PM2.5)
Eliminates almost 90% of odours
Traps harmful gases, such as ozone, nitrogen oxides and sulphur dioxide
Almost 100% filtration of tiny particles
Significant reduction of diesel soot (>95%)
Protects the air conditioning system
