Oil Filter
W 9100

About this item

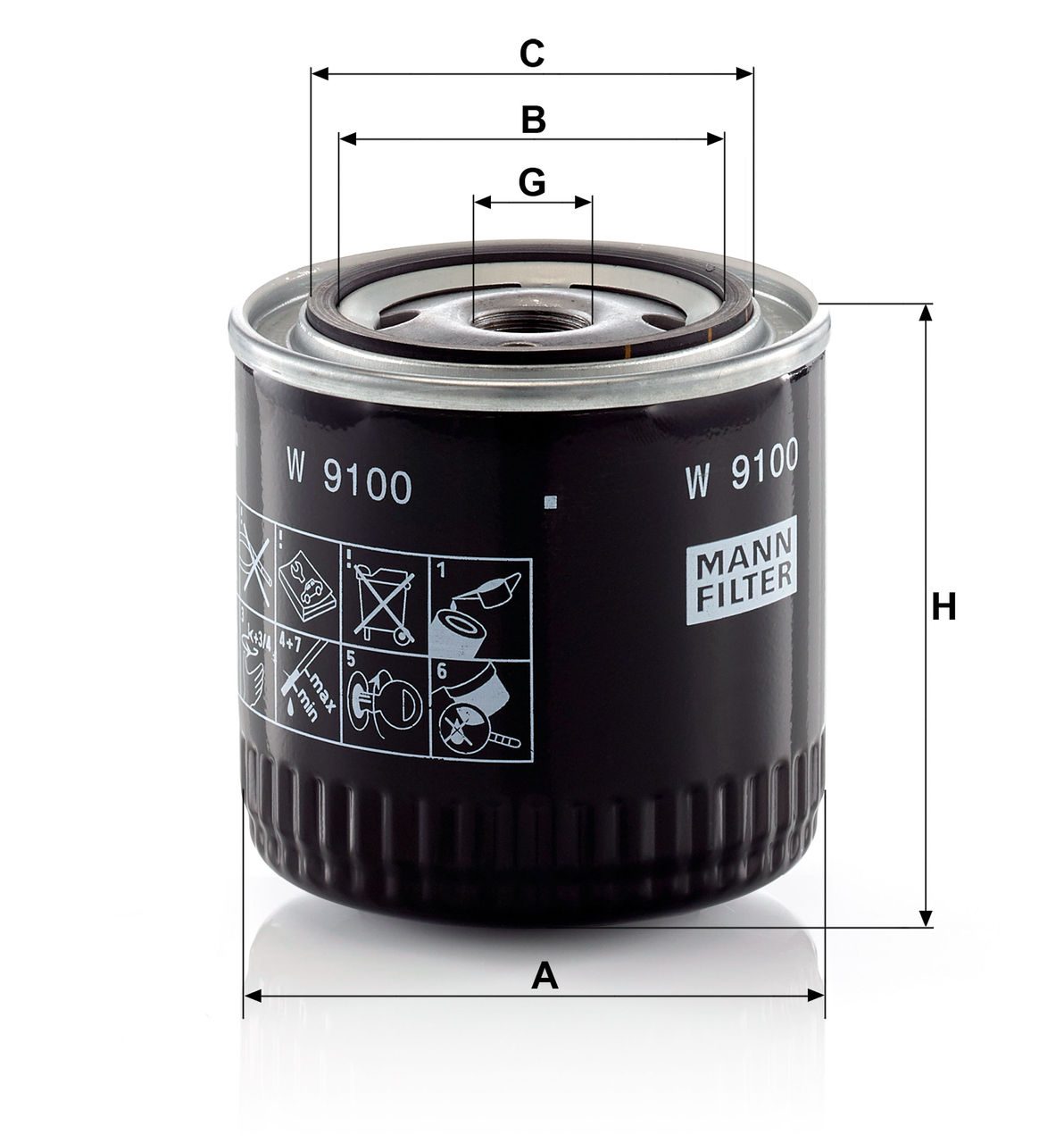

  • A = 96 mm; B = 63 mm; C = 72 mm; G = 3/4-16 UNF-1B; H = 96 mm

GTIN Code: 4011558059033

Product Details

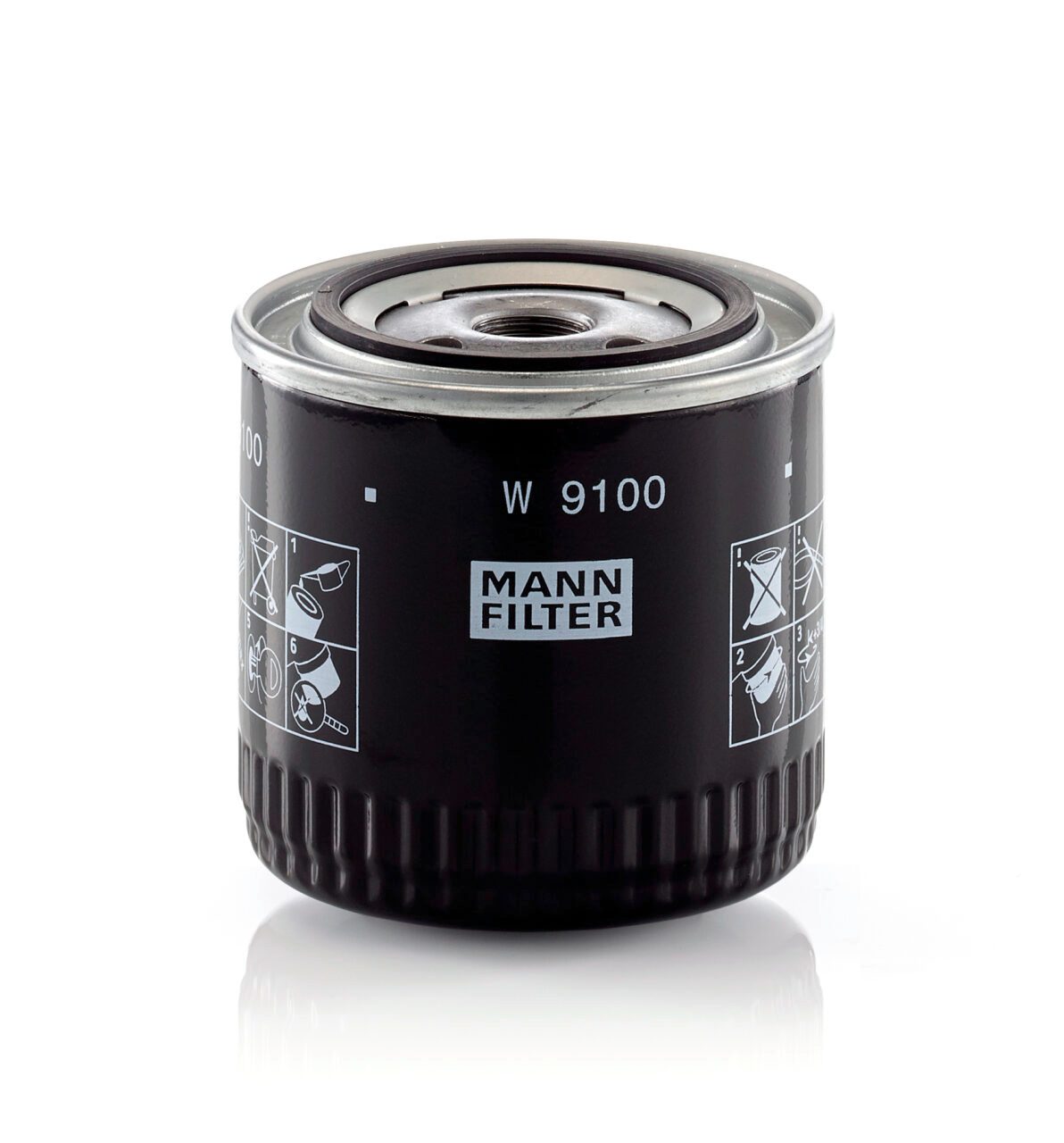

Product Image W9100_MANN-FILTER

Product Image W9100_MANN-FILTER
A 96
B 63
Bypass valve opening pressure 1.2 bar
C 72
G 3/4-16 UNF-1B
H 96
Number of anti-drain back valve 1 piece(s)

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
4H50TIC Oil Filter - - - 01/14 →
Model Type 4H50TIC
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture 01/14 →

  • 506 388 00

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W 9100

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2024-09-24 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Oil Filter Content

Our engine oil filters work hard so your engine doesn’t have to

This crucial engine component ensures your engine functions smoothly and at peak performance. At MANN-FILTER we understand how to get the best out of every engine. And it starts with optimum filtration.

In the automotive aftermarket world prevention is always better than cure. Foresight and knowledge can save you – and your customers – time, money and hassle. Once a particle of soot or dust has got into the engine oil it starts to scratch the surfaces it comes into contact with, turning your lubricant being more abrasive. Just changing the oil isn’t enough – you also need to change the filter. Frequent oil filter changes prevent damage and keep your engine oil filter function at optimum levels.

Frictionless functionality. Optimal performance.

ANN-FILTER workshop partner installing an oil filter in a car
  • Longevity – A build-up of residue in engine oil can damage other components, but filtered, clean oil keeps things working at peak performance
  • Protection – Safeguards your engine parts from wear and tear
  • Reliability – Ensures your engine can function well, even in cold conditions
