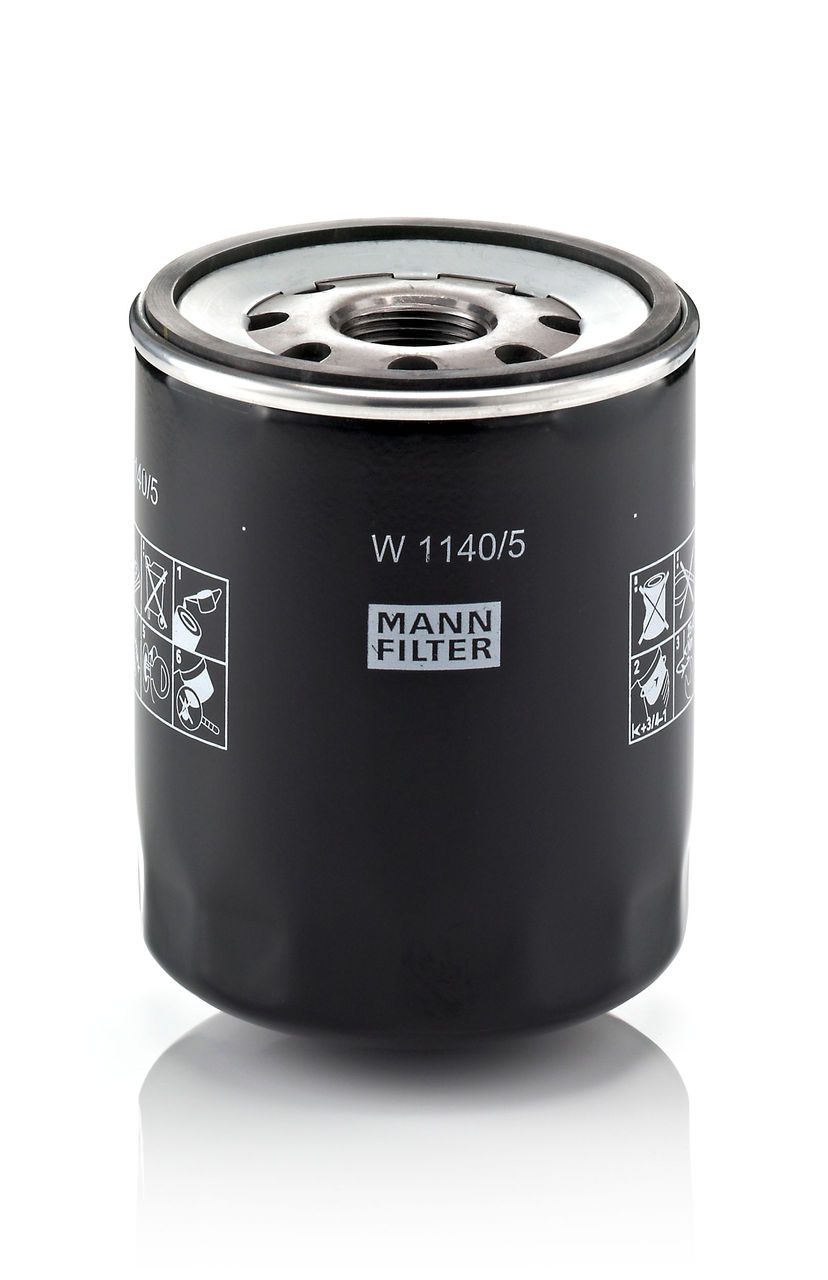

Product Image W1140/5_MANN-FILTER
Product Image W1140/5_MANN-FILTER

Oil Filter
W 1140/5

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

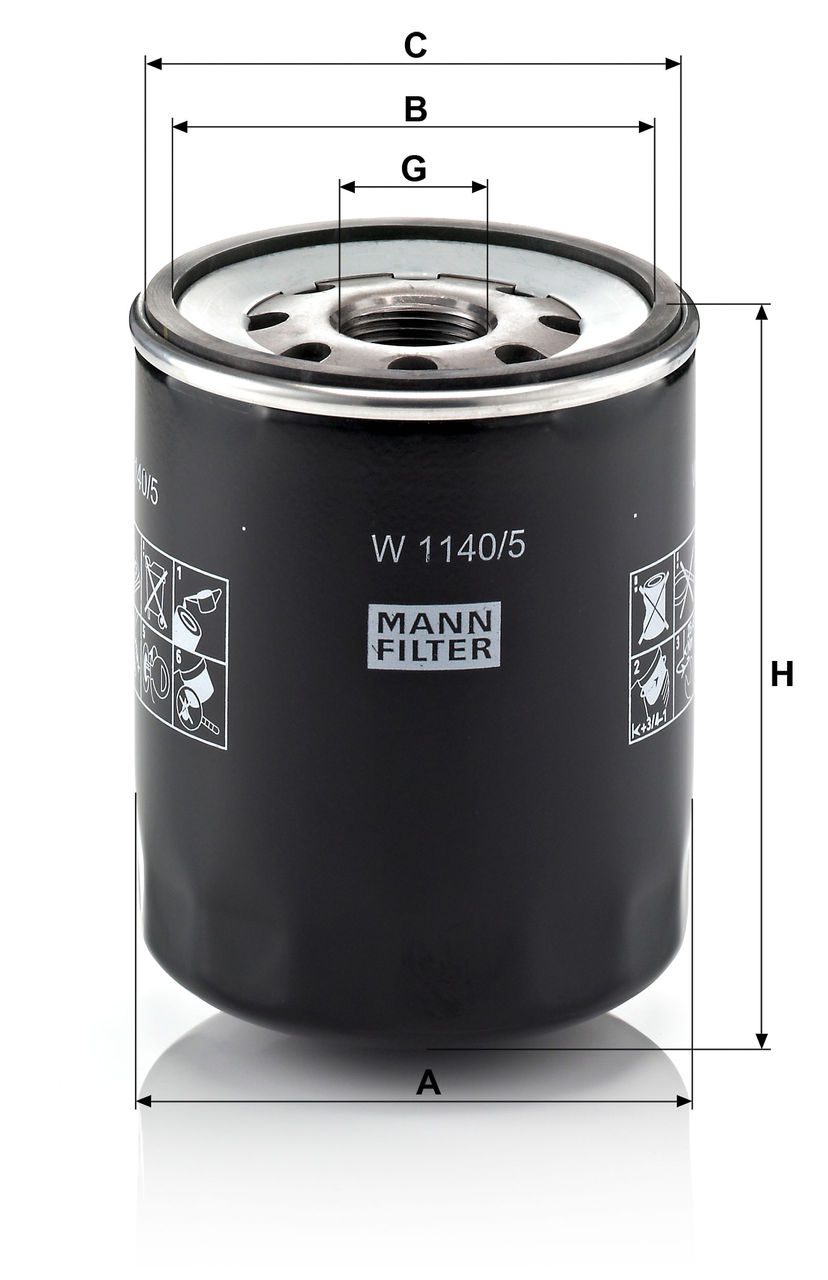

  • A = 108 mm; B = 93 mm; C = 104 mm; G = M30x2; H = 135 mm

GTIN Code: 4011558715502

Product Details

Product Image W1140/5_MANN-FILTER

Product Image W1140/5_MANN-FILTER
A 108 mm
B 93 mm
C 104 mm
G M30x2 mm
H 135 mm
Bypass valve opening pressure 1.5
Number of anti-drain back valve 1

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
8281 SRM44
Oil Filter - - - 01/82 →
Model Type 8281 SRM44
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture 01/82 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
190-38, P
Oil Filter 8280.22 17174 280 381 07/80 → 12/87
220-38 PT
Oil Filter 8280.22.007/009 17200 280 380 07/80 → 07/86
240-38 P..
Oil Filter 8280.22.033 17174 280 381 07/80 → 07/86
Model Type 190-38, P
Filter Type Oil Filter
Engine Code 8280.22
ccm 17174
kW 280
HP 381
Year of Manufacture 07/80 → 12/87
Model Type 220-38 PT
Filter Type Oil Filter
Engine Code 8280.22.007/009
ccm 17200
kW 280
HP 380
Year of Manufacture 07/80 → 07/86
Model Type 240-38 P..
Filter Type Oil Filter
Engine Code 8280.22.033
ccm 17174
kW 280
HP 381
Year of Manufacture 07/80 → 07/86

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
190-42 (TurboStar)
Oil Filter 8280.22.201/205 17174 309 420 07/84 → 12/90
Model Type 190-42 (TurboStar)
Filter Type Oil Filter
Engine Code 8280.22.201/205
ccm 17174
kW 309
HP 420
Year of Manufacture 07/84 → 12/90

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
220.38
Oil Filter 8280.22.007 17200 279 380 07/80 → 01/83
Model Type 220.38
Filter Type Oil Filter
Engine Code 8280.22.007
ccm 17200
kW 279
HP 380
Year of Manufacture 07/80 → 01/83

  • 4741274
  • 4741272

  • 1 410 041
  • 4 741 272

  • 474 1272
  • 190 2197
  • 190 7578
  • 190 7818
  • 474 1274

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W 1140/5

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Oil Filter Content

Our engine oil filters work hard so your engine doesn’t have to

This crucial engine component ensures your engine functions smoothly and at peak performance. At MANN-FILTER we understand how to get the best out of every engine. And it starts with optimum filtration.

In the automotive aftermarket world prevention is always better than cure. Foresight and knowledge can save you – and your customers – time, money and hassle. Once a particle of soot or dust has got into the engine oil it starts to scratch the surfaces it comes into contact with, turning your lubricant being more abrasive. Just changing the oil isn’t enough – you also need to change the filter. Frequent oil filter changes prevent damage and keep your engine oil filter function at optimum levels.

Frictionless functionality. Optimal performance.

ANN-FILTER workshop partner installing an oil filter in a car
  • Longevity – A build-up of residue in engine oil can damage other components, but filtered, clean oil keeps things working at peak performance
  • Protection – Safeguards your engine parts from wear and tear
  • Reliability – Ensures your engine can function well, even in cold conditions
