Oil Filter
W 13 145/3

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

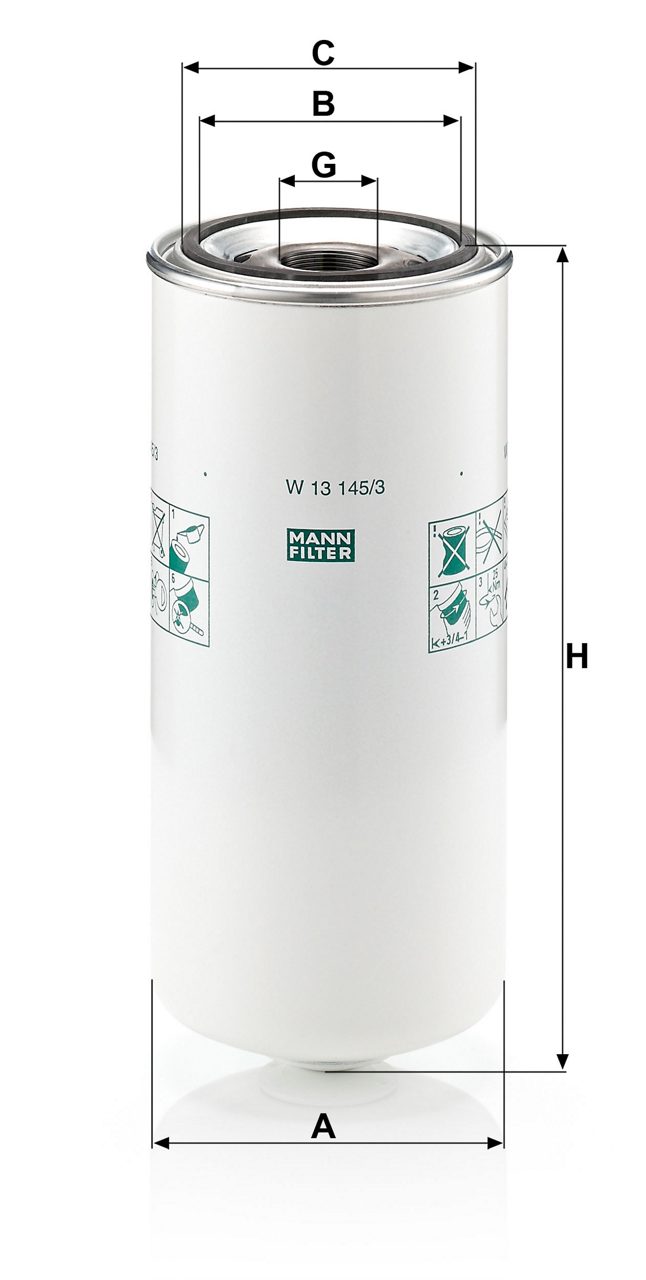

  • A = 136 mm; B = 100 mm; C = 111 mm; G = 1 1/2-16 UN; H = 308 mm

GTIN Code: 4011558716905

Product Details

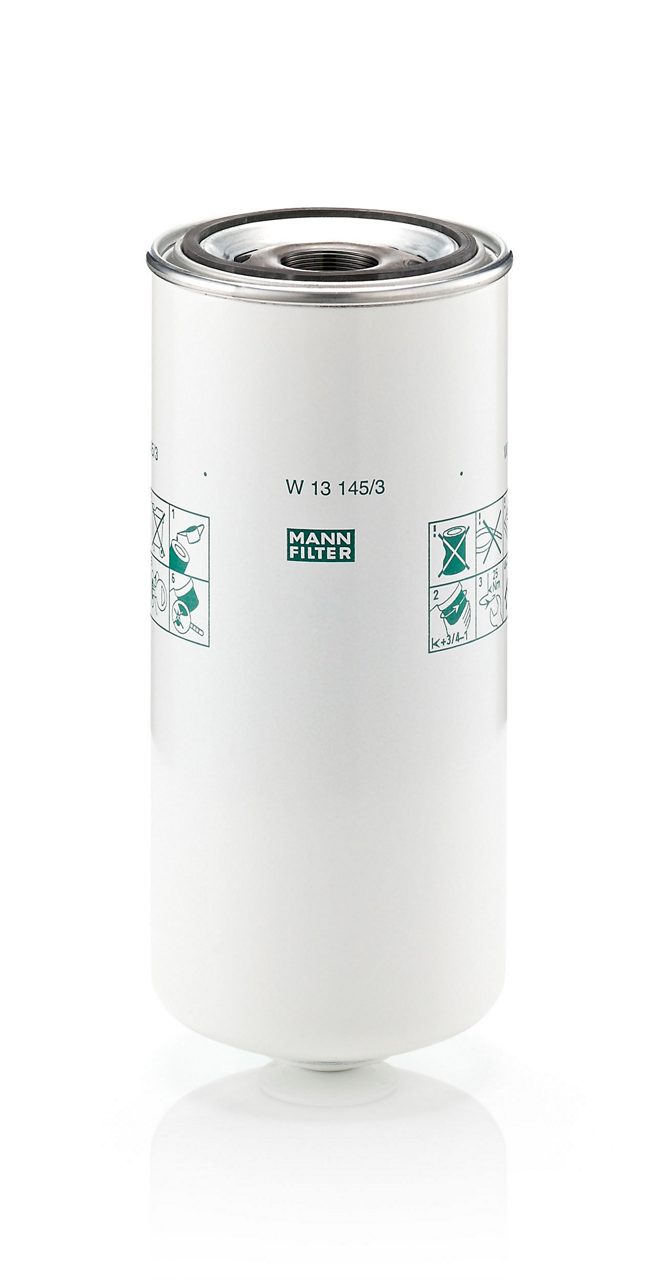

Product Image W13145/3_MANN-FILTER

Product Image W13145/3_MANN-FILTER
A 136 mm
B 100 mm
C 111 mm
G 1 1/2-16 UN mm
H 308 mm
Bypass valve opening pressure 2.5

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
SB 3000 Oil Filter WS 315 - 315 430 01/91 → 12/02
Model Type SB 3000
Filter Type Oil Filter
Engine Code WS 315
ccm -
kW 315
HP 430
Year of Manufacture 01/91 → 12/02

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
85.330 ATi
Oil Filter WS 242 L 11600 242 330 07/92 → 05/98
85.360 ATi
Oil Filter WS 268 L 11600 268 365 07/92 → 05/98
85.400 ATi Oil Filter WS 295 M Ati 11627 295 401 03/95 → 05/98
Model Type 85.330 ATi
Filter Type Oil Filter
Engine Code WS 242 L
ccm 11600
kW 242
HP 330
Year of Manufacture 07/92 → 05/98
Model Type 85.360 ATi
Filter Type Oil Filter
Engine Code WS 268 L
ccm 11600
kW 268
HP 365
Year of Manufacture 07/92 → 05/98
Model Type 85.400 ATi
Filter Type Oil Filter
Engine Code WS 295 M Ati
ccm 11627
kW 295
HP 401
Year of Manufacture 03/95 → 05/98

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
95.300 ATi Oil Filter WS 222 G 11547 163 222 07/92 → 05/97
95.310 ATi Oil Filter WS 225 11547 225 306 09/87 → 05/97
95.330 ATi Oil Filter WS 242 11600 242 330 08/90 → 05/97
95.350 ATi Oil Filter WS 259 11547 259 352 09/87 → 05/97
95.360 ATi Oil Filter WS 270 11547 268 365 09/87 → 05/97
95.360 ATi Oil Filter WS 268 11547 268 365 08/90 → 05/97
95.380 ATi Oil Filter WS 282 L 11547 282 383 09/87 → 05/97
95.400 ATi Oil Filter WS 295 11547 295 401 08/90 → 05/97
95.430 ATi Oil Filter WS 315 G 11547 315 428 07/92 → 05/97
Model Type 95.300 ATi
Filter Type Oil Filter
Engine Code WS 222 G
ccm 11547
kW 163
HP 222
Year of Manufacture 07/92 → 05/97
Model Type 95.310 ATi
Filter Type Oil Filter
Engine Code WS 225
ccm 11547
kW 225
HP 306
Year of Manufacture 09/87 → 05/97
Model Type 95.330 ATi
Filter Type Oil Filter
Engine Code WS 242
ccm 11600
kW 242
HP 330
Year of Manufacture 08/90 → 05/97
Model Type 95.350 ATi
Filter Type Oil Filter
Engine Code WS 259
ccm 11547
kW 259
HP 352
Year of Manufacture 09/87 → 05/97
Model Type 95.360 ATi
Filter Type Oil Filter
Engine Code WS 270
ccm 11547
kW 268
HP 365
Year of Manufacture 09/87 → 05/97
Model Type 95.360 ATi
Filter Type Oil Filter
Engine Code WS 268
ccm 11547
kW 268
HP 365
Year of Manufacture 08/90 → 05/97
Model Type 95.380 ATi
Filter Type Oil Filter
Engine Code WS 282 L
ccm 11547
kW 282
HP 383
Year of Manufacture 09/87 → 05/97
Model Type 95.400 ATi
Filter Type Oil Filter
Engine Code WS 295
ccm 11547
kW 295
HP 401
Year of Manufacture 08/90 → 05/97
Model Type 95.430 ATi
Filter Type Oil Filter
Engine Code WS 315 G
ccm 11547
kW 315
HP 428
Year of Manufacture 07/92 → 05/97

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
F.. 2900 KV ATi Oil Filter KV 212 11600 212 288 01/90 → 10/93
Model Type F.. 2900 KV ATi
Filter Type Oil Filter
Engine Code KV 212
ccm 11600
kW 212
HP 288
Year of Manufacture 01/90 → 10/93

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
F.. 3200 KS ATi Oil Filter KS 238 11600 238 324 01/90 → 10/92
Model Type F.. 3200 KS ATi
Filter Type Oil Filter
Engine Code KS 238
ccm 11600
kW 238
HP 324
Year of Manufacture 01/90 → 10/92

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
FT 95 Oil Filter DAF-WS 225 ATi 11547 282 383 09/87 → 03/89
FT 95 Oil Filter DAF-WS 259 ATi 11547 282 383 09/87 → 03/89
FT 95 Oil Filter DAF-WS 282 ATi 11547 282 383 09/87 → 03/89
Model Type FT 95
Filter Type Oil Filter
Engine Code DAF-WS 225 ATi
ccm 11547
kW 282
HP 383
Year of Manufacture 09/87 → 03/89
Model Type FT 95
Filter Type Oil Filter
Engine Code DAF-WS 259 ATi
ccm 11547
kW 282
HP 383
Year of Manufacture 09/87 → 03/89
Model Type FT 95
Filter Type Oil Filter
Engine Code DAF-WS 282 ATi
ccm 11547
kW 282
HP 383
Year of Manufacture 09/87 → 03/89

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
80.330 ATi Oil Filter DAF - 242 329 01/90 →
Model Type 80.330 ATi
Filter Type Oil Filter
Engine Code DAF
ccm -
kW 242
HP 329
Year of Manufacture 01/90 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
95.310 Oil Filter WS 225 ATi 11547 225 306 04/89 →
95.350 Oil Filter WS 259 ATi 11547 259 352 04/89 →
95.380 Oil Filter WS 282 ATi 11547 282 383 04/89 →
95.400 Oil Filter WS 295 ATi 11547 295 401 04/89 →
Model Type 95.310
Filter Type Oil Filter
Engine Code WS 225 ATi
ccm 11547
kW 225
HP 306
Year of Manufacture 04/89 →
Model Type 95.350
Filter Type Oil Filter
Engine Code WS 259 ATi
ccm 11547
kW 259
HP 352
Year of Manufacture 04/89 →
Model Type 95.380
Filter Type Oil Filter
Engine Code WS 282 ATi
ccm 11547
kW 282
HP 383
Year of Manufacture 04/89 →
Model Type 95.400
Filter Type Oil Filter
Engine Code WS 295 ATi
ccm 11547
kW 295
HP 401
Year of Manufacture 04/89 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
FHD 10-300 Oil Filter DAF-WS 222G 11600 222 300 01/82 → 12/96
FHD 12-360 Oil Filter DAF-DKX ATi 11600 260 354 01/82 → 12/96
FHD 12-370 Oil Filter DAF-WS 268G 11600 268 370 01/82 → 12/96
Model Type FHD 10-300
Filter Type Oil Filter
Engine Code DAF-WS 222G
ccm 11600
kW 222
HP 300
Year of Manufacture 01/82 → 12/96
Model Type FHD 12-360
Filter Type Oil Filter
Engine Code DAF-DKX ATi
ccm 11600
kW 260
HP 354
Year of Manufacture 01/82 → 12/96
Model Type FHD 12-370
Filter Type Oil Filter
Engine Code DAF-WS 268G
ccm 11600
kW 268
HP 370
Year of Manufacture 01/82 → 12/96

  • 267 714
  • 026 7714

  • K118024N50

  • 50 01 846 644

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W 13 145/3

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
