Product Image PL601/1_MANN-FILTER
Product Image PL601/1_MANN-FILTER

Fuel Filter
PL 601/1
Replacement PL 601/1 x

About this item

High-quality MANN-FILTER fuel filters remove unwanted and damaging dirt particles and water from the fuel, thus avoiding possible damage due to wear and corrosion. Spin-on fuel filters with water separation efficiently separate water contained in the fuel and protect the injection system from damage.

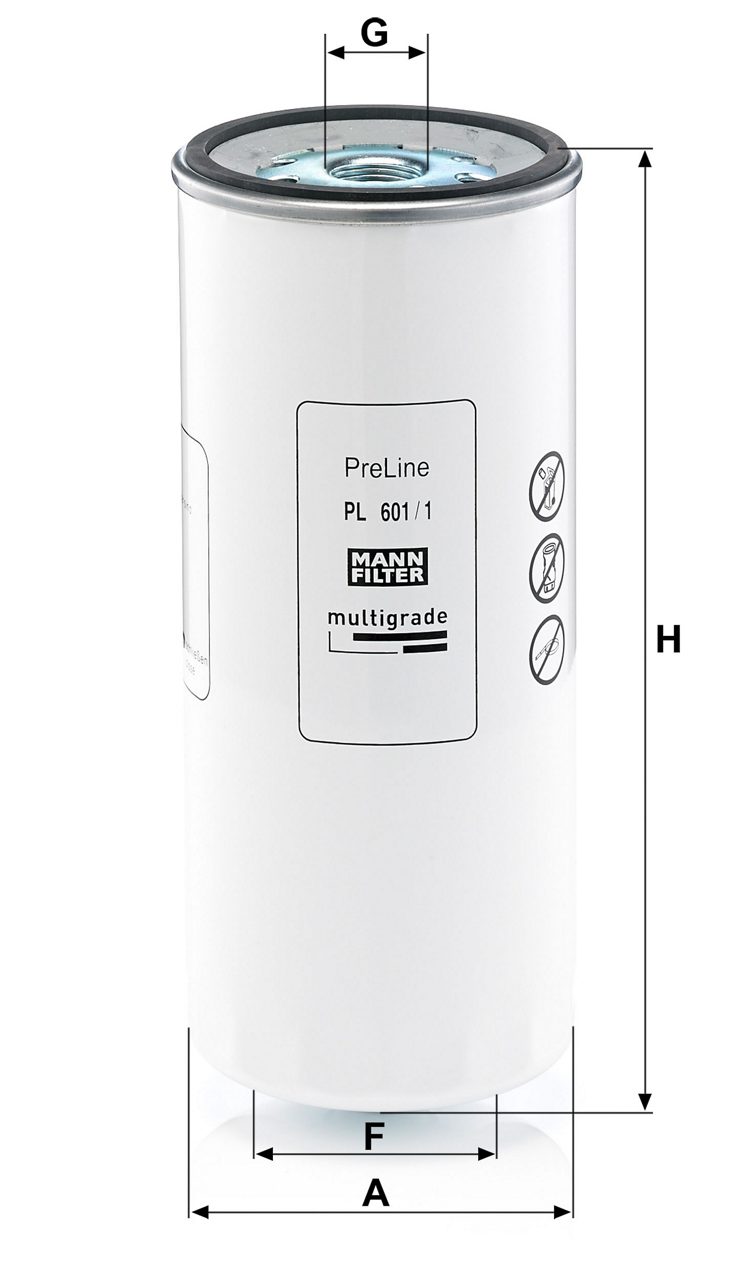

  • Outer diameter (A) = 4.252 in; Inner diameter of gasket (B) = 3.661 in; Outer diameter of gasket (C) = 4.055 in; Thread size entry (F) = M12x1.5-6H; Thread size exit (G) = 1-14 UNS - 1B; Height (H) = 1.0551 in

GTIN Code: 4011558027766

Product Details

No data available

Product Image PL601/1_MANN-FILTER
A 4.3 inch
B 3.7 inch
C 4.1 inch
F M12x1.5-6H inch
G 1-14 UNS - 1B inch
H 10.6 inch

Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
TCD 2012 L04 Fuel Filter - - -
Model Type TCD 2012 L04
Filter Type Fuel Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
TCD 2015 COM2 Fuel Filter - - -
Model Type TCD 2015 COM2
Filter Type Fuel Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
7545 RTS Fuel Filter Deutz TCD2015 V6 4V 11910 331 450 01/09 → 12/11
Model Type 7545 RTS
Filter Type Fuel Filter
Engine Code Deutz TCD2015 V6 4V
ccm 11910
kW 331
HP 450
Year of Manufacture 01/09 → 12/11

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
A 309 (Type 1035) (Chassis to No. 54880 and from No. 54881)
Fuel Filter DEUTZ TCD2012 L04 - 65 88 01/09 →
Model Type A 309 (Type 1035) (Chassis to No. 54880 and from No. 54881)
Filter Type Fuel Filter
Engine Code DEUTZ TCD2012 L04
ccm -
kW 65
HP 88
Year of Manufacture 01/09 →

No data available

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: PL 601/1

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
