Product Image W920/38_MANN-FILTER
Product Image W920/38_MANN-FILTER

Oil Filter
W 920/38

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

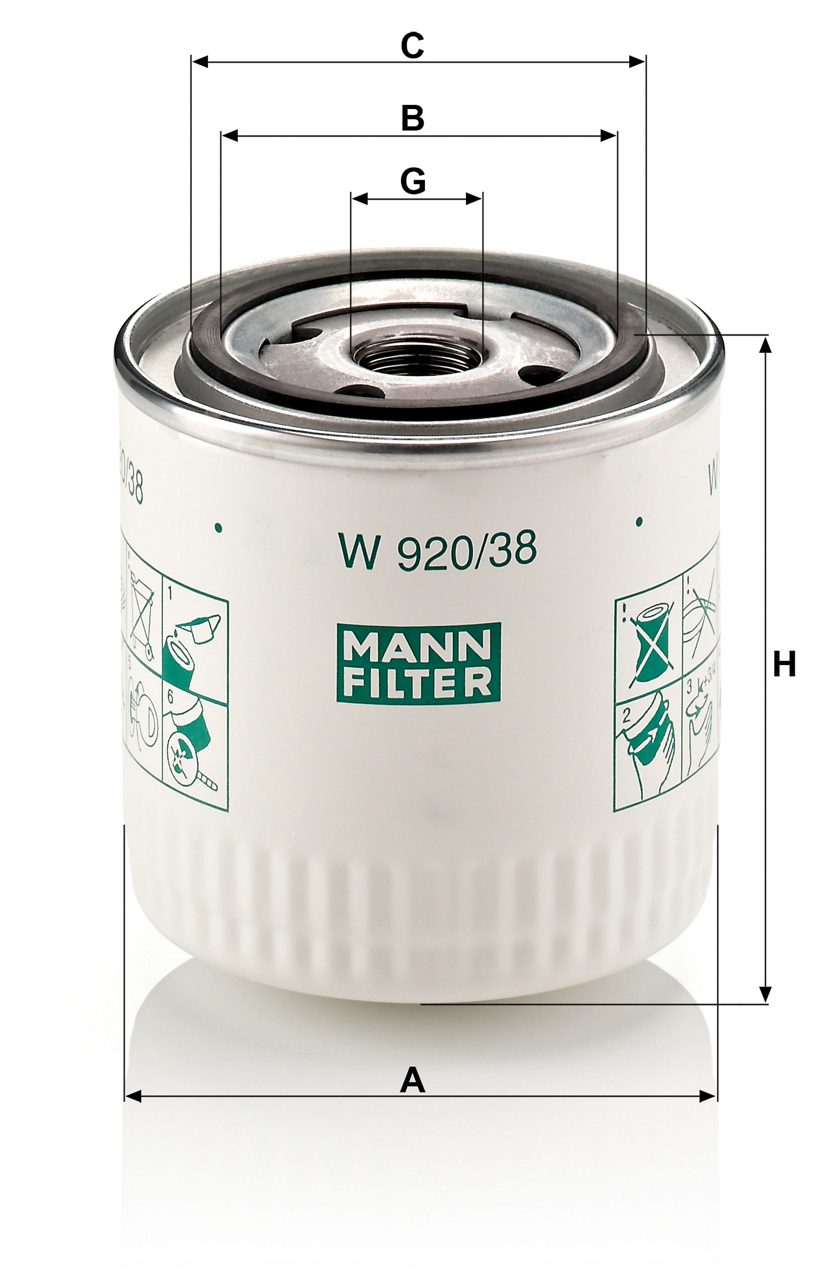

  • Outer diameter (A) = 3.661 in; Inner diameter of gasket (B) = 2.441 in; Outer diameter of gasket (C) = 2.795 in; Thread Size (G) = M20x1.5; Height (H) = 3.937 in; Bypass Valve Opening Pressure = 21.756 psi

GTIN Code: 4011558729400

Product Details

No data available

Product Image W920/38_MANN-FILTER
A 3.7 inch
B 2.4 inch
C 2.8 inch
G M20x1.5 inch
H 3.9 inch
Bypass Valve Opening Pressure 21.8

Bypass Valve Opening Pressure 21.755
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No data available

  • 30887496
  • 3473645
  • 3473645-4

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W 920/38

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
