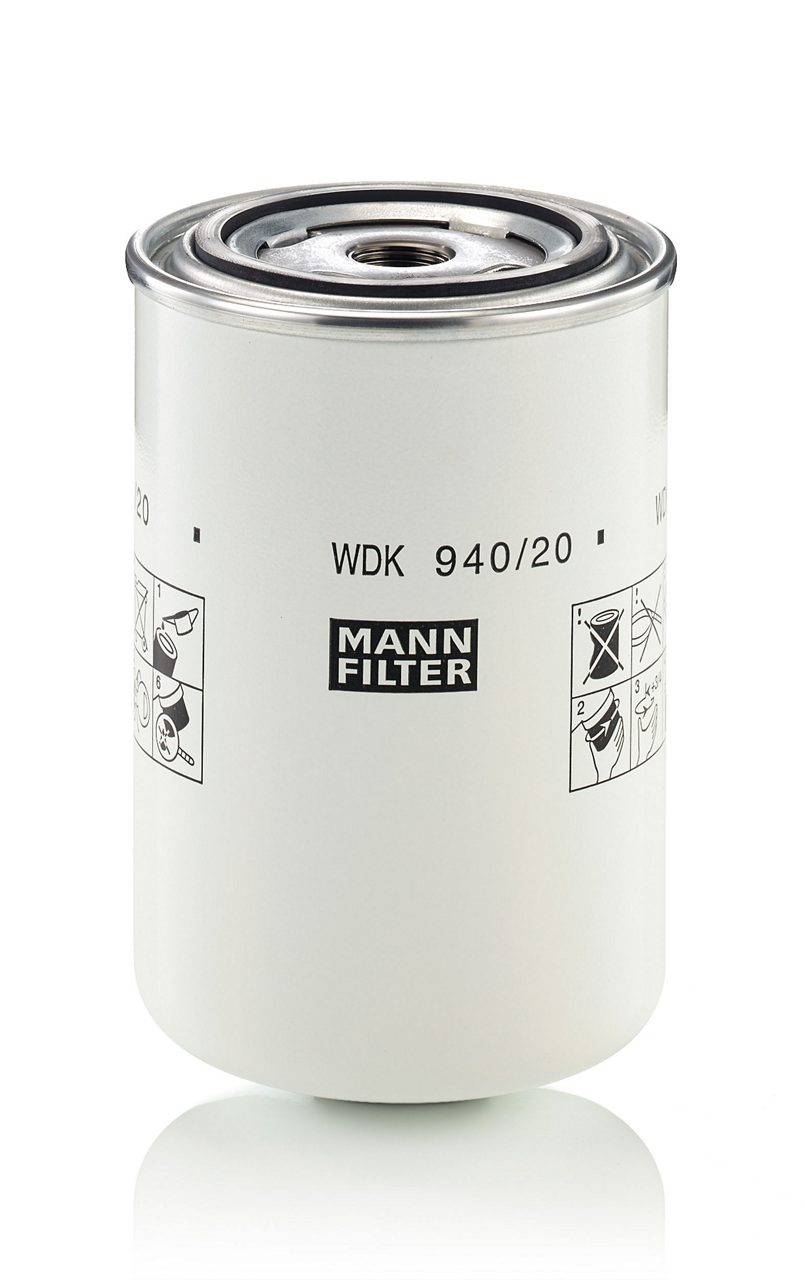

Product Image WDK940/20_MANN-FILTER
Product Image WDK940/20_MANN-FILTER

Fuel Filter
WDK 940/20

About this item

MANN-FILTER Fuel filters for high pressures remove unwanted and damaging dirt particles and water from the fuel and thus prevent possible damage due to wear and corrosion. Highest separation efficiency and sealing ensure functional reliability and protection during the entire maintenance interval / Reinforced or special materials suitable for use at elevated pressures.

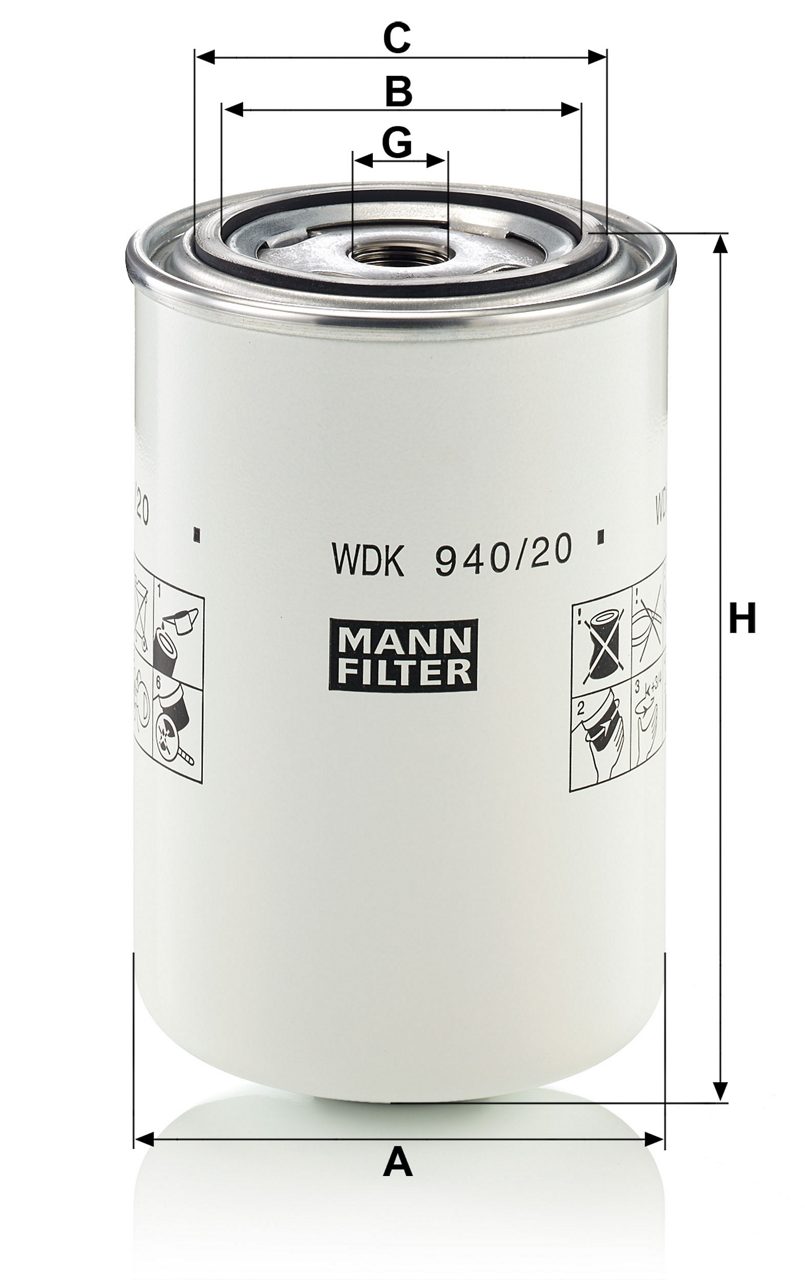

  • Outer diameter (A) = 3.661 in; Inner diameter of gasket (B) = 2.48 in; Outer diameter of gasket (C) = 2.835 in; Height (H) = 5.827 in; Bypass Valve Opening Pressure = 145.038 psi
  • For high pressure

GTIN Code: 4011558093051

Product Details

No data available

Product Image WDK940/20_MANN-FILTER
A 3.7 inch
B 2.5 inch
C 2.8 inch
H 5.8 inch
Bypass Valve Opening Pressure 145

Bypass Valve Opening Pressure 145.037
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No data available

No data available

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: WDK 940/20

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
