Cabin Air Filter
CU 1936

About this item

High-quality MANN-FILTER cabin filters offer almost 100% protection against particles such as pollen, diesel soot and tyre abrasion - for a feel-good climate in the vehicle interior and protection of the air conditioning system. Exact fit and perfect tightness ensure constant filtration performance during the entire service interval / Optimum vehicle interior ventilation due to the high air flow capacity.

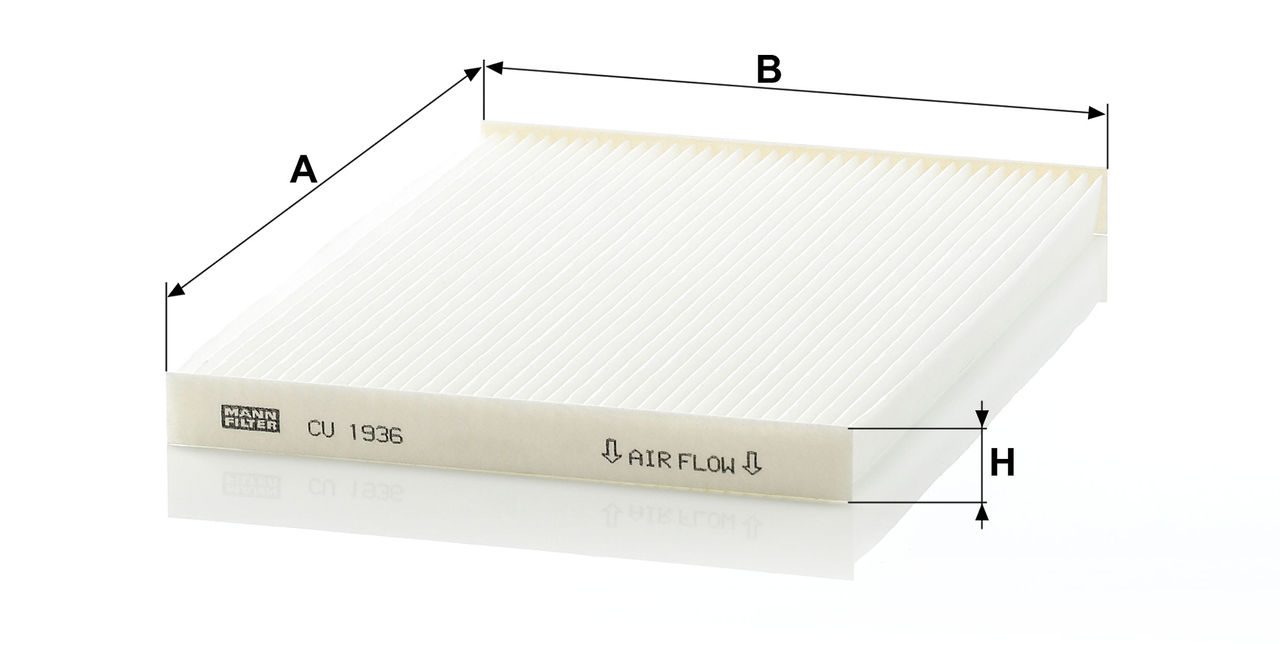

  • A = 265 mm; B = 190 mm; H = 20 mm

GTIN Code: 4011558540203

Mounting Instruction

Product Details

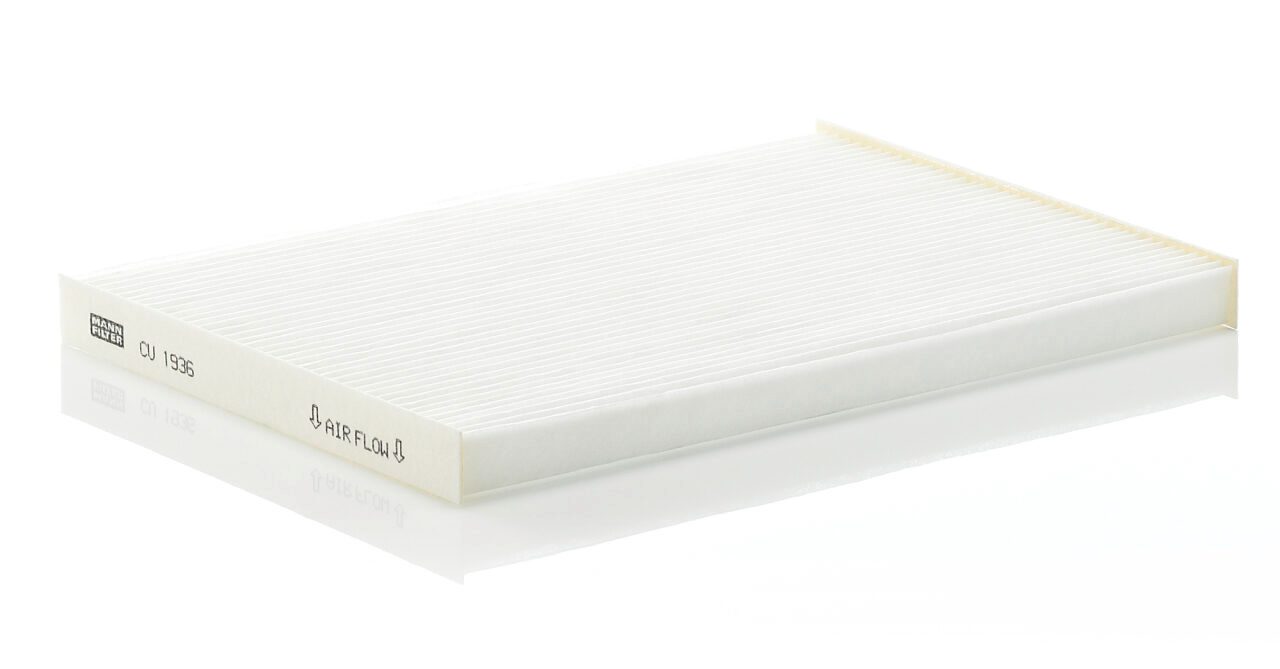

Product Image CU1936_MANN-FILTER

Product Image CU1936_MANN-FILTER
A 265
B 190
H 20

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.5 dCi (J10E, JJ10E) Cabin Air Filter K9K 1461 78 106 02/07 → 12/13
1.5 dCi DPF (J10E, JJ10E) Cabin Air Filter K9K 1461 76 103 02/07 → 12/13
1.6 (J10E, JJ10E) Cabin Air Filter HR16DE 1598 86 117 11/10 → 04/14
1.6 (J10E, JJ10E) Cabin Air Filter HR16DE 1598 84 114 02/07 → 12/13
1.6 dCi (J10E, JJ10E) Cabin Air Filter R9M 1598 96 131 09/11 → 12/13
2.0 (J10E, JJ10E) Cabin Air Filter MR20DE 1997 104 141 02/07 → 04/14
2.0 dCi (J10E, JJ10E) Cabin Air Filter M9R, M1D 1994 110 150 05/07 → 12/13
Model Type 1.5 dCi (J10E, JJ10E)
Filter Type Cabin Air Filter
Engine Code K9K
ccm 1461
kW 78
HP 106
Year of Manufacture 02/07 → 12/13
Model Type 1.5 dCi DPF (J10E, JJ10E)
Filter Type Cabin Air Filter
Engine Code K9K
ccm 1461
kW 76
HP 103
Year of Manufacture 02/07 → 12/13
Model Type 1.6 (J10E, JJ10E)
Filter Type Cabin Air Filter
Engine Code HR16DE
ccm 1598
kW 86
HP 117
Year of Manufacture 11/10 → 04/14
Model Type 1.6 (J10E, JJ10E)
Filter Type Cabin Air Filter
Engine Code HR16DE
ccm 1598
kW 84
HP 114
Year of Manufacture 02/07 → 12/13
Model Type 1.6 dCi (J10E, JJ10E)
Filter Type Cabin Air Filter
Engine Code R9M
ccm 1598
kW 96
HP 131
Year of Manufacture 09/11 → 12/13
Model Type 2.0 (J10E, JJ10E)
Filter Type Cabin Air Filter
Engine Code MR20DE
ccm 1997
kW 104
HP 141
Year of Manufacture 02/07 → 04/14
Model Type 2.0 dCi (J10E, JJ10E)
Filter Type Cabin Air Filter
Engine Code M9R, M1D
ccm 1994
kW 110
HP 150
Year of Manufacture 05/07 → 12/13

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.5 (AWD)
Cabin Air Filter QR25DE 2488 125 170 01/07 → 12/13
Model Type 2.5 (AWD)
Filter Type Cabin Air Filter
Engine Code QR25DE
ccm 2488
kW 125
HP 170
Year of Manufacture 01/07 → 12/13

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.0 16V (T31) Cabin Air Filter MR20DE - 104 141 07/07 → 09/10
2.0 dCi (T31) Cabin Air Filter M9R760 - 127 173 07/07 → 12/13
2.0 dCi (T31) Cabin Air Filter M9R - 110 150 07/07 → 12/13
2.0 dCi 4x4 (T31) Cabin Air Filter M9R 760 1995 130 177 10/09 → 11/13
2.5 16V (T31) Cabin Air Filter QR25DE 2488 124 169 09/07 → 07/14
Model Type 2.0 16V (T31)
Filter Type Cabin Air Filter
Engine Code MR20DE
ccm -
kW 104
HP 141
Year of Manufacture 07/07 → 09/10
Model Type 2.0 dCi (T31)
Filter Type Cabin Air Filter
Engine Code M9R760
ccm -
kW 127
HP 173
Year of Manufacture 07/07 → 12/13
Model Type 2.0 dCi (T31)
Filter Type Cabin Air Filter
Engine Code M9R
ccm -
kW 110
HP 150
Year of Manufacture 07/07 → 12/13
Model Type 2.0 dCi 4x4 (T31)
Filter Type Cabin Air Filter
Engine Code M9R 760
ccm 1995
kW 130
HP 177
Year of Manufacture 10/09 → 11/13
Model Type 2.5 16V (T31)
Filter Type Cabin Air Filter
Engine Code QR25DE
ccm 2488
kW 124
HP 169
Year of Manufacture 09/07 → 07/14

  • B7277-EN00M
  • 27277-EN000
  • 27277-EN025

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: CU 1936

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2024-09-24 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Installation Instruction: CU 1936
Cabin Air Filter Content

Cabin air filters put the joy back into driving

Cabin air filter against pollen by MANN-FILTER

Air flows into a vehicle at a volume of up to 540,000 litres per hour through the ventilation ducts. Imagine the amount of dirt and dust that comes with it. Now picture that entering your lungs. Not a pretty picture. In fact, the air inside a car contains around five times more exhaust gases, pollutants and allergens than outside air. Vehicle cabin air filters remove up to 90% of even the tiniest  harmful particulates (up to 1µm, in size)  creating a barrier between passengers and the incoming air.

A MANN-FILTER cabin air filter can separate tiny particulates almost 100% – the damaging micro-organisms contained in pollen, exhaust fumes, smoke, fossil fuel emissions and gas droplets. Some of these are smaller than 3% of the diameter of a human hair. Which shows how powerful and effective a pollen filter is.

Dust and pollen filters: Benefits at a glance

What’s all the fuss about? Here are the cabin air filter benefits you will enjoy with a MANN-FILTER product:

  • Performance – Our premium products offer exceptional performance in cabin air filter technology
  • Wellbeing – Clean air improves the health and wellbeing of everyone traveling in the vehicle
  • Efficiency – Servicing and replacing the air conditioning filter in a car regularly improves system functionality
  • Support – Our easy to use online catalogue and simple installation instructions provide the guidance for a perfect fit!

What you need to know about changing a cabin air filter

Replace your cabin air filter after 15.000 km or every year

Cabin air filter replacement is vital to keeping the air clean inside your vehicle. This is often done as a feature of your regular servicing regime. Cabin air filters should be replaced once a year or every 15,000 km. To optimize the clean air inside the car and improve the driving experience, check your cabin air filter annually.

How will you know if your cabin air filter needs changing?

  • Listen out for strange noises. These could be caused by deposits inside the filter
  • Watch for unpleasant smells
  • Poor air flow is a sign of a clogged cabin air filter
  • If your windows fog up frequently and are hard to clear, change your filter

Compare all MANN-FILTER cabin air filters

BenefitsPREMIUM
FreciousPlus (FP)
ADVANCED
CUK
BASIC
CU
Provides more than 95% protection against allergens
Prevents growth of mold and bacteria on the filter
Blocks particulate matter up to 95% (PM2.5)
Eliminates almost 90% of odours
Traps harmful gases, such as ozone, nitrogen oxides and sulphur dioxide
Almost 100% filtration of tiny particles
Significant reduction of diesel soot (>95%)
Protects the air conditioning system
