Cabin Air Filter
CU 2316

About this item

High-quality MANN-FILTER cabin filters offer almost 100% protection against particles such as pollen, diesel soot and tyre abrasion - for a feel-good climate in the vehicle interior and protection of the air conditioning system. Exact fit and perfect tightness ensure constant filtration performance during the entire service interval / Optimum vehicle interior ventilation due to the high air flow capacity.

  • A = 255 mm; B = 186 mm; H = 42 mm
  • Particulate filter
  • Mounting position: Passenger area in the central console

GTIN Code: 4011558312602

Mounting Instruction

Product Details

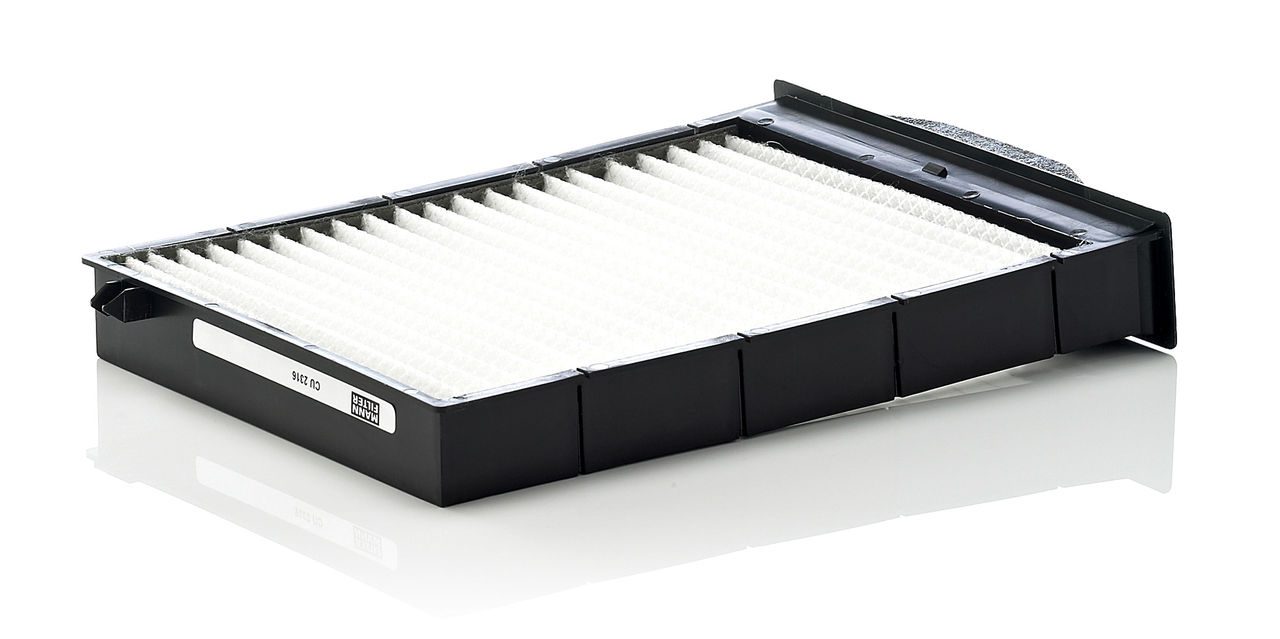

Product Image CU2316_MANN-FILTER

Product Image CU2316_MANN-FILTER
A 255 mm
B 186 mm
H 42 mm

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.4 16V Cabin Air Filter K4J 1390 60 82 10/02 → 02/08
1.4 16V Cabin Air Filter K4J-730 1390 72 98 10/02 → 07/09
1.5 dCi Cabin Air Filter K9K-724 1461 63 86 06/05 → 12/10
1.5 dCi Cabin Air Filter K9K-722 1461 60 82 10/02 → 06/05
1.5 dCi Cabin Air Filter K9K 728 1461 74 101 10/03 → 06/05
1.5 dCi Cabin Air Filter K9K-732 1461 78 106 06/05 → 12/10
1.6 16V Cabin Air Filter K4M 762 1598 77 105 05/05 → 07/09
1.6 16V Cabin Air Filter K4M 760 / 761, K4M 812 / 813 1598 83 113 10/02 → 12/10
1.6 BiFuel (BM0/1_, CM0/1_) Cabin Air Filter K4M 788 1598 77 105 06/05 → 02/08
1.9 dCi Cabin Air Filter F9Q-800 1870 88 120 10/02 → 06/05
1.9 dCi Cabin Air Filter F9Q 1870 68 92 03/04 → 06/05
1.9 dCi FAP Cabin Air Filter F9Q 1870 96 130 06/05 → 12/09
1.9 dCi FAP Cabin Air Filter F9Q 1870 81 110 01/06 → 07/09
2.0 dCi 16V Cabin Air Filter M9R 700/740 1995 110 150 01/06 → 07/09
2.0 dCi 16V Cabin Air Filter M9R 1995 127 173 04/07 → 02/08
2.0 16V Cabin Air Filter F4R-770M 1998 99 135 10/02 → 12/10
2.0 16V Turbo Cabin Air Filter F4R, F4R 776 1998 120 163 09/04 → 12/09
2.0 16V Turbo RS (Mégane Sport) Cabin Air Filter F4R 1998 165 224 09/03 → 10/09
Model Type 1.4 16V
Filter Type Cabin Air Filter
Engine Code K4J
ccm 1390
kW 60
HP 82
Year of Manufacture 10/02 → 02/08
Model Type 1.4 16V
Filter Type Cabin Air Filter
Engine Code K4J-730
ccm 1390
kW 72
HP 98
Year of Manufacture 10/02 → 07/09
Model Type 1.5 dCi
Filter Type Cabin Air Filter
Engine Code K9K-724
ccm 1461
kW 63
HP 86
Year of Manufacture 06/05 → 12/10
Model Type 1.5 dCi
Filter Type Cabin Air Filter
Engine Code K9K-722
ccm 1461
kW 60
HP 82
Year of Manufacture 10/02 → 06/05
Model Type 1.5 dCi
Filter Type Cabin Air Filter
Engine Code K9K 728
ccm 1461
kW 74
HP 101
Year of Manufacture 10/03 → 06/05
Model Type 1.5 dCi
Filter Type Cabin Air Filter
Engine Code K9K-732
ccm 1461
kW 78
HP 106
Year of Manufacture 06/05 → 12/10
Model Type 1.6 16V
Filter Type Cabin Air Filter
Engine Code K4M 762
ccm 1598
kW 77
HP 105
Year of Manufacture 05/05 → 07/09
Model Type 1.6 16V
Filter Type Cabin Air Filter
Engine Code K4M 760 / 761, K4M 812 / 813
ccm 1598
kW 83
HP 113
Year of Manufacture 10/02 → 12/10
Model Type 1.6 BiFuel (BM0/1_, CM0/1_)
Filter Type Cabin Air Filter
Engine Code K4M 788
ccm 1598
kW 77
HP 105
Year of Manufacture 06/05 → 02/08
Model Type 1.9 dCi
Filter Type Cabin Air Filter
Engine Code F9Q-800
ccm 1870
kW 88
HP 120
Year of Manufacture 10/02 → 06/05
Model Type 1.9 dCi
Filter Type Cabin Air Filter
Engine Code F9Q
ccm 1870
kW 68
HP 92
Year of Manufacture 03/04 → 06/05
Model Type 1.9 dCi FAP
Filter Type Cabin Air Filter
Engine Code F9Q
ccm 1870
kW 96
HP 130
Year of Manufacture 06/05 → 12/09
Model Type 1.9 dCi FAP
Filter Type Cabin Air Filter
Engine Code F9Q
ccm 1870
kW 81
HP 110
Year of Manufacture 01/06 → 07/09
Model Type 2.0 dCi 16V
Filter Type Cabin Air Filter
Engine Code M9R 700/740
ccm 1995
kW 110
HP 150
Year of Manufacture 01/06 → 07/09
Model Type 2.0 dCi 16V
Filter Type Cabin Air Filter
Engine Code M9R
ccm 1995
kW 127
HP 173
Year of Manufacture 04/07 → 02/08
Model Type 2.0 16V
Filter Type Cabin Air Filter
Engine Code F4R-770M
ccm 1998
kW 99
HP 135
Year of Manufacture 10/02 → 12/10
Model Type 2.0 16V Turbo
Filter Type Cabin Air Filter
Engine Code F4R, F4R 776
ccm 1998
kW 120
HP 163
Year of Manufacture 09/04 → 12/09
Model Type 2.0 16V Turbo RS (Mégane Sport)
Filter Type Cabin Air Filter
Engine Code F4R
ccm 1998
kW 165
HP 224
Year of Manufacture 09/03 → 10/09

  • 7701 055 109

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: CU 2316

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Installation Instruction: CU 2316
Cabin Air Filter Content

Cabin air filters put the joy back into driving

Cabin air filter against pollen by MANN-FILTER

Air flows into a vehicle at a volume of up to 540,000 litres per hour through the ventilation ducts. Imagine the amount of dirt and dust that comes with it. Now picture that entering your lungs. Not a pretty picture. In fact, the air inside a car contains around five times more exhaust gases, pollutants and allergens than outside air. Vehicle cabin air filters remove up to 90% of even the tiniest  harmful particulates (up to 1µm, in size)  creating a barrier between passengers and the incoming air.

A MANN-FILTER cabin air filter can separate tiny particulates almost 100% – the damaging micro-organisms contained in pollen, exhaust fumes, smoke, fossil fuel emissions and gas droplets. Some of these are smaller than 3% of the diameter of a human hair. Which shows how powerful and effective a pollen filter is.

Dust and pollen filters: Benefits at a glance

What’s all the fuss about? Here are the cabin air filter benefits you will enjoy with a MANN-FILTER product:

  • Performance – Our premium products offer exceptional performance in cabin air filter technology
  • Wellbeing – Clean air improves the health and wellbeing of everyone traveling in the vehicle
  • Efficiency – Servicing and replacing the air conditioning filter in a car regularly improves system functionality
  • Support – Our easy to use online catalogue and simple installation instructions provide the guidance for a perfect fit!

What you need to know about changing a cabin air filter

Replace your cabin air filter after 15.000 km or every year

Cabin air filter replacement is vital to keeping the air clean inside your vehicle. This is often done as a feature of your regular servicing regime. Cabin air filters should be replaced once a year or every 15,000 km. To optimize the clean air inside the car and improve the driving experience, check your cabin air filter annually.

How will you know if your cabin air filter needs changing?

  • Listen out for strange noises. These could be caused by deposits inside the filter
  • Watch for unpleasant smells
  • Poor air flow is a sign of a clogged cabin air filter
  • If your windows fog up frequently and are hard to clear, change your filter

Compare all MANN-FILTER cabin air filters

BenefitsPREMIUM
FreciousPlus (FP)
ADVANCED
CUK
BASIC
CU
Provides more than 95% protection against allergens
Prevents growth of mold and bacteria on the filter
Blocks particulate matter up to 95% (PM2.5)
Eliminates almost 90% of odours
Traps harmful gases, such as ozone, nitrogen oxides and sulphur dioxide
Almost 100% filtration of tiny particles
Significant reduction of diesel soot (>95%)
Protects the air conditioning system
