Cabin Air Filter
CU 3058/1

About this item

High-quality MANN-FILTER cabin filters offer almost 100% protection against particles such as pollen, diesel soot and tyre abrasion - for a feel-good climate in the vehicle interior and protection of the air conditioning system. Exact fit and perfect tightness ensure constant filtration performance during the entire service interval / Optimum vehicle interior ventilation due to the high air flow capacity.

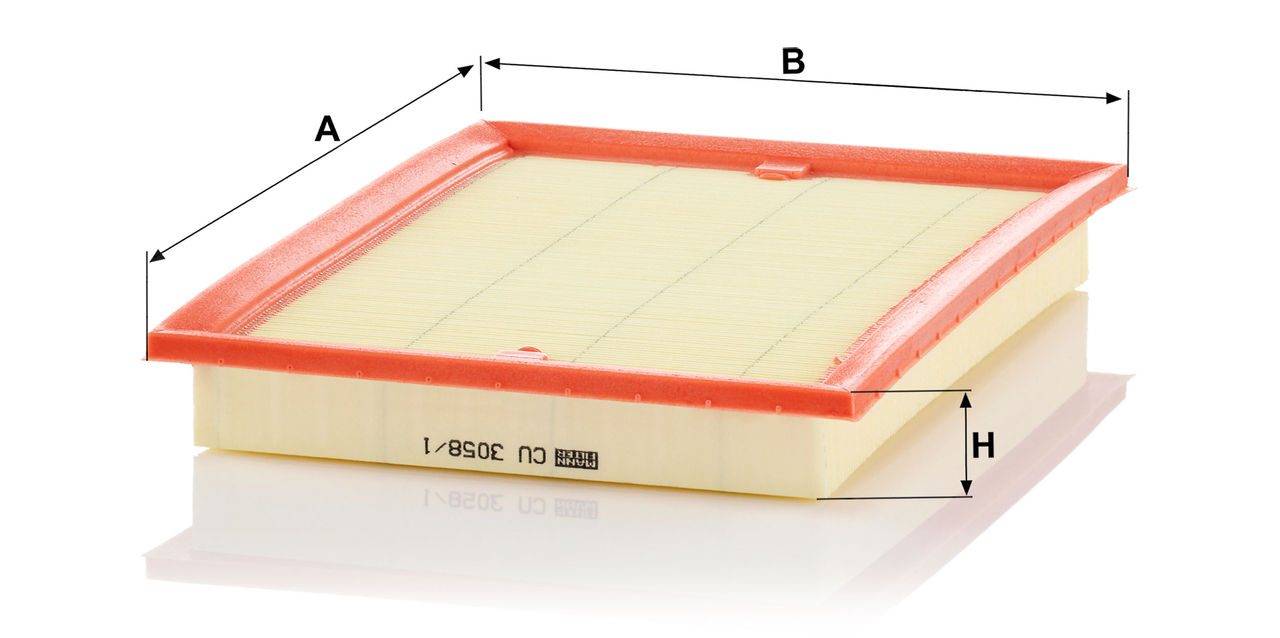

  • A = 295 mm; B = 212 mm; H = 36 mm
  • Particulate filter

GTIN Code: 4011558026561

Product Details

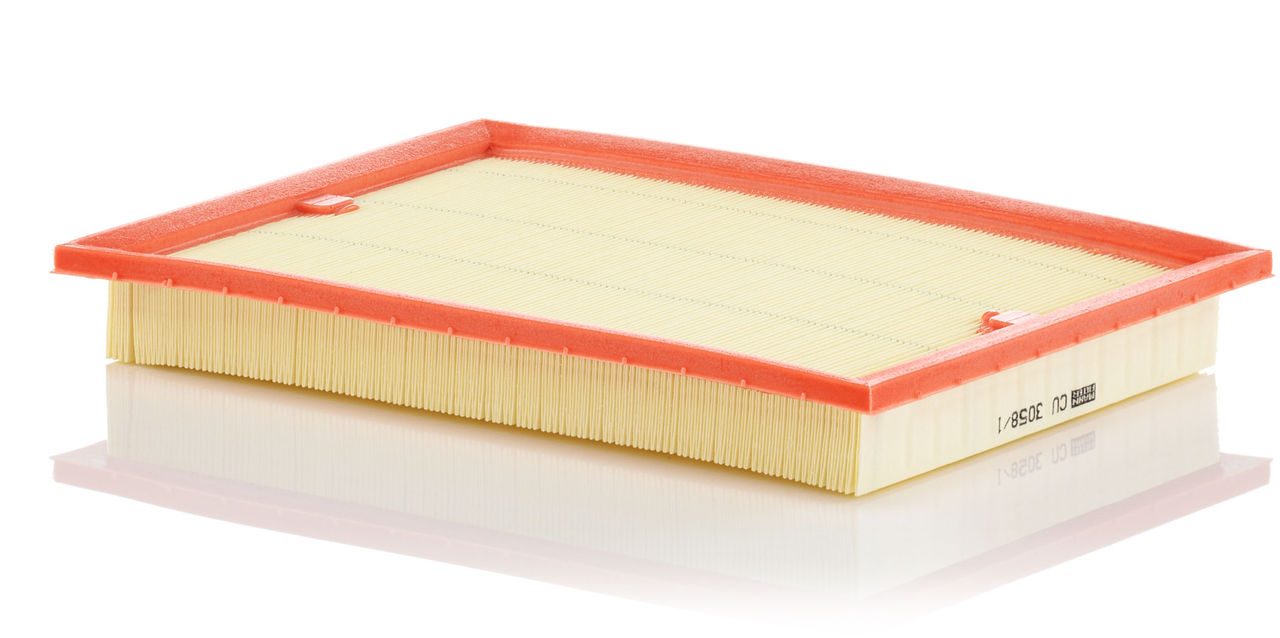

Product Image CU3058/1_MANN-FILTER

Product Image CU3058/1_MANN-FILTER
A 295 mm
B 212 mm
H 36 mm

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
309 (Typ 336)
Cabin Air Filter Deutz TCD 2012 L-4V 4038 59 80 08/06 →
309 SCR (Typ 322)
Cabin Air Filter Deutz TCD 4.1 L4-4V - - -
310 (Typ 337)
Cabin Air Filter Deutz TCD 2012 L-4V 4038 66 90 08/06 →
310 SCR (Typ 323)
Cabin Air Filter Deutz TCD 2012 L4-4V - - -
311 (Typ 338)
Cabin Air Filter Deutz TCD 2012 L-4V 4038 74 100 08/06 →
311 SCR (Typ 324)
Cabin Air Filter Deutz TCD 2012 L4-4V - - -
312
Cabin Air Filter Deutz TCD 2012 L-4V 4038 81 110 08/06 →
312 SCR (Typ 325)
Cabin Air Filter Deutz TCD 2012 L4-4V - - -
313 SCR (Typ 340) (00101-99999)
Cabin Air Filter Deutz TCD 2012 L4-4V 4038 99 135 01/12 →
Model Type 309 (Typ 336)
Filter Type Cabin Air Filter
Engine Code Deutz TCD 2012 L-4V
ccm 4038
kW 59
HP 80
Year of Manufacture 08/06 →
Model Type 309 SCR (Typ 322)
Filter Type Cabin Air Filter
Engine Code Deutz TCD 4.1 L4-4V
ccm -
kW -
HP -
Year of Manufacture
Model Type 310 (Typ 337)
Filter Type Cabin Air Filter
Engine Code Deutz TCD 2012 L-4V
ccm 4038
kW 66
HP 90
Year of Manufacture 08/06 →
Model Type 310 SCR (Typ 323)
Filter Type Cabin Air Filter
Engine Code Deutz TCD 2012 L4-4V
ccm -
kW -
HP -
Year of Manufacture
Model Type 311 (Typ 338)
Filter Type Cabin Air Filter
Engine Code Deutz TCD 2012 L-4V
ccm 4038
kW 74
HP 100
Year of Manufacture 08/06 →
Model Type 311 SCR (Typ 324)
Filter Type Cabin Air Filter
Engine Code Deutz TCD 2012 L4-4V
ccm -
kW -
HP -
Year of Manufacture
Model Type 312
Filter Type Cabin Air Filter
Engine Code Deutz TCD 2012 L-4V
ccm 4038
kW 81
HP 110
Year of Manufacture 08/06 →
Model Type 312 SCR (Typ 325)
Filter Type Cabin Air Filter
Engine Code Deutz TCD 2012 L4-4V
ccm -
kW -
HP -
Year of Manufacture
Model Type 313 SCR (Typ 340) (00101-99999)
Filter Type Cabin Air Filter
Engine Code Deutz TCD 2012 L4-4V
ccm 4038
kW 99
HP 135
Year of Manufacture 01/12 →

  • H339.810.130.100

  • H 339 810 130 100
  • H 339 810 130 101

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: CU 3058/1

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that this product contains the following SVHC listed on the Candidate List in a concentration above 0,1% (w/w):

Substances:
80-05-7; 4,4-Isopropylidenediphenol
Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Cabin Air Filter Content

Cabin air filters put the joy back into driving

Cabin air filter against pollen by MANN-FILTER

Air flows into a vehicle at a volume of up to 540,000 litres per hour through the ventilation ducts. Imagine the amount of dirt and dust that comes with it. Now picture that entering your lungs. Not a pretty picture. In fact, the air inside a car contains around five times more exhaust gases, pollutants and allergens than outside air. Vehicle cabin air filters remove up to 90% of even the tiniest  harmful particulates (up to 1µm, in size)  creating a barrier between passengers and the incoming air.

A MANN-FILTER cabin air filter can separate tiny particulates almost 100% – the damaging micro-organisms contained in pollen, exhaust fumes, smoke, fossil fuel emissions and gas droplets. Some of these are smaller than 3% of the diameter of a human hair. Which shows how powerful and effective a pollen filter is.

Dust and pollen filters: Benefits at a glance

What’s all the fuss about? Here are the cabin air filter benefits you will enjoy with a MANN-FILTER product:

  • Performance – Our premium products offer exceptional performance in cabin air filter technology
  • Wellbeing – Clean air improves the health and wellbeing of everyone traveling in the vehicle
  • Efficiency – Servicing and replacing the air conditioning filter in a car regularly improves system functionality
  • Support – Our easy to use online catalogue and simple installation instructions provide the guidance for a perfect fit!

What you need to know about changing a cabin air filter

Replace your cabin air filter after 15.000 km or every year

Cabin air filter replacement is vital to keeping the air clean inside your vehicle. This is often done as a feature of your regular servicing regime. Cabin air filters should be replaced once a year or every 15,000 km. To optimize the clean air inside the car and improve the driving experience, check your cabin air filter annually.

How will you know if your cabin air filter needs changing?

  • Listen out for strange noises. These could be caused by deposits inside the filter
  • Watch for unpleasant smells
  • Poor air flow is a sign of a clogged cabin air filter
  • If your windows fog up frequently and are hard to clear, change your filter

Compare all MANN-FILTER cabin air filters

BenefitsPREMIUM
FreciousPlus (FP)
ADVANCED
CUK
BASIC
CU
Provides more than 95% protection against allergens
Prevents growth of mold and bacteria on the filter
Blocks particulate matter up to 95% (PM2.5)
Eliminates almost 90% of odours
Traps harmful gases, such as ozone, nitrogen oxides and sulphur dioxide
Almost 100% filtration of tiny particles
Significant reduction of diesel soot (>95%)
Protects the air conditioning system
