Cabin Air Filter
CUK 3020

About this item

High-quality MANN-FILTER cabin filters with active carbon - nearly 100% protection from particles like pollen, diesel soot & tyre abrasion / Additional protection from harmful gases & unpleasant odour. The trated highly-effective activated carbon gives protection against harmful gases such as ozone, nitrogen oxide or sulphur dioxide and eliminates unpleasant odours during the entire service interval.

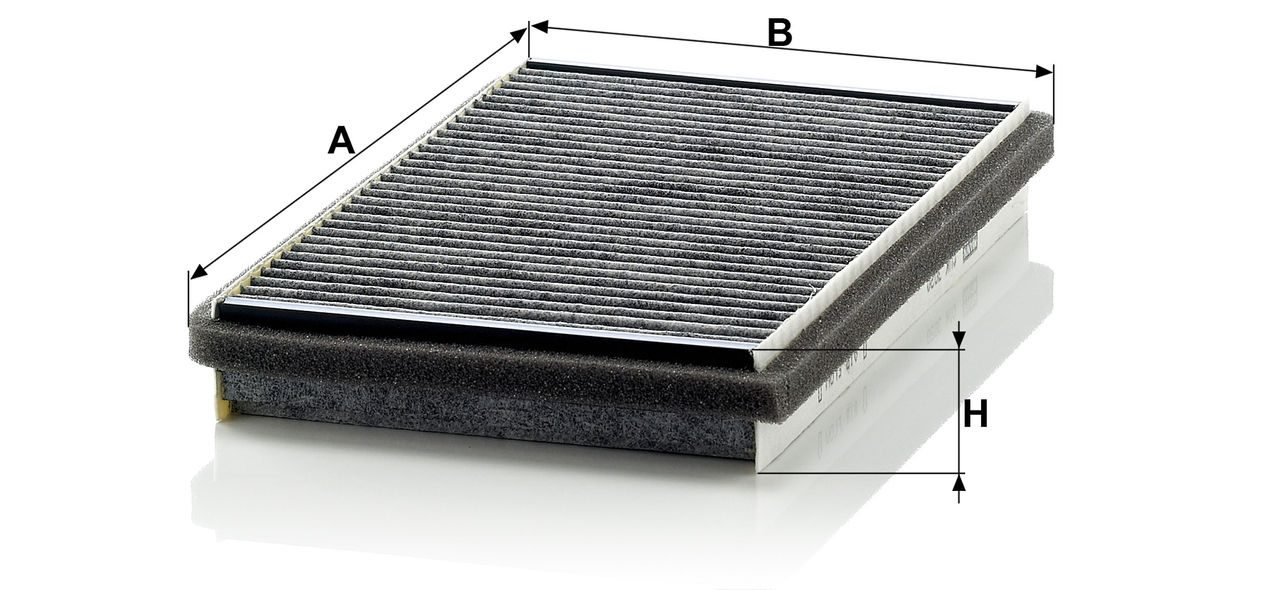

  • A = 266 mm; B = 156 mm; H = 34 mm
  • Activated carbon filter

GTIN Code: 4011558403201

Mounting Instruction

Product Details

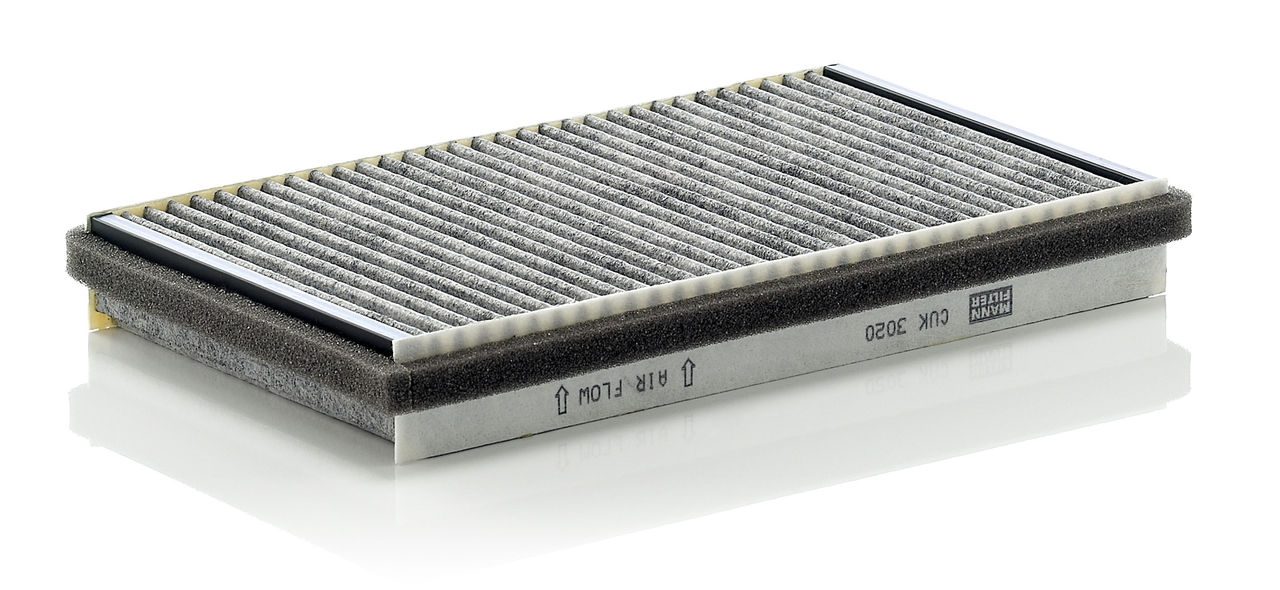

Product Image CUK3020_MANN-FILTER

Product Image CUK3020_MANN-FILTER
A 266 mm
B 156 mm
H 34 mm

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.6 16V (186) Cabin Air Filter 182.A4.000, 182.B6.000 1581 76 103 10/98 → 06/10
1.6 16V (186) Cabin Air Filter 186 A3.000 1581 70 95 04/99 → 12/10
1.6 16V (186) Cabin Air Filter 186 A4.000 1581 68 92 04/99 → 08/05
1.6 16V Bipower (186) Cabin Air Filter 186 A3/4.000 1596 76 103 10/01 → 06/10
1.9 JTD (186) Cabin Air Filter 182.B4.000 1910 77 105 10/98 → 03/01
1.9 JTD 110 (186) Cabin Air Filter 186 A6.000 1910 81 110 02/01 → 07/02
1.9 JTD 115 (186) Cabin Air Filter 186 A8.000 1910 85 115 07/02 → 06/10
1.9 JTD 120 (186) Cabin Air Filter 186 A9.000 1910 88 120 07/02 → 06/10
Model Type 1.6 16V (186)
Filter Type Cabin Air Filter
Engine Code 182.A4.000, 182.B6.000
ccm 1581
kW 76
HP 103
Year of Manufacture 10/98 → 06/10
Model Type 1.6 16V (186)
Filter Type Cabin Air Filter
Engine Code 186 A3.000
ccm 1581
kW 70
HP 95
Year of Manufacture 04/99 → 12/10
Model Type 1.6 16V (186)
Filter Type Cabin Air Filter
Engine Code 186 A4.000
ccm 1581
kW 68
HP 92
Year of Manufacture 04/99 → 08/05
Model Type 1.6 16V Bipower (186)
Filter Type Cabin Air Filter
Engine Code 186 A3/4.000
ccm 1596
kW 76
HP 103
Year of Manufacture 10/01 → 06/10
Model Type 1.9 JTD (186)
Filter Type Cabin Air Filter
Engine Code 182.B4.000
ccm 1910
kW 77
HP 105
Year of Manufacture 10/98 → 03/01
Model Type 1.9 JTD 110 (186)
Filter Type Cabin Air Filter
Engine Code 186 A6.000
ccm 1910
kW 81
HP 110
Year of Manufacture 02/01 → 07/02
Model Type 1.9 JTD 115 (186)
Filter Type Cabin Air Filter
Engine Code 186 A8.000
ccm 1910
kW 85
HP 115
Year of Manufacture 07/02 → 06/10
Model Type 1.9 JTD 120 (186)
Filter Type Cabin Air Filter
Engine Code 186 A9.000
ccm 1910
kW 88
HP 120
Year of Manufacture 07/02 → 06/10

  • 00 1302 311 0

  • 46513960

  • 6710730 D3691
  • 6747823 D3691

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: CUK 3020

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Cabin Air Filter Content

Cabin air filters put the joy back into driving

Cabin air filter against pollen by MANN-FILTER

Air flows into a vehicle at a volume of up to 540,000 litres per hour through the ventilation ducts. Imagine the amount of dirt and dust that comes with it. Now picture that entering your lungs. Not a pretty picture. In fact, the air inside a car contains around five times more exhaust gases, pollutants and allergens than outside air. Vehicle cabin air filters remove up to 90% of even the tiniest  harmful particulates (up to 1µm, in size)  creating a barrier between passengers and the incoming air.

A MANN-FILTER cabin air filter can separate tiny particulates almost 100% – the damaging micro-organisms contained in pollen, exhaust fumes, smoke, fossil fuel emissions and gas droplets. Some of these are smaller than 3% of the diameter of a human hair. Which shows how powerful and effective a pollen filter is.

Dust and pollen filters: Benefits at a glance

What’s all the fuss about? Here are the cabin air filter benefits you will enjoy with a MANN-FILTER product:

  • Performance – Our premium products offer exceptional performance in cabin air filter technology
  • Wellbeing – Clean air improves the health and wellbeing of everyone traveling in the vehicle
  • Efficiency – Servicing and replacing the air conditioning filter in a car regularly improves system functionality
  • Support – Our easy to use online catalogue and simple installation instructions provide the guidance for a perfect fit!

What you need to know about changing a cabin air filter

Replace your cabin air filter after 15.000 km or every year

Cabin air filter replacement is vital to keeping the air clean inside your vehicle. This is often done as a feature of your regular servicing regime. Cabin air filters should be replaced once a year or every 15,000 km. To optimize the clean air inside the car and improve the driving experience, check your cabin air filter annually.

How will you know if your cabin air filter needs changing?

  • Listen out for strange noises. These could be caused by deposits inside the filter
  • Watch for unpleasant smells
  • Poor air flow is a sign of a clogged cabin air filter
  • If your windows fog up frequently and are hard to clear, change your filter

Compare all MANN-FILTER cabin air filters

BenefitsPREMIUM
FreciousPlus (FP)
ADVANCED
CUK
BASIC
CU
Provides more than 95% protection against allergens
Prevents growth of mold and bacteria on the filter
Blocks particulate matter up to 95% (PM2.5)
Eliminates almost 90% of odours
Traps harmful gases, such as ozone, nitrogen oxides and sulphur dioxide
Almost 100% filtration of tiny particles
Significant reduction of diesel soot (>95%)
Protects the air conditioning system
