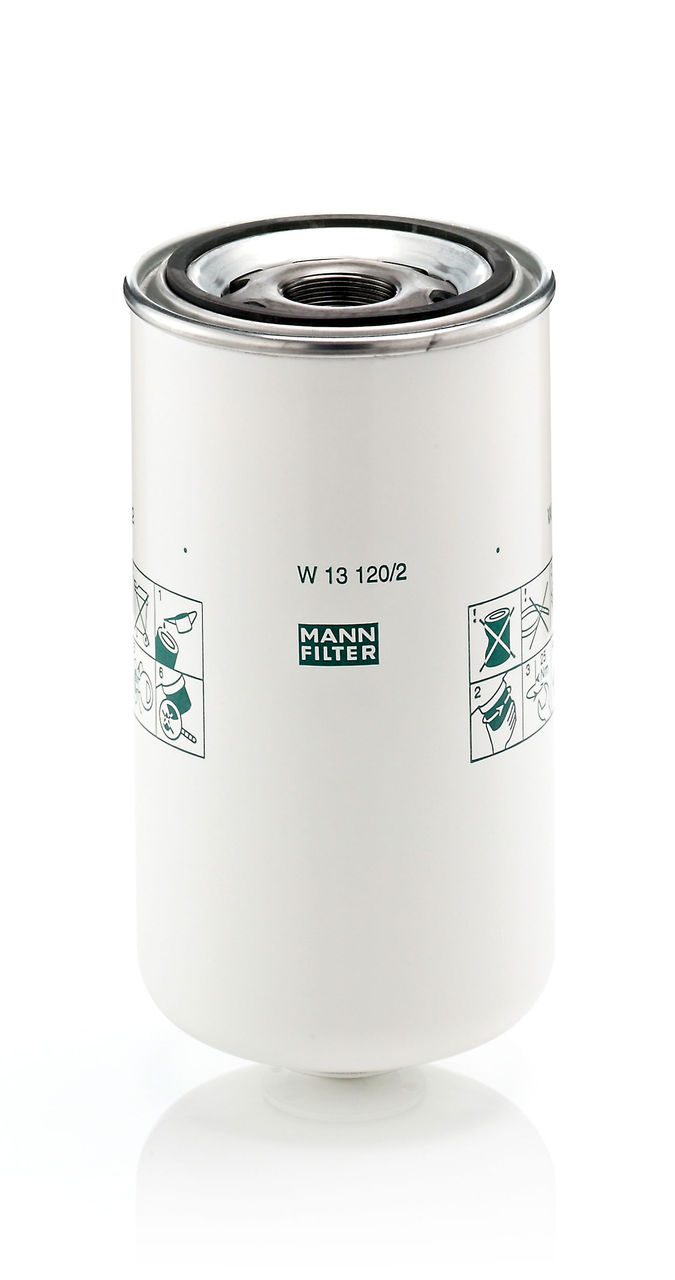

Product Image W13120/2_MANN-FILTER
Product Image W13120/2_MANN-FILTER

Oil Filter
W 13 120/2

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

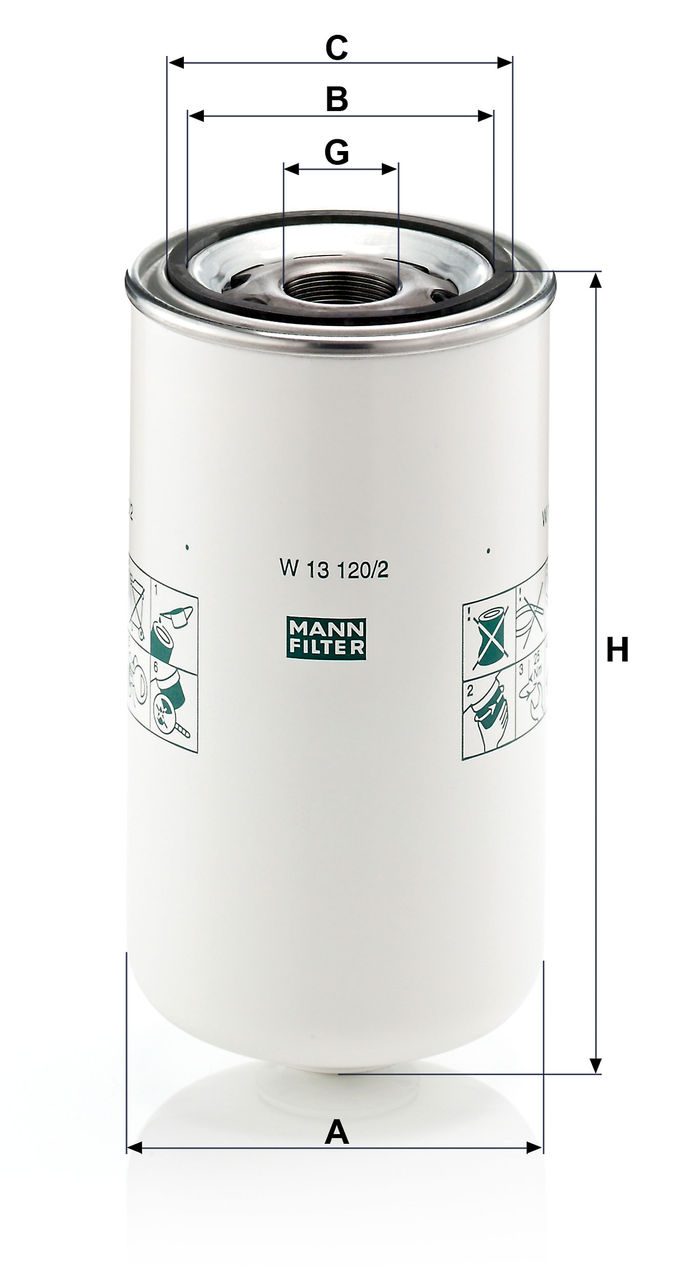

  • A = 136 mm; B = 100 mm; C = 111 mm; G = 1 1/2-16 UN; H = 248 mm

GTIN Code: 4011558716707

Product Details

Product Image W13120/2_MANN-FILTER

Product Image W13120/2_MANN-FILTER
A 136 mm
B 100 mm
C 111 mm
G 1 1/2-16 UN mm
H 248 mm
Bypass Valve Opening Pressure 2.5

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
SB 3000 Oil Filter WS 242 - 242 330 01/91 → 12/02
SB 3000 Oil Filter WS 268 - 268 365 01/91 → 12/02
Model Type SB 3000
Filter Type Oil Filter
Engine Code WS 242
ccm -
kW 242
HP 330
Year of Manufacture 01/91 → 12/02
Model Type SB 3000
Filter Type Oil Filter
Engine Code WS 268
ccm -
kW 268
HP 365
Year of Manufacture 01/91 → 12/02

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
75.240 ATi Oil Filter RS 180 L 8650 180 245 07/92 → 05/98
75.270 ATi Oil Filter RS 200 L 8650 200 272 07/92 → 05/98
75.300 ATi Oil Filter RS 222 L 8650 222 302 07/92 → 05/98
Model Type 75.240 ATi
Filter Type Oil Filter
Engine Code RS 180 L
ccm 8650
kW 180
HP 245
Year of Manufacture 07/92 → 05/98
Model Type 75.270 ATi
Filter Type Oil Filter
Engine Code RS 200 L
ccm 8650
kW 200
HP 272
Year of Manufacture 07/92 → 05/98
Model Type 75.300 ATi
Filter Type Oil Filter
Engine Code RS 222 L
ccm 8650
kW 222
HP 302
Year of Manufacture 07/92 → 05/98

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
85.300 ATi Oil Filter WS 222 L 11600 222 302 07/92 → 05/98
85.330 ATi
Oil Filter WS 242 L 11600 242 330 07/92 → 05/98
85.360 ATi
Oil Filter WS 268 L 11600 268 365 07/92 → 05/98
Model Type 85.300 ATi
Filter Type Oil Filter
Engine Code WS 222 L
ccm 11600
kW 222
HP 302
Year of Manufacture 07/92 → 05/98
Model Type 85.330 ATi
Filter Type Oil Filter
Engine Code WS 242 L
ccm 11600
kW 242
HP 330
Year of Manufacture 07/92 → 05/98
Model Type 85.360 ATi
Filter Type Oil Filter
Engine Code WS 268 L
ccm 11600
kW 268
HP 365
Year of Manufacture 07/92 → 05/98

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
U 18 Oil Filter DAF PF 235 M 9200 235 320 01/99 →
Model Type U 18
Filter Type Oil Filter
Engine Code DAF PF 235 M
ccm 9200
kW 235
HP 320
Year of Manufacture 01/99 →

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
FHD 10-200 Oil Filter DAF-RS 200 L 8650 200 272 01/97 → 12/00
FHD 10-300 Oil Filter DAF-RS 222 L 8650 222 300 01/97 → 12/00
Model Type FHD 10-200
Filter Type Oil Filter
Engine Code DAF-RS 200 L
ccm 8650
kW 200
HP 272
Year of Manufacture 01/97 → 12/00
Model Type FHD 10-300
Filter Type Oil Filter
Engine Code DAF-RS 222 L
ccm 8650
kW 222
HP 300
Year of Manufacture 01/97 → 12/00

  • 267715
  • 131 612/3
  • 134 6986
  • 0267715

  • K118013N50

  • 50 21 107 430

  • 50 01 846 643

  • 0170151000

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W 13 120/2

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Oil Filter Content

Our engine oil filters work hard so your engine doesn’t have to

This crucial engine component ensures your engine functions smoothly and at peak performance. At MANN-FILTER we understand how to get the best out of every engine. And it starts with optimum filtration.

In the automotive aftermarket world prevention is always better than cure. Foresight and knowledge can save you – and your customers – time, money and hassle. Once a particle of soot or dust has got into the engine oil it starts to scratch the surfaces it comes into contact with, turning your lubricant being more abrasive. Just changing the oil isn’t enough – you also need to change the filter. Frequent oil filter changes prevent damage and keep your engine oil filter function at optimum levels.

Frictionless functionality. Optimal performance.

ANN-FILTER workshop partner installing an oil filter in a car
  • Longevity – A build-up of residue in engine oil can damage other components, but filtered, clean oil keeps things working at peak performance
  • Protection – Safeguards your engine parts from wear and tear
  • Reliability – Ensures your engine can function well, even in cold conditions
