Oil Filter
W 13 145/1

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

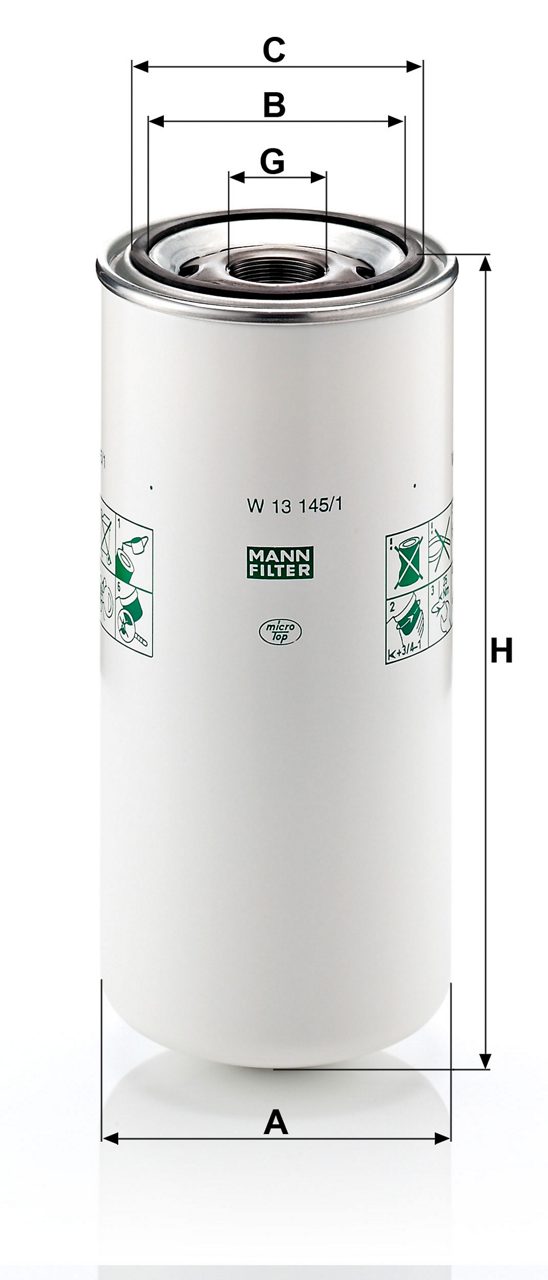

  • A = 136 mm; B = 100 mm; C = 111 mm; G = 1 1/2-16 UN; H = 302 mm

GTIN Code: 4011558716806

Product Details

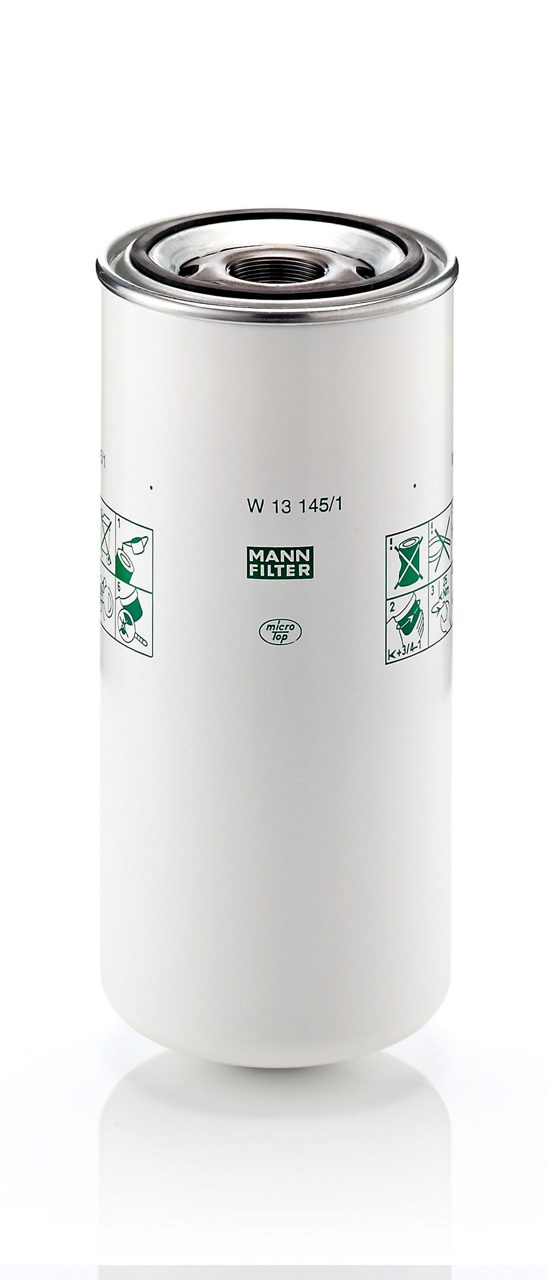

Product Image W13145/1_MANN-FILTER

Product Image W13145/1_MANN-FILTER
A 136
B 100
Bypass Valve Opening Pressure 2.5 bar
C 111
G 1 1/2-16 UN
H 302
Number of anti-drain back valve 1 piece(s)

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
D234-12 Oil Filter - - -
D234-8 Oil Filter - - -
TBD234-12 Oil Filter - - -
TBD234-6 Oil Filter - - -
TBD234-8 Oil Filter - - -
Model Type D234-12
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type D234-8
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type TBD234-12
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type TBD234-6
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type TBD234-8
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
D604-12 Oil Filter - - -
D604-8 Oil Filter - - -
TD604-12 Oil Filter - - -
TD604-8 Oil Filter - - -
Model Type D604-12
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type D604-8
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type TD604-12
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture
Model Type TD604-8
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of Manufacture

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
TBD616V16 Oil Filter 35040 - -
TBD616V8 Oil Filter 17520 - -
Model Type TBD616V16
Filter Type Oil Filter
Engine Code
ccm 35040
kW -
HP -
Year of Manufacture
Model Type TBD616V8
Filter Type Oil Filter
Engine Code
ccm 17520
kW -
HP -
Year of Manufacture

  • 1234 3124

  • 1212 8936
  • 02894035

  • 400 005.2009

  • VK-1580.00

  • 6.0541.29.7.0039
  • 1212 8936

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W 13 145/1

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2024-09-24 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Oil Filter Content

Our engine oil filters work hard so your engine doesn’t have to

This crucial engine component ensures your engine functions smoothly and at peak performance. At MANN-FILTER we understand how to get the best out of every engine. And it starts with optimum filtration.

In the automotive aftermarket world prevention is always better than cure. Foresight and knowledge can save you – and your customers – time, money and hassle. Once a particle of soot or dust has got into the engine oil it starts to scratch the surfaces it comes into contact with, turning your lubricant being more abrasive. Just changing the oil isn’t enough – you also need to change the filter. Frequent oil filter changes prevent damage and keep your engine oil filter function at optimum levels.

Frictionless functionality. Optimal performance.

ANN-FILTER workshop partner installing an oil filter in a car
  • Longevity – A build-up of residue in engine oil can damage other components, but filtered, clean oil keeps things working at peak performance
  • Protection – Safeguards your engine parts from wear and tear
  • Reliability – Ensures your engine can function well, even in cold conditions
