Fuel Filter
WK 8158

About this item

MANN-FILTER Fuel filters for high pressures remove unwanted and damaging dirt particles and water from the fuel and thus prevent possible damage due to wear and corrosion. Highest separation efficiency and sealing ensure functional reliability and protection during the entire maintenance interval / Reinforced or special materials suitable for use at elevated pressures.

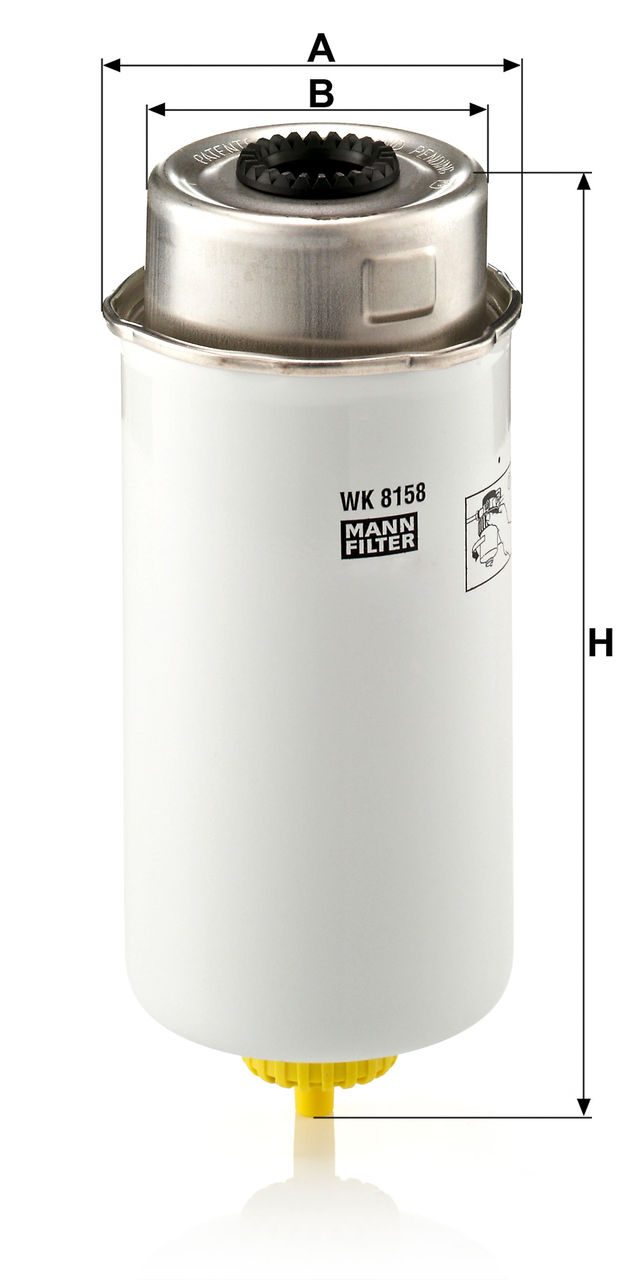

  • A = 88 mm; B = 69 mm; H = 196 mm

GTIN Code: 4011558967109

Product Details

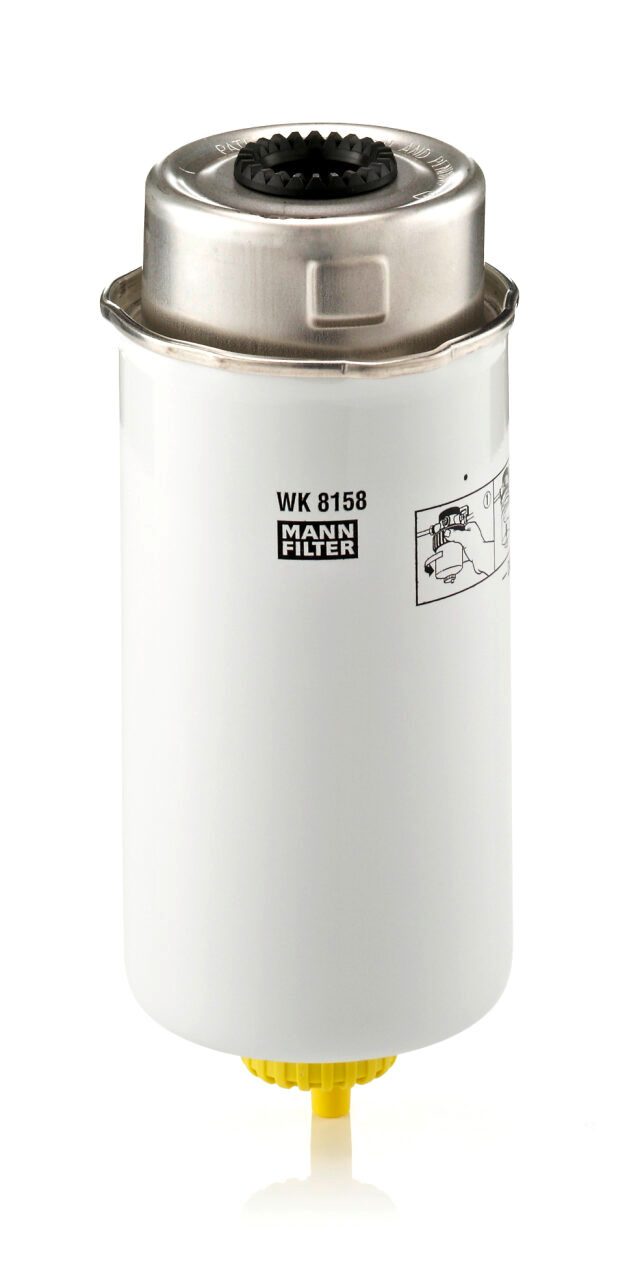

Product Image WK8158_MANN-FILTER

Product Image WK8158_MANN-FILTER
A 88 mm
B 69 mm
H 196 mm

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
2.2 TDCi
Fuel Filter P8FA, P8FB 2198 63 85 04/06 → 08/14
2.2 TDCi
Fuel Filter QVFA 2198 81 110 07/06 → 08/14
2.2 TDCi, TDCi ECOnetic
Fuel Filter SRFA,SRFB,SRFC,SRFD,SRFE 2198 85 115 10/08 → 08/14
2.2 TDCi
Fuel Filter QWFA 2198 96 130 07/06 → 08/14
2.2 TDCi
Fuel Filter PGFA,PGFB,UHFA,UHFB,UHFC 2198 103 140 10/07 → 08/14
2.4 TDCi
Fuel Filter PHFA, PHFC 2402 74 100 04/06 → 08/14
2.4 TDCi
Fuel Filter JXFA, JXFC 2402 85 115 04/06 → 08/14
2.4 TDCi
Fuel Filter H9FB 2402 103 140 07/06 → 08/14
3.2 TDCi Fuel Filter Duratorq DI 3.2 3198 147 200 10/07 → 11/11
Model Type 2.2 TDCi
Filter Type Fuel Filter
Engine Code P8FA, P8FB
ccm 2198
kW 63
HP 85
Year of Manufacture 04/06 → 08/14
Model Type 2.2 TDCi
Filter Type Fuel Filter
Engine Code QVFA
ccm 2198
kW 81
HP 110
Year of Manufacture 07/06 → 08/14
Model Type 2.2 TDCi, TDCi ECOnetic
Filter Type Fuel Filter
Engine Code SRFA,SRFB,SRFC,SRFD,SRFE
ccm 2198
kW 85
HP 115
Year of Manufacture 10/08 → 08/14
Model Type 2.2 TDCi
Filter Type Fuel Filter
Engine Code QWFA
ccm 2198
kW 96
HP 130
Year of Manufacture 07/06 → 08/14
Model Type 2.2 TDCi
Filter Type Fuel Filter
Engine Code PGFA,PGFB,UHFA,UHFB,UHFC
ccm 2198
kW 103
HP 140
Year of Manufacture 10/07 → 08/14
Model Type 2.4 TDCi
Filter Type Fuel Filter
Engine Code PHFA, PHFC
ccm 2402
kW 74
HP 100
Year of Manufacture 04/06 → 08/14
Model Type 2.4 TDCi
Filter Type Fuel Filter
Engine Code JXFA, JXFC
ccm 2402
kW 85
HP 115
Year of Manufacture 04/06 → 08/14
Model Type 2.4 TDCi
Filter Type Fuel Filter
Engine Code H9FB
ccm 2402
kW 103
HP 140
Year of Manufacture 07/06 → 08/14
Model Type 3.2 TDCi
Filter Type Fuel Filter
Engine Code Duratorq DI 3.2
ccm 3198
kW 147
HP 200
Year of Manufacture 10/07 → 11/11

  • 6C11-9176-AA
  • 6C11-9176-AB
  • 1370 779
  • 1685 861

  • 74 24 999 332

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: WK 8158

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

Fuel Filter Content

Fuel filters help your systems fire on clean, pure fuel

Make every mile or movement count with a MANN-FILTER fuel filter that gives your injection system exactly what it needs for smooth, powerful operating. A high-quality fuel filter is an essential component, ensuring peak performance and protection from abrasive particulates.

What you need to know about changing your fuel filter

MANN-FILTER workshop partner installing a fuel filter in a car

In order to do its work properly your fuel filter needs regular changing to fulfill its job in capturing unwanted particles and water circulating in your fuel. As a result, the injection system and nozzles will experience undue wear, and your vehicle or machine’s performance will suffer

If you’re unsure of potential fuel filter problem symptoms, here are some signs it’s time to get a fuel filter replacement:

  • Complete failure to start
  • Poor acceleration or a decrease in power
  • Sputtering or stalling at low speeds
  • Fuel efficiency is noticeably worse
  • System warning light comes on, indicating there’s a problem
